JRT-1TJ Timber Log Trailer Forestry Crane
High payload efficiency
Strong chassis and bunks
Reduced manpower and time
Make an inquiry will get the best shipping quotation

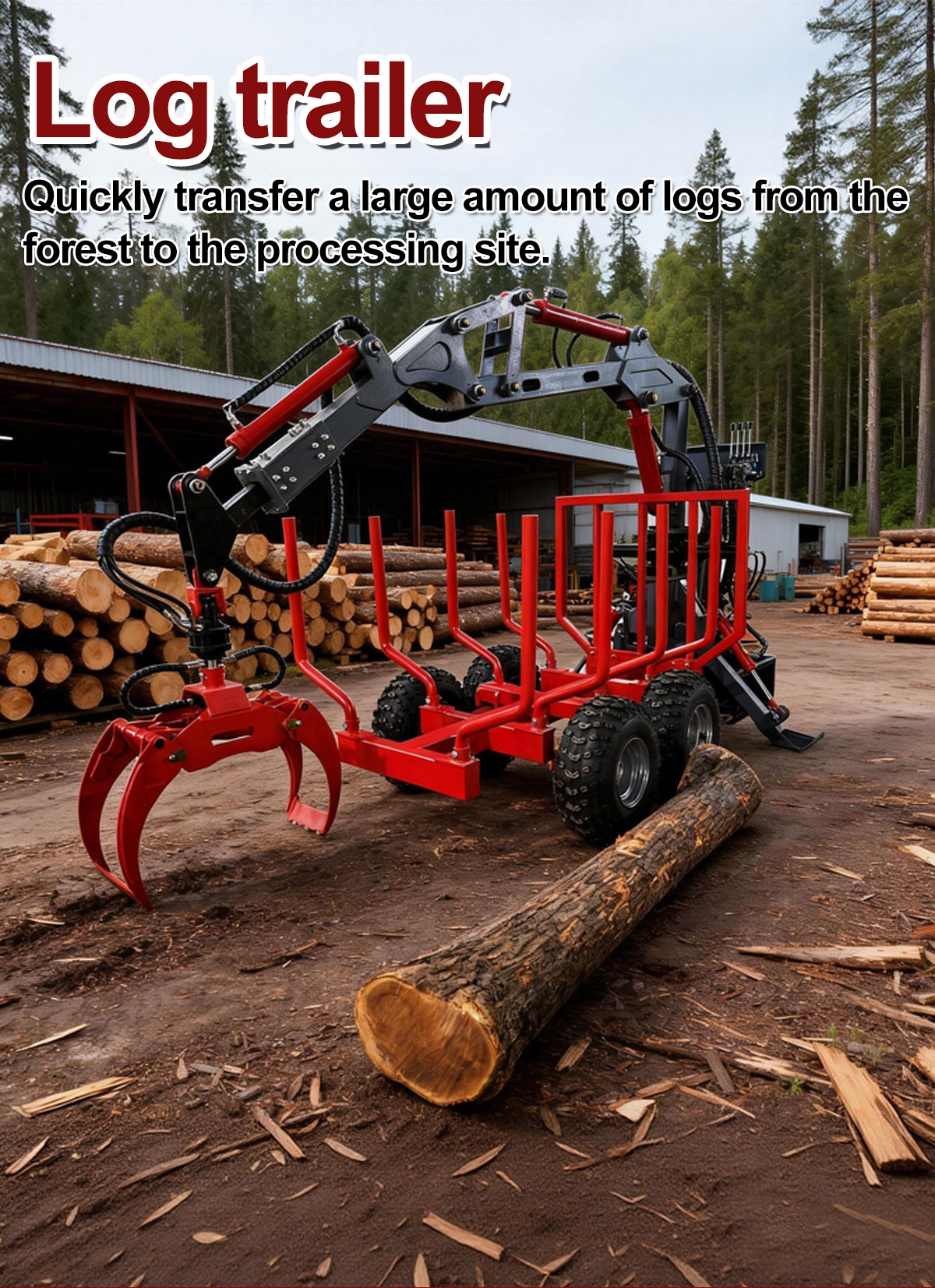

Log trailer (timber trailer) is a purpose-built transport vehicle designed to carry cut logs or long timber from harvest sites to mills, yards, or processing facilities. It’s optimized for heavy, awkward-length loads and for operation on and off-road in forestry settings.

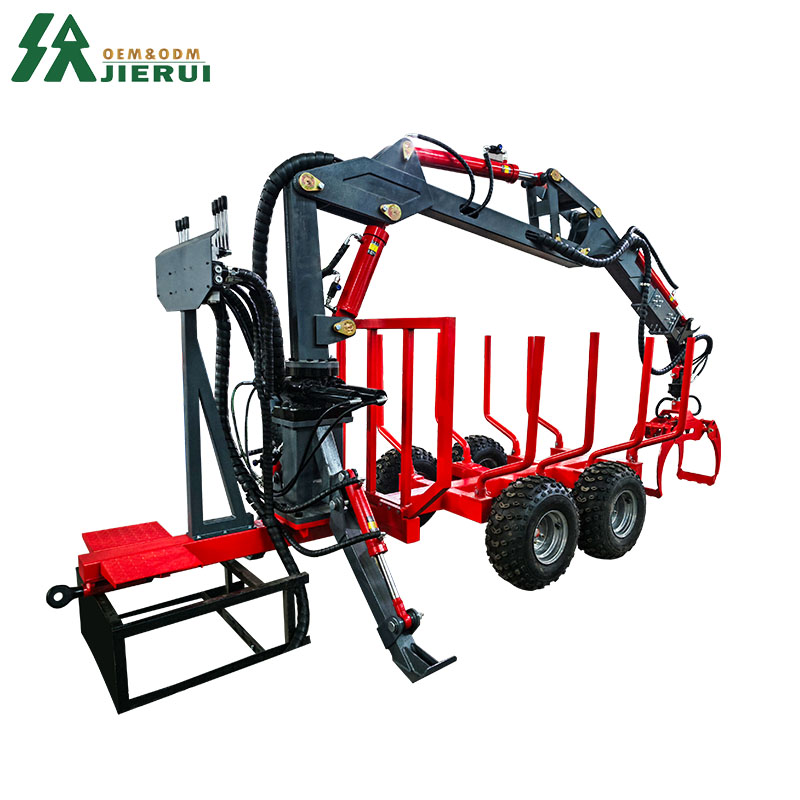

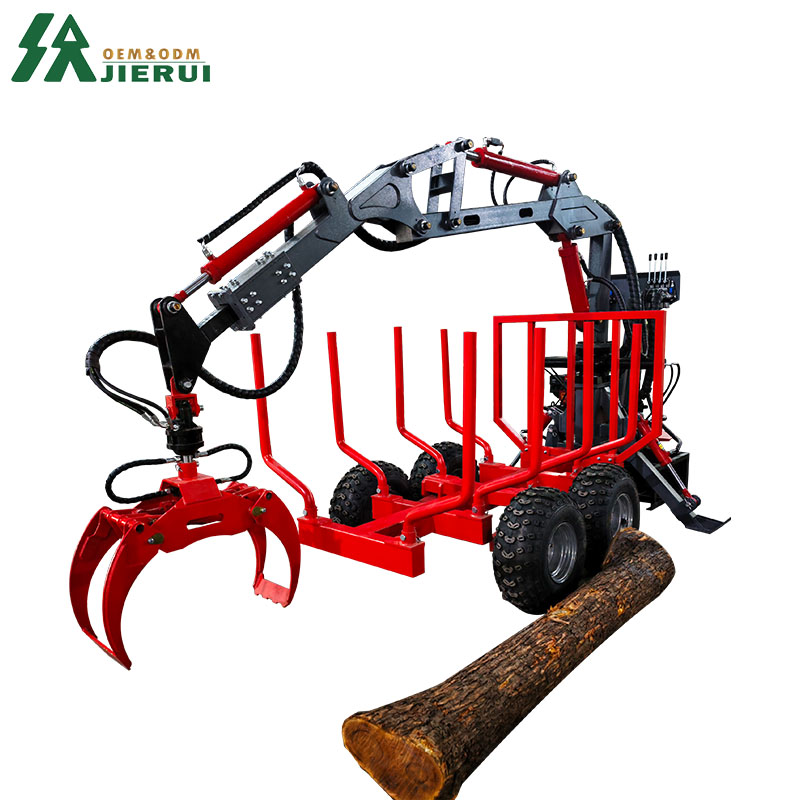

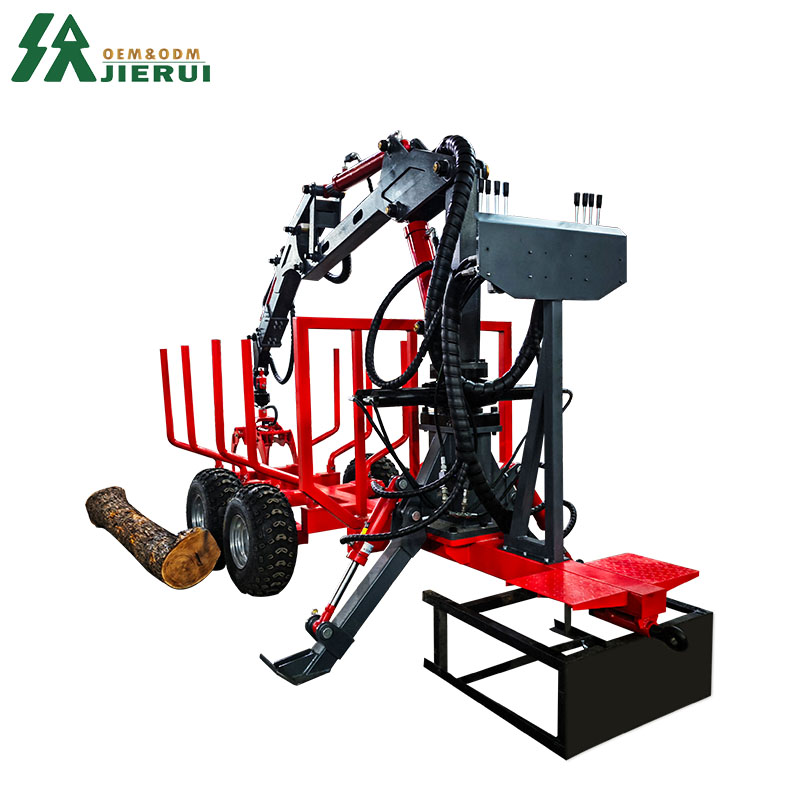

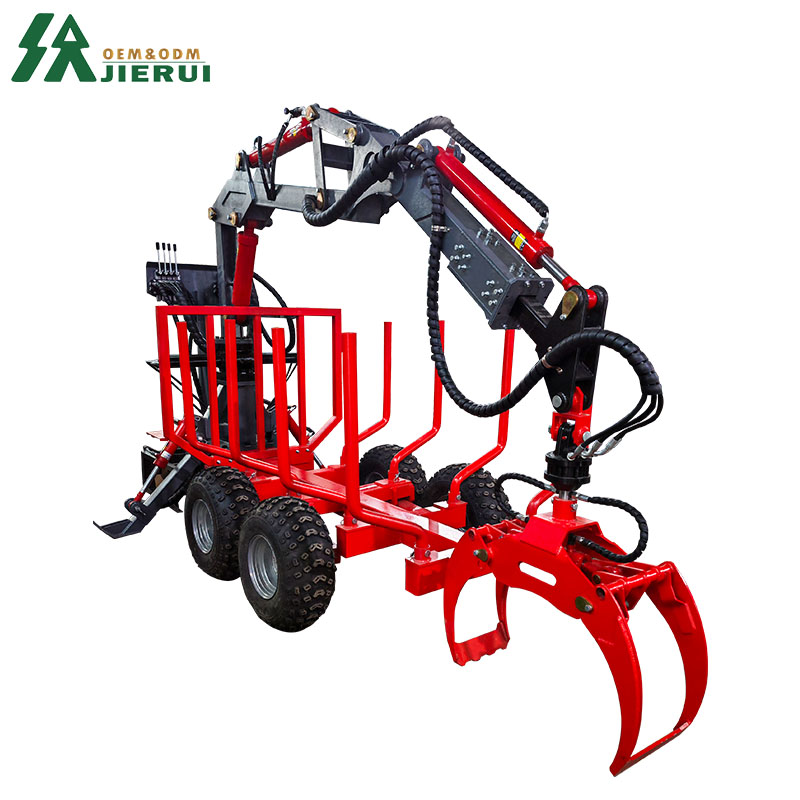

Log Trailer with Crane
loading and hauling. It combines a reinforced log trailer with a hydraulic crane, allowing operators to load, unload, and transport wood independently.
The integrated crane is typically equipped with a log grapple for precise handling. With its optimized boom geometry and strong lifting capacity, it ensures smooth and powerful operation. Hydraulic stabilizer legs provide stability during loading, even on uneven forest terrain.
Built with a durable steel frame, adjustable log bunks, and high-capacity axles, a wood trailer with crane is ideal for forestry operations, sawmills, and firewood production. It improves work efficiency, reduces labor requirements, and increases overall productivity in timber transport.
| Model | JRT-1T |
| Mactching Power (hp) | 10-25 |
| Machine Weight (kg) | 1120 |
| 0Trailer section | |
| Trailer Model | TR10 |
| N/W of Trailer (kg) | 400 |
| Rated Loading Capacity (1) | 1 |
| Loading Area (㎡) | 0.8 |
| Total Length of Trailer | 3.4 |
| Trailer Loading Length | 2 |
| Total Width of Trailer | 1.3 |
| Assistant Hydraulic Steering | No |
| Dia. of Traction Hole | 33mm |
| Tire Model | 22*11-10 |
| Crane section | |
| Model | CR02J |
| Weight of Grane (kg) | 390 |
| Max. Arm Reach (m) | 3.5 |
| Lifting Capacity/Arm Reach (kg/m) | 300/1.5 260/2.5 200/3.5 |
| Rotating Angle (degree) | 370 |
| Grapple section | |
| Grab Model | TG019 |
| Weight of Grab (kg) | 60 |
| Max. Grab Opening Width (mm) | 700 |
| Grabbing Dia. of Logs (mm) | 80-240 |
Details Images

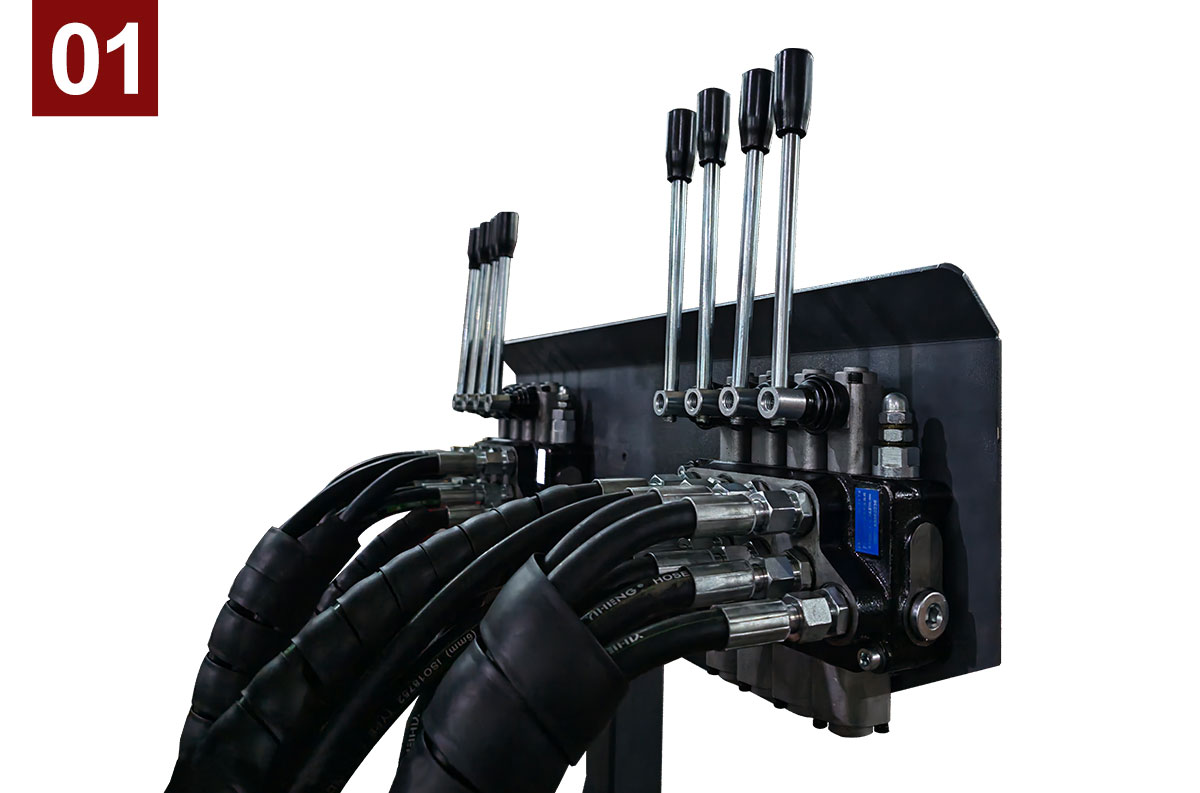

Control Valve Simple Operation

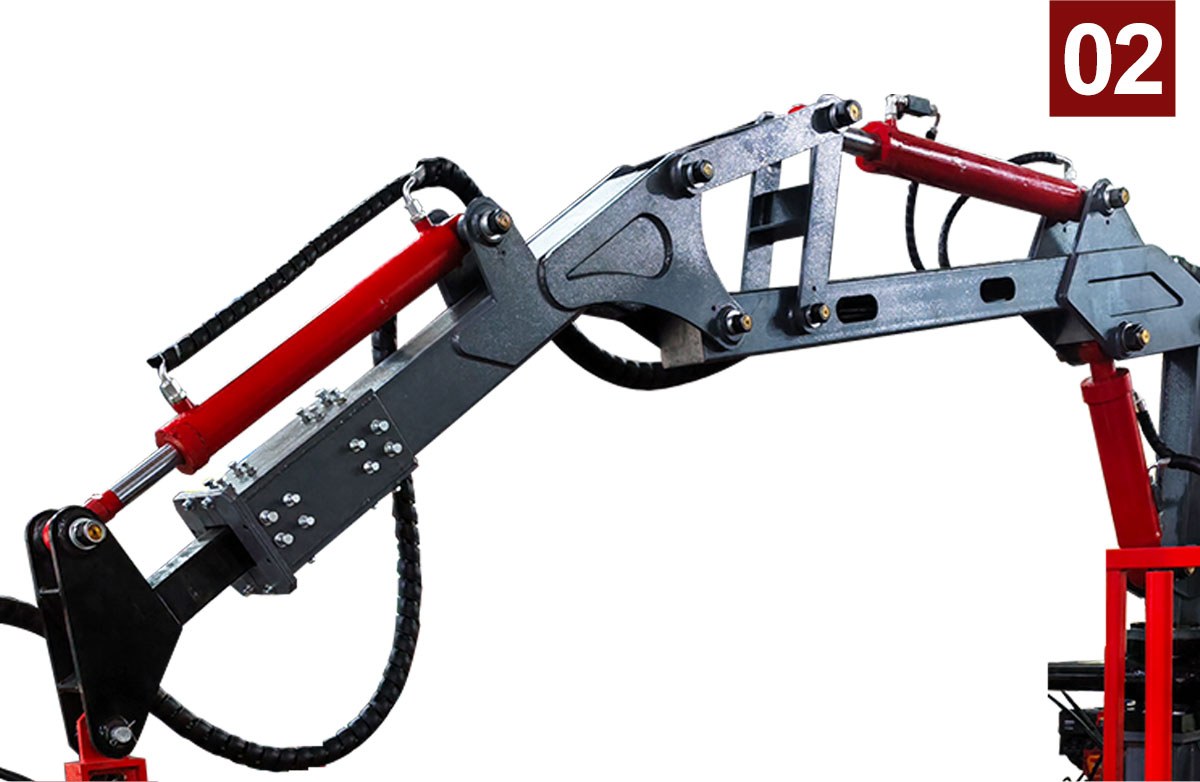

Precision Hydraulic Rigors

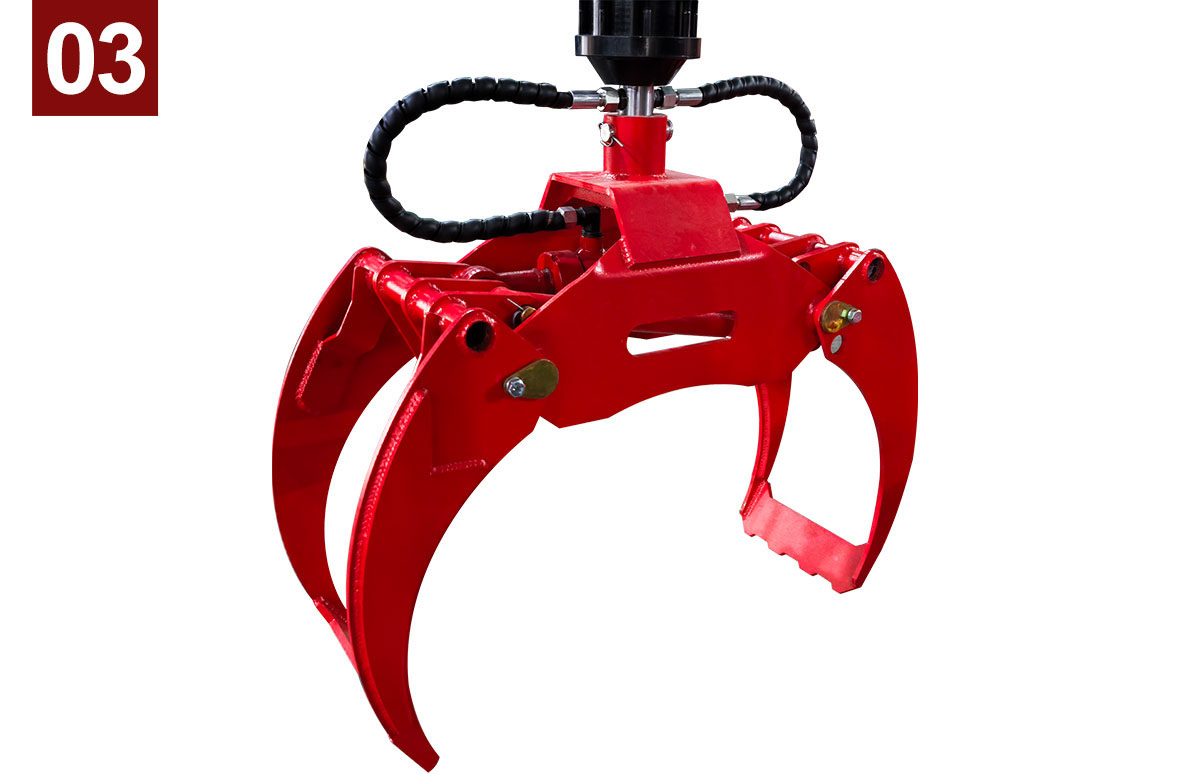

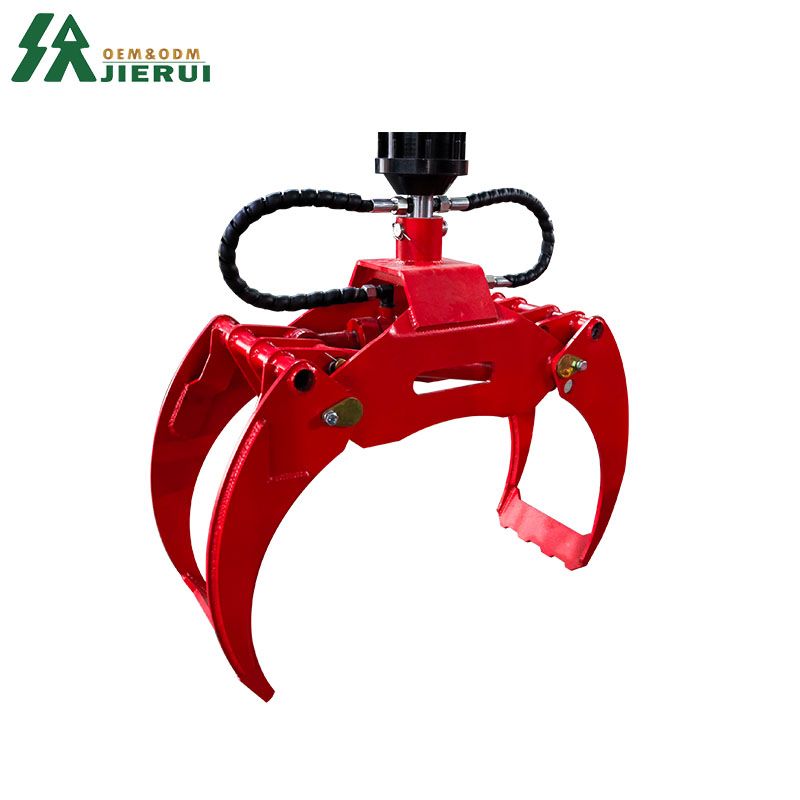

Timber Grab Large movement angle

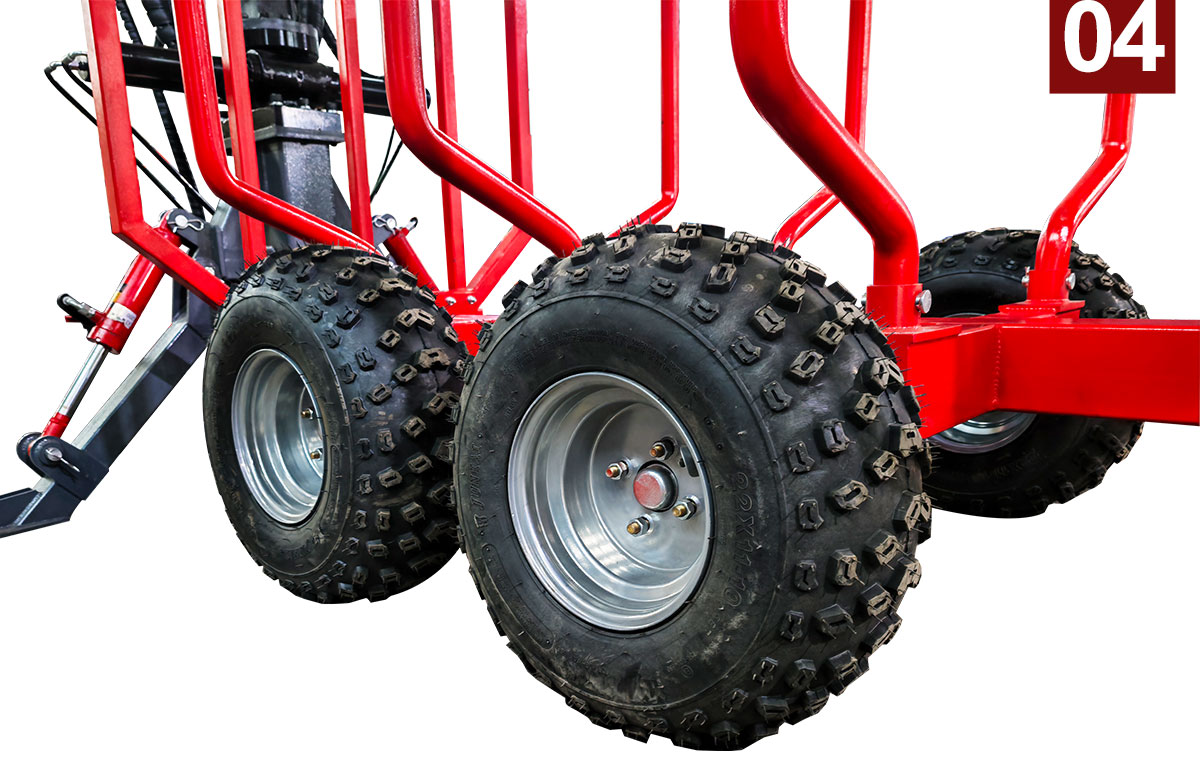

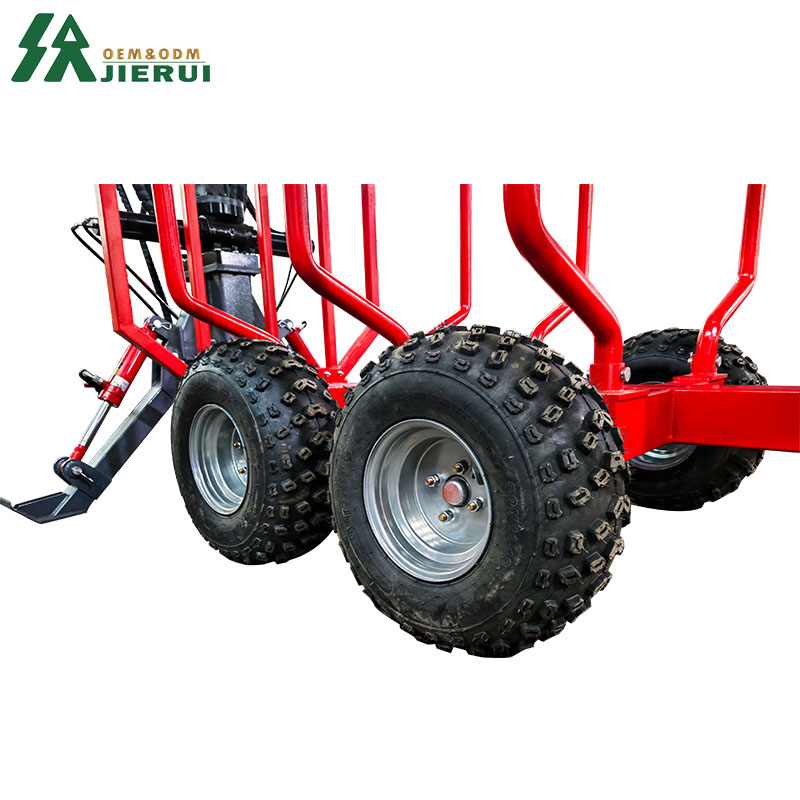

Wear-resistant tires

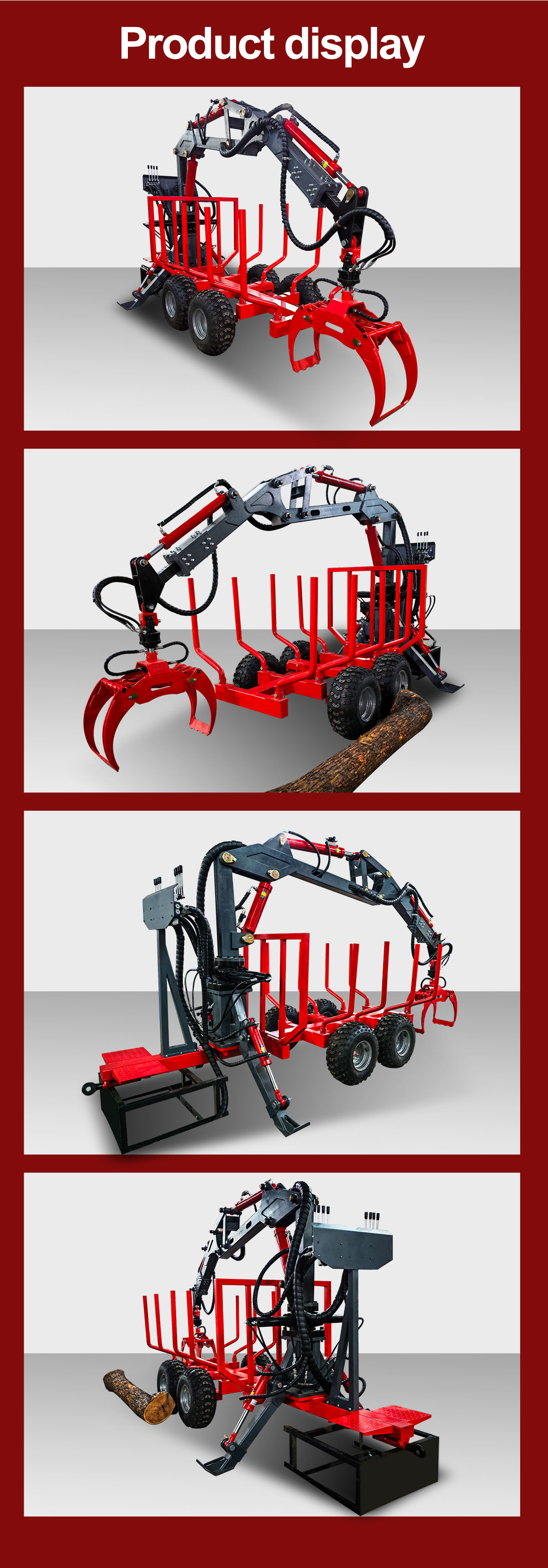

Product display
