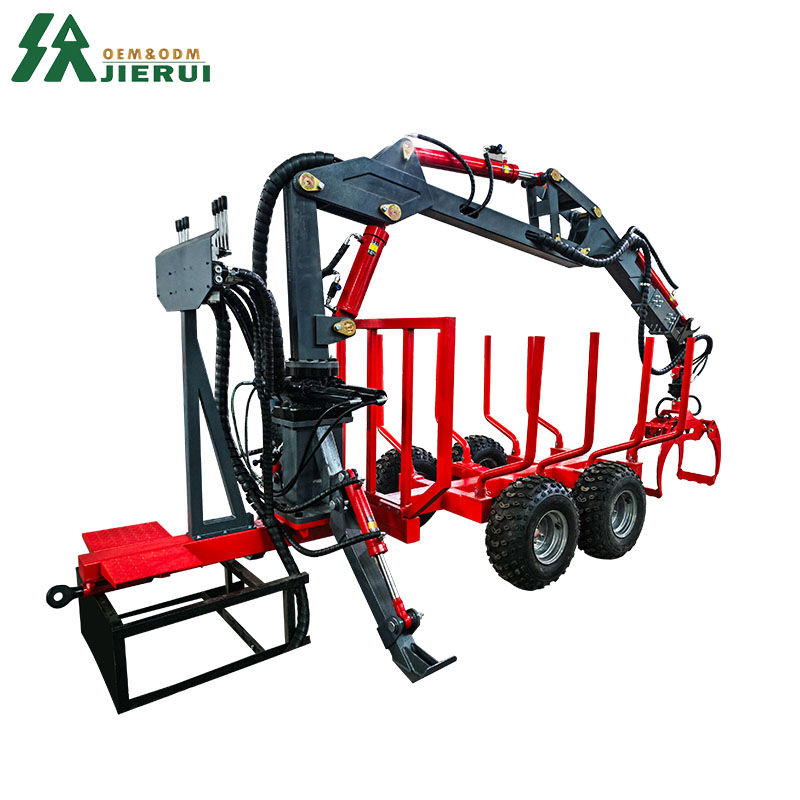

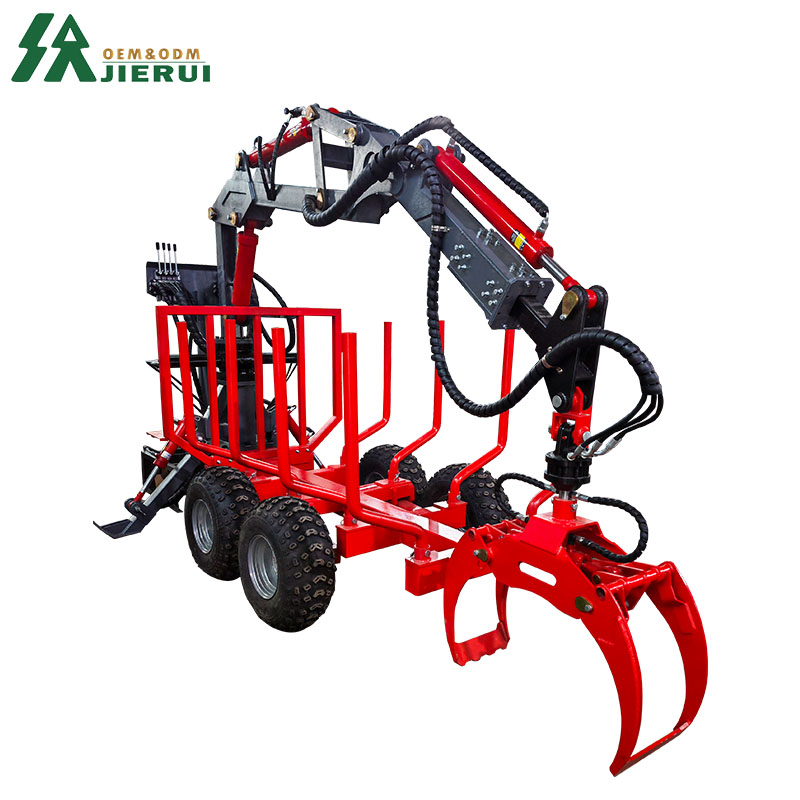

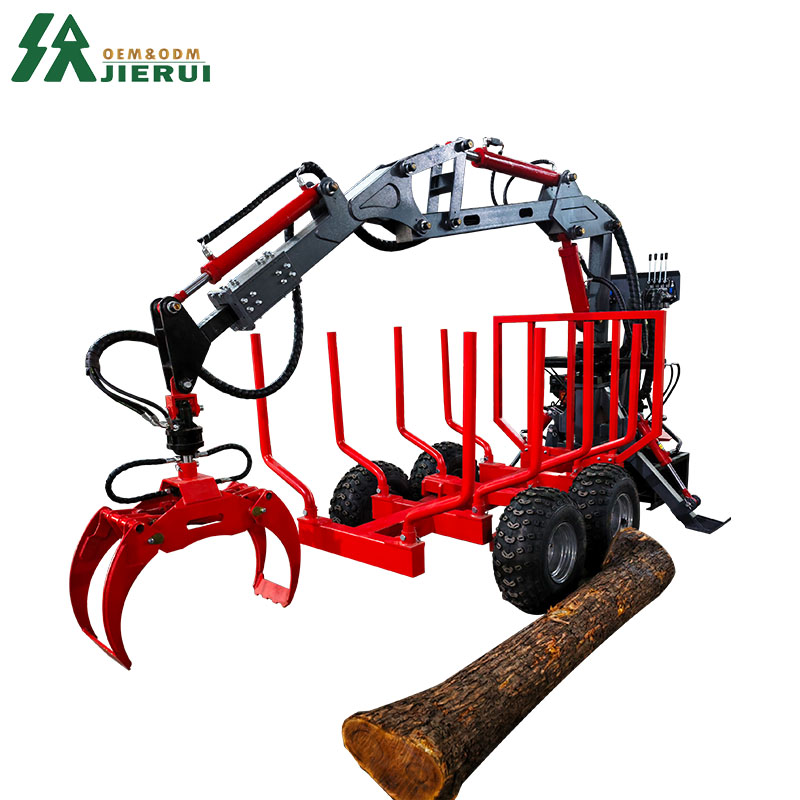

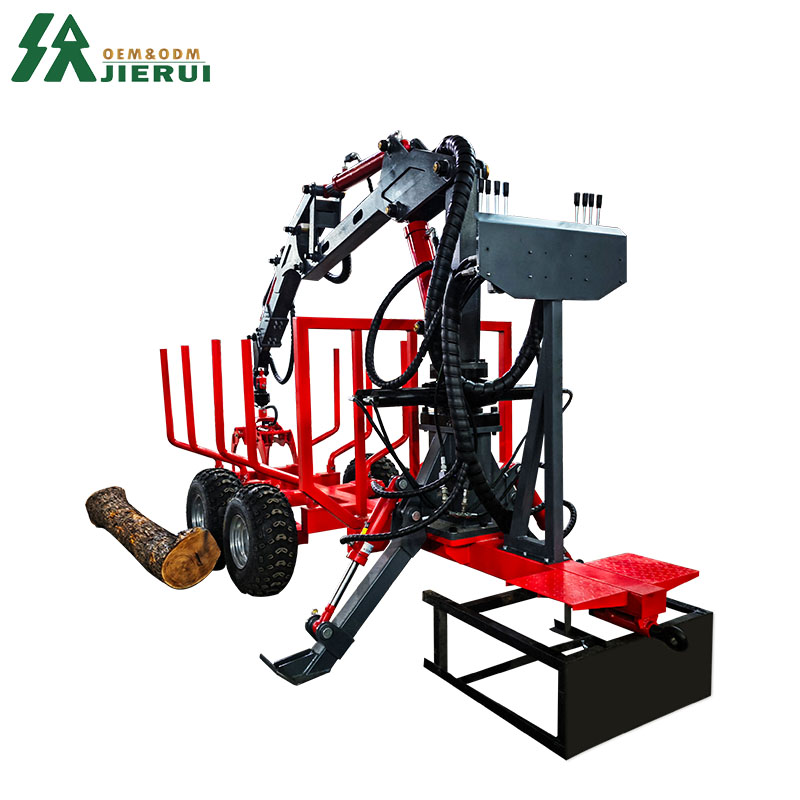

Factory Direct Sales Diesel Engine Timber Trailer With Crane
Adaptable to forest roads, rough terrain and complex working conditions.
Simple structure, easy to operate and maintain, low failure rate.
Safe and reliable, greatly reduces labor intensity and improves work safety.
Make an inquiry will get the best shipping quotation

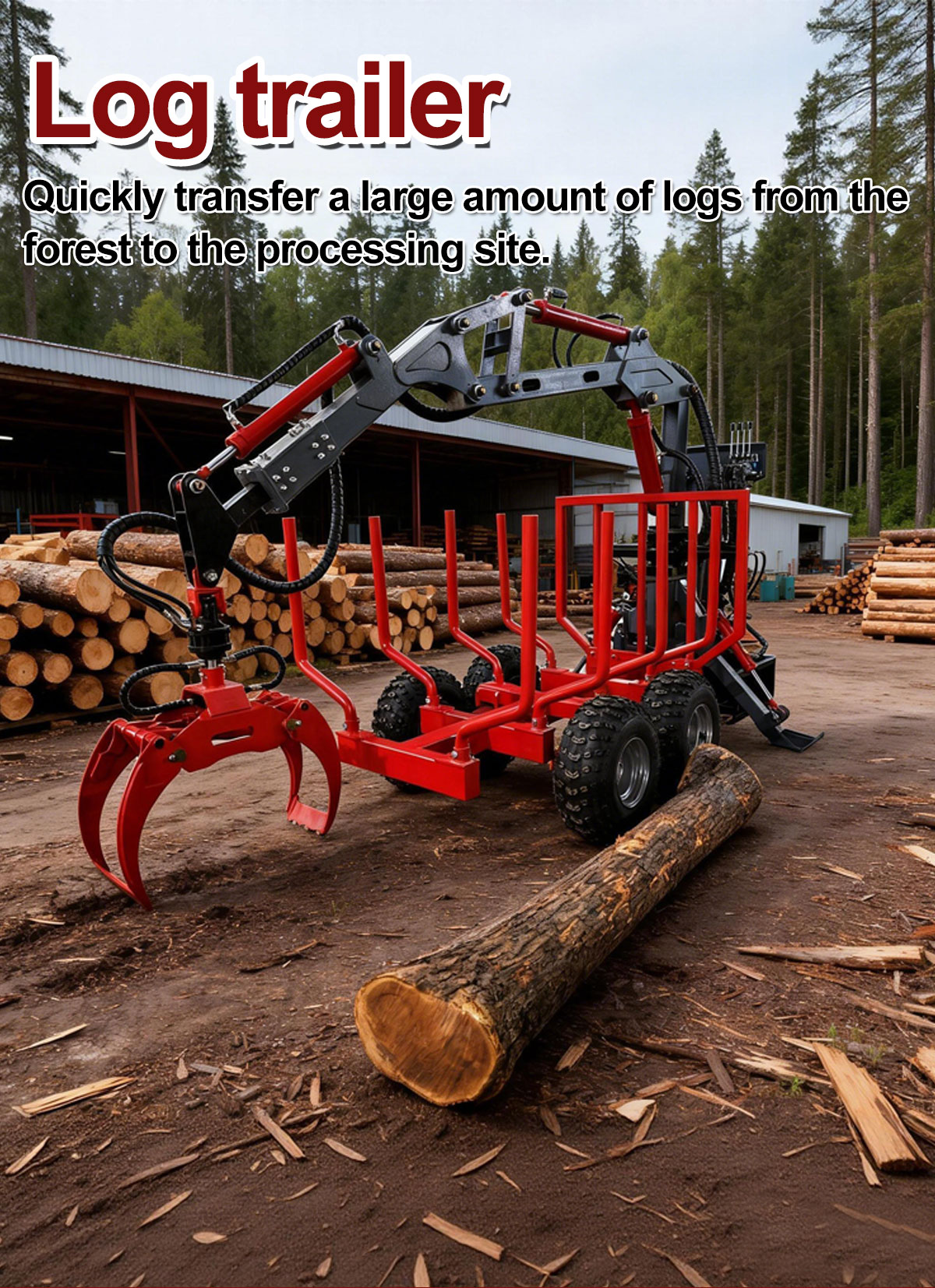

Log Trailer – Advantages
Heavy‑duty steel frame, high strength and strong load capacity
Excellent stability, safe and secure for log transportation
Adaptable to rough forest roads and complex working conditions
Simple structure, easy operation and low maintenance
High transportation efficiency, reduces labor and cost
Long service life, durable and reliable for heavy‑duty work
Compatible with various tractors and forestry machinery
| Model | JRT-1T |
| Mactching Power (hp) | 10-25 |
| Machine Weight (kg) | 1120 |
| 0Trailer section | |
| Trailer Model | TR10 |
| N/W of Trailer (kg) | 400 |
| Rated Loading Capacity (1) | 1 |
| Loading Area (㎡) | 0.8 |
| Total Length of Trailer | 3.4 |
| Trailer Loading Length | 2 |
| Total Width of Trailer | 1.3 |
| Assistant Hydraulic Steering | No |
| Dia. of Traction Hole | 33mm |
| Tire Model | 22*11-10 |
| Crane section | |
| Model | CR02J |
| Weight of Grane (kg) | 390 |
| Max. Arm Reach (m) | 3.5 |
| Lifting Capacity/Arm Reach (kg/m) | 300/1.5 260/2.5 200/3.5 |
| Rotating Angle (degree) | 370 |
| Grapple section | |
| Grab Model | TG019 |
| Weight of Grab (kg) | 60 |
| Max. Grab Opening Width (mm) | 700 |
| Grabbing Dia. of Logs (mm) | 80-240 |
Details Images

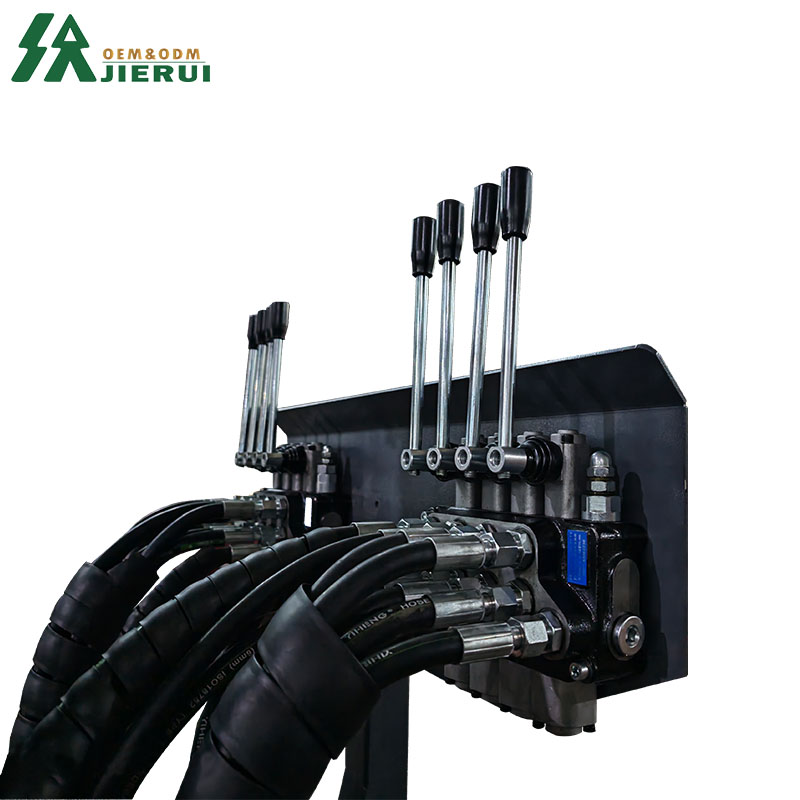

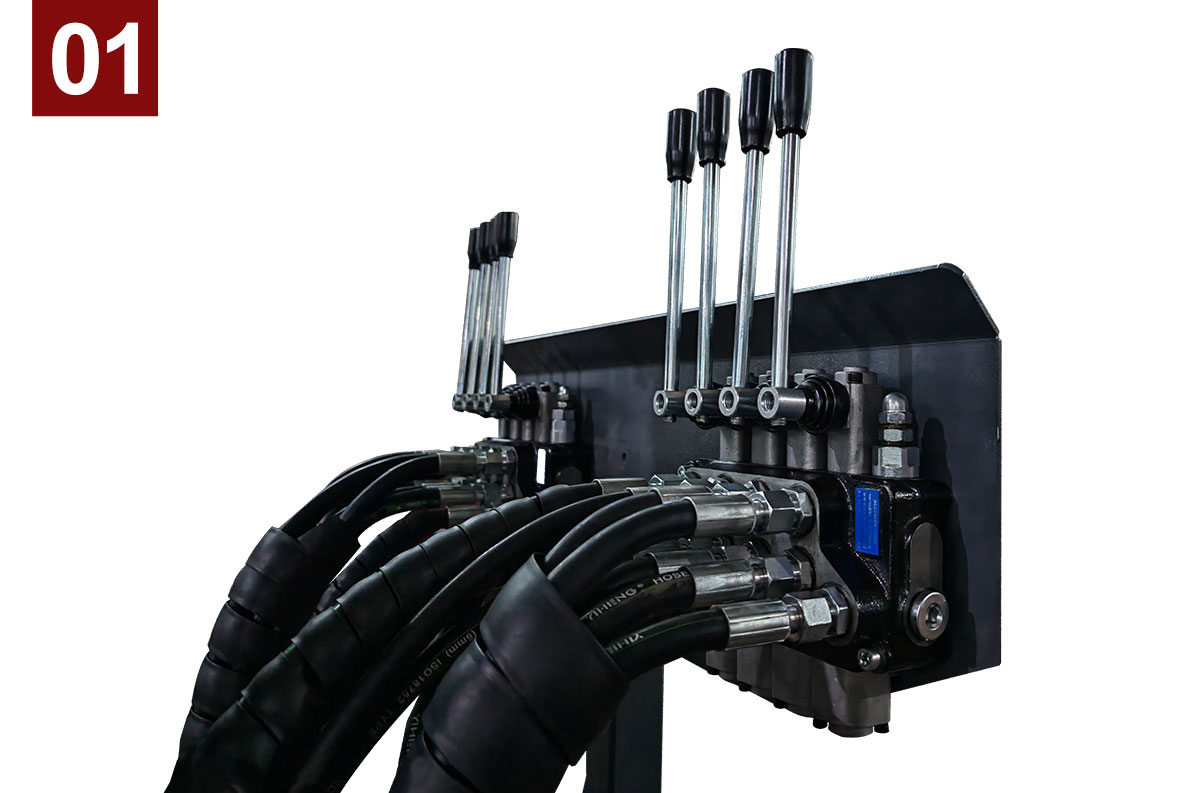

Control Valve Quick and convenient adjustment

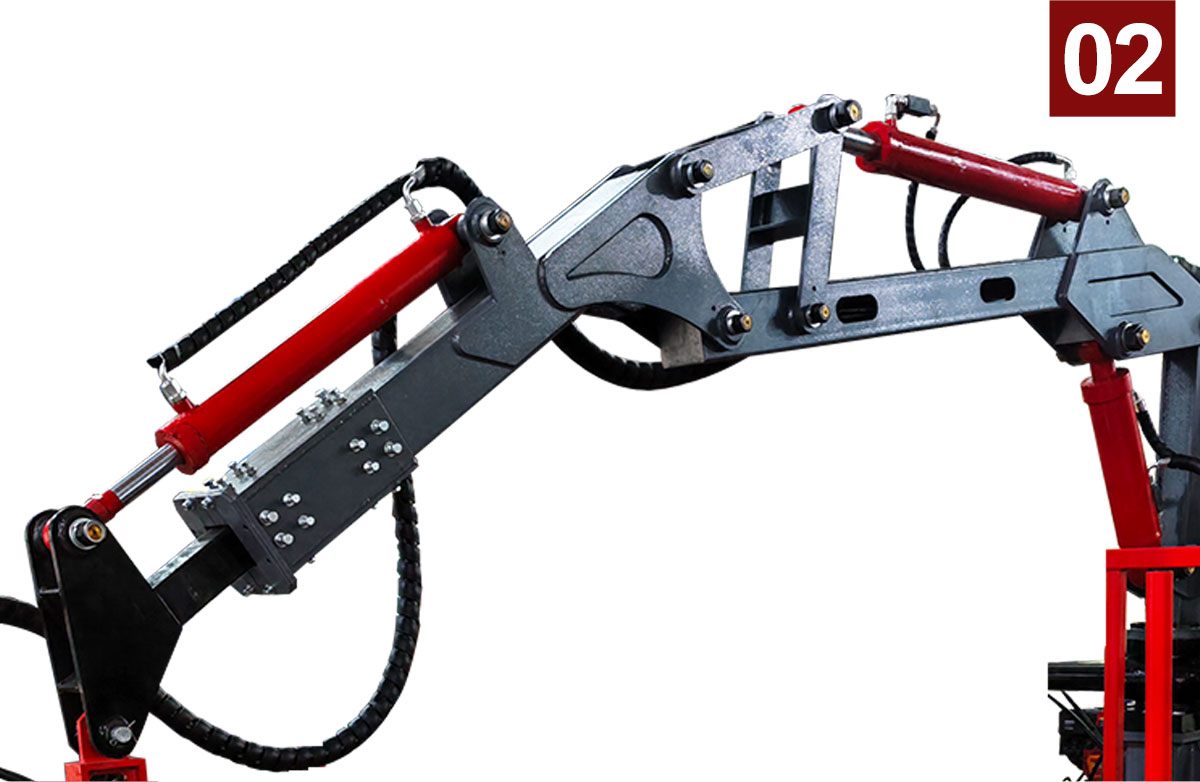

Precision Hydraulic Rigors – Precision hydraulic control for stable, accurate and responsive operation

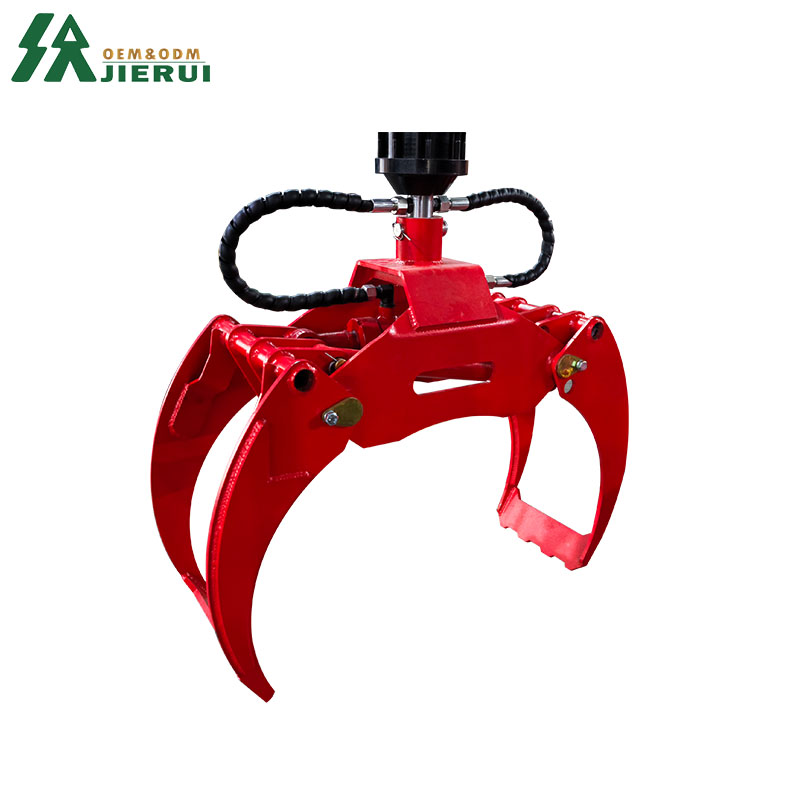

Timber Grab Large movement angle

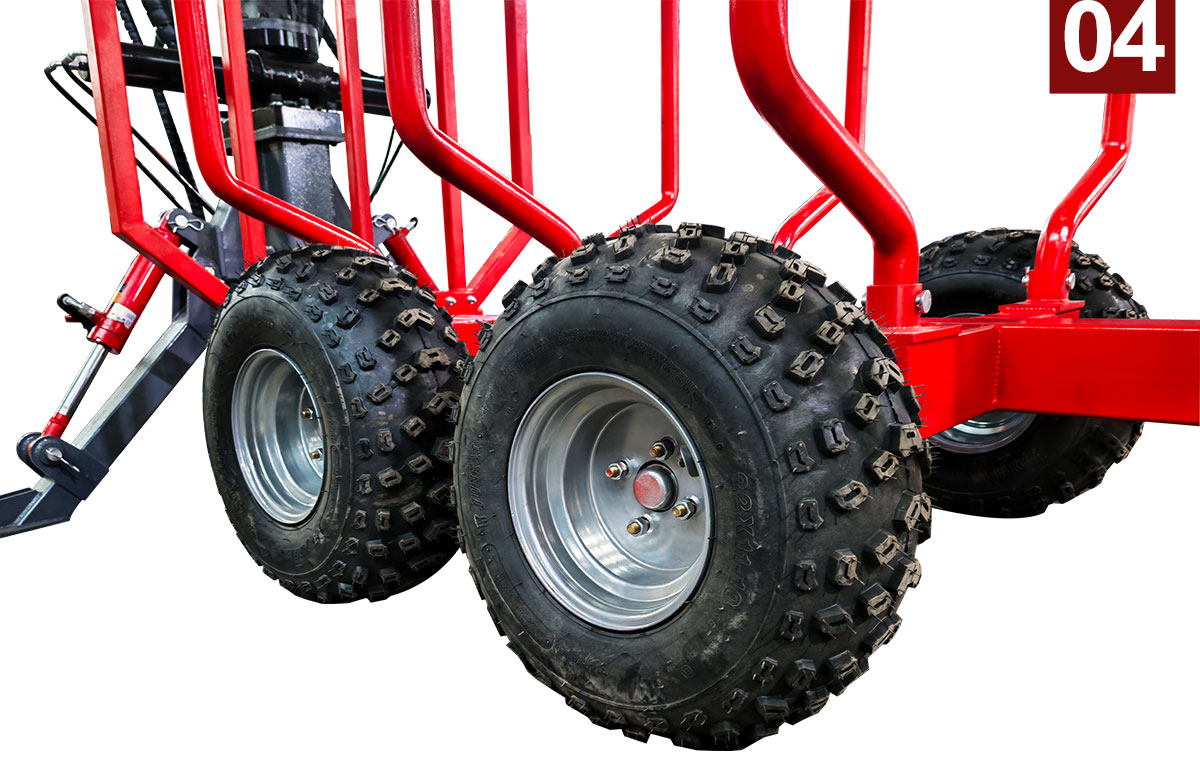

Wear-resistant tires

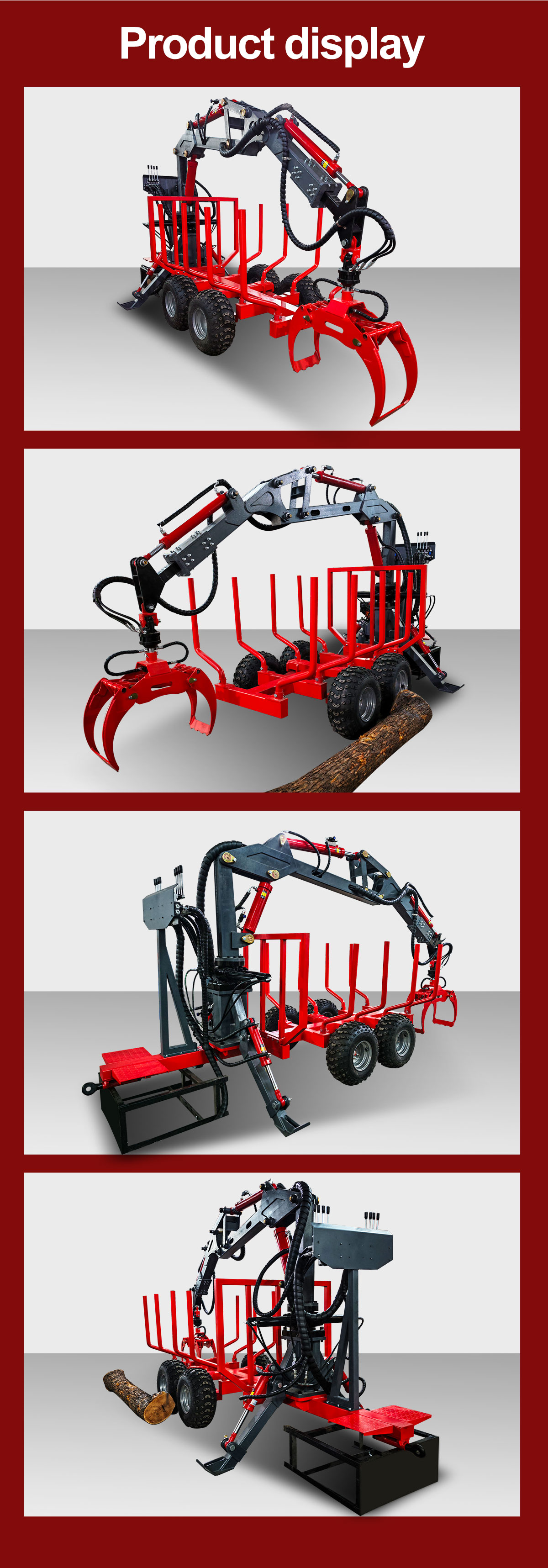

Product display
