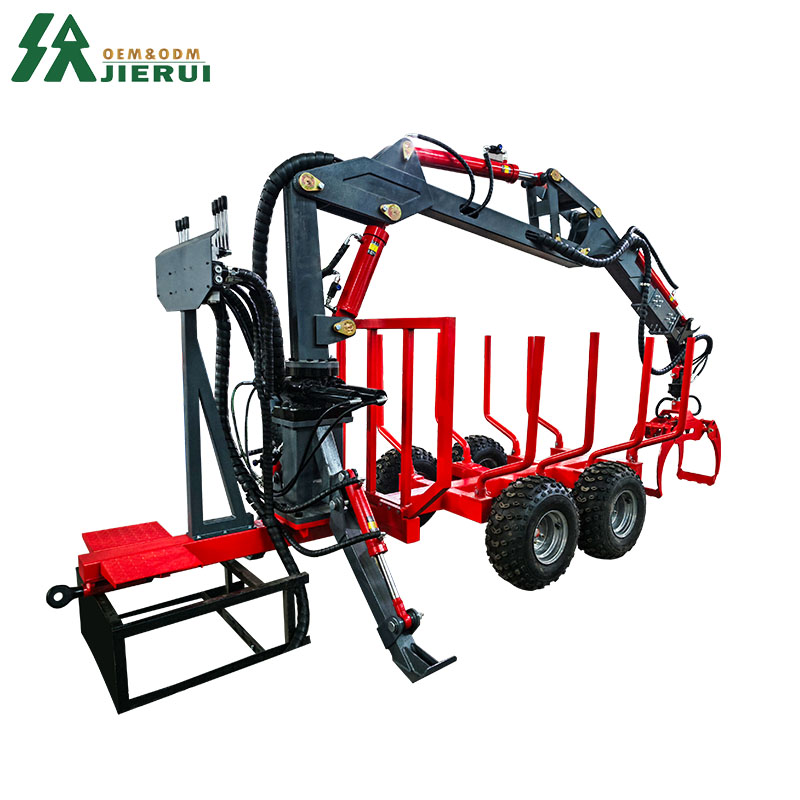

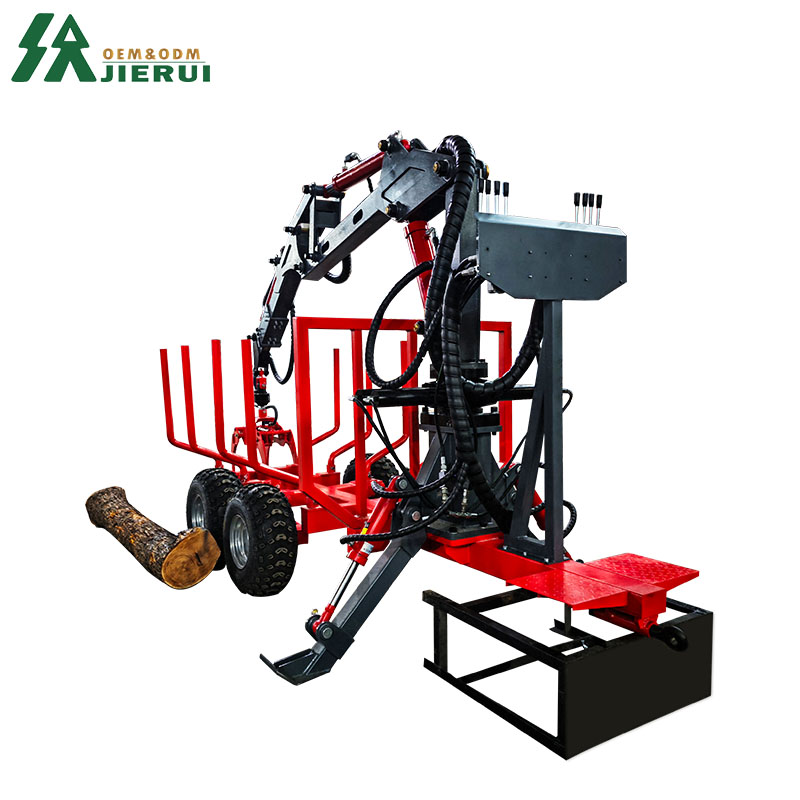

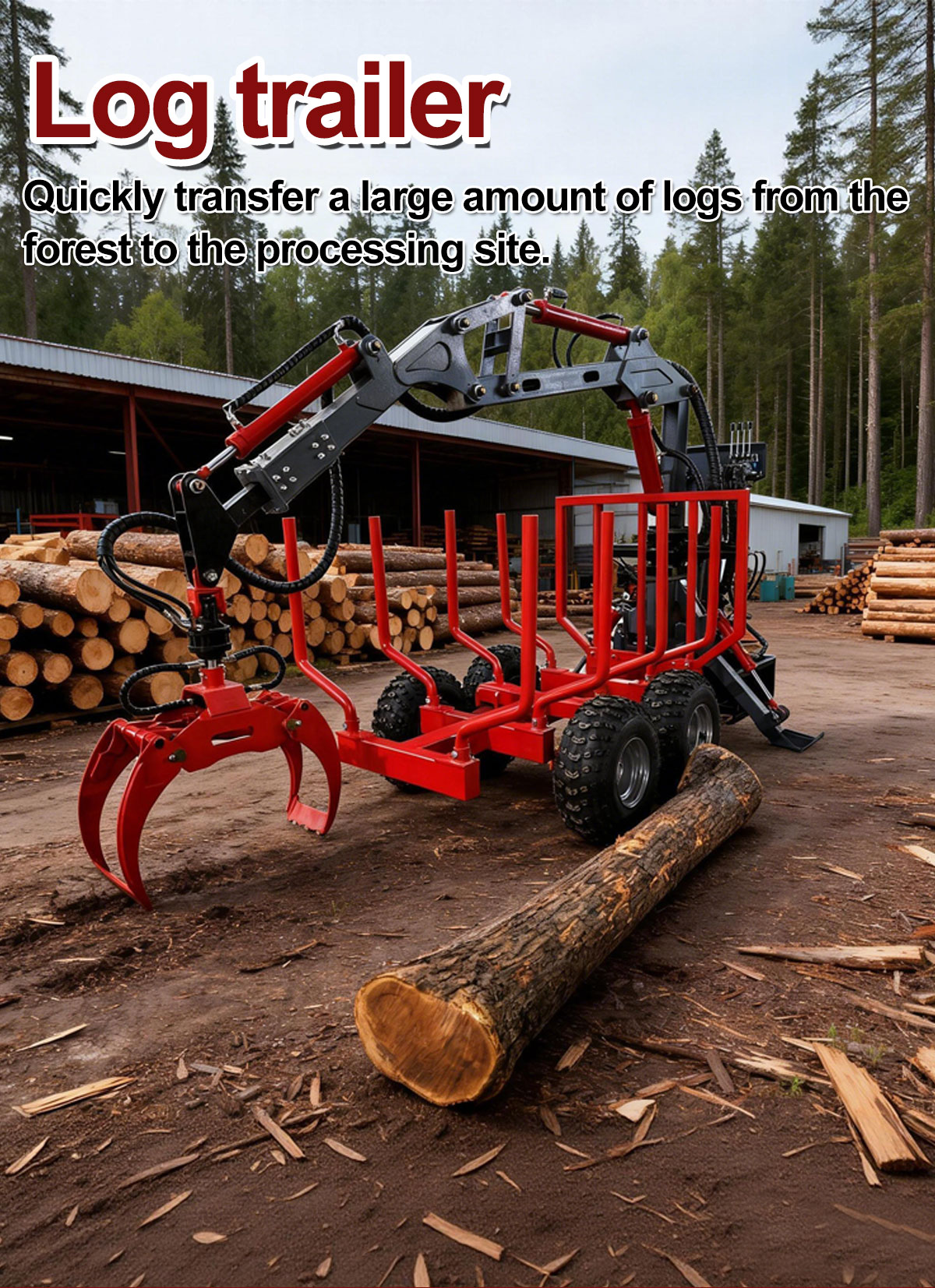

Forestry Machinery Grapple Log Trailer With Crane
Stable & safe performance
Powerful lifting capacity
Heavy-duty & durable structure
Make an inquiry will get the best shipping quotation
It is widely used in logging sites, sawmills, wood processing plants and timber transportation companies, providing a reliable and cost-effective solution for long-distance wood transport.
Advantages
Heavy-duty steel structure for high durability and long service life
Large load capacity to improve transport efficiency
Adjustable log bunks for different log lengths
Stable and safe driving on various road conditions
Easy operation and low maintenance cost
Suitable for forestry, sawmills and commercial timber transport
| Model | JRT-1T |
| Mactching Power (hp) | 10-25 |
| Machine Weight (kg) | 1120 |
| 0Trailer section | |
| Trailer Model | TR10 |
| N/W of Trailer (kg) | 400 |
| Rated Loading Capacity (1) | 1 |
| Loading Area (㎡) | 0.8 |
| Total Length of Trailer | 3.4 |
| Trailer Loading Length | 2 |
| Total Width of Trailer | 1.3 |
| Assistant Hydraulic Steering | No |
| Dia. of Traction Hole | 33mm |
| Tire Model | 22*11-10 |
| Crane section | |
| Model | CR02J |
| Weight of Grane (kg) | 390 |
| Max. Arm Reach (m) | 3.5 |
| Lifting Capacity/Arm Reach (kg/m) | 300/1.5 260/2.5 200/3.5 |
| Rotating Angle (degree) | 370 |
| Grapple section | |
| Grab Model | TG019 |
| Weight of Grab (kg) | 60 |
| Max. Grab Opening Width (mm) | 700 |
| Grabbing Dia. of Logs (mm) | 80-240 |
Details Images

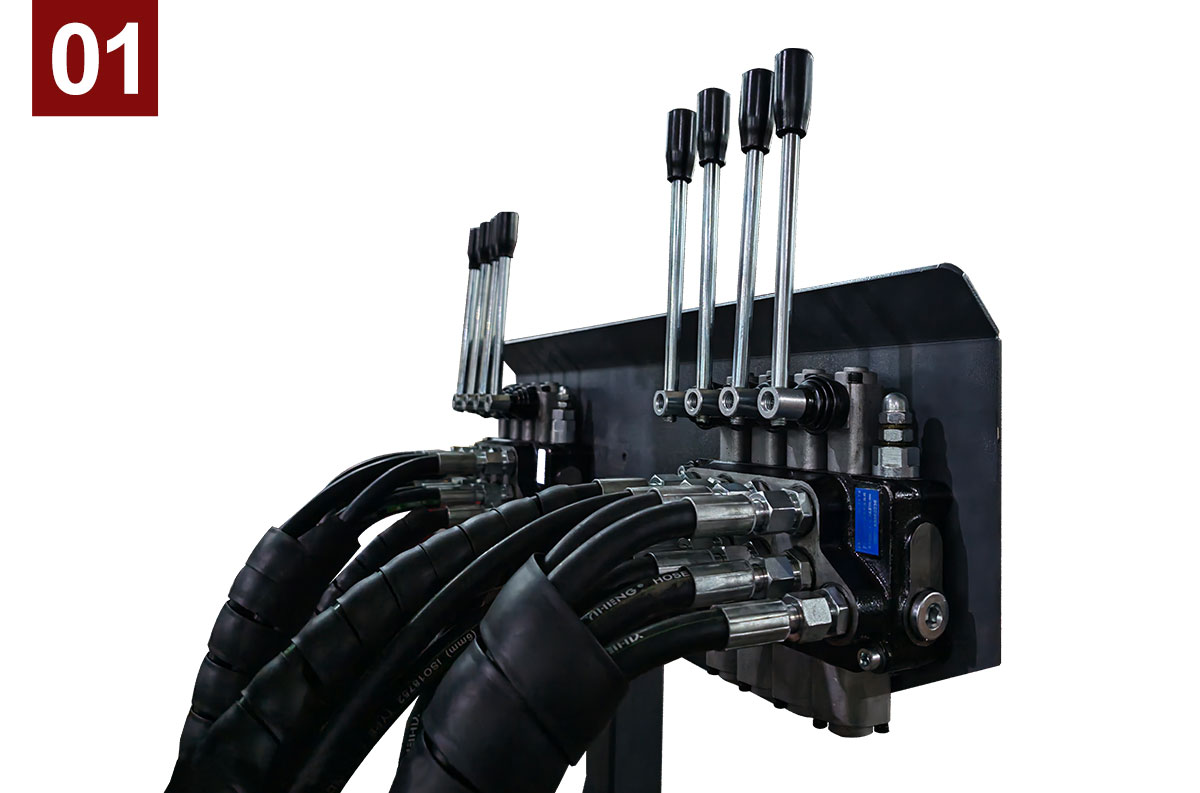

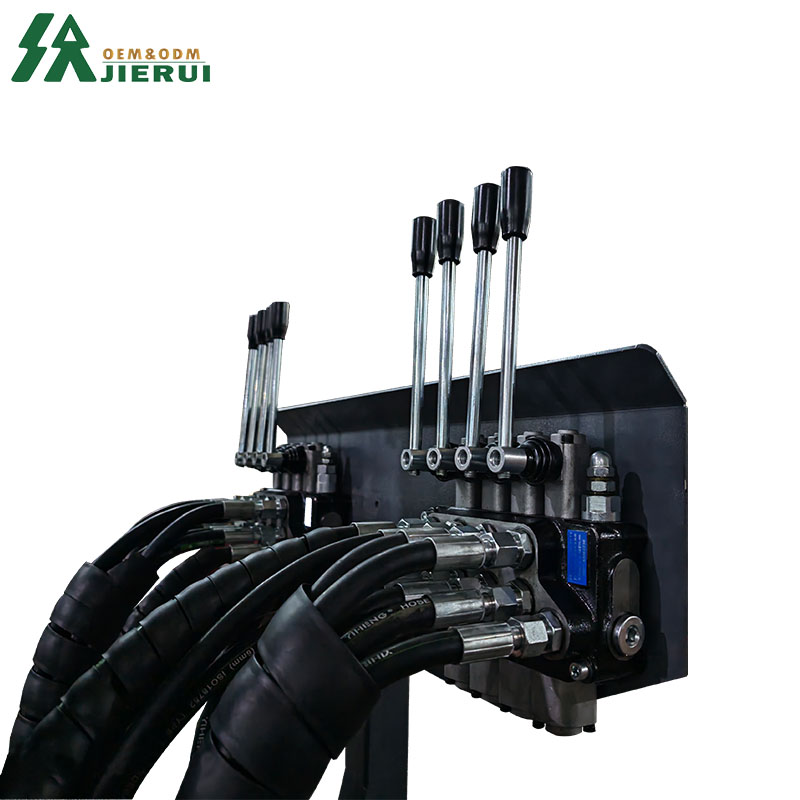

User-friendly control valve for easy and intuitive operation.

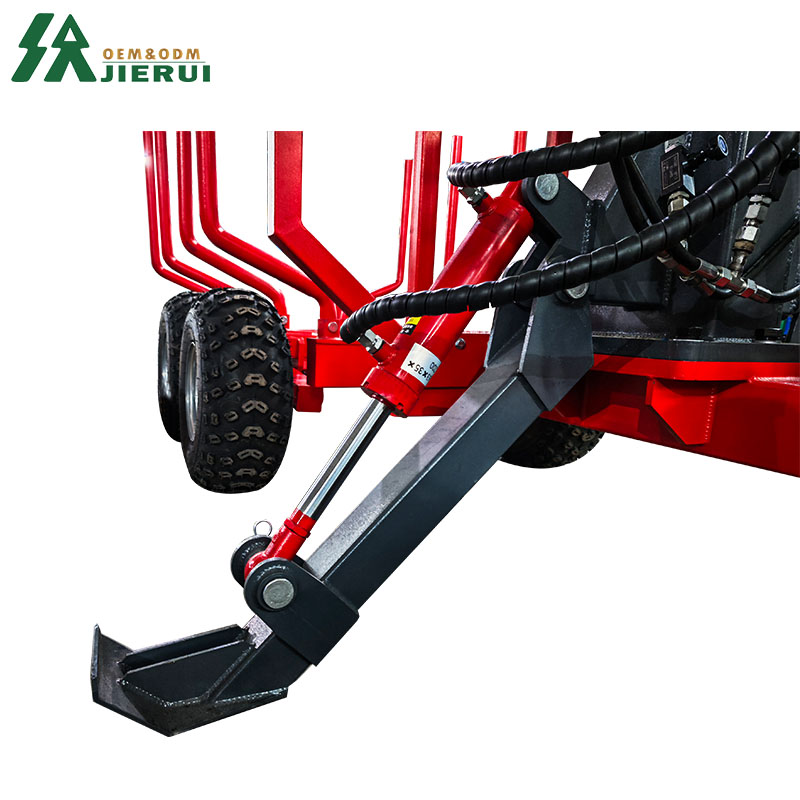

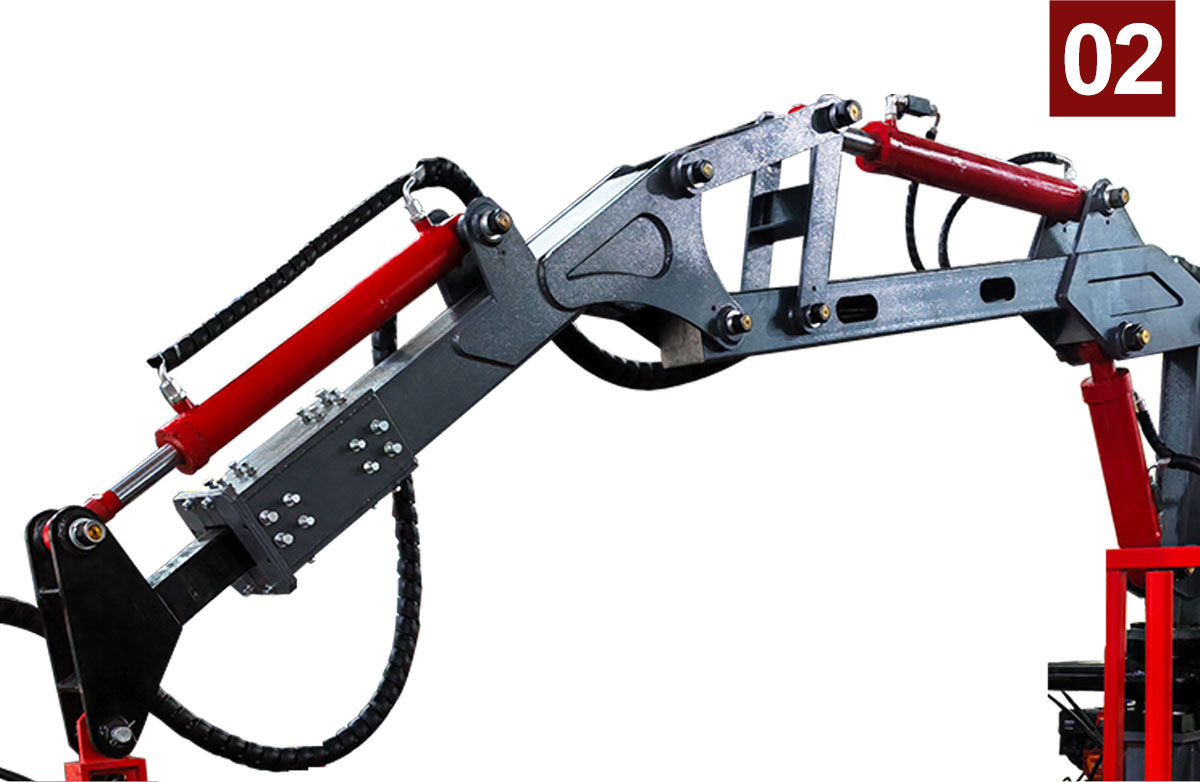

Precision hydraulic system for stable, reliable and powerful performance.

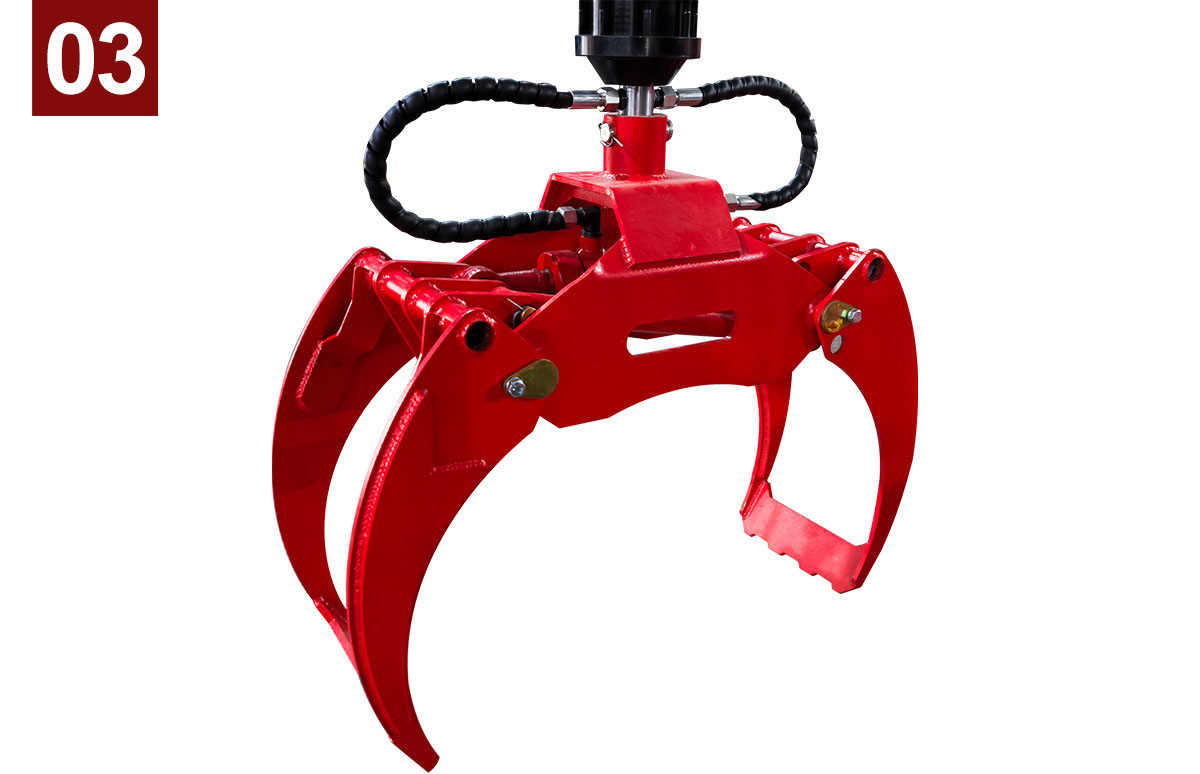

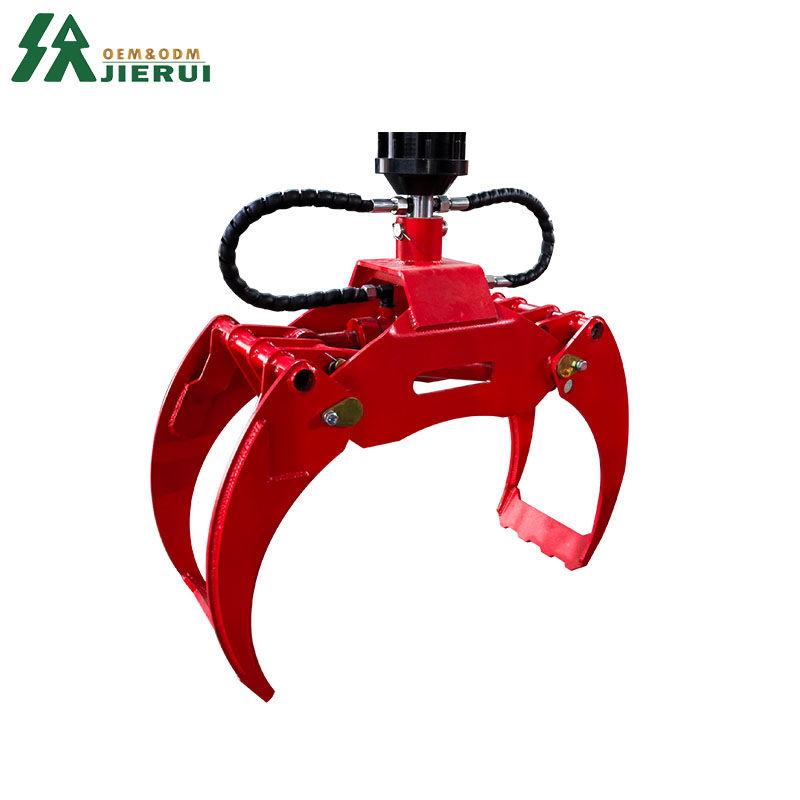

Timber Grab large movement angle for flexible and wide‑range timber handling.

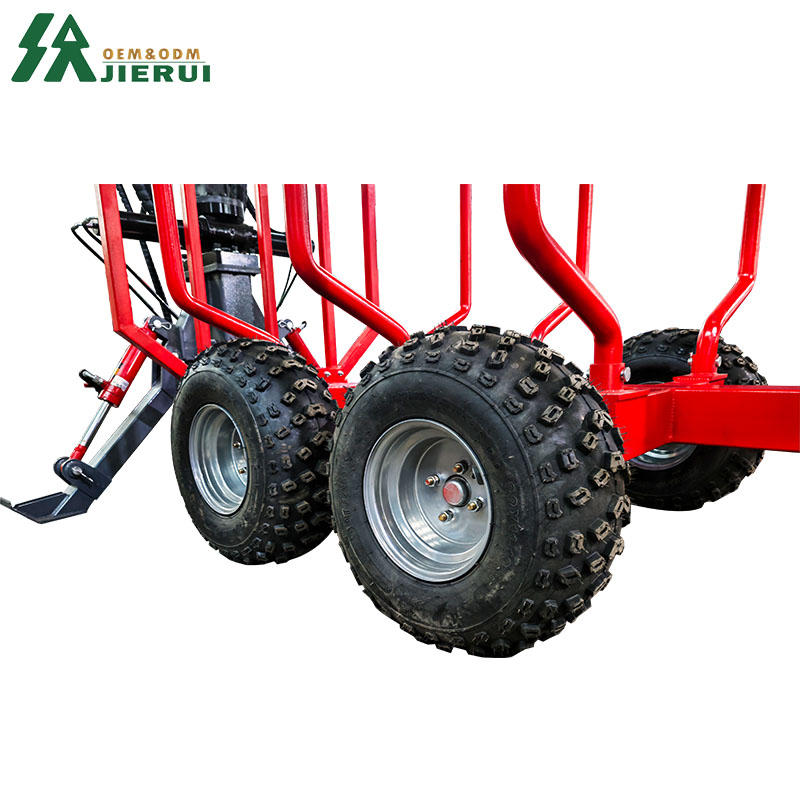

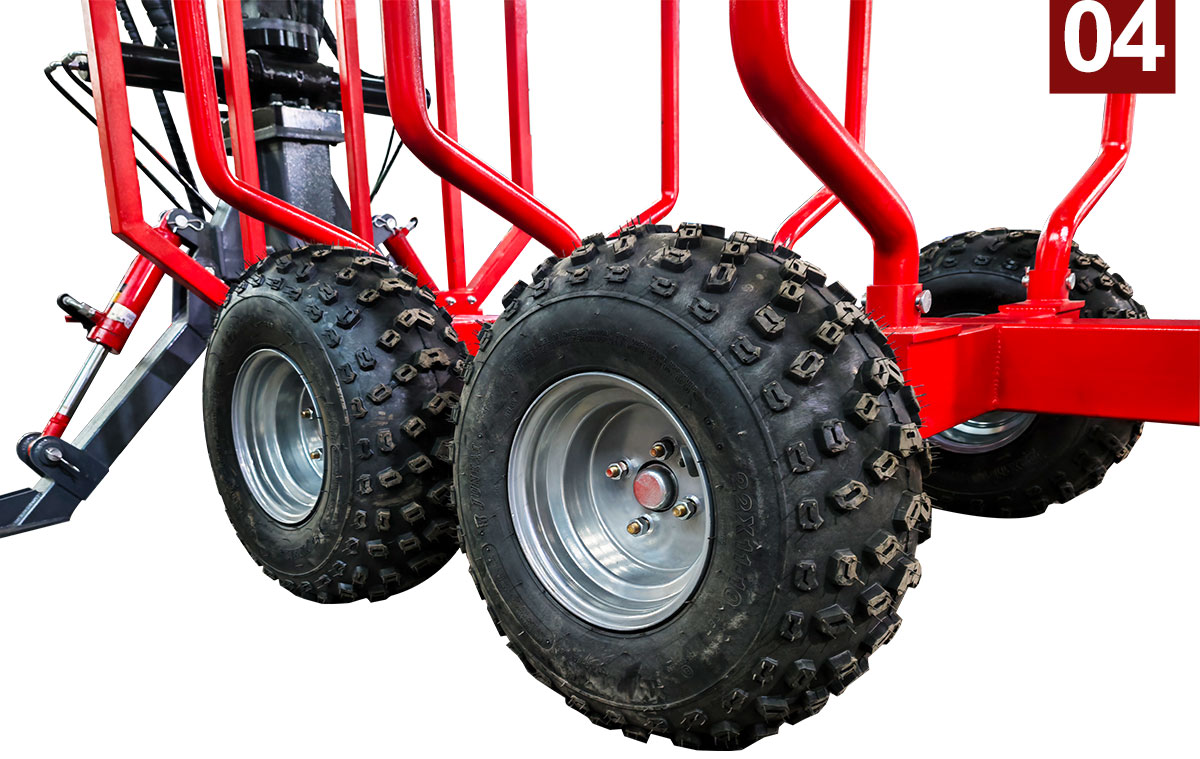

Premium wear-resistant tires for excellent durability and long service life.

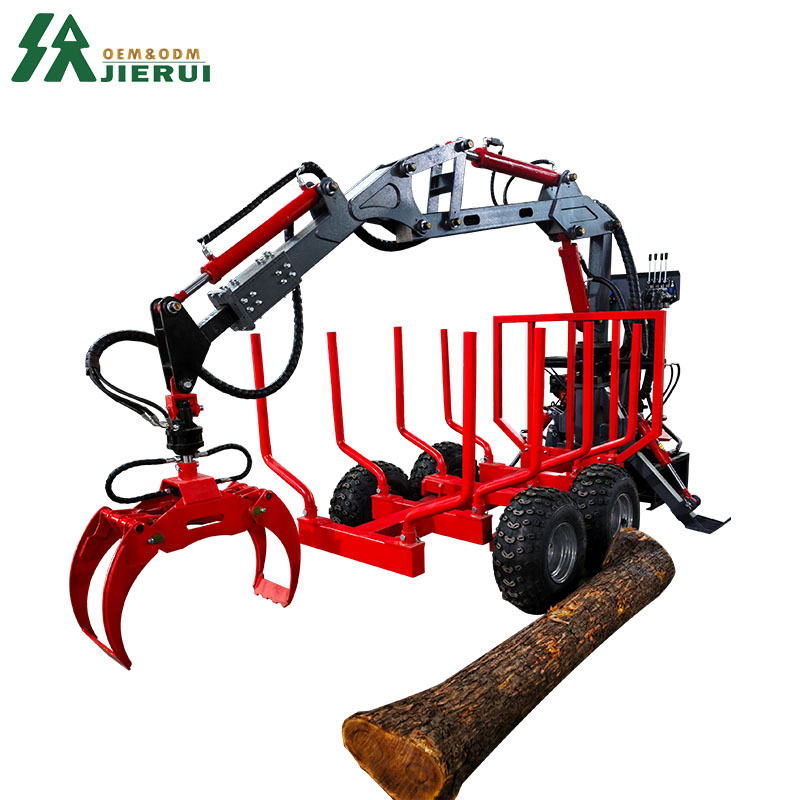

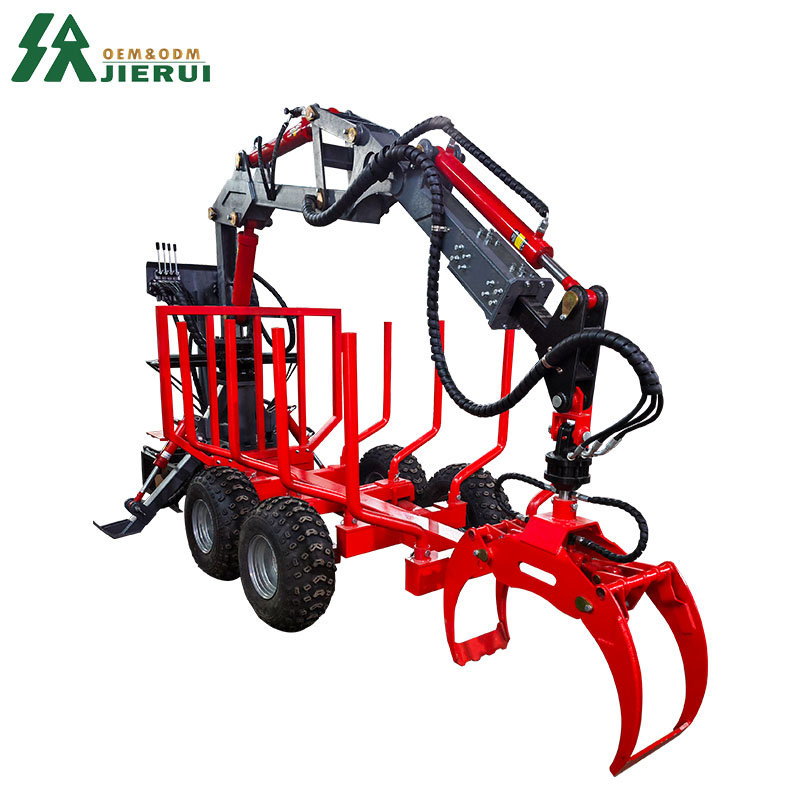

Product display
