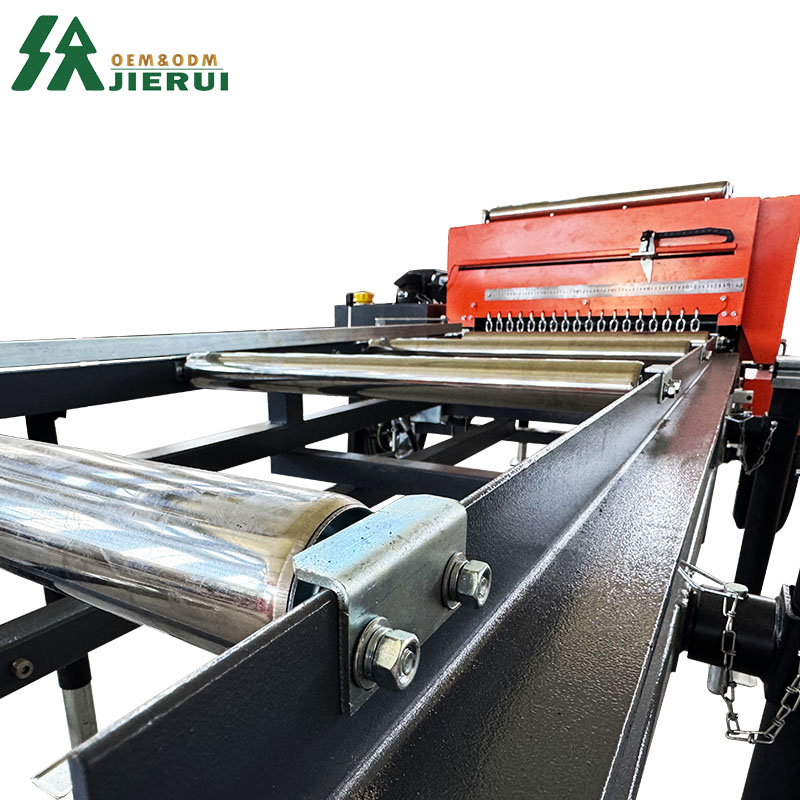

Hydraulic Rip Saw Wood Edging Machine
1.Edge Trimming: The main function is to trim rough, irregular, or uneven edges of lumber to create straight, uniform sides. This increases the visual appeal and the usability of the boards.
2.Adjustable Settings: Many board edgers come with adjustable fences and settings that allow operators to customize the width of the edge trim and the overall precision of the cuts.
3.High-Speed Operation: These machines are designed to work quickly, processing large volumes of lumber without sacrificing precision.
Make an inquiry will get the best shipping quotation
The board edger machine is a critical piece of equipment used in woodworking, especially in sawmills and lumber processing plants, to trim and shape the edges of boards. Its purpose is to ensure that boards are uniform, straight, and free from defects on the edges, making them suitable for further processing or direct use in construction, furniture making, or other industries.

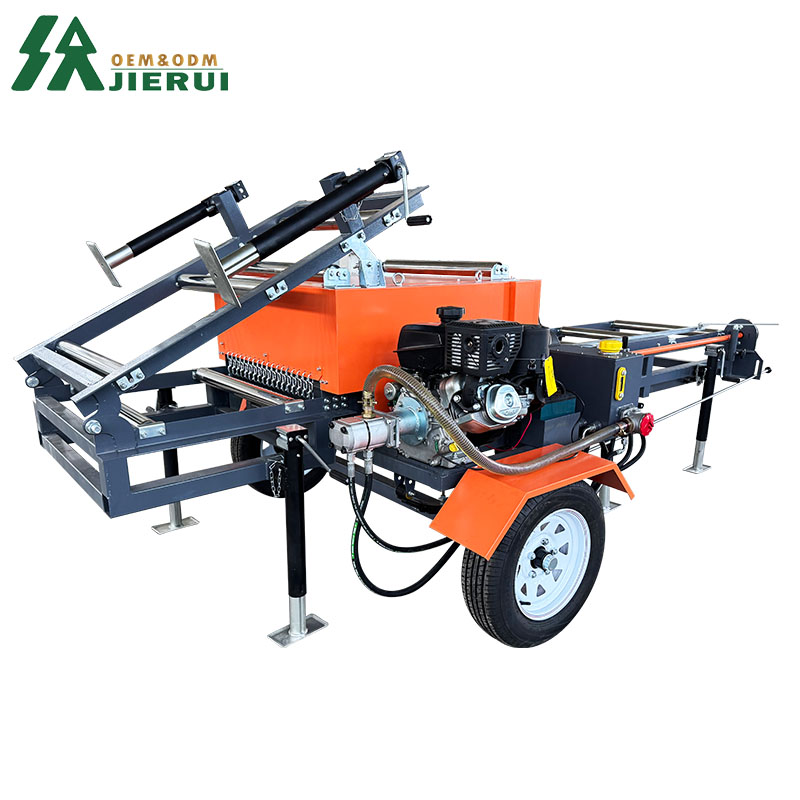

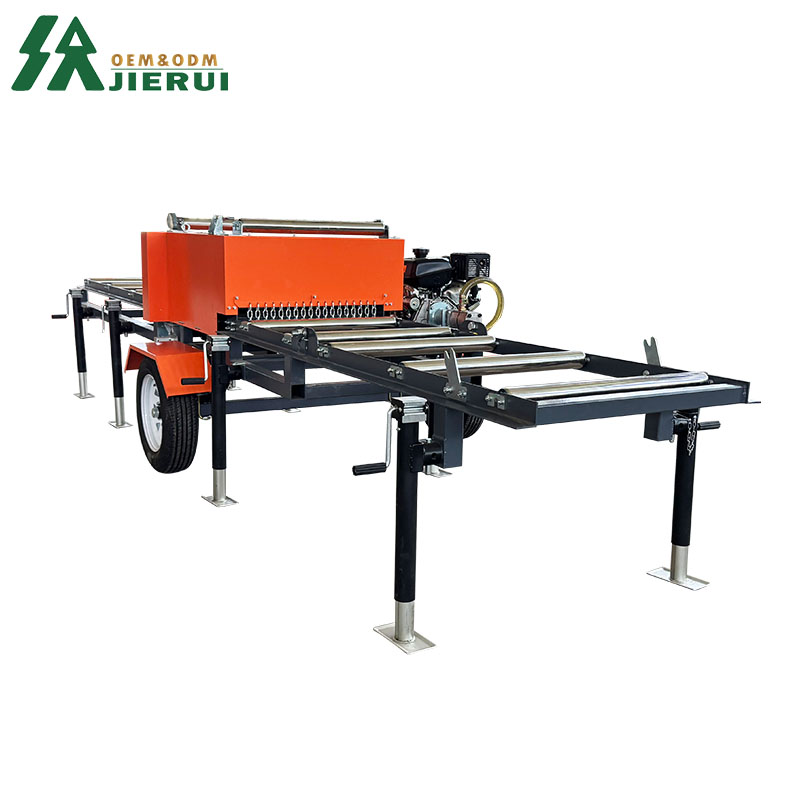

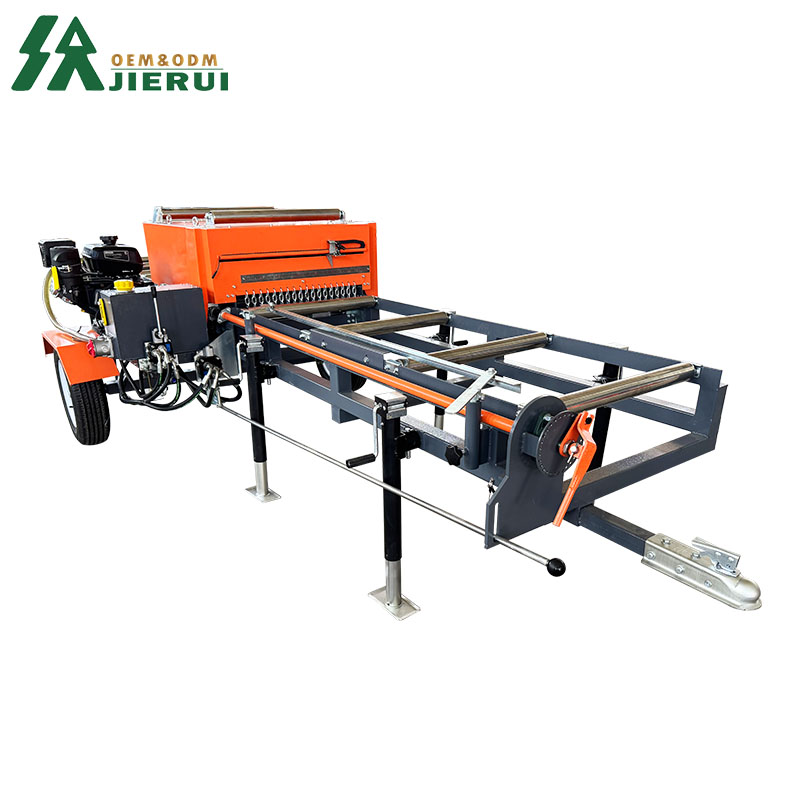

Portable Hydraulic Lumber Edger
The Portable Hydraulic Lumber Edger is designed to transform rough lumber into precise, uniform boards by efficiently trimming away irregular edges. Essential in modern sawmills, this machine maximizes wood utilization, improves the quality of final products, and is ideal for producing furniture, flooring, and construction lumber.
Key Features:
Adjustable Cutting Width
Easily adapts to a wide range of log and board sizes, providing flexible production capabilities for various applications.
High-Precision Circular Saw Blades
Delivers smooth, clean cuts with minimal wood loss, ensuring a high-quality finish on each board.
Heavy-Duty Frame
Constructed with a robust steel structure for maximum stability, durability, and long service life, even under heavy use.
Automatic Feeding System
Hydraulic feeding rollers ensure consistent speed and accuracy, reducing the need for manual intervention and enhancing production efficiency.
Fast & Efficient Operation
Processes multiple boards quickly with consistent results, optimizing production output and minimizing downtime.
Customizable Power Options
Available with electric, diesel, or gasoline power sources, allowing for versatile installation options in different production environments.
Long-Lasting Blades
Equipped with wear-resistant saw blades that significantly reduce maintenance costs and extend the lifespan of the machine.

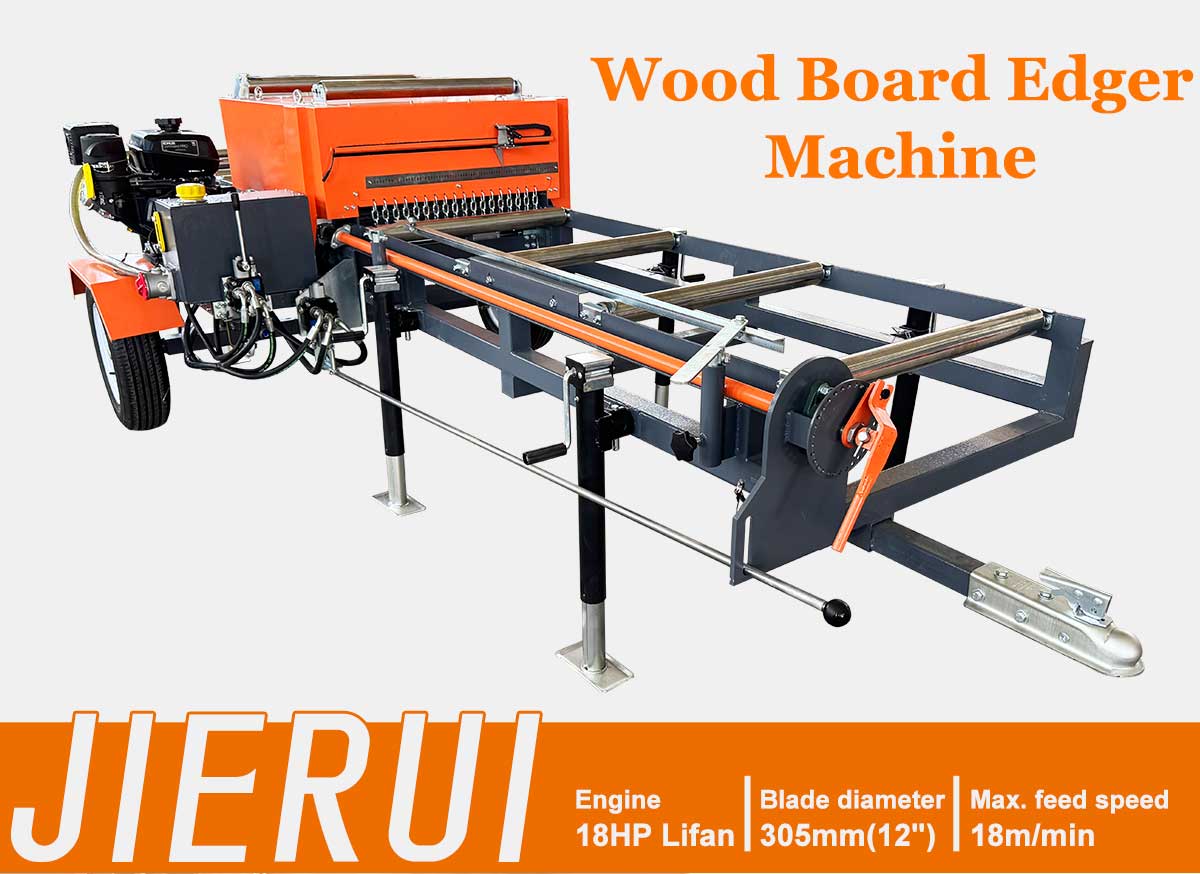

| Wood Board Edger Machine | |
| Engine | 18HP Lifan gas |
| Max cutting width | 635mm(25") |
| Min.cutting width | 76mm(3") |
| Max. wood thickness | 50mm(2") |
| Blade diameter | 305mm(12") |
| Max. feed speed | 18m/min |
| Working pressure | 11Mpa |
| Infeed table length | 2000mm |
| Outfeed table length | 2000mm(Fold) |
| packing size | 1465*1150*810mm=1.36CBM 425/465 KG 2050*900*545mm=1CBM 251/291 KG |
Product details

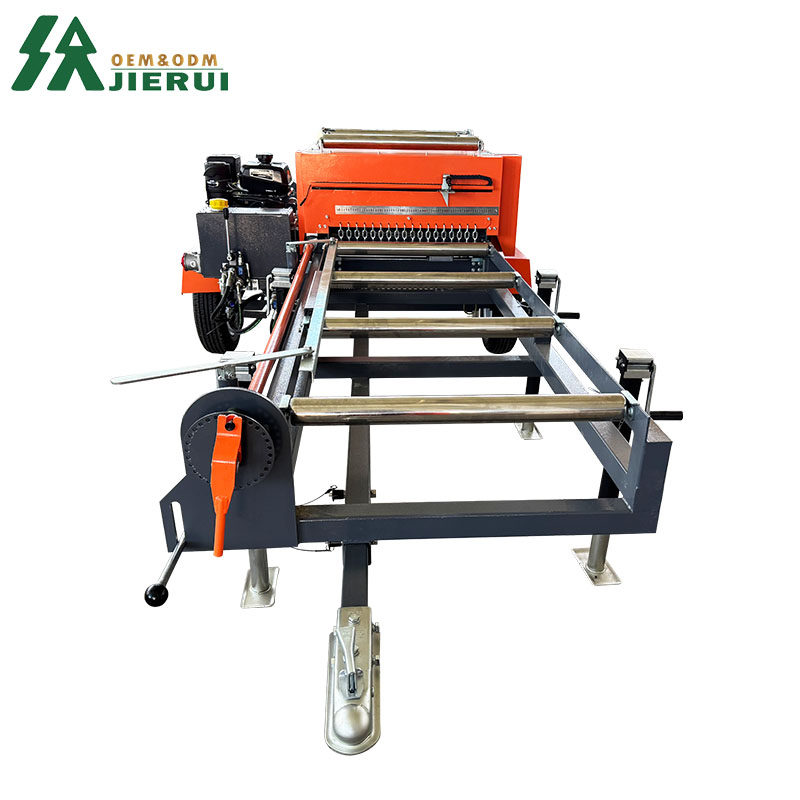

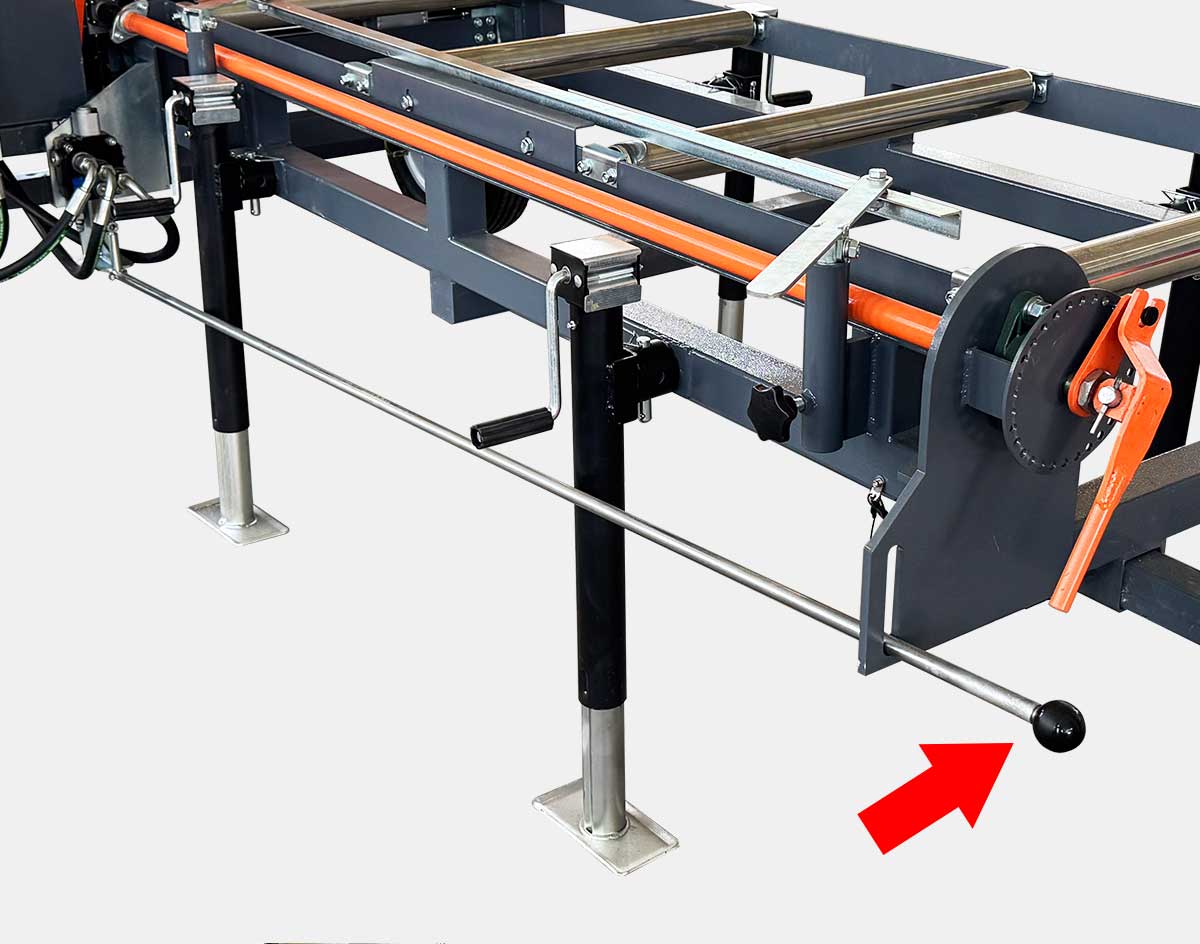

1.Ultra long safety hand valve controls saw wheel rotation

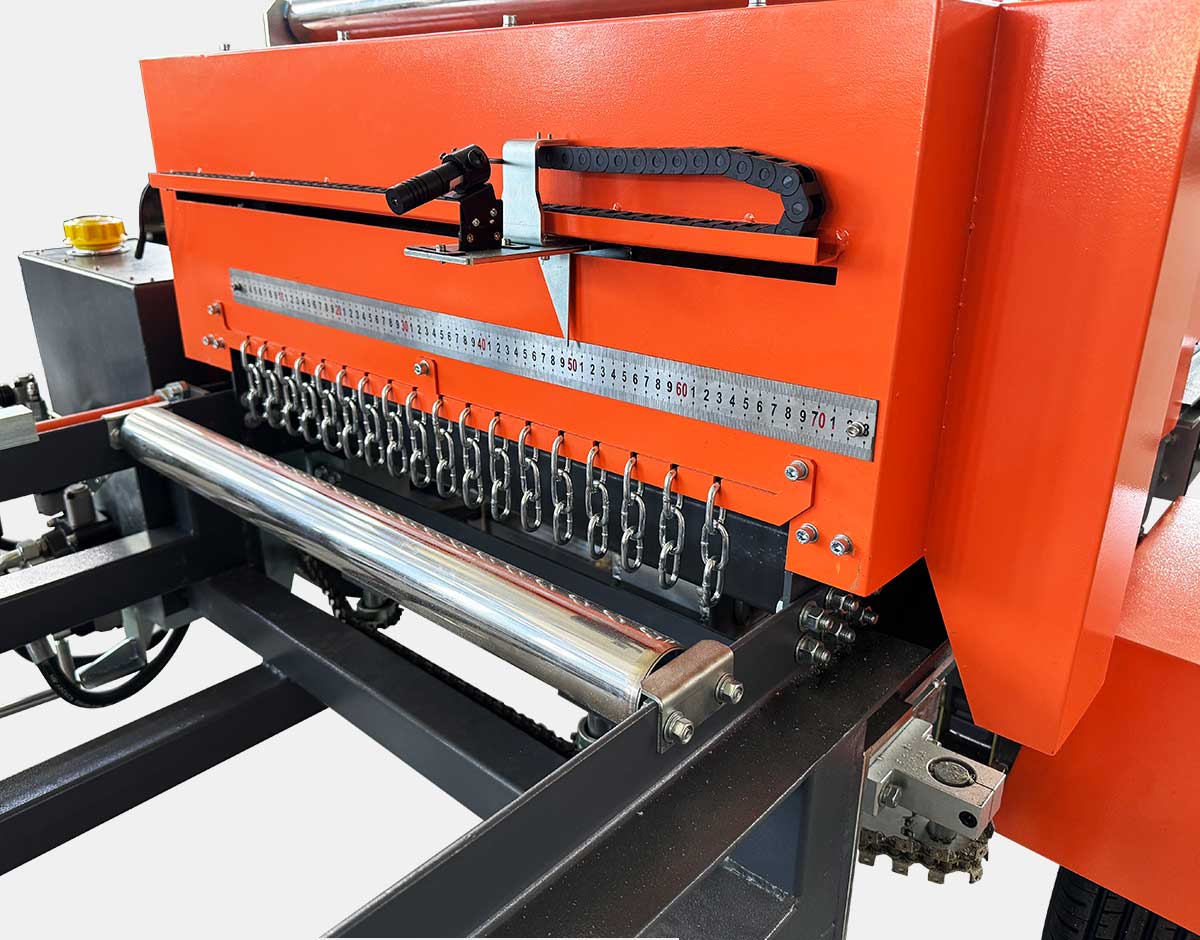

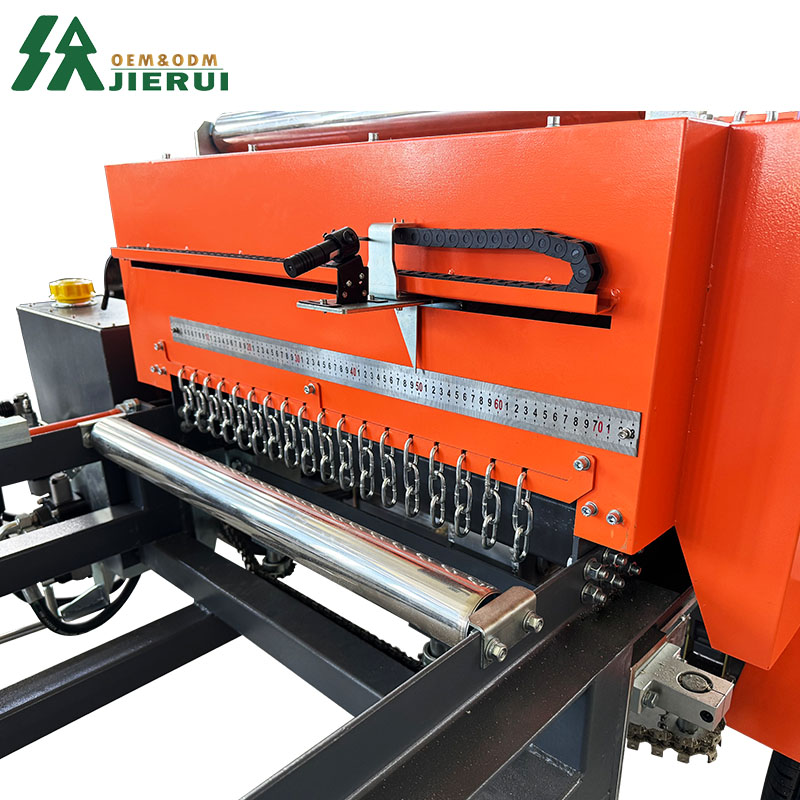

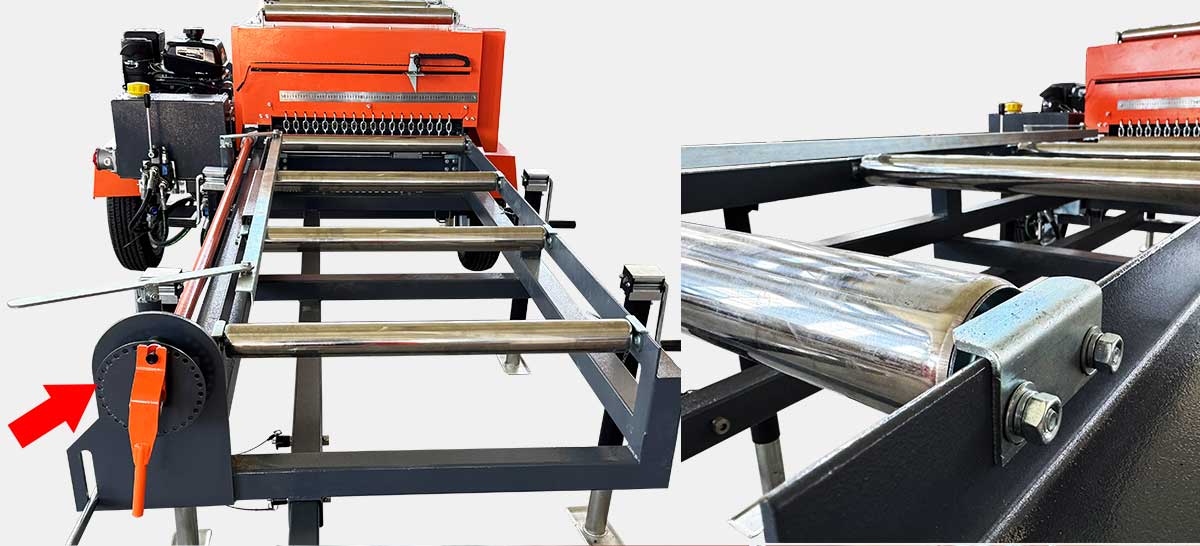

2.A simple manual dial lets you accurately set the size you want to edge your lumber
3.Automatic Feeding System hydraulic feeding rollers guarantee consistent speed and accuracy.
4.The laser displays the cutting path
5.Foldable track saves space and enables easy transport between job sites.

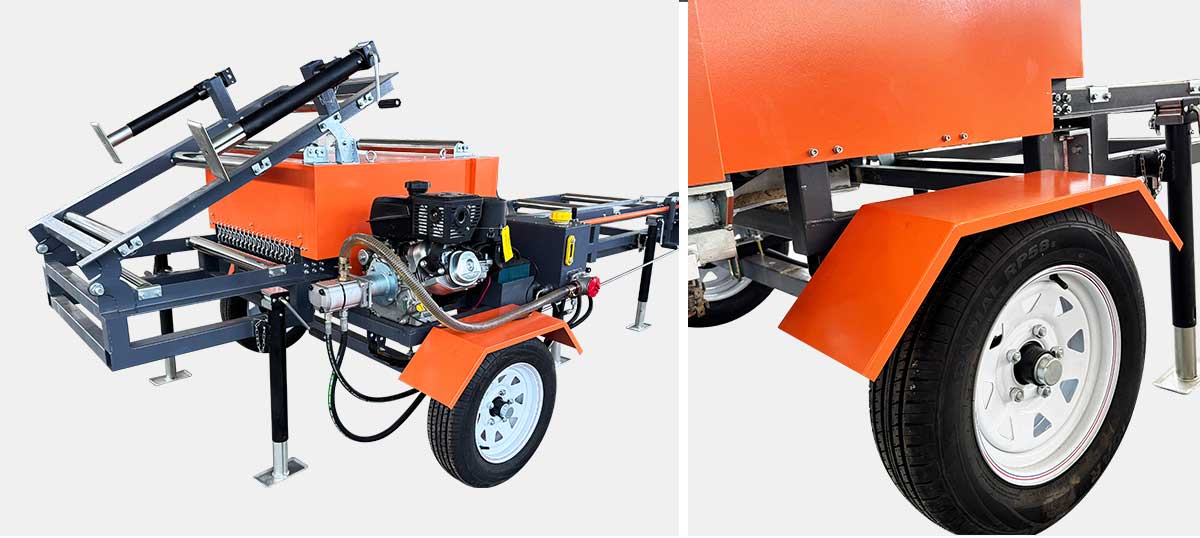

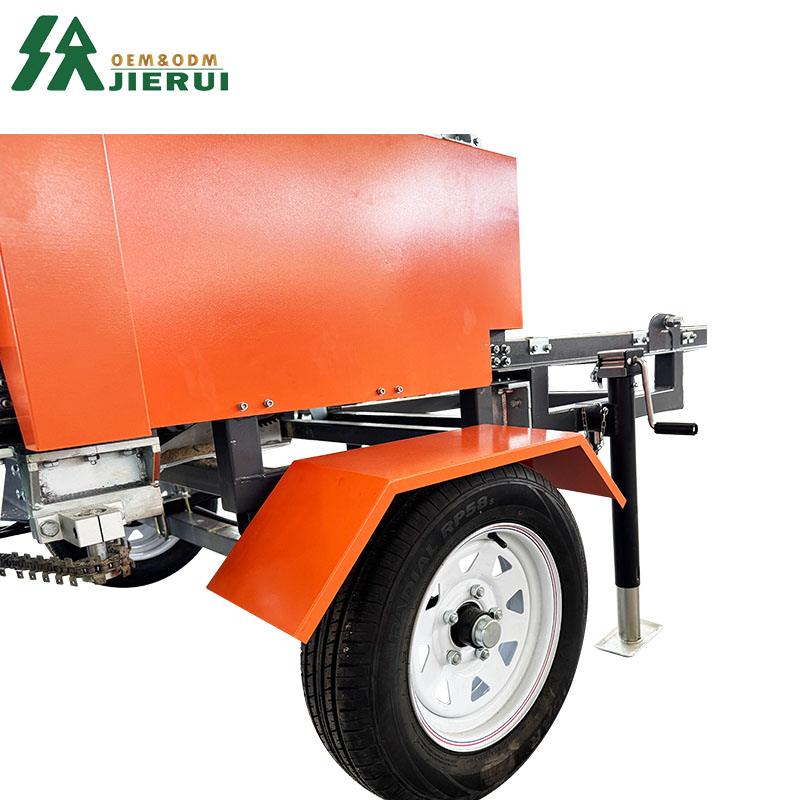

6.Heavy-duty wear-resistant tyres for smooth movement.
Product display
If you would like to know more information or have any questions, please feel free to contact us at any time. Contact us and you will receive a free brochure!
