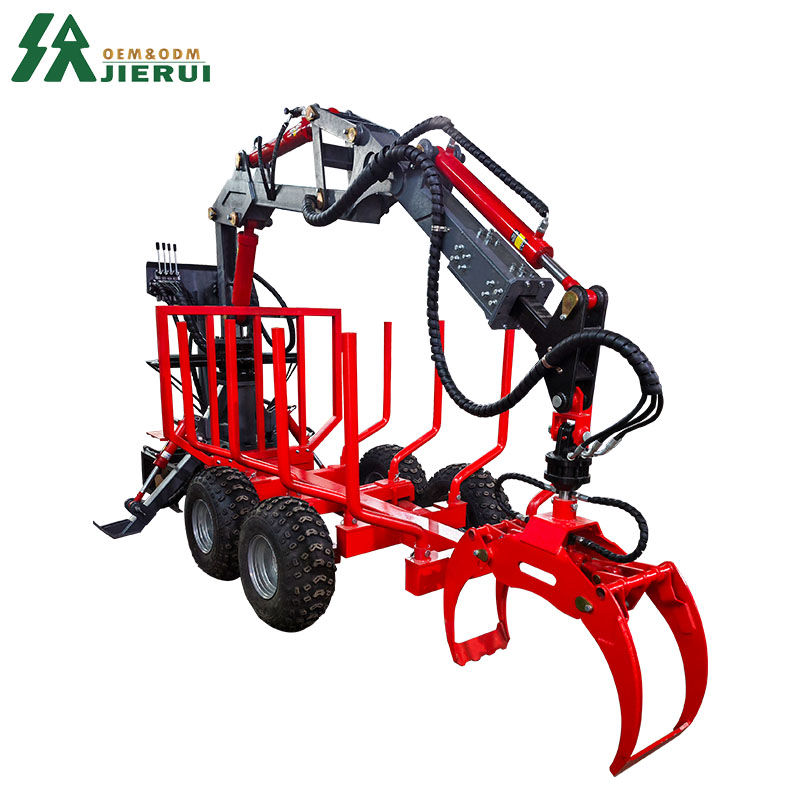

Forestry Timber Wood Trailer Loading Wagon With Grapple
- All-in-one operationIntegrates transport and loading/unloading in one unit, eliminating the need for extra machinery or manual labor.
- High efficiency & productivitySignificantly reduces handling time and speeds up timber loading, hauling, and delivery cycles.
- Strong & precise liftingHydraulic crane with log grapple ensures stable, accurate log handling even for heavy timber.
Make an inquiry will get the best shipping quotation

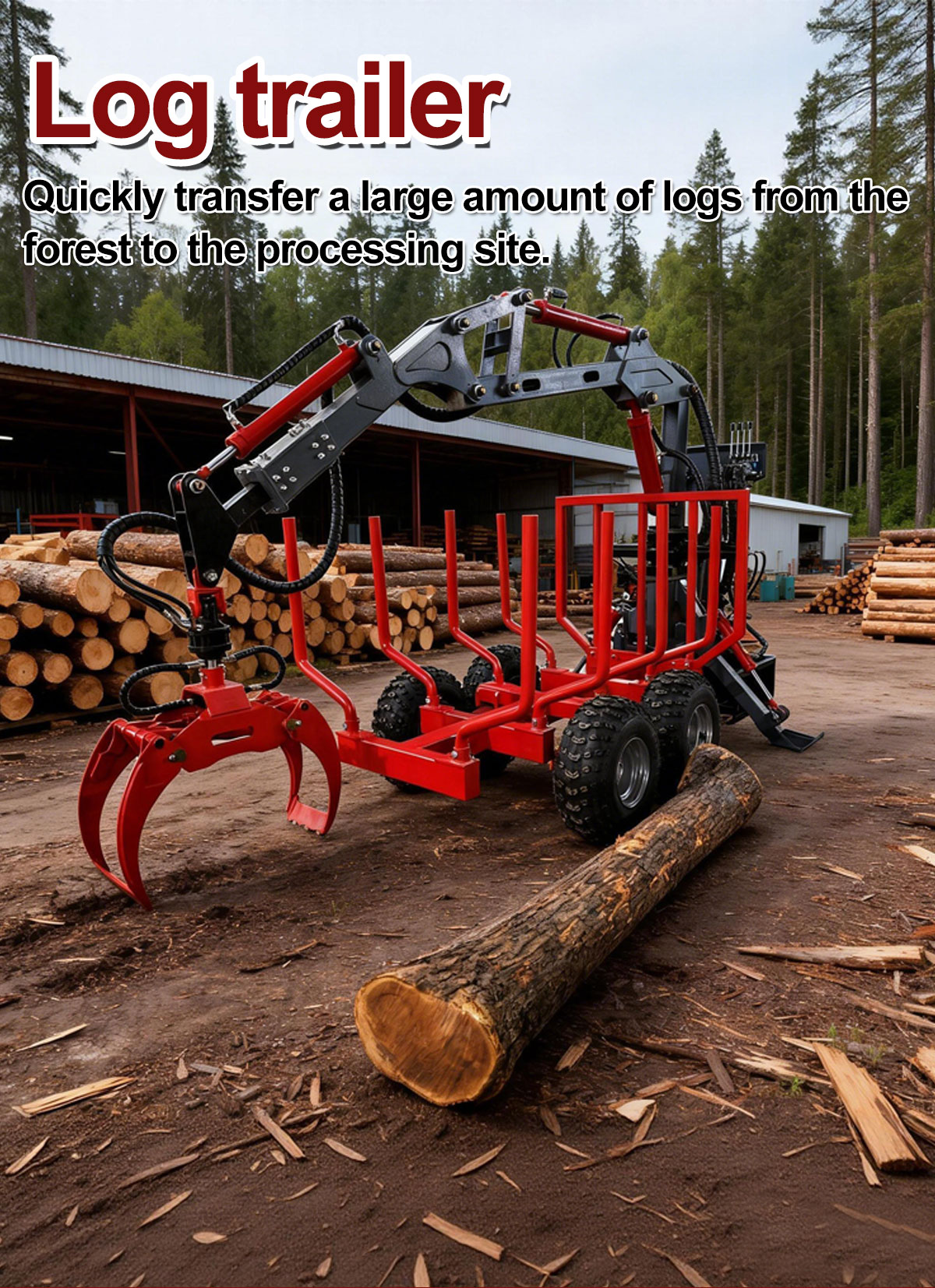

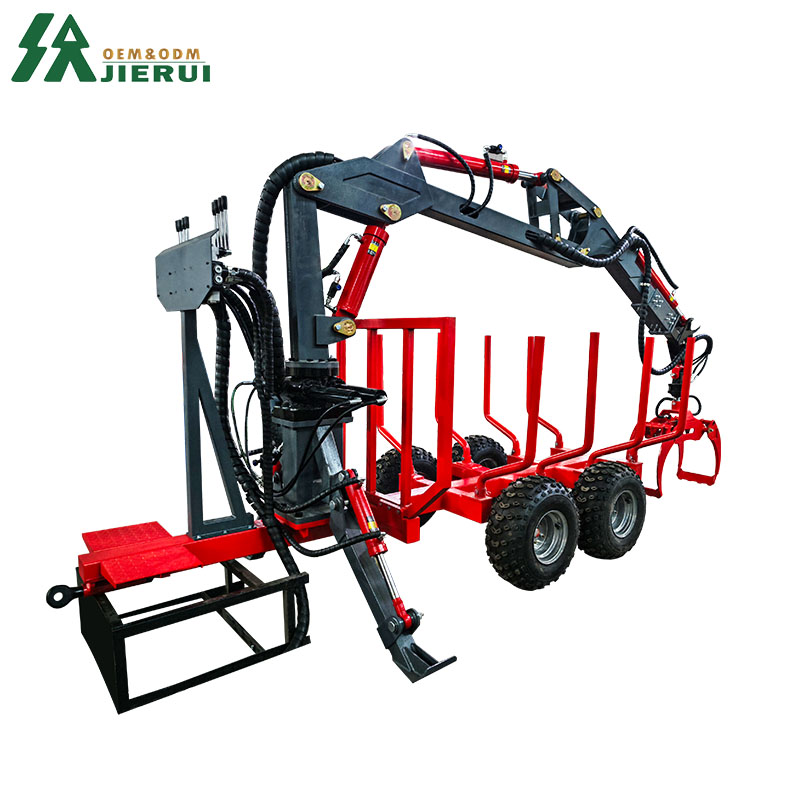

Log Trailer with Crane (timber trailer with hydraulic loader crane) is a specialized vehicle for forestry/logistics, integrating transport and self-loading/unloading of logs/wood without needing extra machinery. It’s widely used in logging sites, sawmills, and rural wood handling.
Log Trailer with Crane – Advantages
All-in-one machine that integrates loading, unloading and transportation, no need for extra equipment.
High working efficiency, greatly shortening timber handling and hauling time.
Powerful hydraulic crane with log grapple for stable, precise and safe log handling.

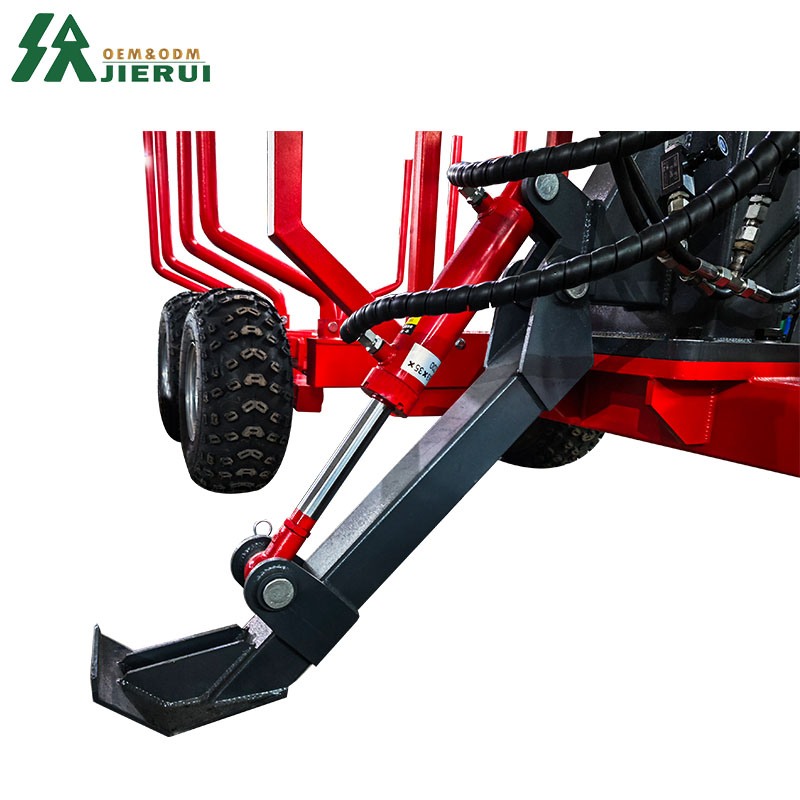

Hydraulic stabilizer legs ensure stable operation on uneven forest terrain.

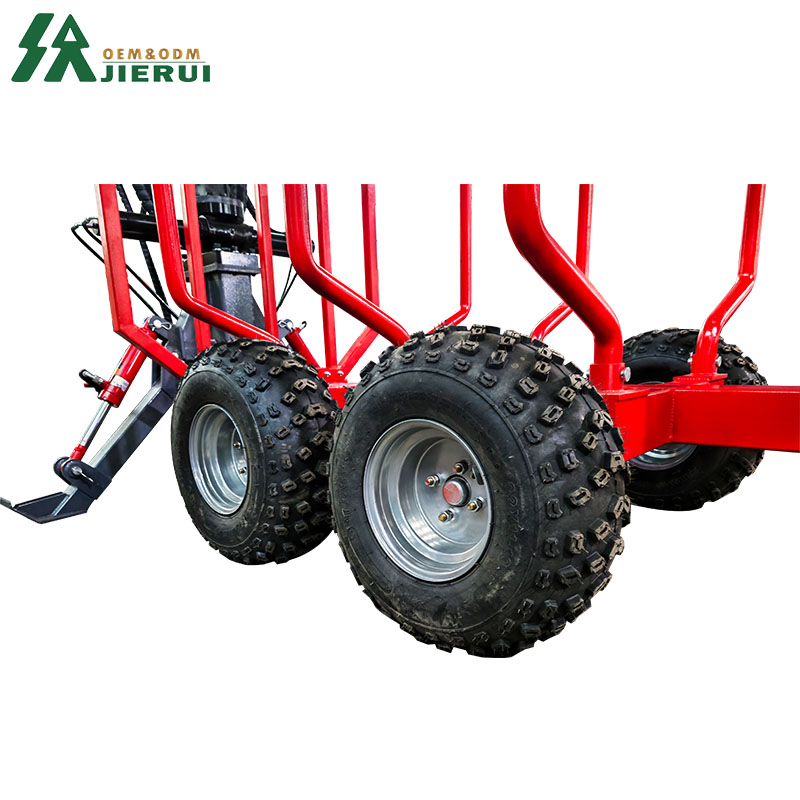

Heavy-duty steel frame, adjustable bunks and high-load axles for durability and long service life.
Reduces labor demand and lowers overall operating cost.
Widely used in forestry, sawmills, wood processing and firewood production.
| Model | JRT-1T |
| Mactching Power (hp) | 10-25 |
| Machine Weight (kg) | 1120 |
| 0Trailer section | |
| Trailer Model | TR10 |
| N/W of Trailer (kg) | 400 |
| Rated Loading Capacity (1) | 1 |
| Loading Area (㎡) | 0.8 |
| Total Length of Trailer | 3.4 |
| Trailer Loading Length | 2 |
| Total Width of Trailer | 1.3 |
| Assistant Hydraulic Steering | No |
| Dia. of Traction Hole | 33mm |
| Tire Model | 22*11-10 |
| Crane section | |
| Model | CR02J |
| Weight of Grane (kg) | 390 |
| Max. Arm Reach (m) | 3.5 |
| Lifting Capacity/Arm Reach (kg/m) | 300/1.5 260/2.5 200/3.5 |
| Rotating Angle (degree) | 370 |
| Grapple section | |
| Grab Model | TG019 |
| Weight of Grab (kg) | 60 |
| Max. Grab Opening Width (mm) | 700 |
| Grabbing Dia. of Logs (mm) | 80-240 |
Details Images

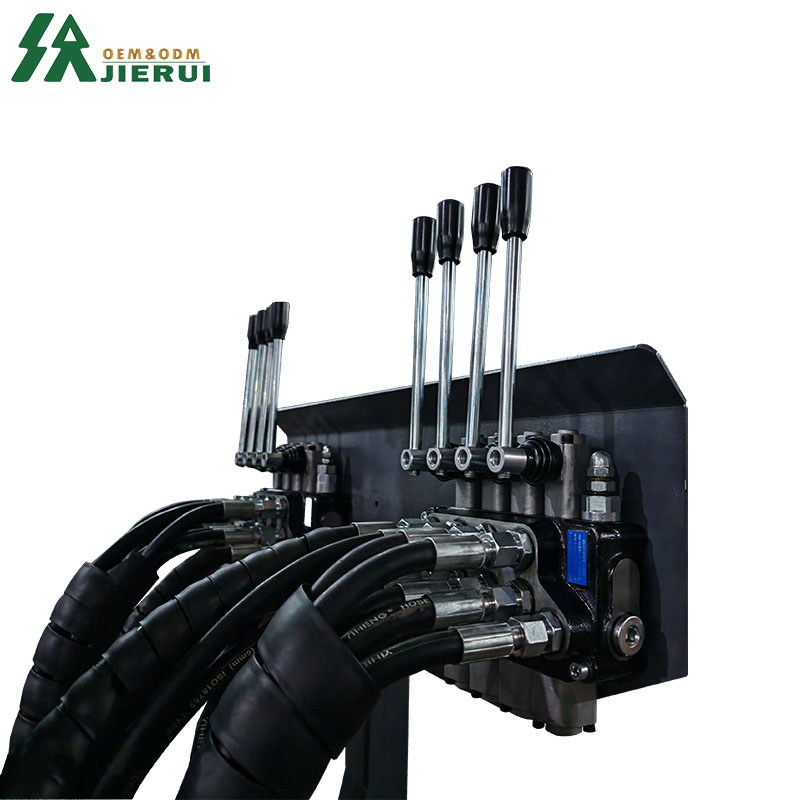

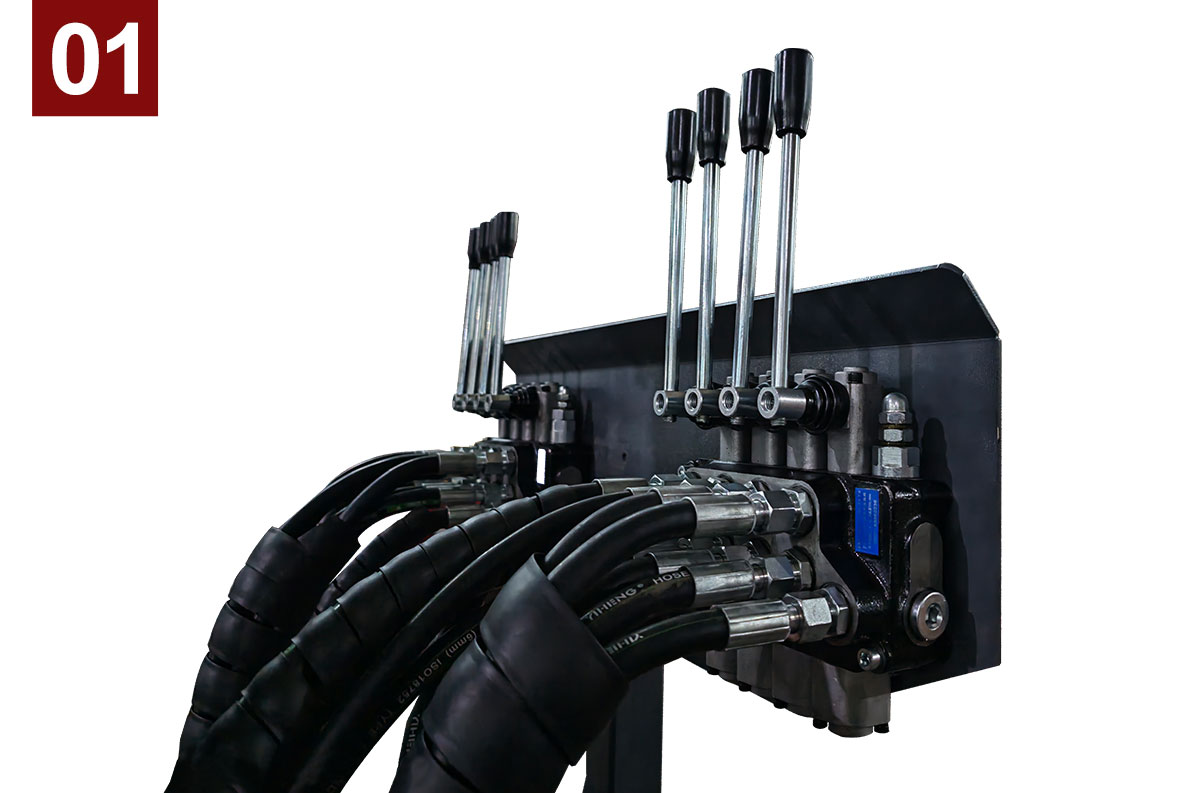

Control Valve Quick and convenient adjustment for smooth and precise operation.

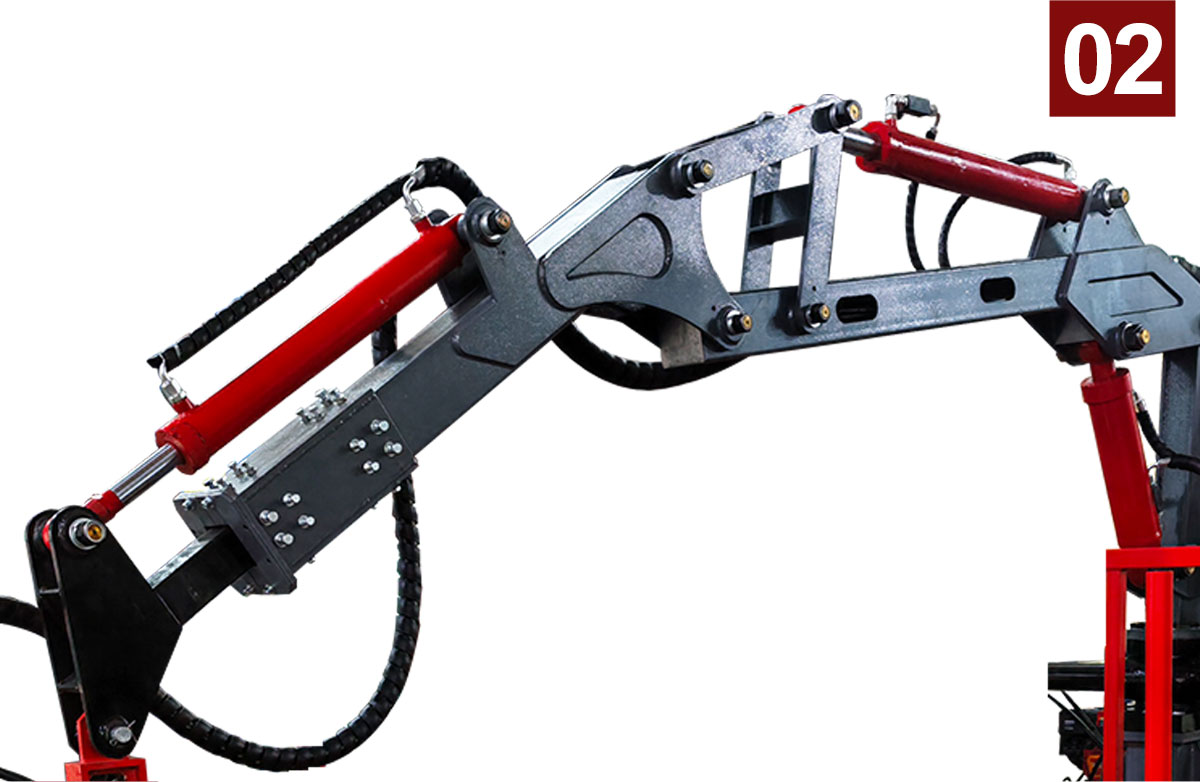

Precision Hydraulic System

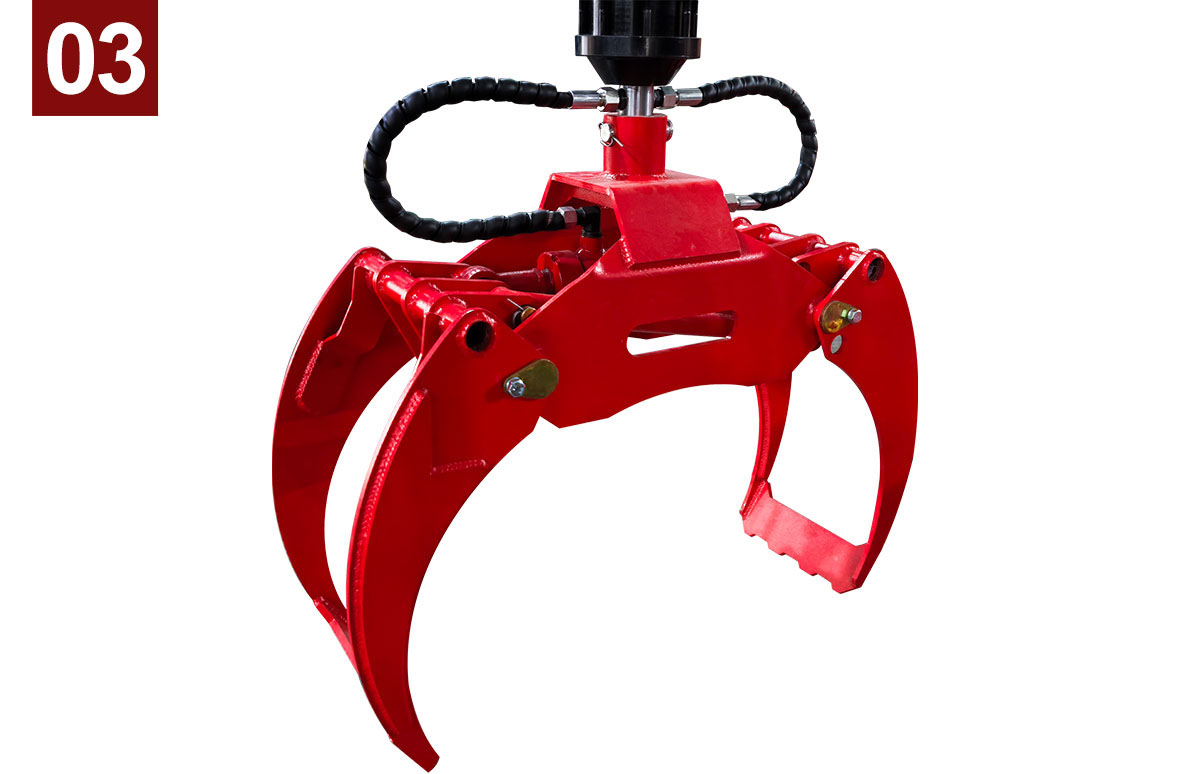

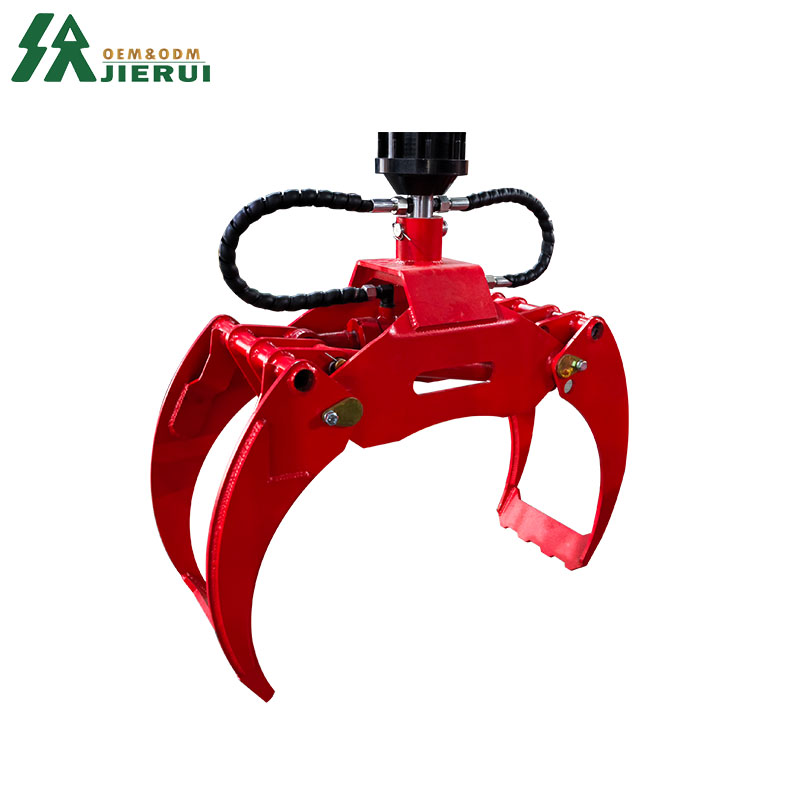

Timber Grab Ensures firm clamping, high adaptability, and stable grabbing of various log sizes.

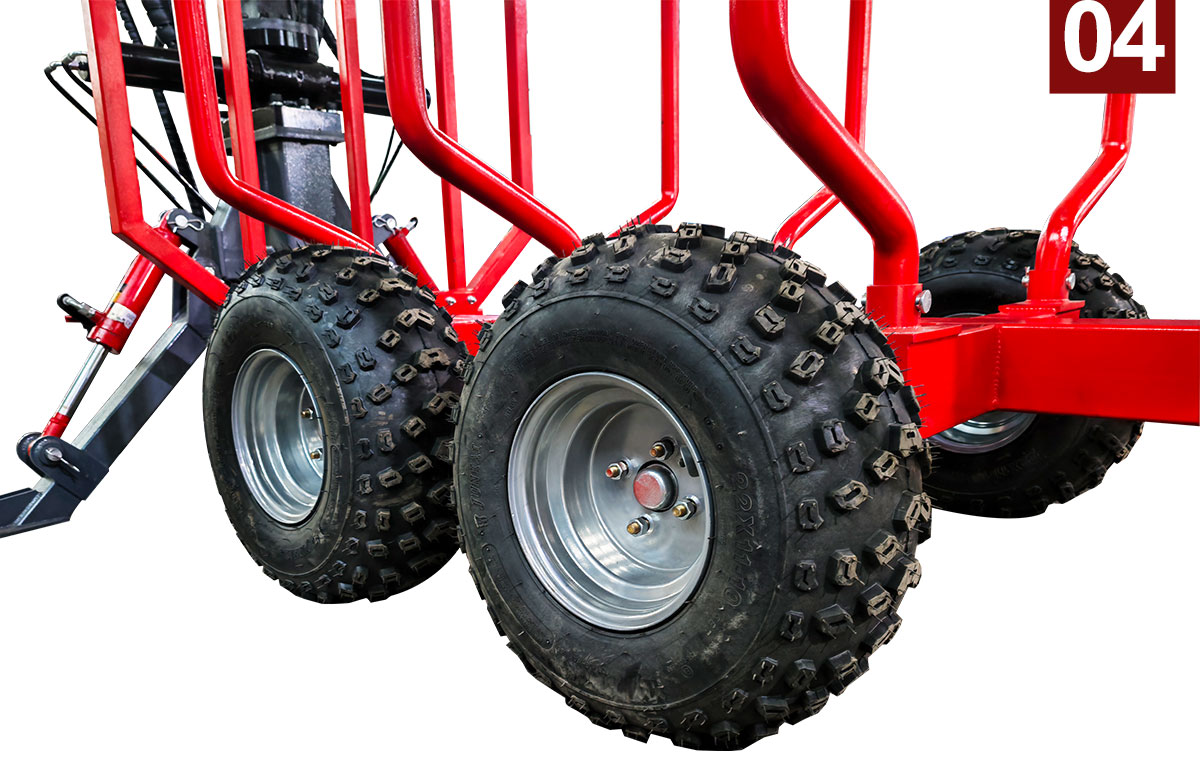

Excellent wear resistance and strong load-bearing capacity.

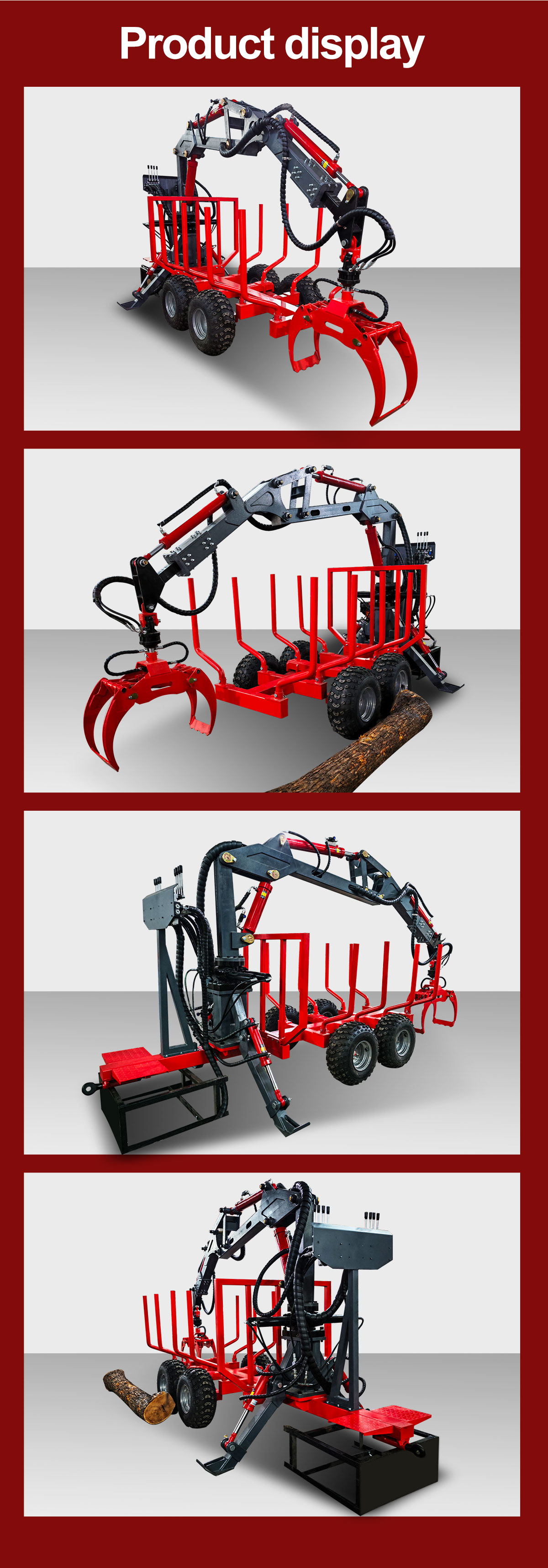

Product display
