Factory Price Gasoline Engine Timber Trailer With Crane
All‑in‑one loading and transport, no extra equipment needed
High working efficiency, saves time and labor cost
Strong lifting capacity, stable and safe operation
Make an inquiry will get the best shipping quotation

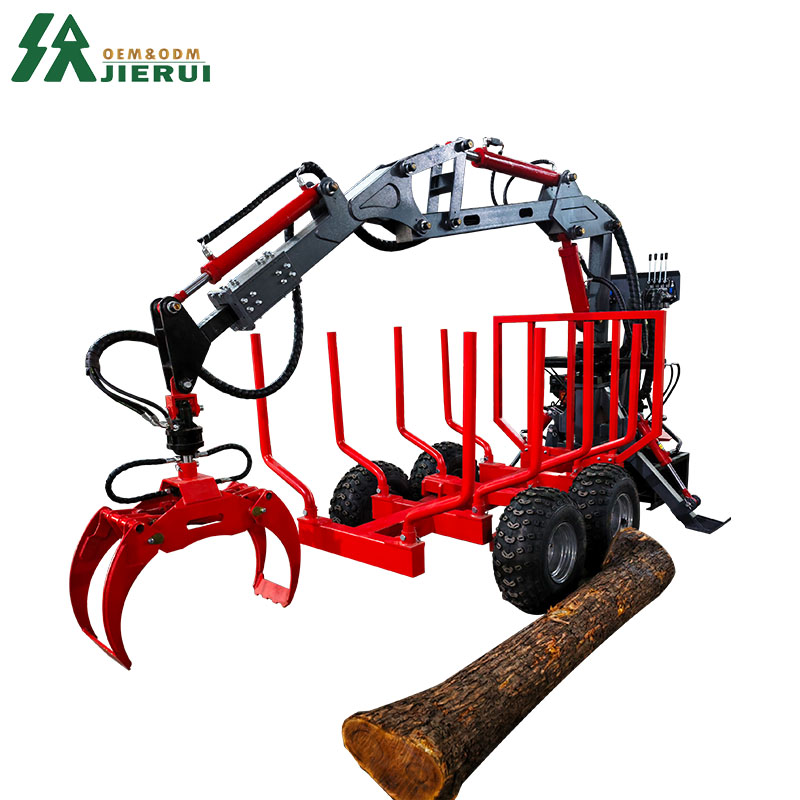

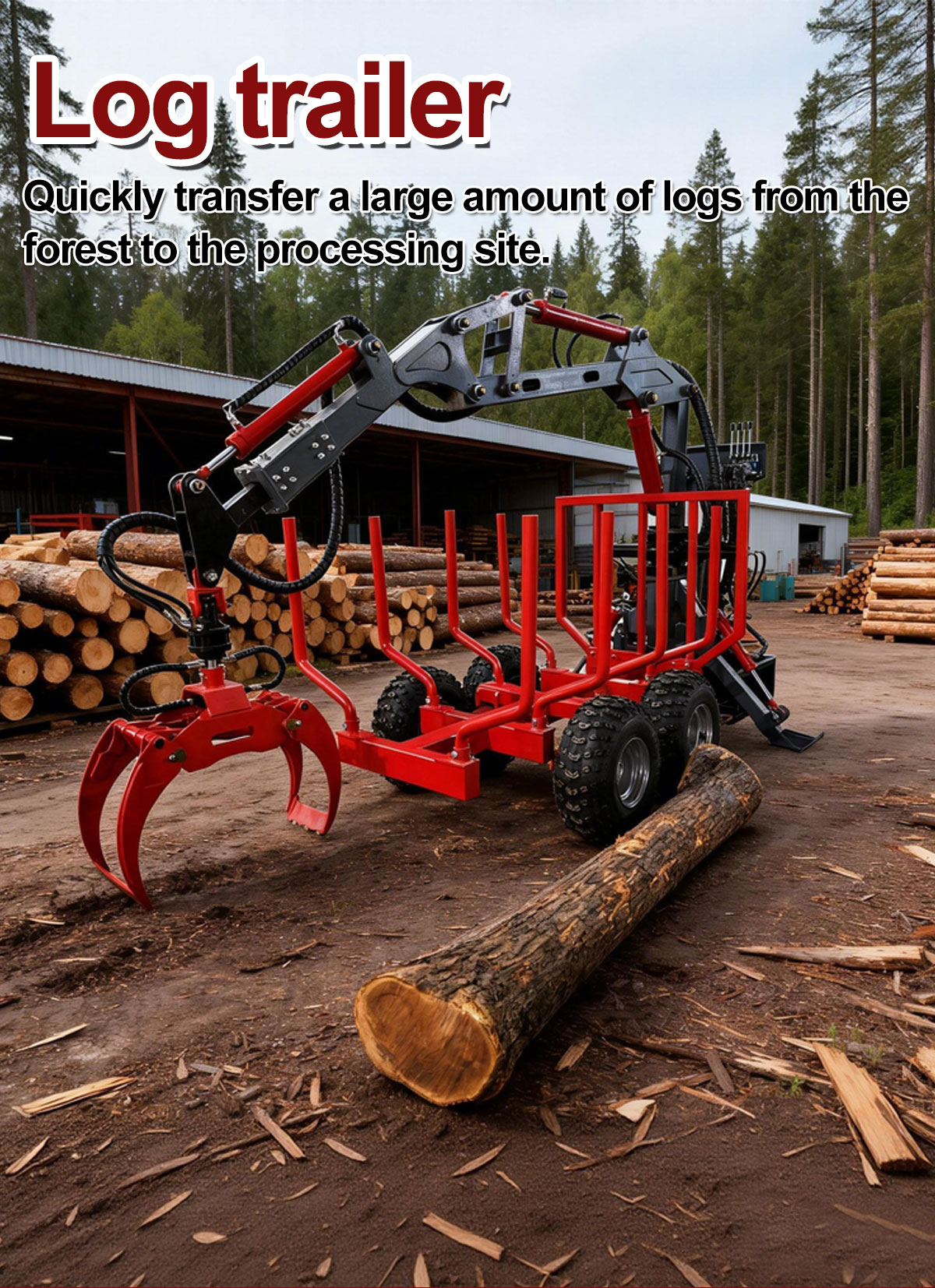

Log Trailer with Crane
Integrates log transport and crane loading in one machine
High-efficiency self-loading & unloading, no extra equipment needed
Strong lifting capacity, stable and safe operation
Flexible boom and grapple for precise log handling

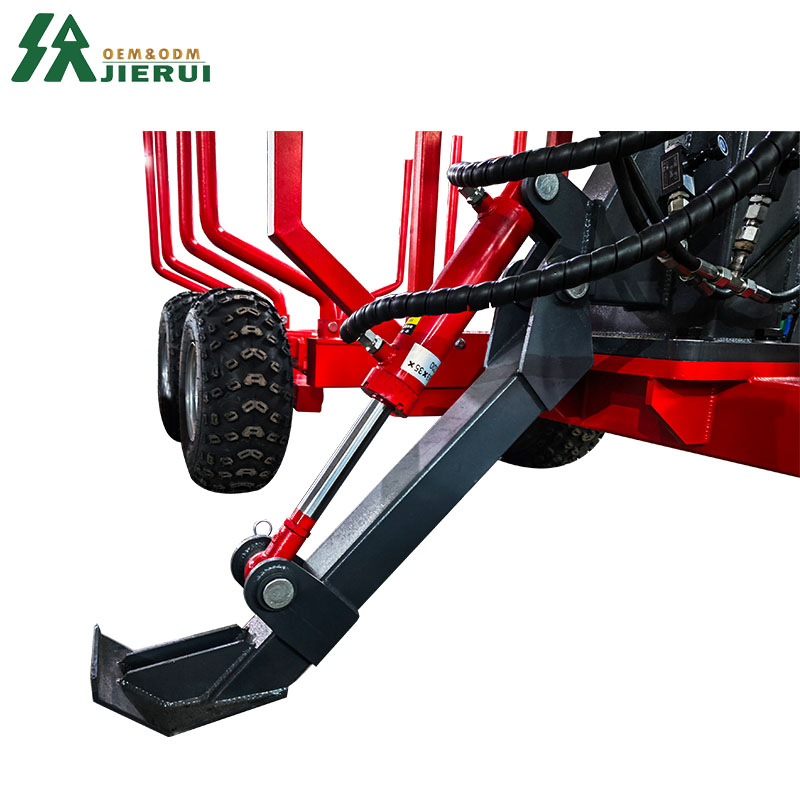

Hydraulic stabilizers ensure stability on rough terrain
Heavy-duty frame, durable and reliable under heavy load
Greatly improves productivity and reduces labor cost
Ideal for forestry, sawmills, and wood transportation
| Model | JRT-1T |
| Mactching Power (hp) | 10-25 |
| Machine Weight (kg) | 1120 |
| 0Trailer section | |
| Trailer Model | TR10 |
| N/W of Trailer (kg) | 400 |
| Rated Loading Capacity (1) | 1 |
| Loading Area (㎡) | 0.8 |
| Total Length of Trailer | 3.4 |
| Trailer Loading Length | 2 |
| Total Width of Trailer | 1.3 |
| Assistant Hydraulic Steering | No |
| Dia. of Traction Hole | 33mm |

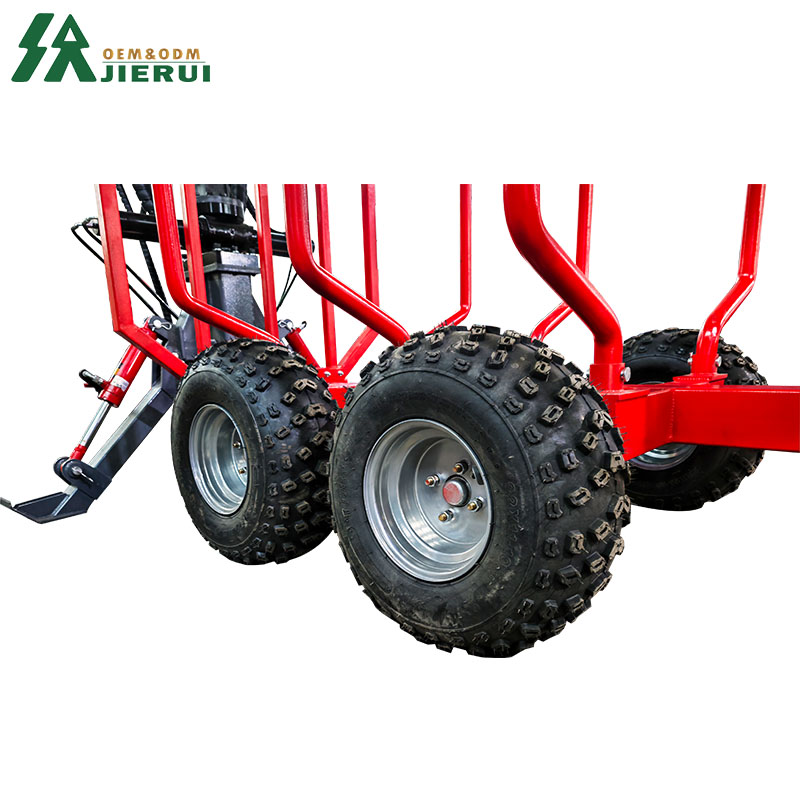

| Tire Model | 22*11-10 |
| Crane section | |
| Model | CR02J |
| Weight of Grane (kg) | 390 |
| Max. Arm Reach (m) | 3.5 |
| Lifting Capacity/Arm Reach (kg/m) | 300/1.5 260/2.5 200/3.5 |
| Rotating Angle (degree) | 370 |
| Grapple section | |
| Grab Model | TG019 |
| Weight of Grab (kg) | 60 |
| Max. Grab Opening Width (mm) | 700 |
| Grabbing Dia. of Logs (mm) | 80-240 |
Details Images

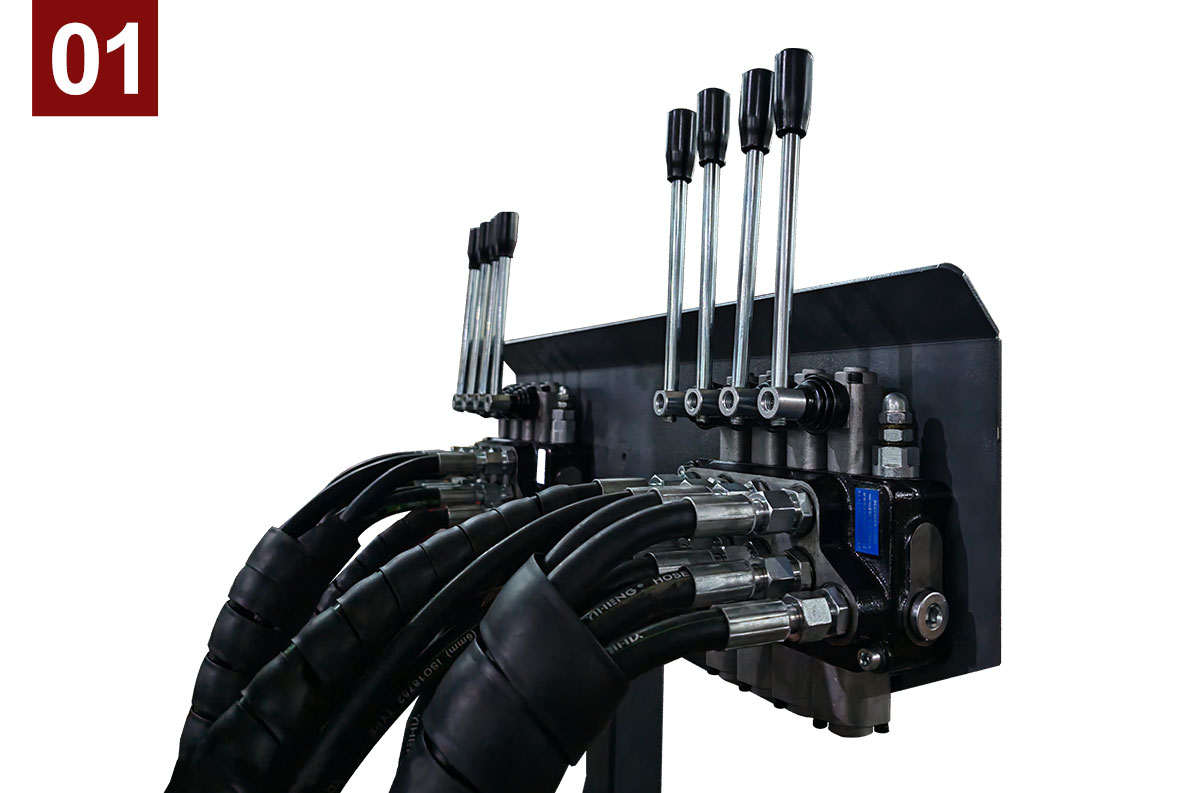

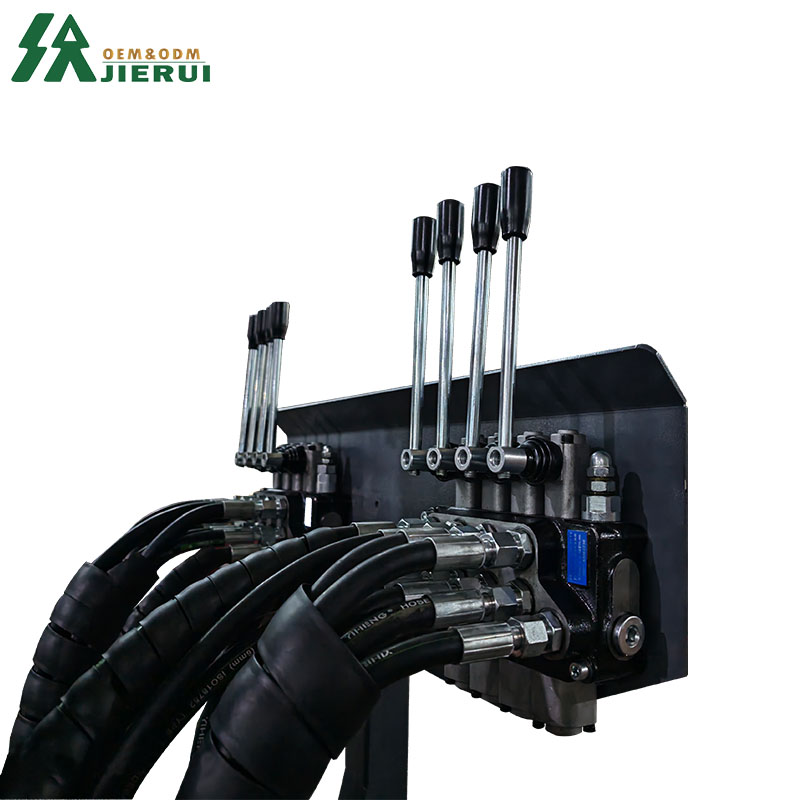

Control Valve Stable and precise control for lifting, clamping and unloading

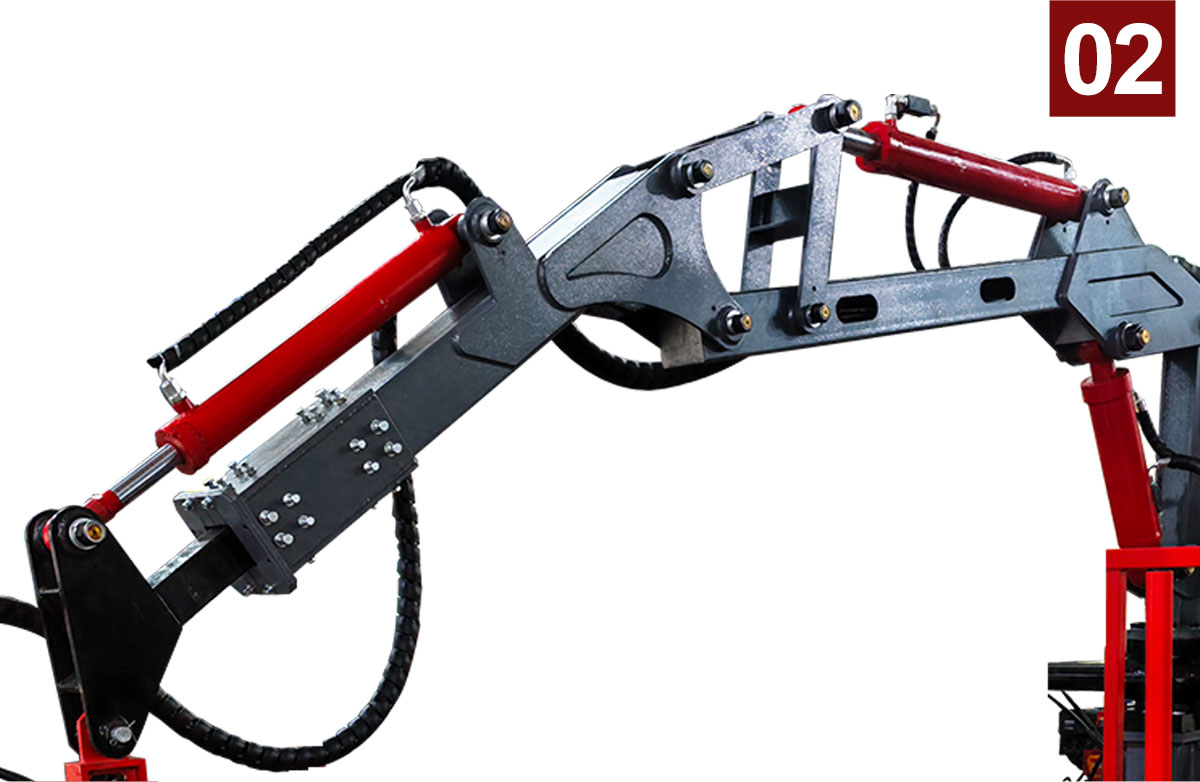

Precision Hydraulic Rigors

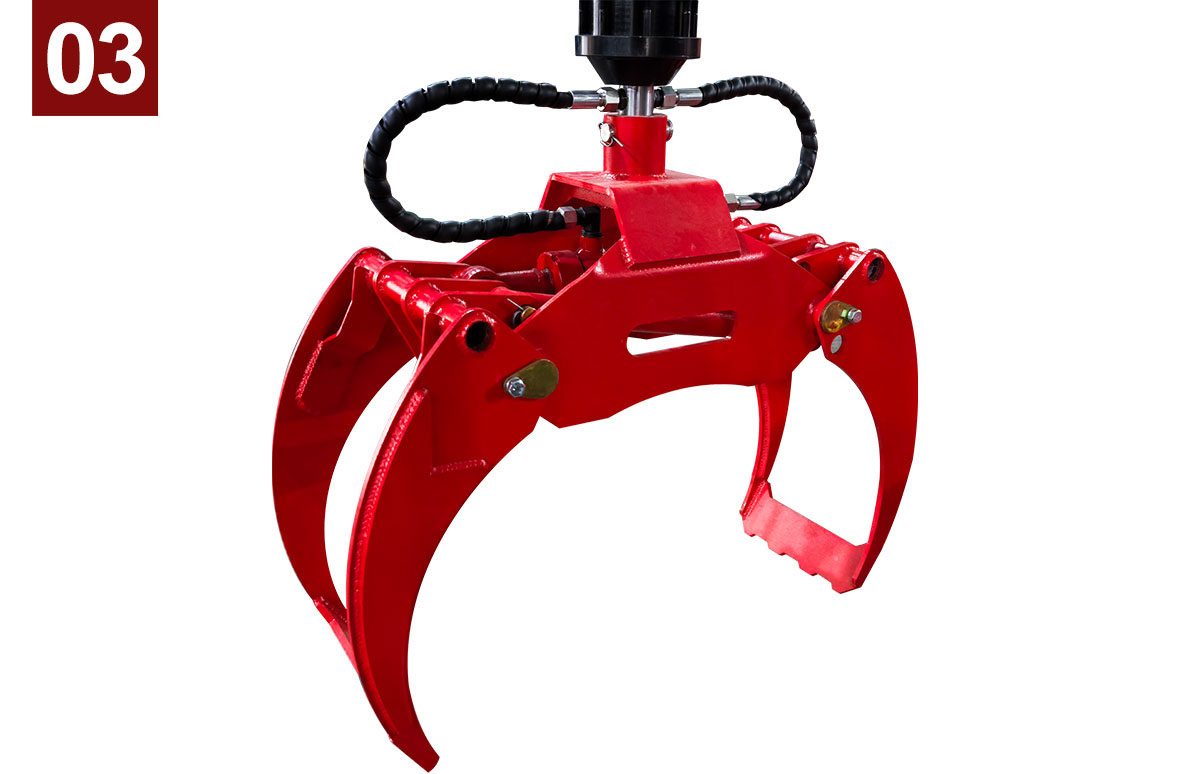

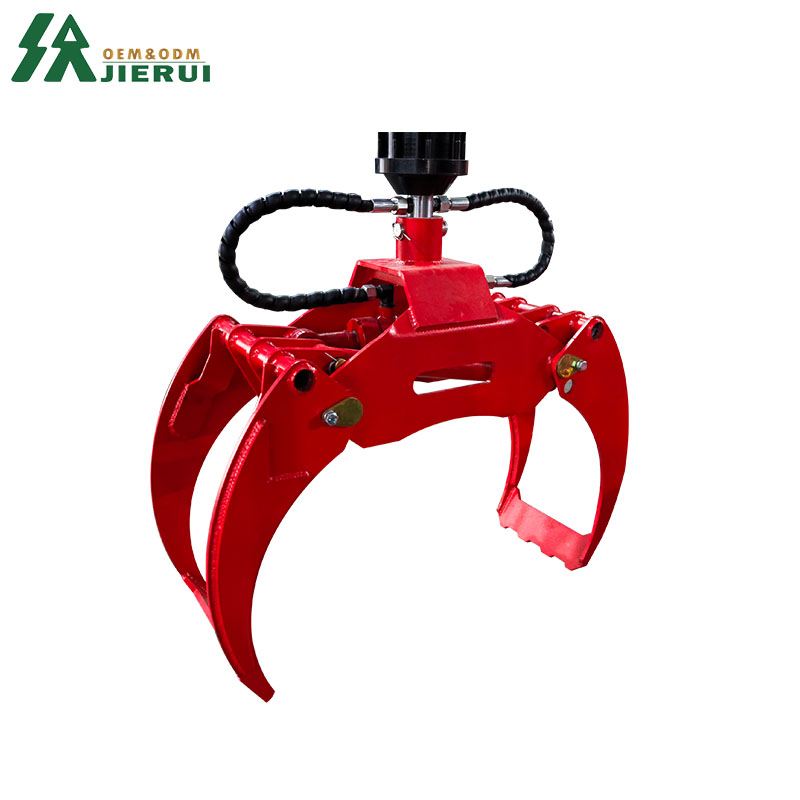

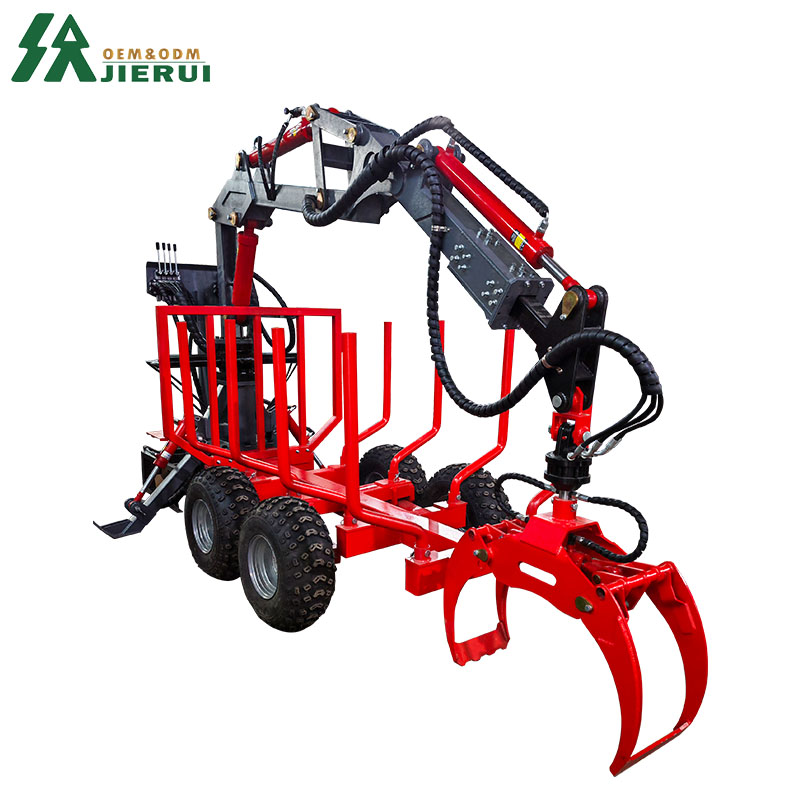

Timber Grab Wide operating range, easy to load and unload logs in various positions
Excellent wear resistance for long service life

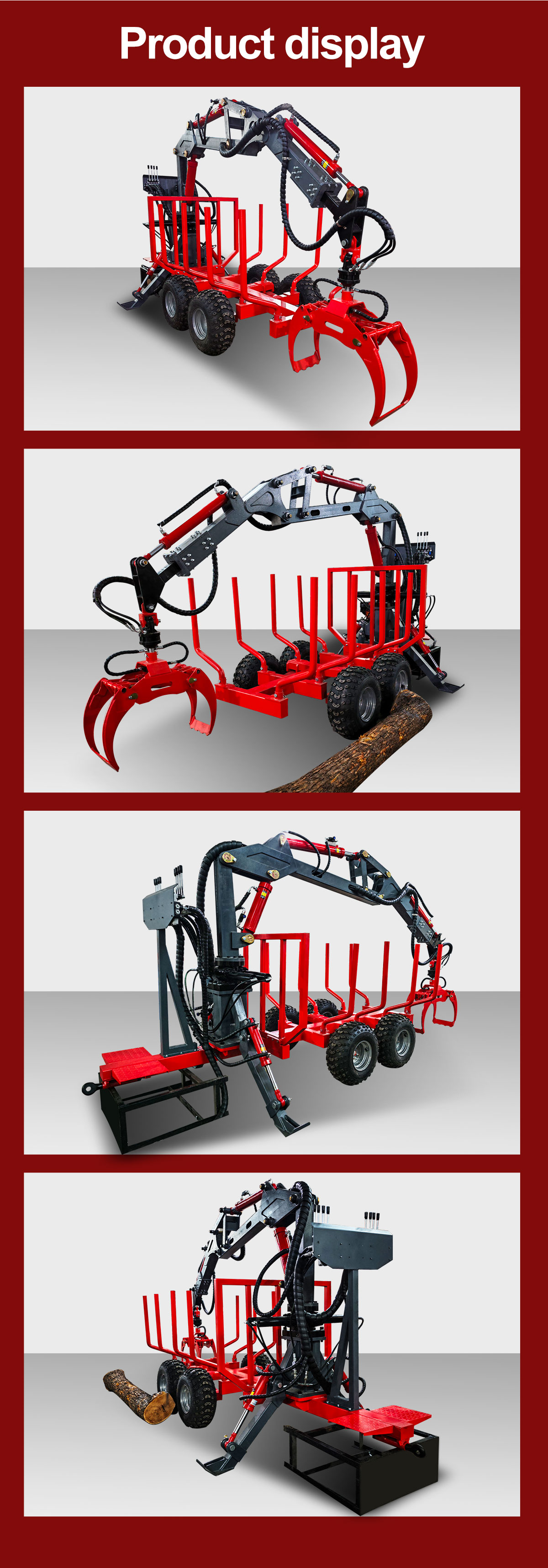

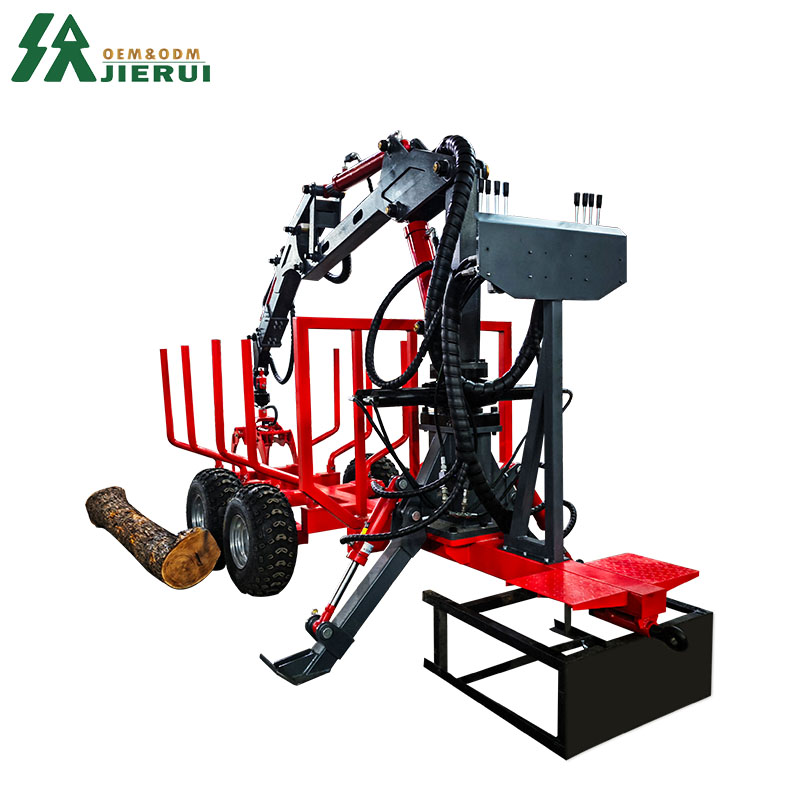

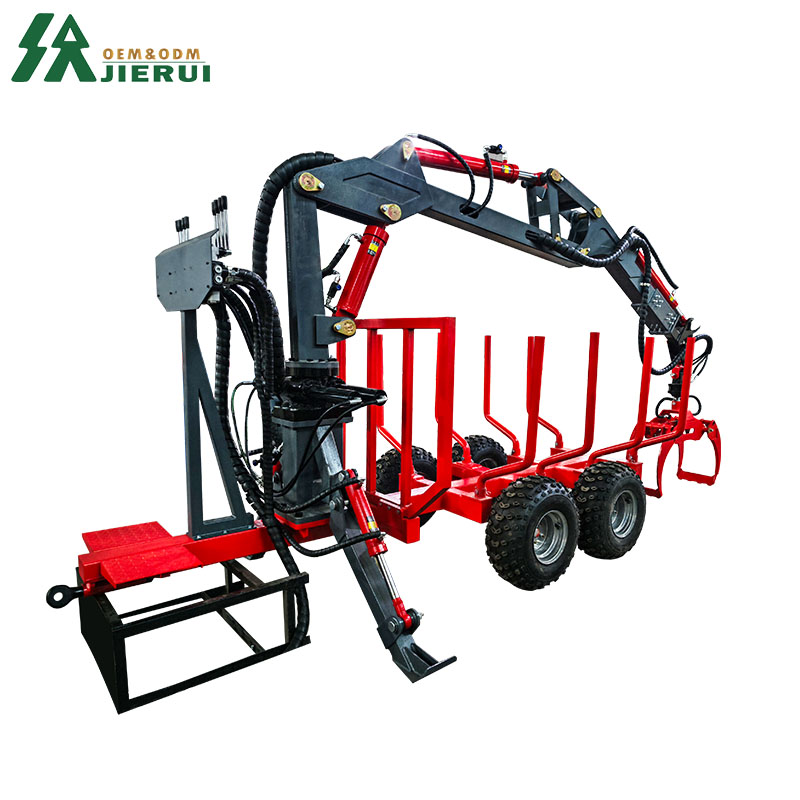

Product display
