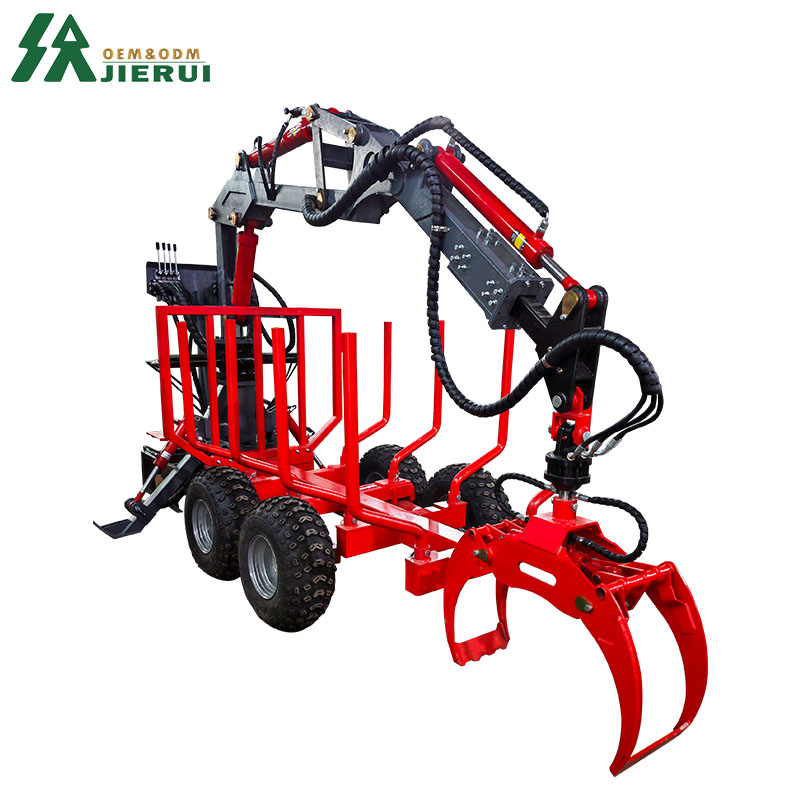

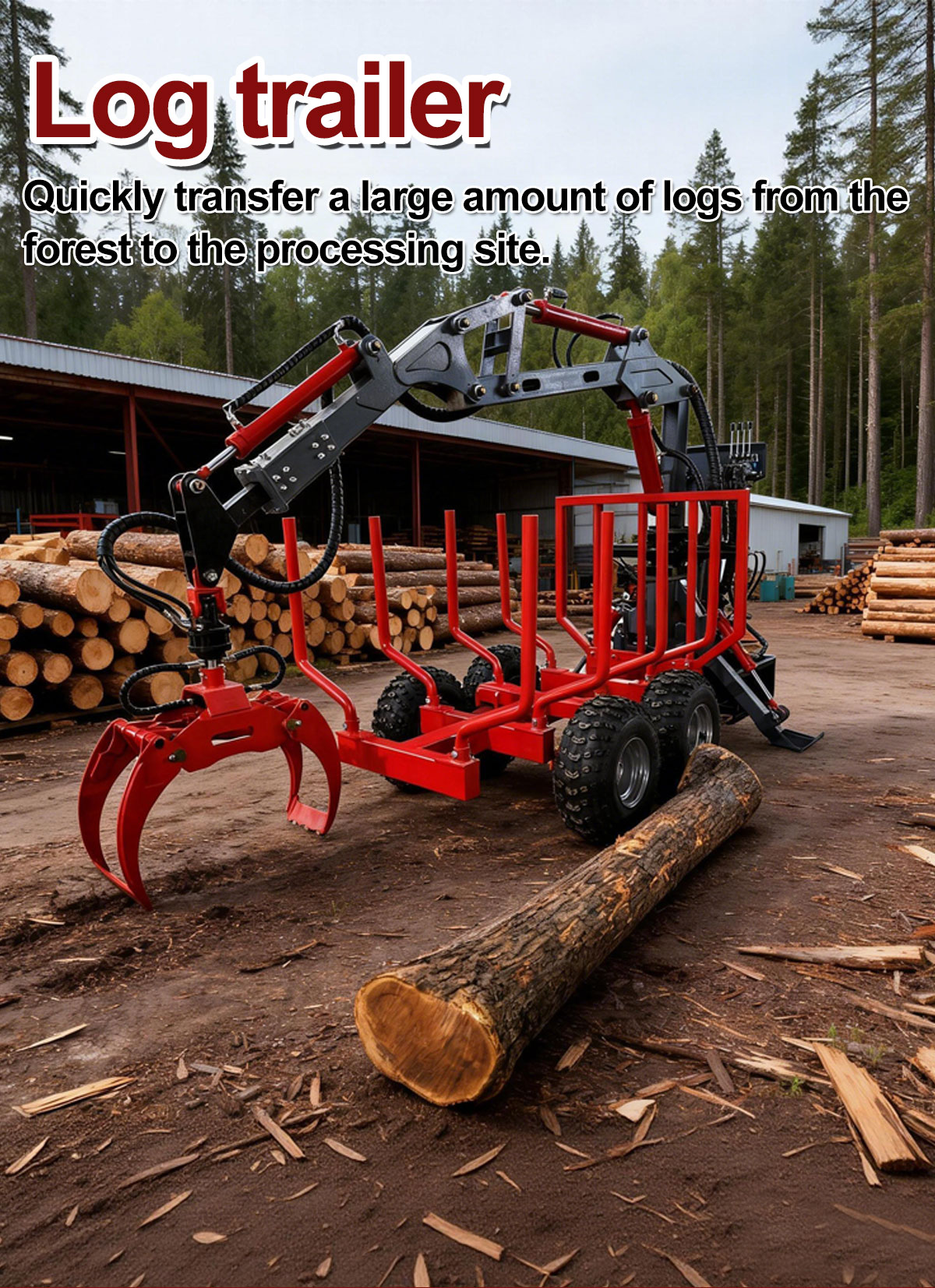

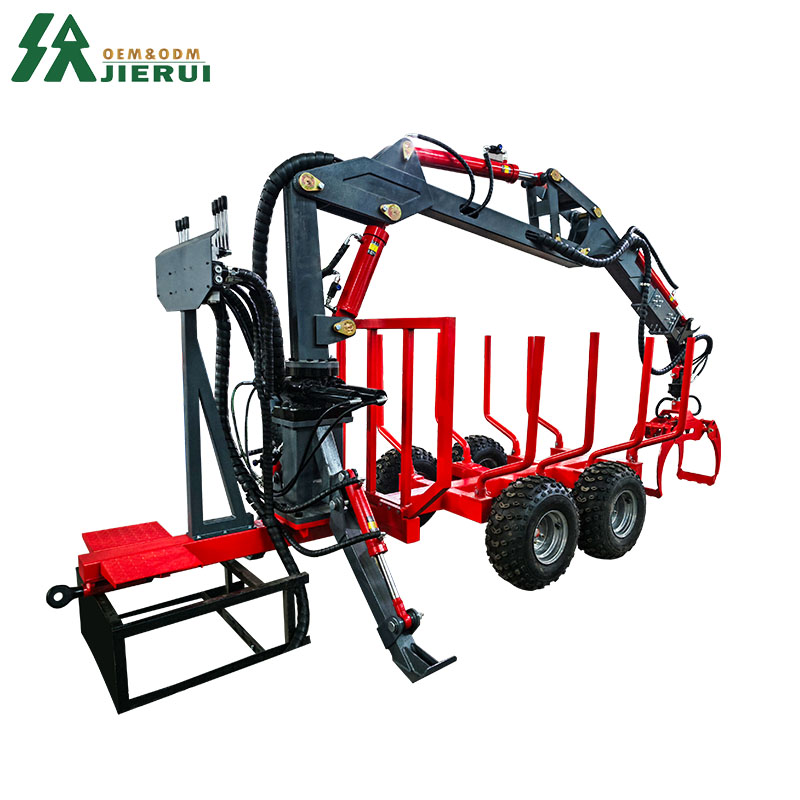

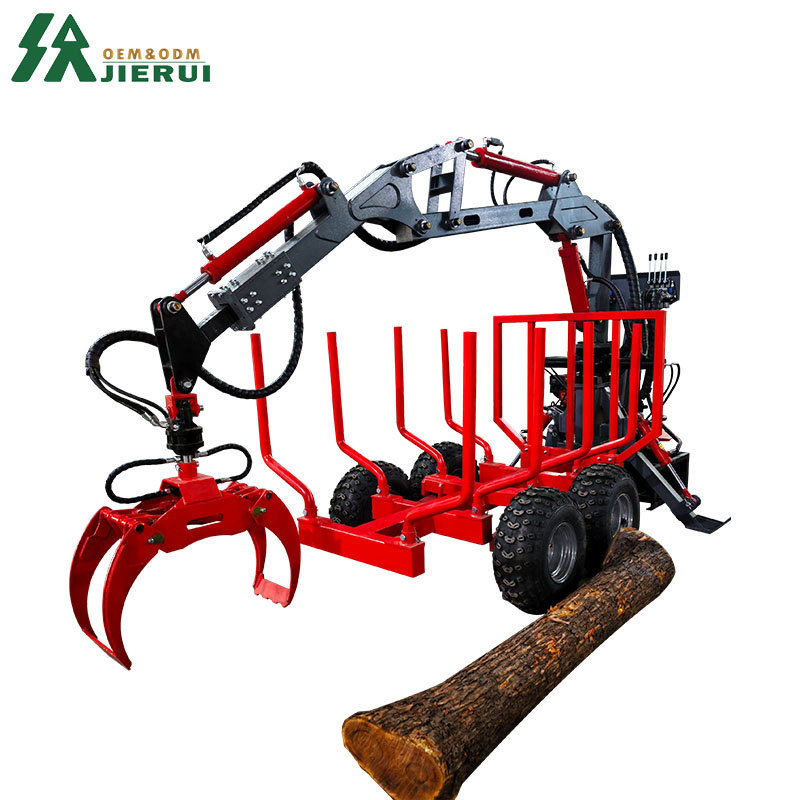

Factory exported wood trailer Log Wagon with Crane
Stable structure, safe and reliable on forest roads
Easy to operate and maintain
Low operating cost and high cost performance
Suitable for forestry, sawmills and timber transport
Make an inquiry will get the best shipping quotation
log trailer advantage

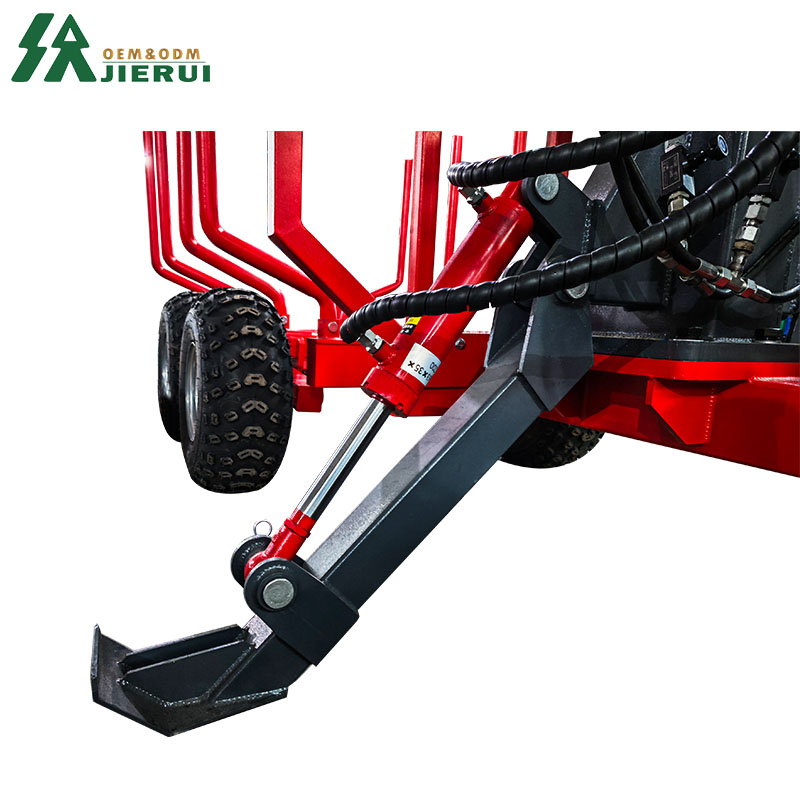

Integrated hydraulic crane allows independent loading, unloading and transport—no extra equipment needed, saving time and labor. Stable & efficient operation via log grapple, optimized boom and hydraulic stabilizer legs, even on uneven forest terrain.Durable & versatile, with robust steel frame, adjustable bunks and high-capacity axles boosting load-bearing capacity for forestry and sawmills, enhancing efficiency and cutting labor costs.
| Model | JRT-1T |
| Mactching Power (hp) | 10-25 |
| Machine Weight (kg) | 1120 |
| 0Trailer section | |
| Trailer Model | TR10 |
| N/W of Trailer (kg) | 400 |
| Rated Loading Capacity (1) | 1 |
| Loading Area (㎡) | 0.8 |
| Total Length of Trailer | 3.4 |
| Trailer Loading Length | 2 |
| Total Width of Trailer | 1.3 |
| Assistant Hydraulic Steering | No |
| Dia. of Traction Hole | 33mm |
| Tire Model | 22*11-10 |
| Crane section | |
| Model | CR02J |
| Weight of Grane (kg) | 390 |
| Max. Arm Reach (m) | 3.5 |
| Lifting Capacity/Arm Reach (kg/m) | 300/1.5 260/2.5 200/3.5 |
| Rotating Angle (degree) | 370 |

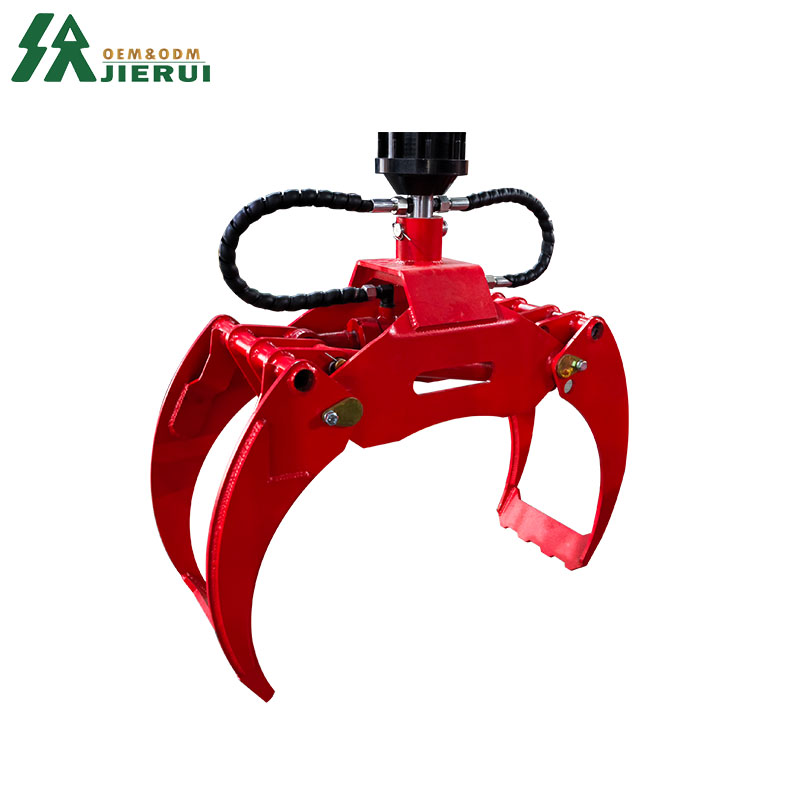

| Grapple section | |
| Grab Model | TG019 |
| Weight of Grab (kg) | 60 |
| Max. Grab Opening Width (mm) | 700 |
| Grabbing Dia. of Logs (mm) | 80-240 |
Details Images

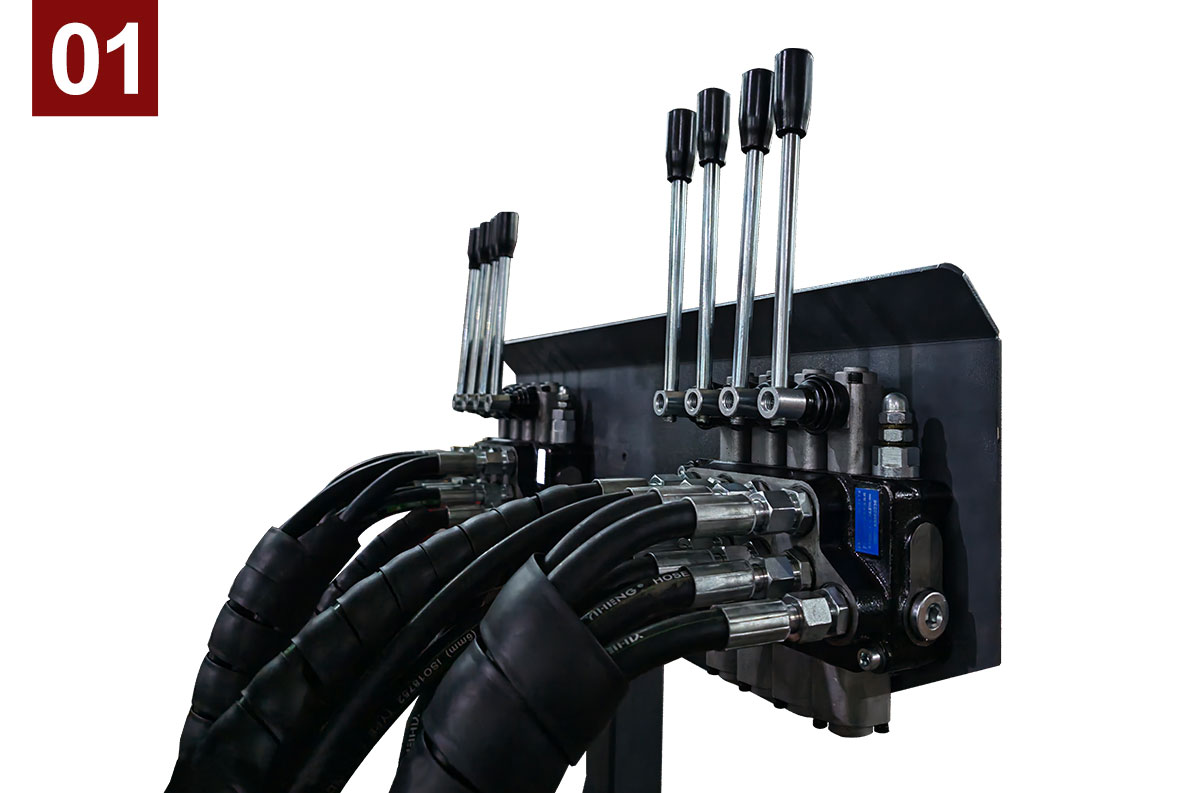

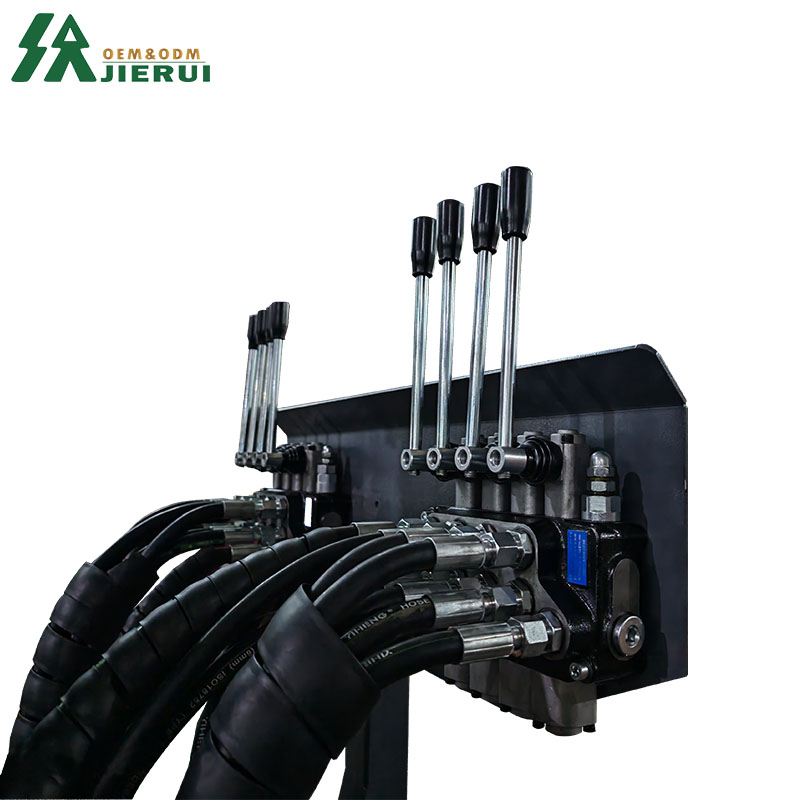

Control Valves Simple operation reduces misoperation, improves safety and stability.
Precision Hydraulic Rigors
Large swing/rotation angle for flexible and precise timber handling

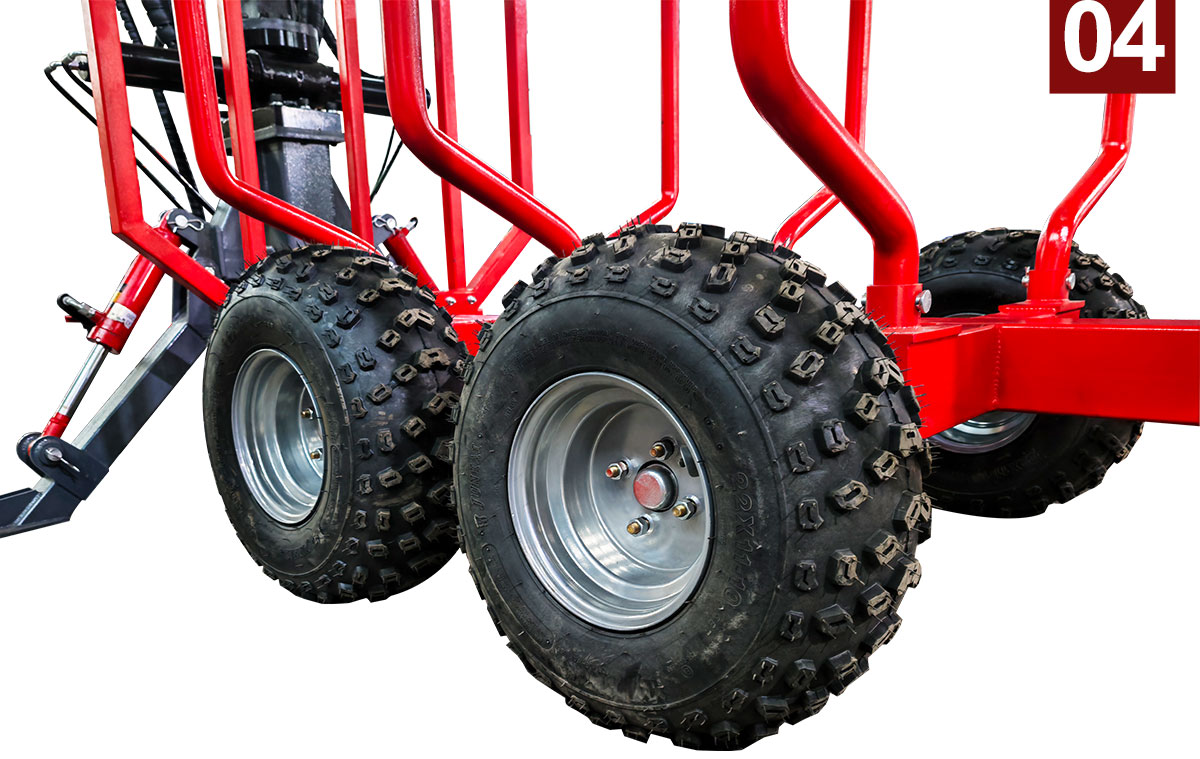

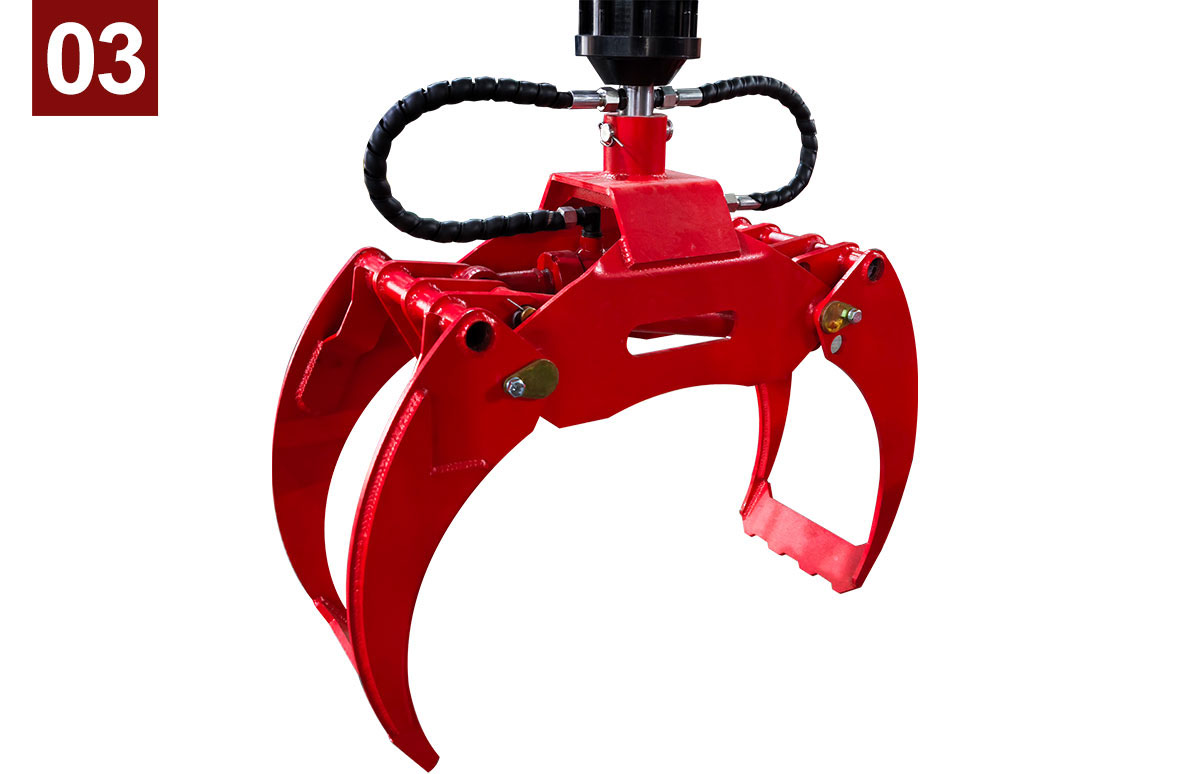

Excellent wear resistance, long service life, suitable for long‑time heavy‑load working conditions

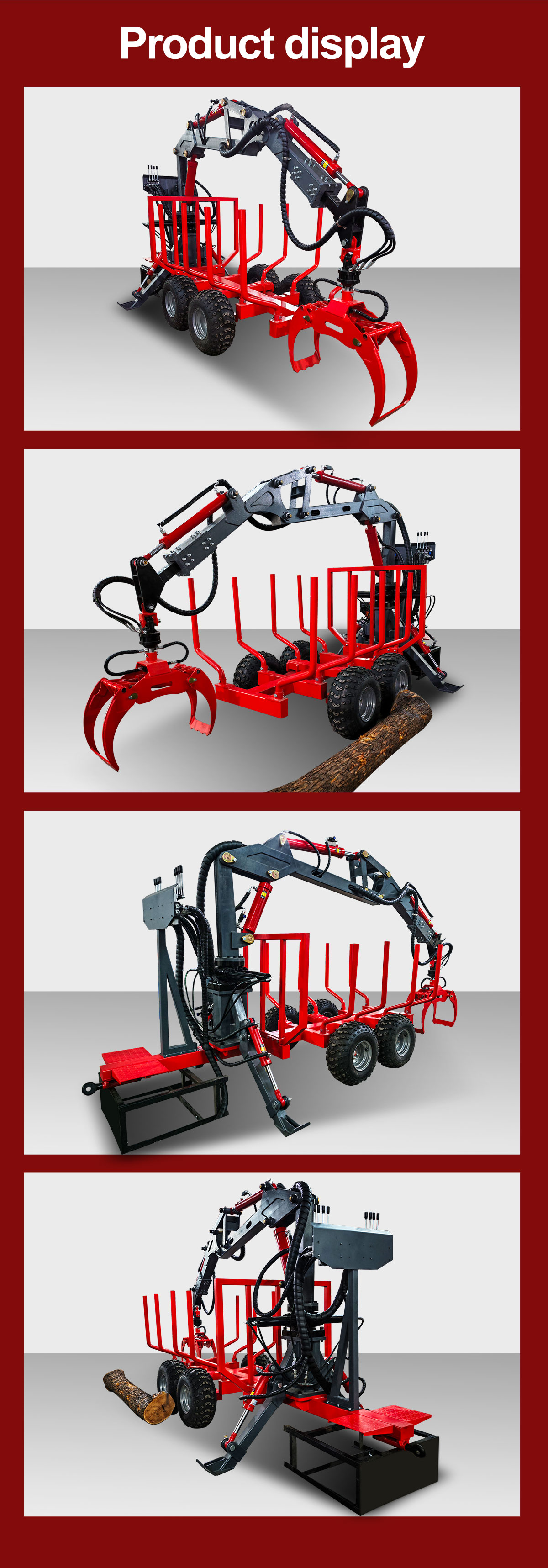

Product display
