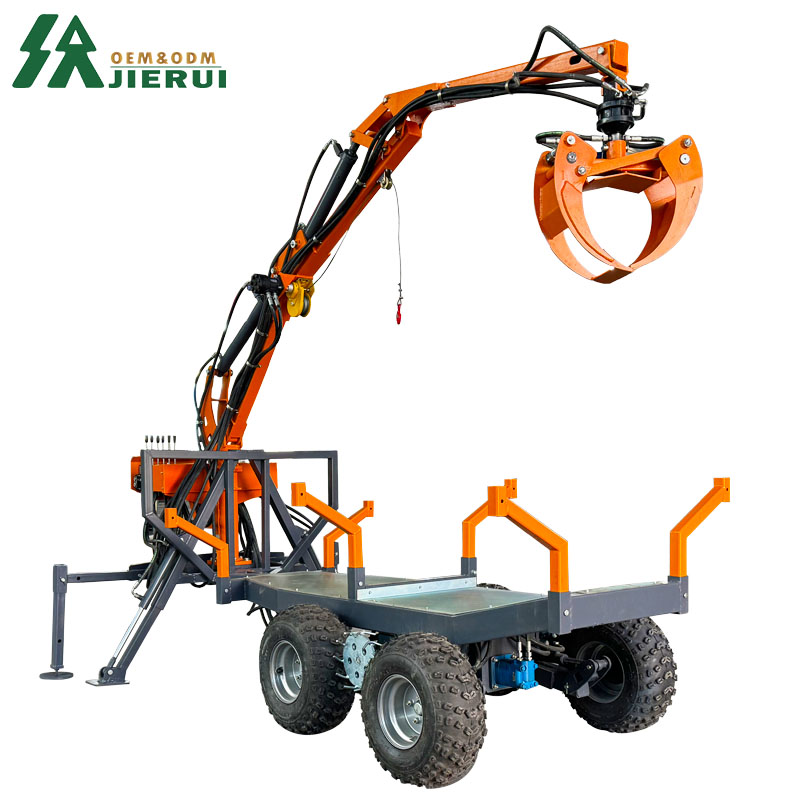

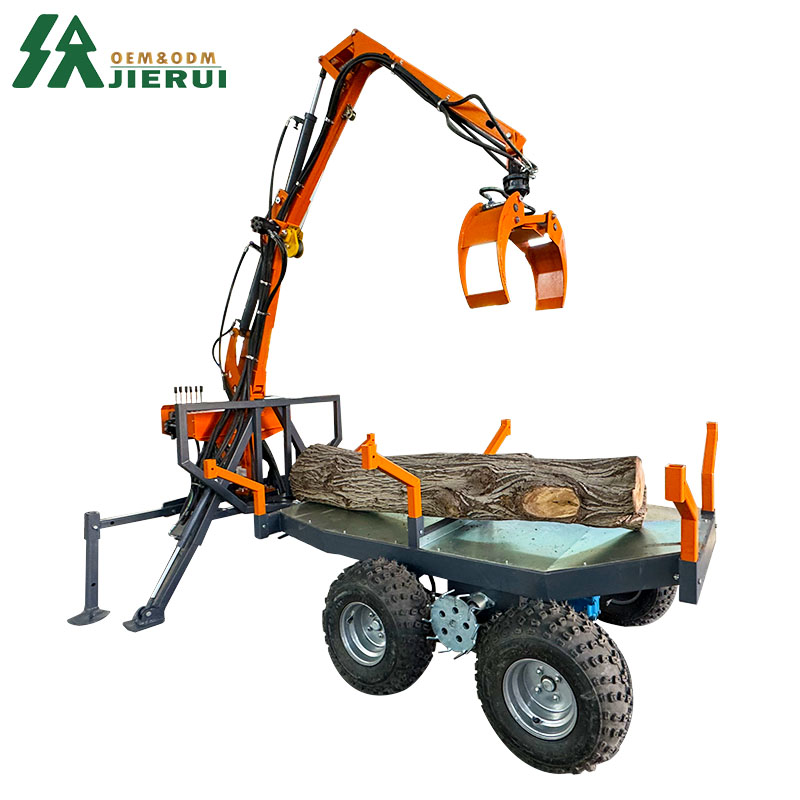

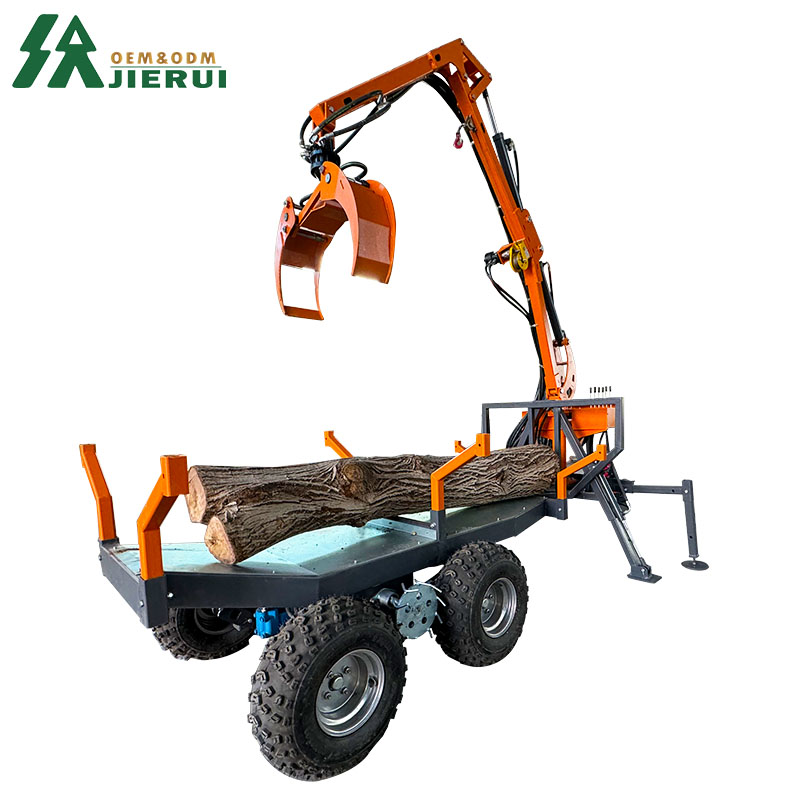

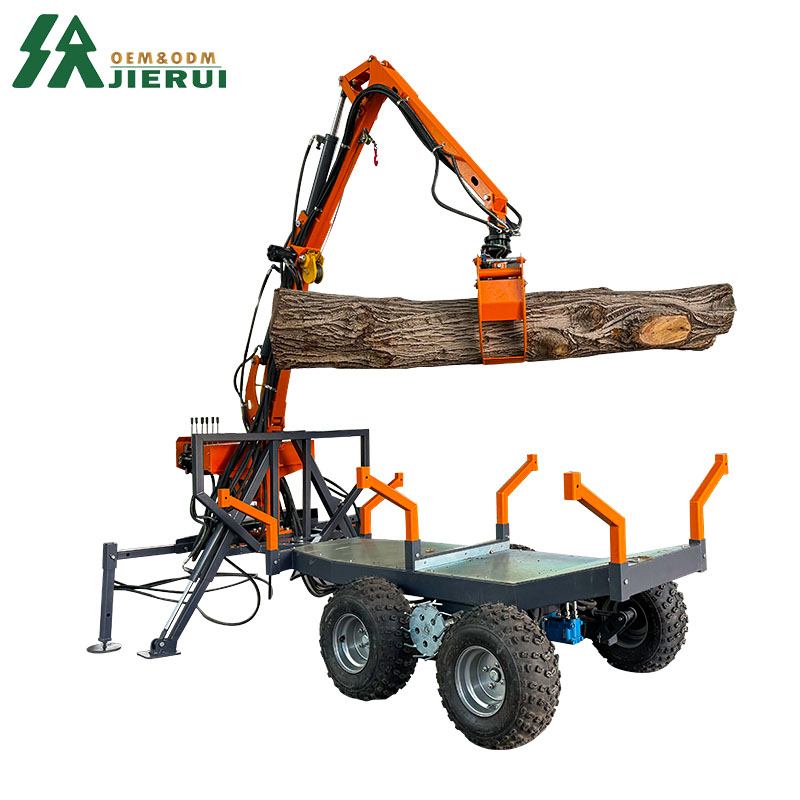

Factory Price Loader Trailer With Grabber Crane
1. Heavy-Duty Construction: Built to withstand the rugged conditions of forestry operations, log trailers are typically made from high-strength steel or similar durable materials.
2. Adjustable and Extendable: Many log trailers feature adjustable lengths to accommodate different log sizes, allowing them to carry multiple logs at once.
3. Hydraulic System: Some models use hydraulics for lifting and securing logs, making it easier to load and unload the trailer.
Make an inquiry will get the best shipping quotation
A log trailer is a specialized piece of equipment used in the forestry and logging industry to transport logs from one location to another, typically from the cutting site to a processing plant or storage yard. These trailers are designed to handle heavy loads, making it easier to move large volumes of logs efficiently.
Key Features:
1. Versatile Installation:
The timber trailer crane can be easily mounted on a variety of platforms, including trucks, tractors, and flatbed trailers. This flexibility allows it to be adapted to various work environments and needs, making it an essential piece of equipment for timber transport and firewood processing.
2. Advanced Hydraulic Control:
The hydraulic system, equipped with a multi-lever valve block and a rotary cylinder, ensures smooth and powerful lifting operations. The tilted boom design further enhances lifting strength and control, providing maximum lifting power for timber handling, even in demanding conditions.
3. Optimized Motion System:
The efficient hinge design between the first and outer suspension rods ensures smooth, stable, and precise movement of the crane. This results in better control and minimizes any jerky or uneven motions when loading and unloading timber.
4. Durable Crane Design:
· Top-Mounted Cylinders: These cylinders are strategically placed on the crane’s first and outer arms to maximize lifting strength and durability.
· Impact Protection:The crane features F↓ection for the fully rotating rotor, which helps prevent damage to hoses and couplings, thus increasing the longevity of the equipment.
5.High Lifting & Loading Capacity:
The crane is specially designed for heavy-duty applications, with engineered geometry that enhances its strength. This makes it capable of handling large, heavy logs with ease, ensuring efficient timber loading and unloading.

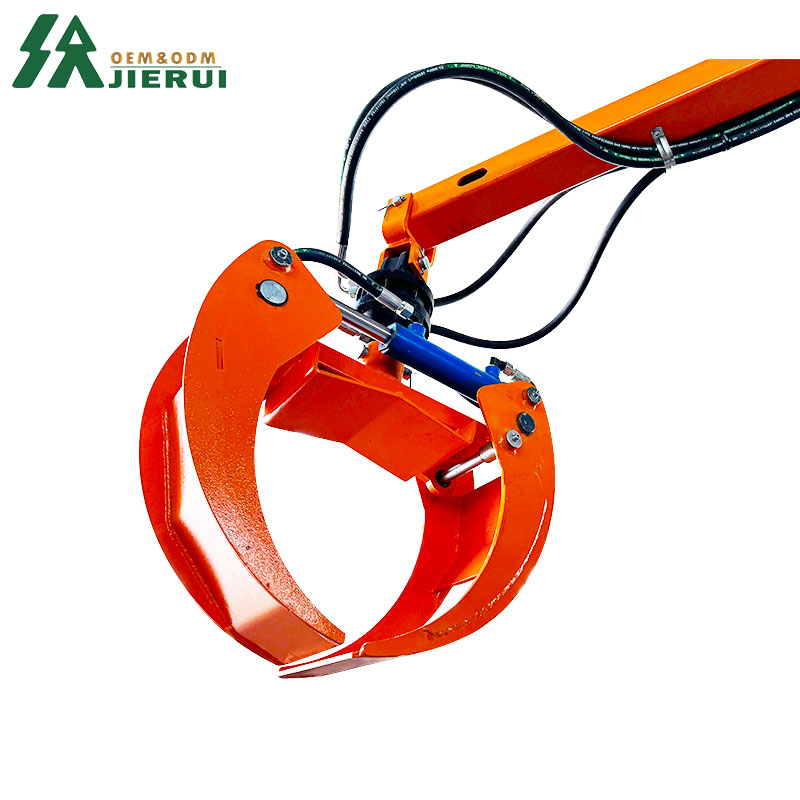

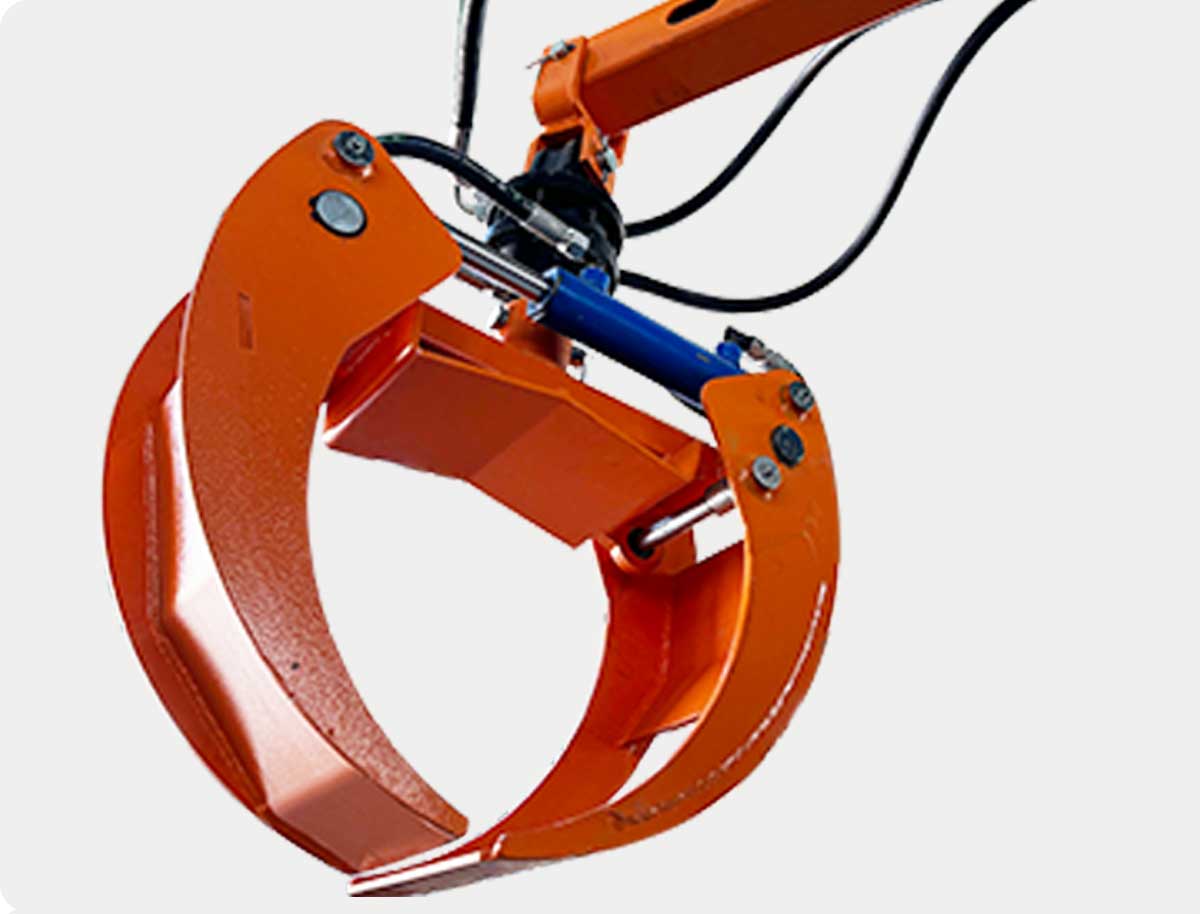

6. Reliable Grapple Operation:
The crane comes equipped with a high-quality grapple that provides secure, stable, and efficient handling of logs. Whether you're stacking logs, loading them onto trucks, or moving them between locations, the grapple ensures that the logs stay firmly in place.
| Model | JRT03 | JRT03A | JRT03B |
| Timber Crane | |||
| Max reach | 3.4m | ||
| Lifting capacity(3.4m) | 200kg | ||
| Turning radius of crane | 360° | ||
| No. of swing cylinder | 2pcs | ||
| Max. open & area of wood grapple | 700mm/0.08 m2 (STANDARD) | ||
| Max. load of hydraulic rotator | 1 ton(10KN) | ||
| Hydraulic rotator turning radius | unlimited | ||
| Working pressure | 18-22Mpa | ||
| Control valve | 5/7 sets | 7/9 sets | 5/7 sets & 2/4 sets |
| Power Unit | 6.5HP engine 6L hydraulic tank | 9HP engine 6L hydraulic tank | 9HP engine 6L hydraulic tan |
| Hydraulic flow | 7.5L/min | 14.4L/min | 14.4L/min |
| Weight | 190kg | 190kg | 190kg |
| Timber Trailer | |||
| Max. load | 1500kg | 2000kg | |
| Total length | 3230mm | 3350mm | |
| Width with wheels | 1440mm | 1344mm | |
| Height | 1600mm | 1600mm | |
| Height of front plate | 1100x700mm | 1100x700mm | |
| No. of "S" | 2sets | 3sets | |
| Length of loading area | 2120mm(3520mm) | 2120mm | |
| Loading area volume | 1.6-3m3 | 1.6-3m3 | |
| Min. ground clearance | 200mm | 200mm | |
| Standard wheel | 22x11-10 | 25x10-12 | |
| Remote 4WD drive | — | YES | YES |
| Remote Telescopic trailer | — | — | YES |
| Remote Swing angle | — | — | ±45° |
| Weight | 270kg | 390kg | 565kg |
| 40”HC | 24pcs | 15pcs | |
Details Images

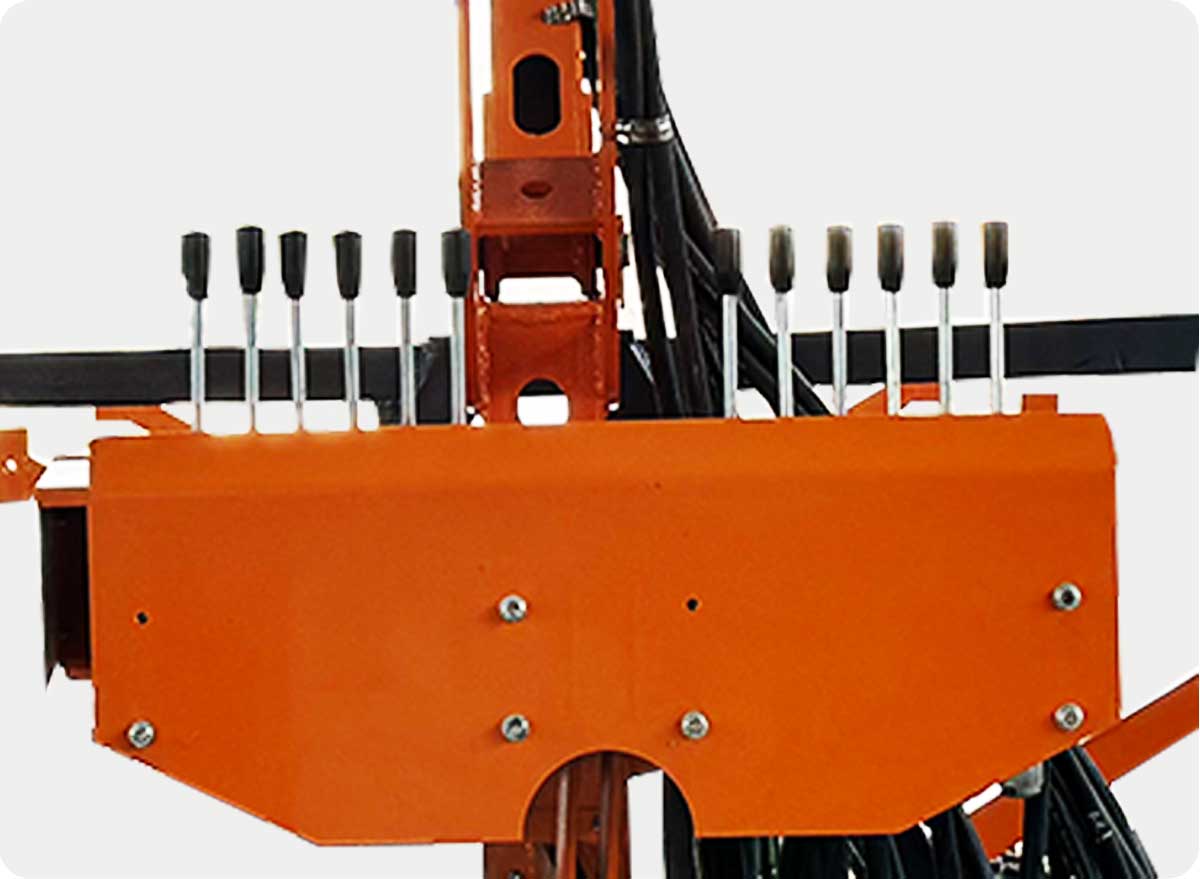

Large Control Console
The Large Control Console provides centralized, user-friendly operation for the entire timber trailer and crane system. Designed for maximum convenience and safety, it allows the operator to manage all hydraulic and motion functions with precision and ease.

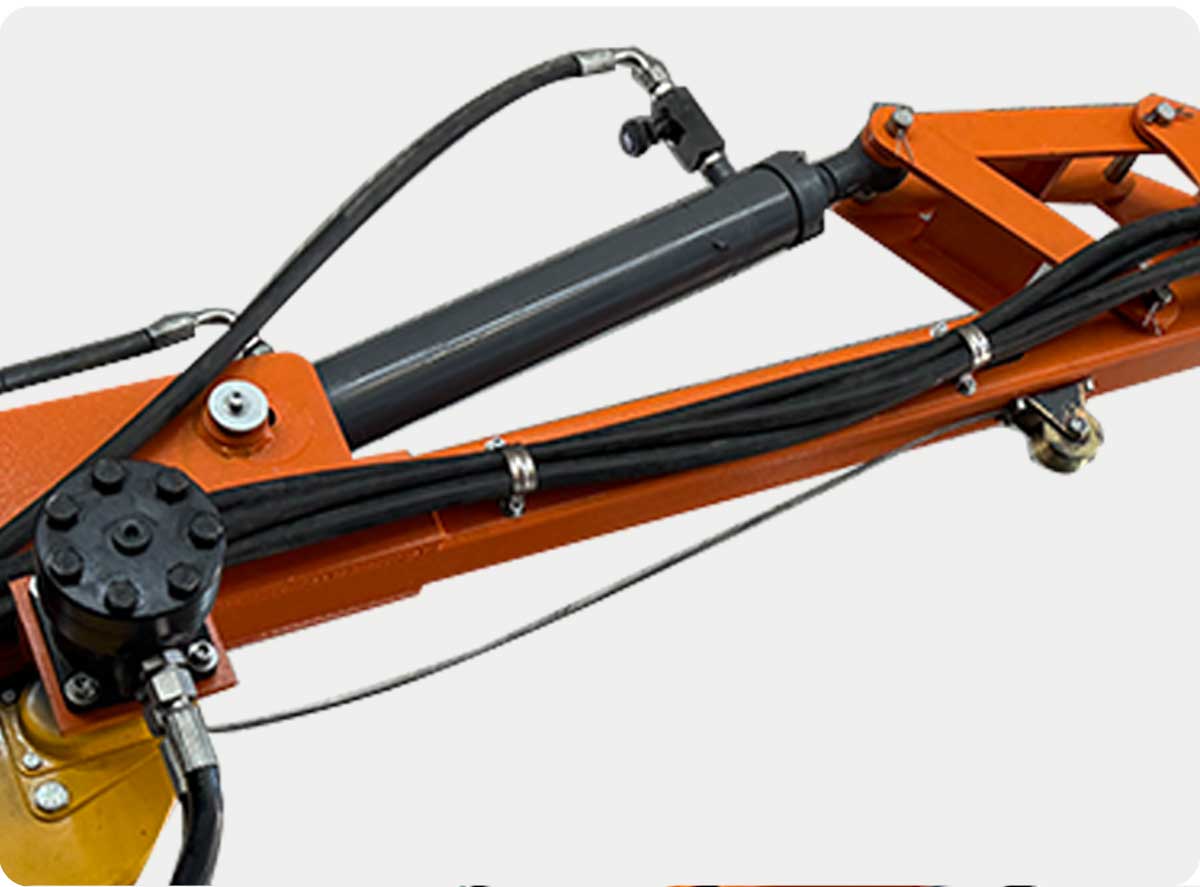

Precision Hydraulic Cylinder
The Precision Hydraulic Cylinder is the powerhouse behind the crane’s smooth, accurate, and reliable operation. Engineered for durability and performance, it ensures stable lifting,precise control, and long service life in the toughest forestry conditions.
High-Strength Crane
The High-Strength Crane is built for demanding forestry operations, offering exceptional durability, lifting power, and stability. Designed with reinforced materials and advanced hydraulic technology, it ensures reliable performance for heavy-duty timber loading, unloading, and stacking tasks.

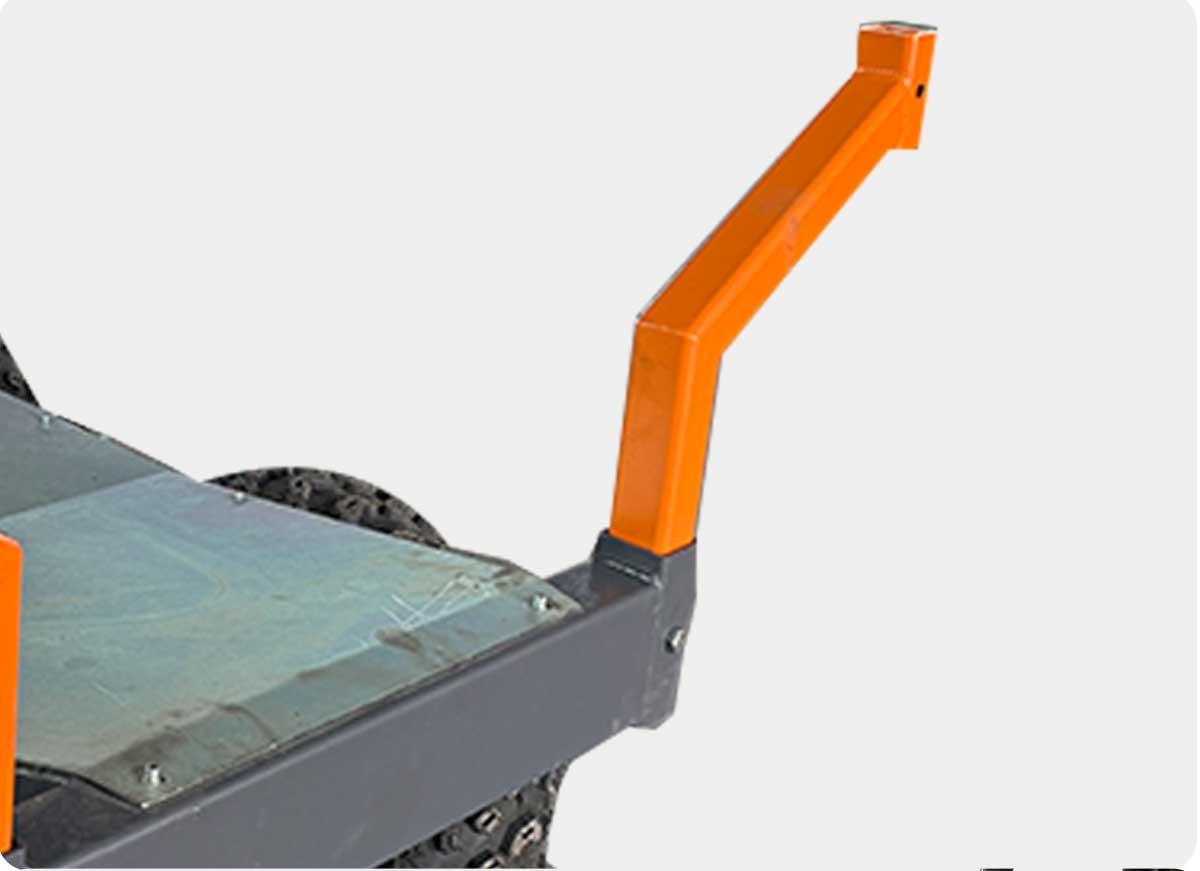

Adjustable Log Support
The Adjustable Log Support provides stable, flexible, and secure positioning for logs during loading, unloading, and transport. Designed to accommodate logs of various sizes and weights, it enhances efficiency and safety in forestry operations.

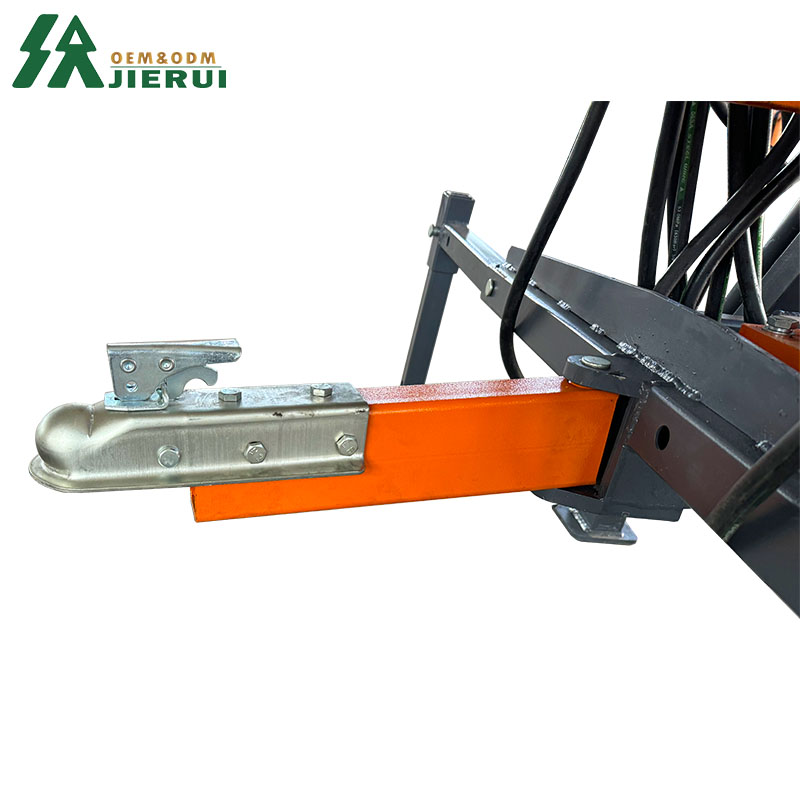

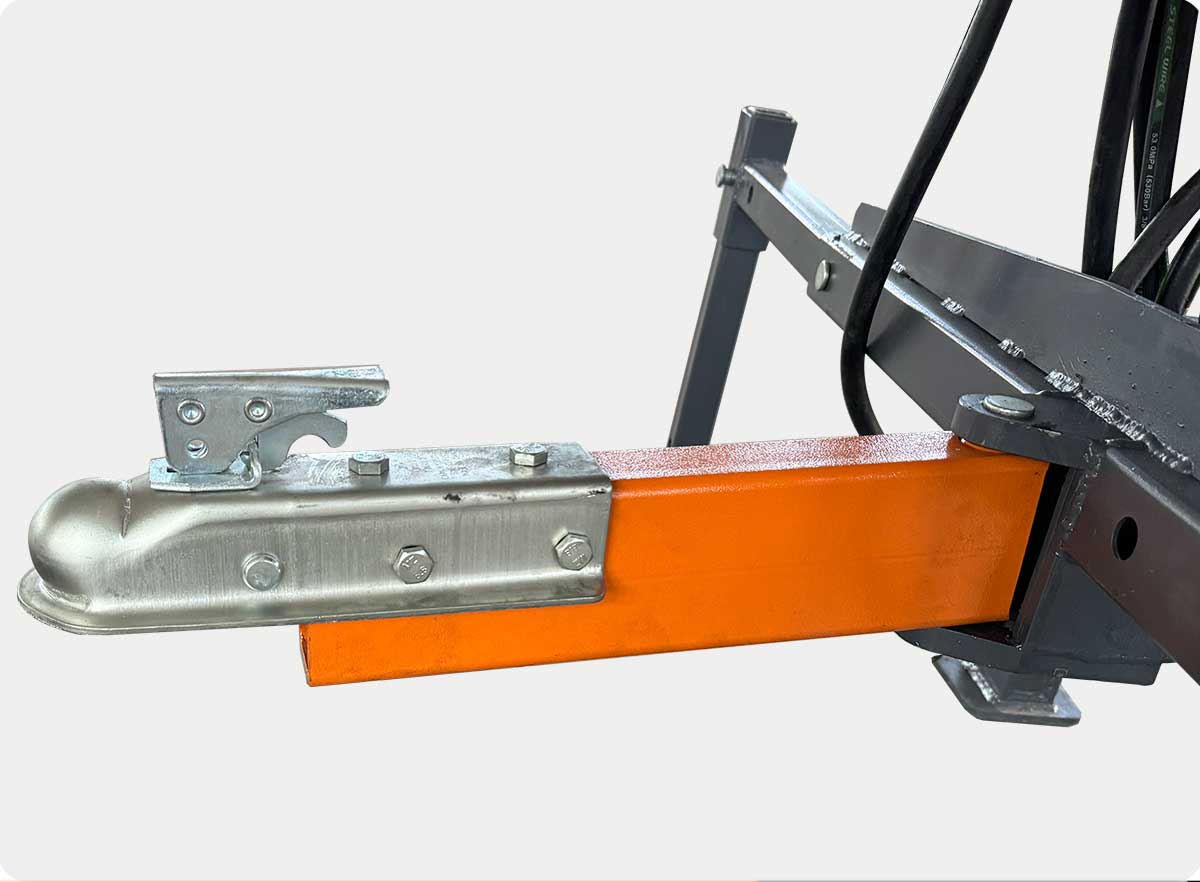

Sturdy Trailer Towing Device
The Sturdy Trailer Towing Device ensures reliable and safe transport of the timber trailer across all terrains. Engineered for heavy-duty performance, it provides strong connection stability,smooth towing, and enhanced maneuverability-ideal for professional forestry and logging operations.

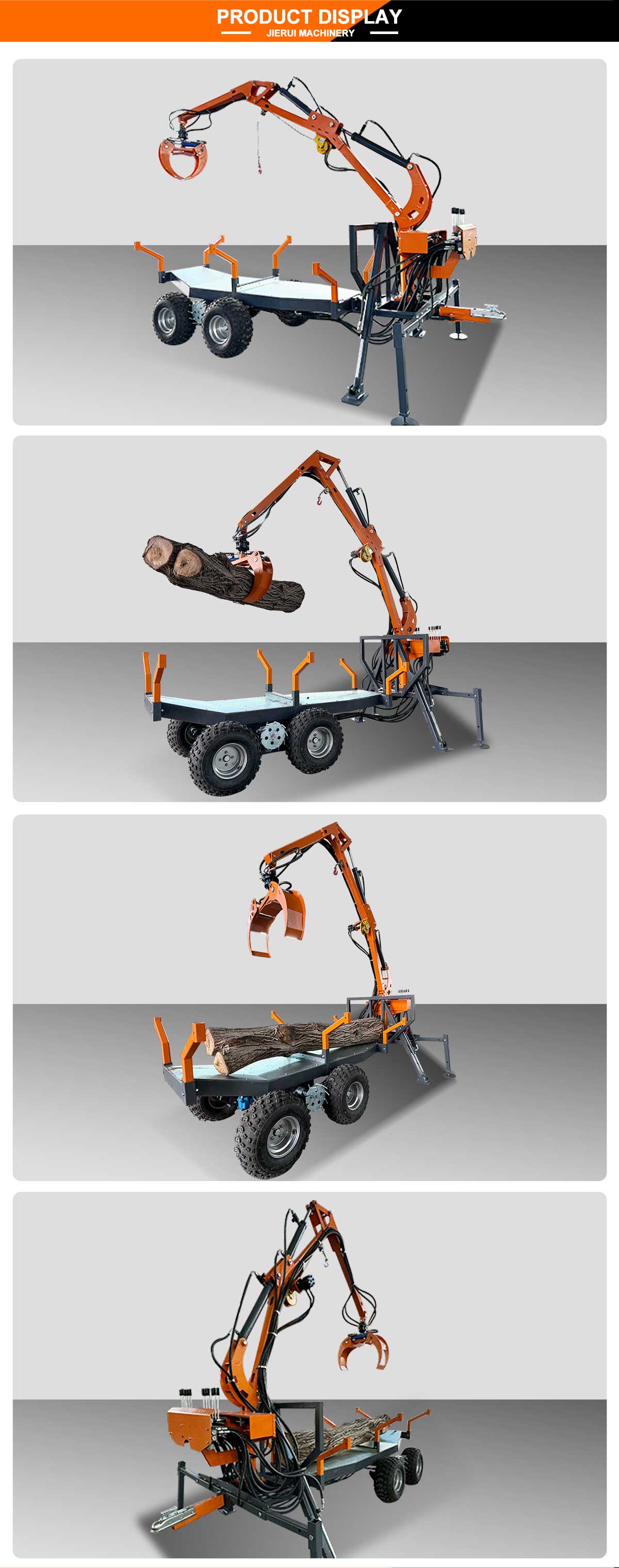

Product display
