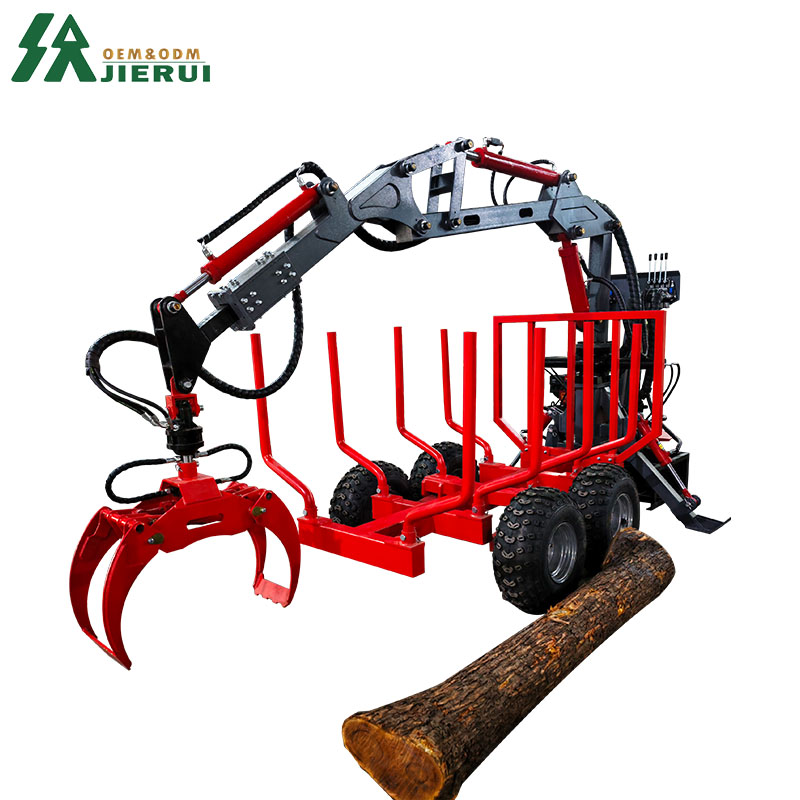

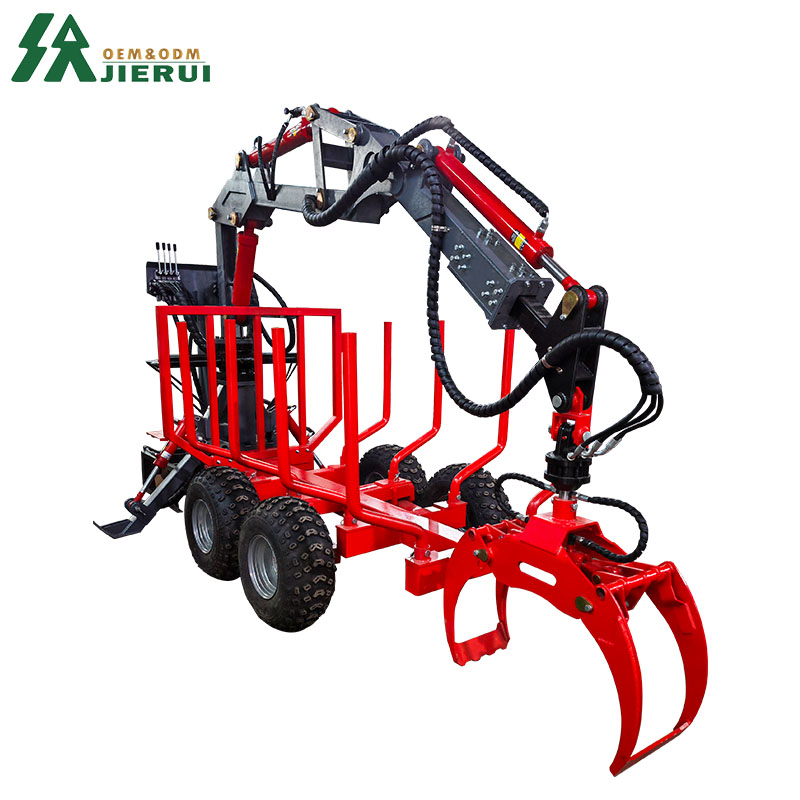

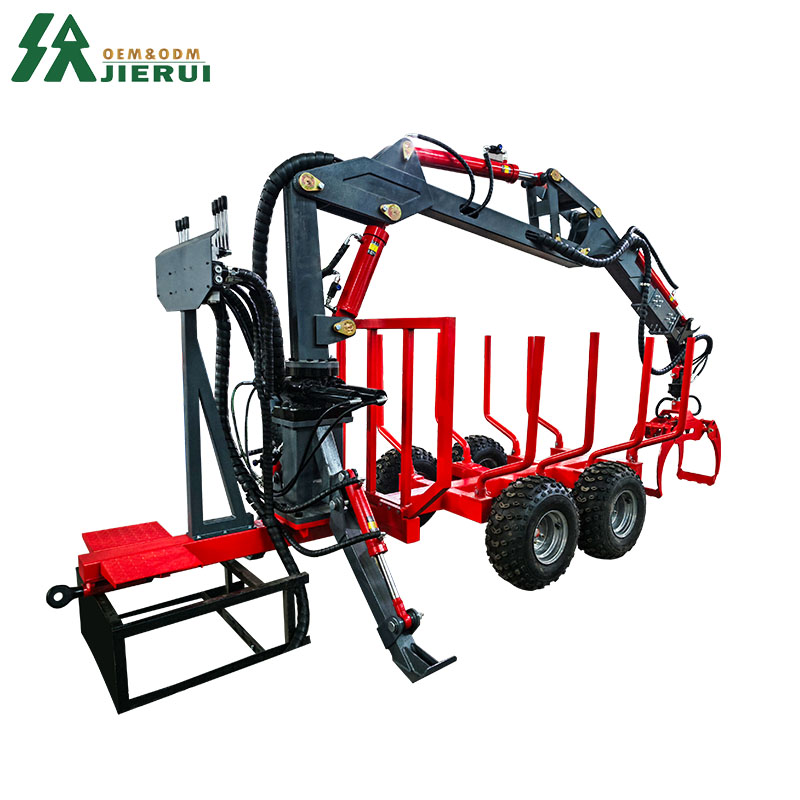

Factory Exported Hydraulic Timber Loader Grapple Trailer

  1. Strong steel frame, high load capacity, durable and deformation‑resistant in harsh working environments.

  2. High‑strength wearing parts and reinforced chassis ensure long‑term use under heavy load.

  3. Suitable for forest roads, construction sites, yards and factory areas. Works with tractors, trucks and other power units.




Make an inquiry will get the best shipping quotation

JRT-1T
CN¥4,200.00
  Contact Now WhatsApp
JRT-1T
CN¥4,200.00
Product Details

A log trailer is a heavy‑duty transport trailer specially designed for forestry, logging yards, sawmills and outdoor wood handling. It is used to safely and efficiently carry logs, timber, wood strips

Timber Loader Grapple Trailer

Timber Loader Grapple Trailer

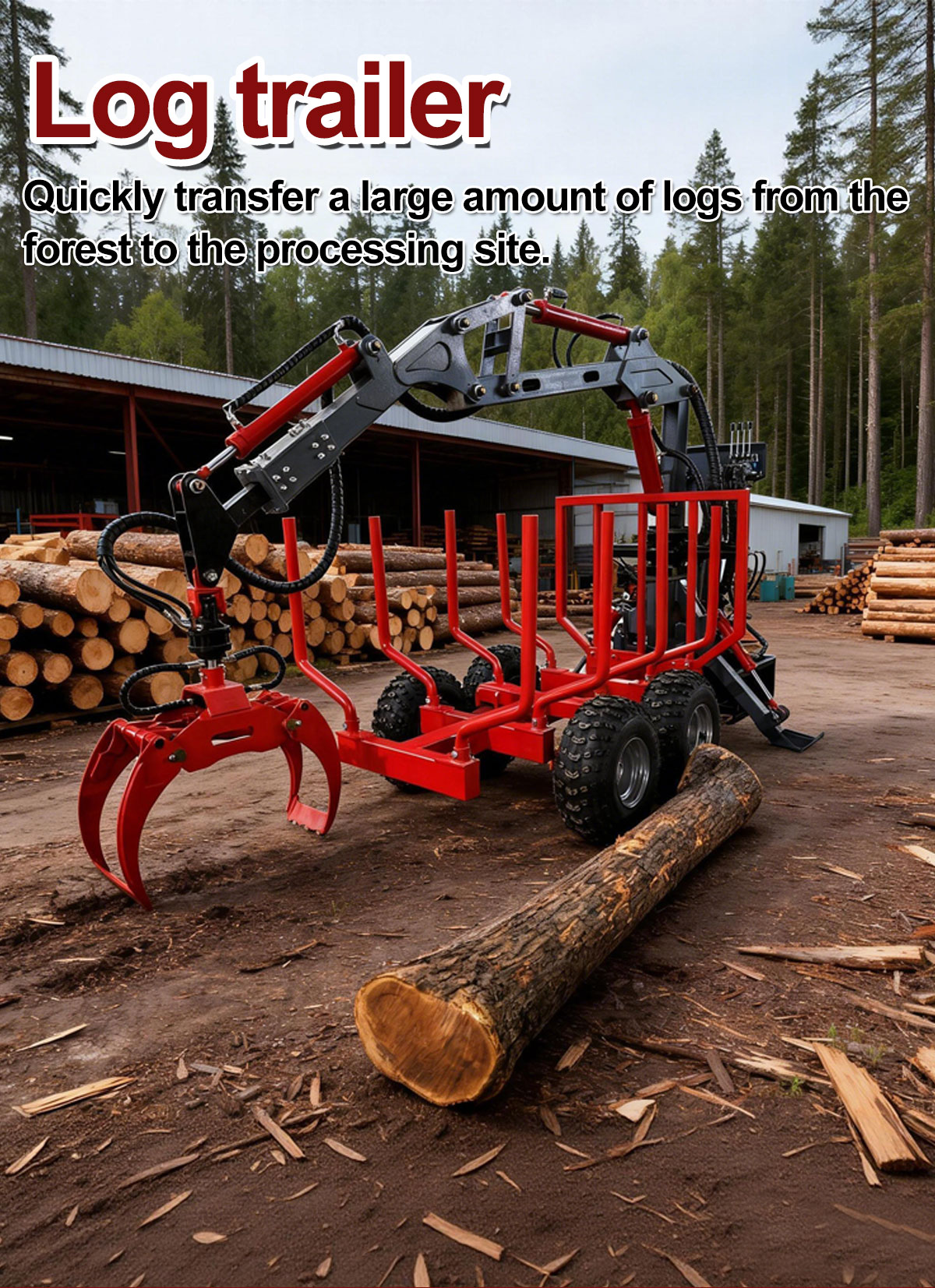

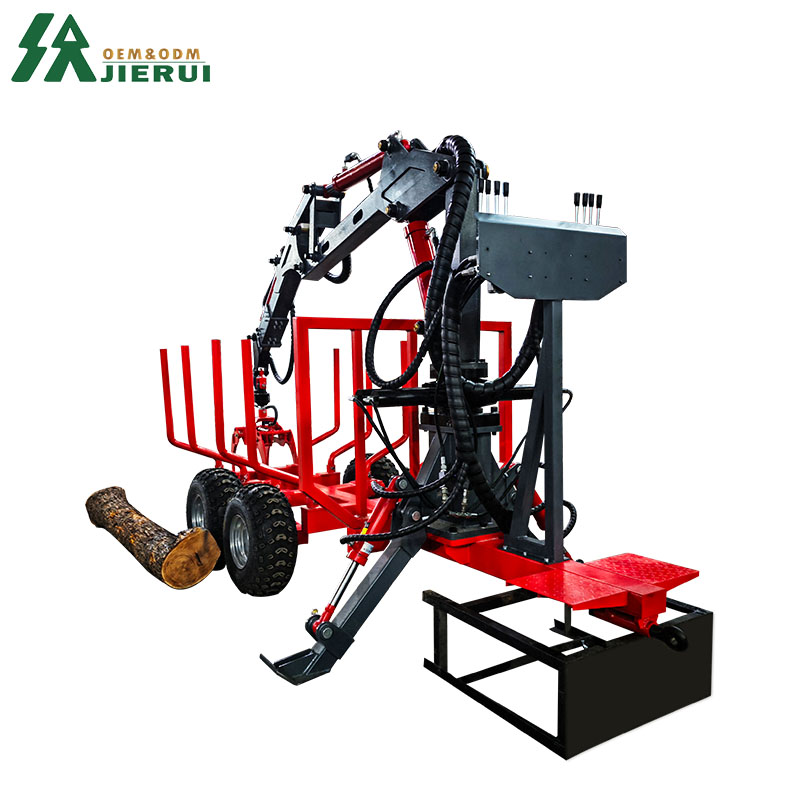

Log Trailer with Crane

A log trailer with crane is a heavy-duty transport solution designed for efficient timber loading and hauling. It integrates a reinforced log trailer with a hydraulic crane, enabling operators to load, unload and transport wood independently.

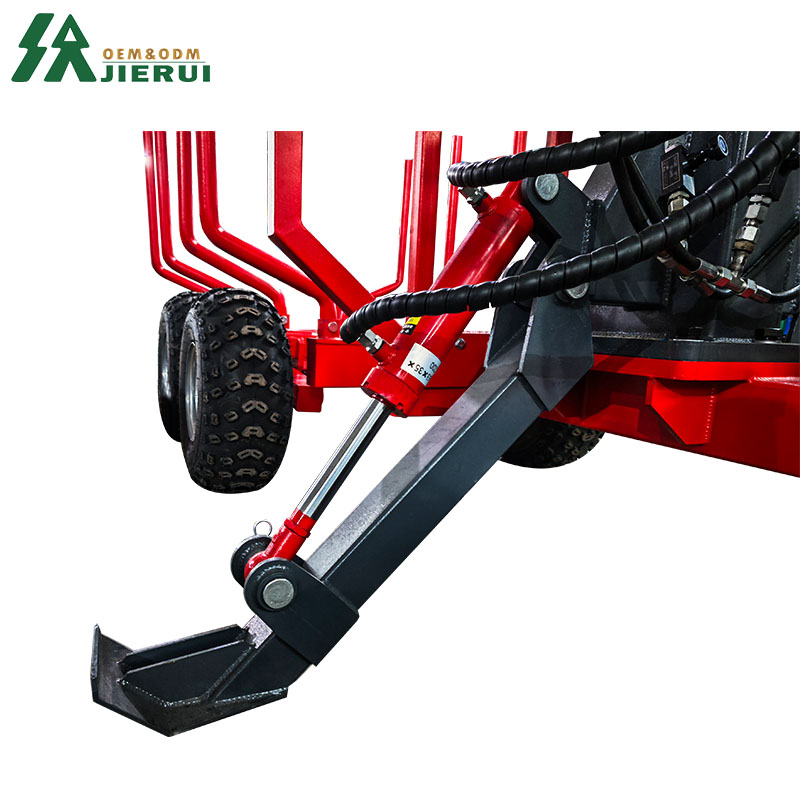

The built-in crane is usually fitted with a log grapple for accurate and stable handling. Featuring an optimized boom structure and strong lifting capacity, it delivers smooth and reliable performance. Hydraulic stabilizer legs ensure excellent stability during loading operations, even on rough and uneven forest ground.

Constructed with a heavy-duty steel frame, adjustable log bunks and high-load axles, the log trailer with crane is perfectly suited for forestry operations, sawmills and firewood production. It greatly improves work efficiency, reduces labor demand and enhances overall productivity in timber transportation.



ModelJRT-1T
Mactching Power (hp)10-25
Machine Weight (kg)1120
                                                     0Trailer section
Trailer ModelTR10
N/W of Trailer (kg)

400

Rated Loading Capacity (1)1
Loading Area (㎡)0.8
Total Length of Trailer3.4
Trailer Loading Length2
Total Width of Trailer1.3
Assistant Hydraulic SteeringNo
Dia. of Traction Hole33mm
Tire Model22*11-10
                                                     Crane section
ModelCR02J
Weight of Grane (kg)390
Max. Arm Reach (m)3.5
Lifting Capacity/Arm Reach (kg/m)
300/1.5
260/2.5
200/3.5
Rotating Angle (degree)370
                                                   Grapple section
Grab ModelTG019
Weight of Grab (kg)60
Max. Grab Opening Width (mm)700
Grabbing Dia. of Logs (mm)80-240

Details Images


Timber Loader Grapple Trailer

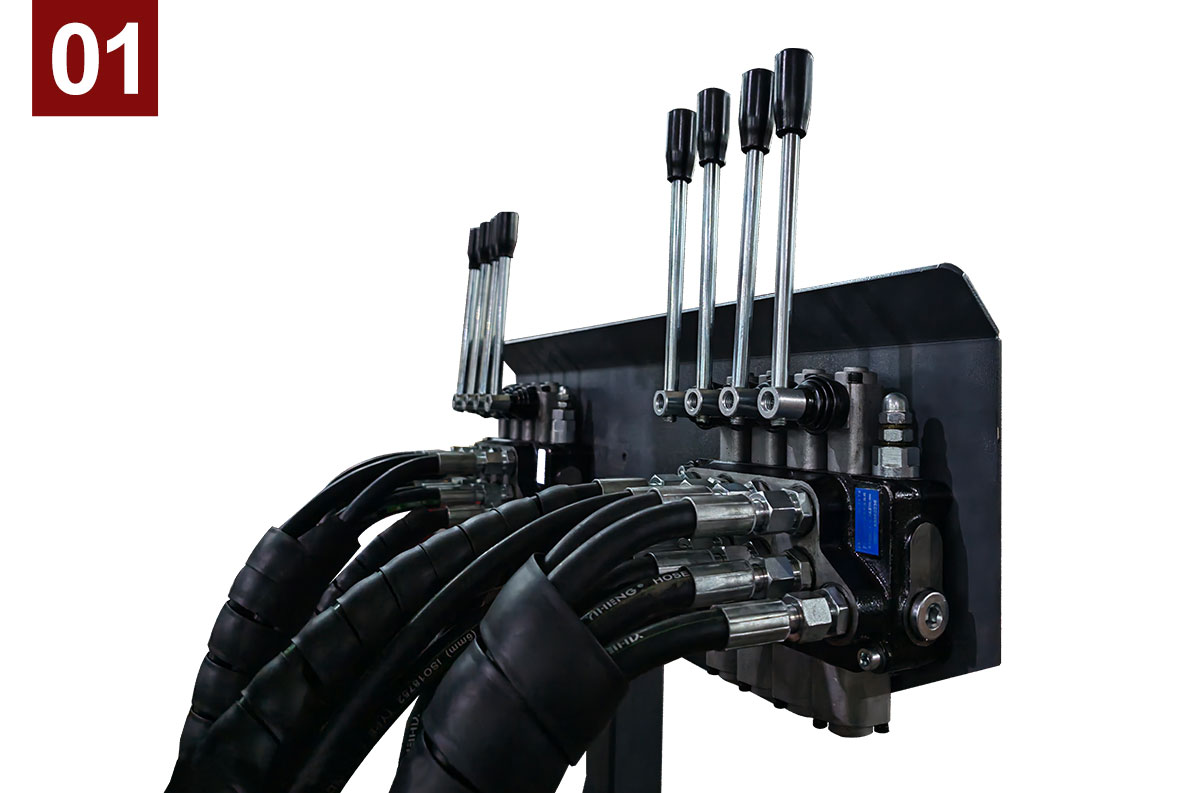

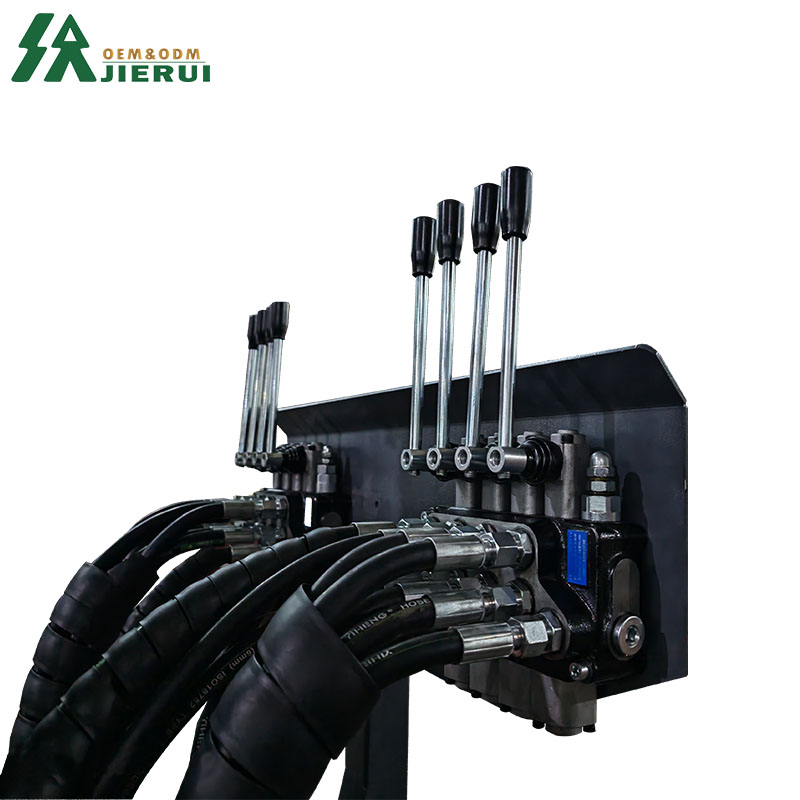

Control Valve Simple Operation


Timber Loader Grapple Trailer

Precision Hydraulic Rigors


Timber Loader Grapple Trailer

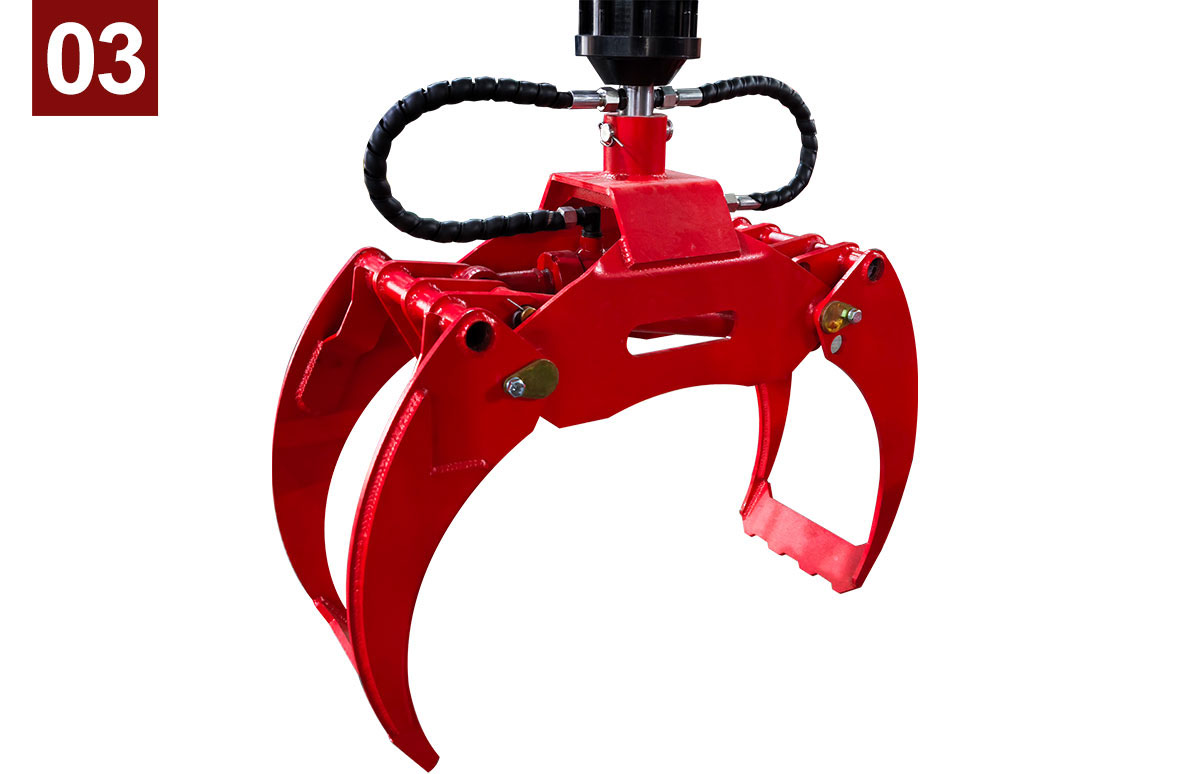

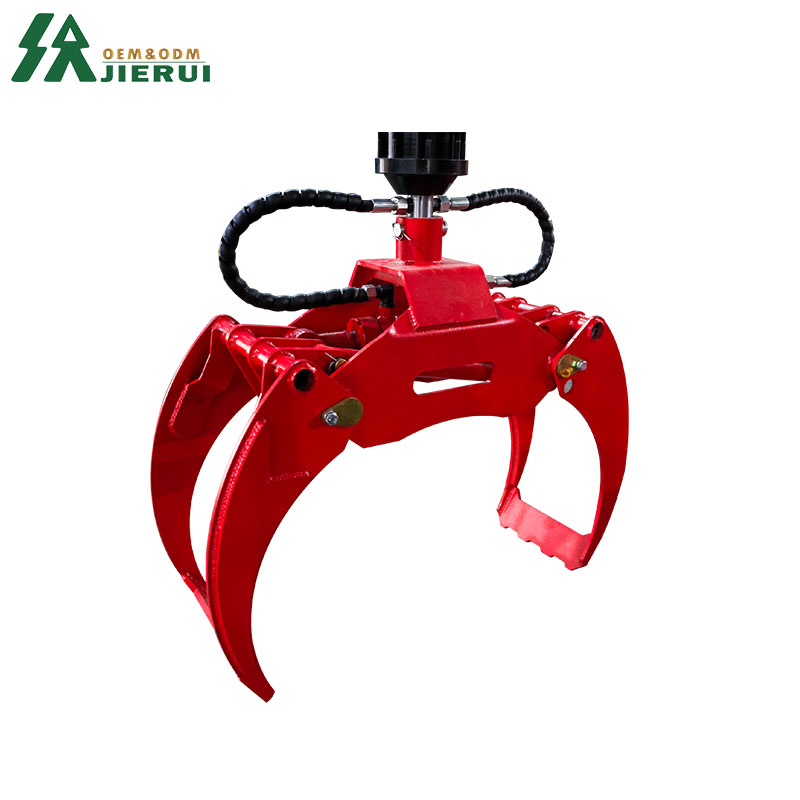

Timber Grab Large movement angle


Timber Loader Grapple Trailer

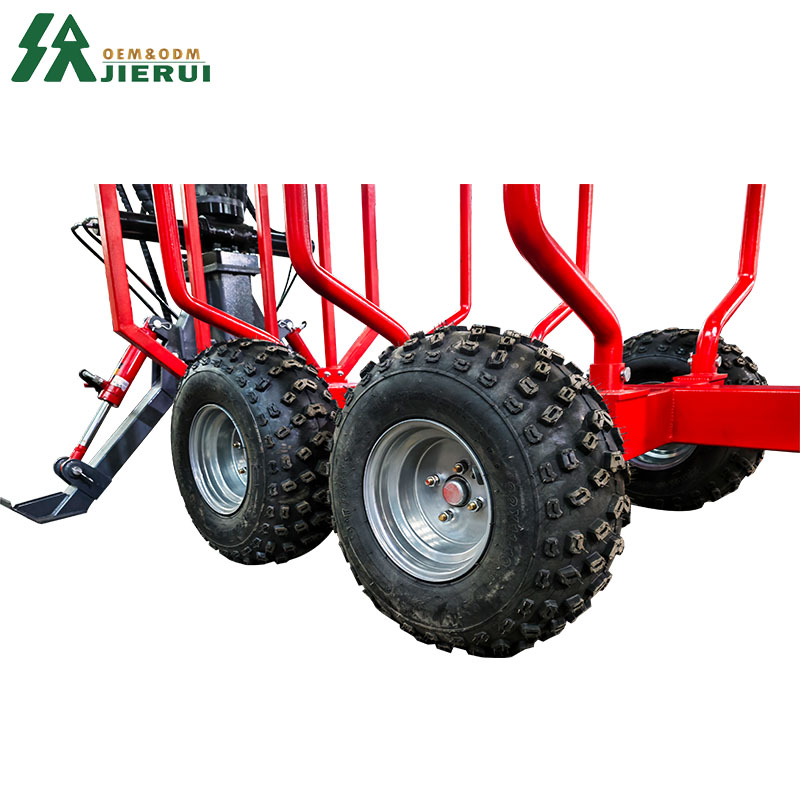

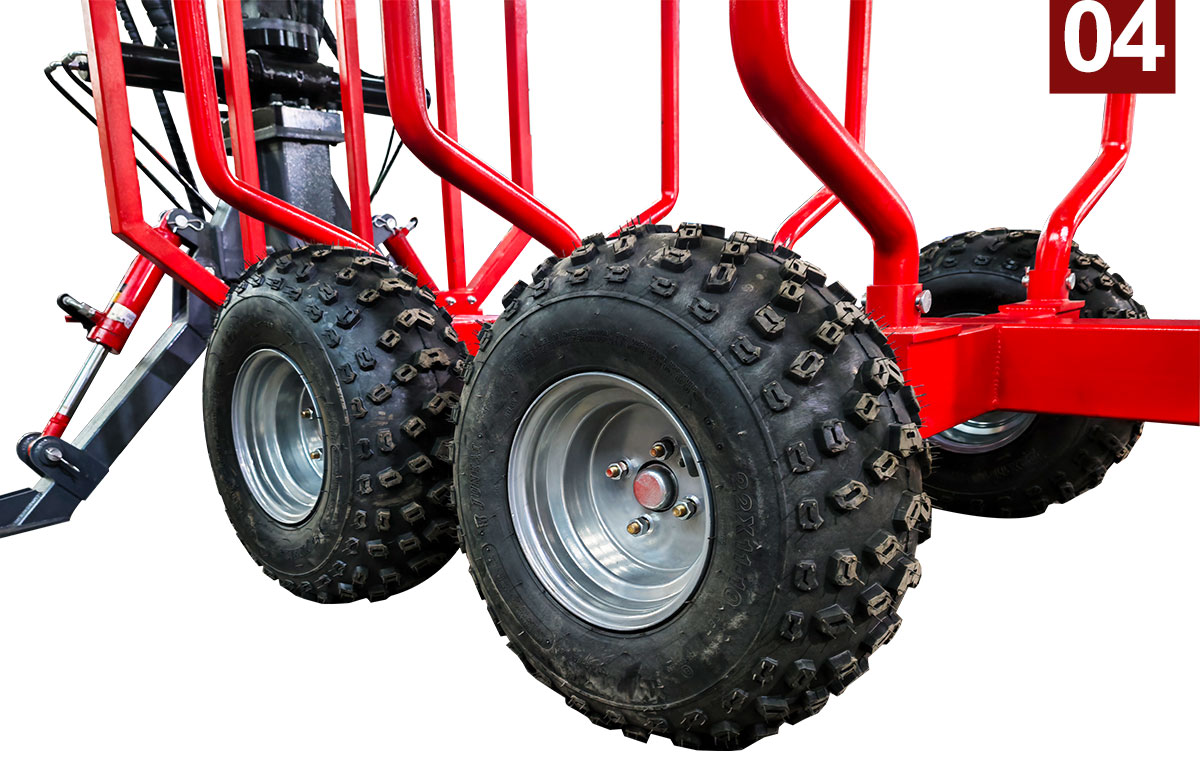

Wear-resistant tires

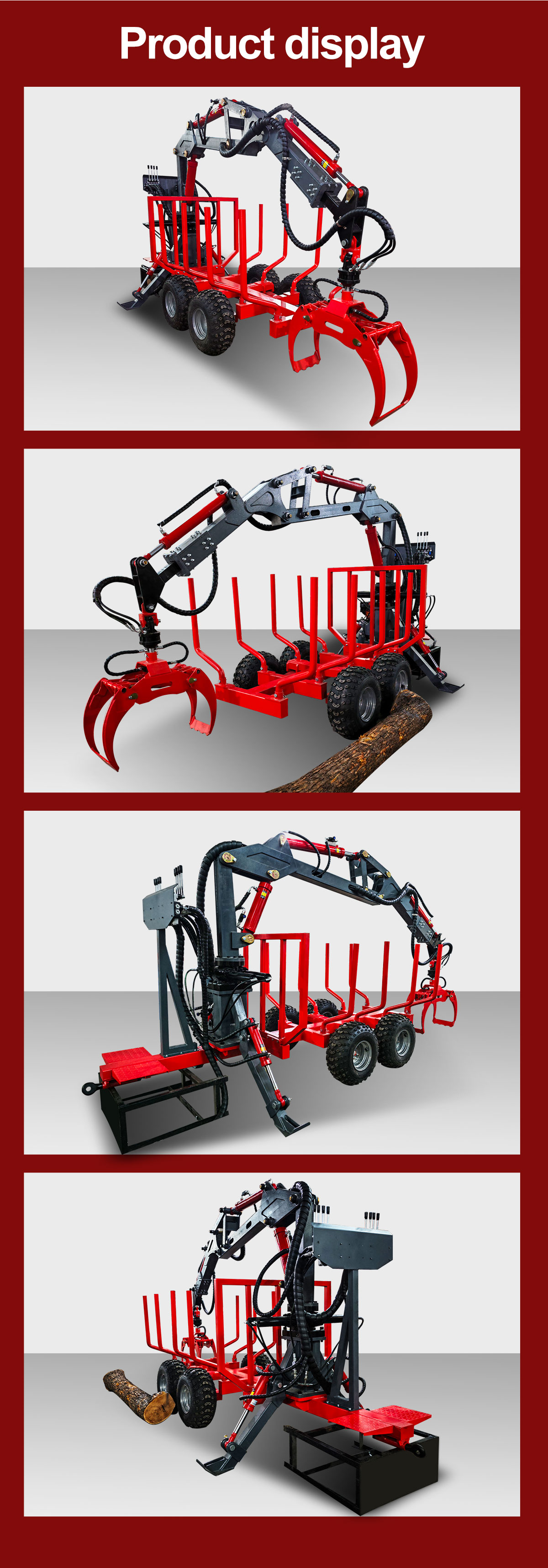

Product display


Timber Loader Grapple Trailer

Timber Loader Grapple Trailer
