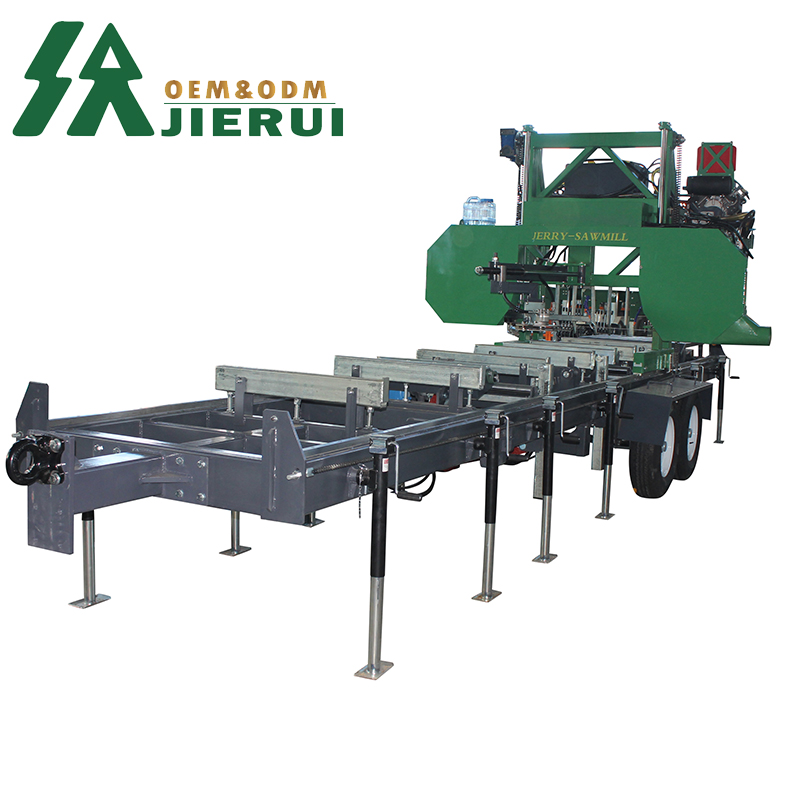

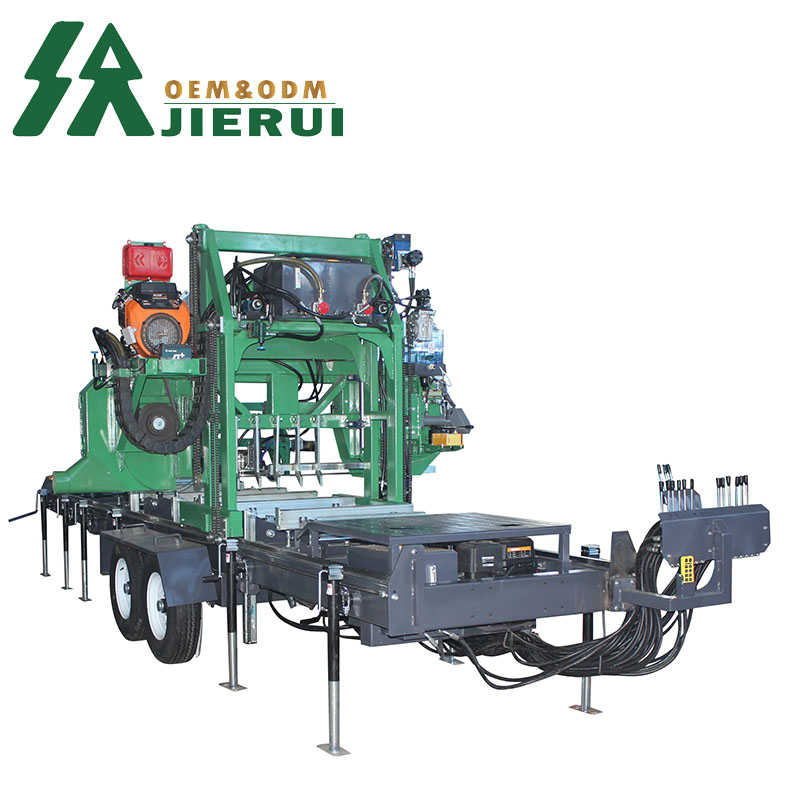

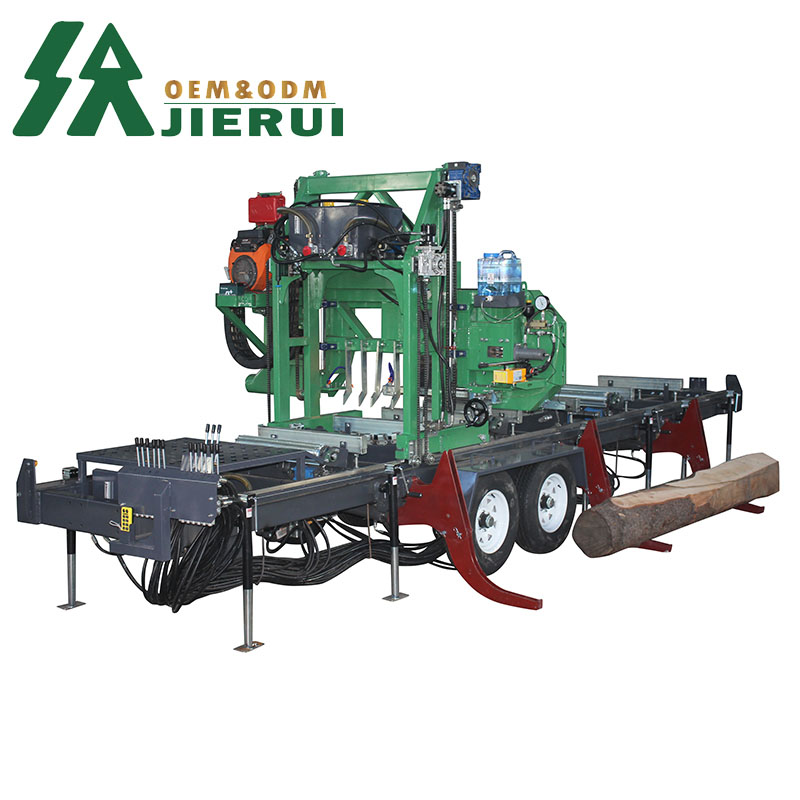

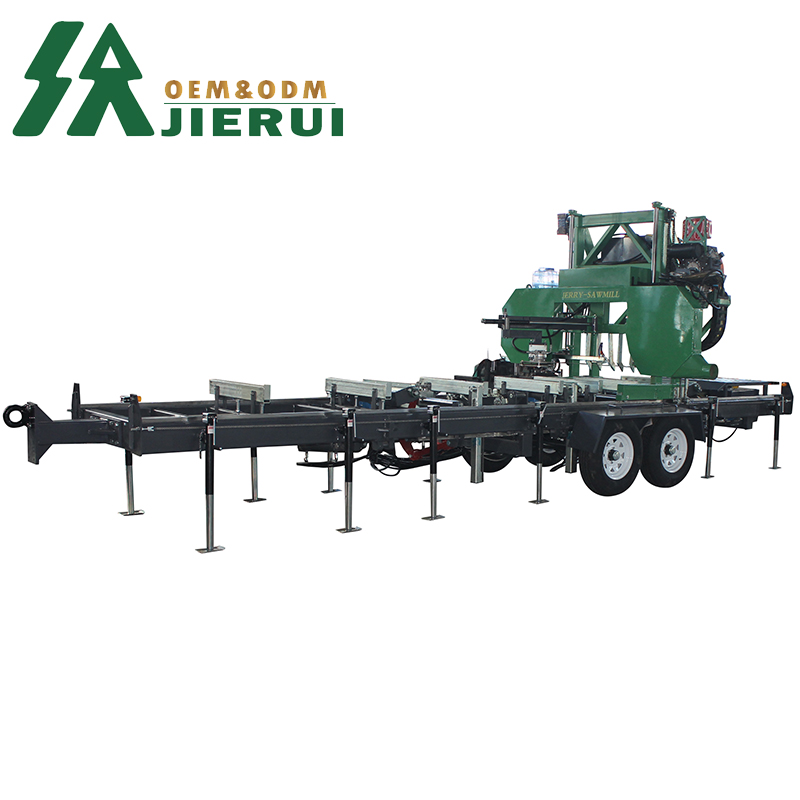

Cheap Hydraulic Band Sawmill Woodworking Machinery
1.Hydraulic Log Handling: The hydraulic system automates the lifting, turning, and clamping of logs onto the sawmill bed. This eliminates manual effort and ensures that logs are positioned accurately for optimal cutting.
2.Automatic Feeding System: The sawmill is equipped with an automatic log feed system that moves logs through the sawmill bed to the cutting area. This allows for continuous processing with minimal operator intervention.

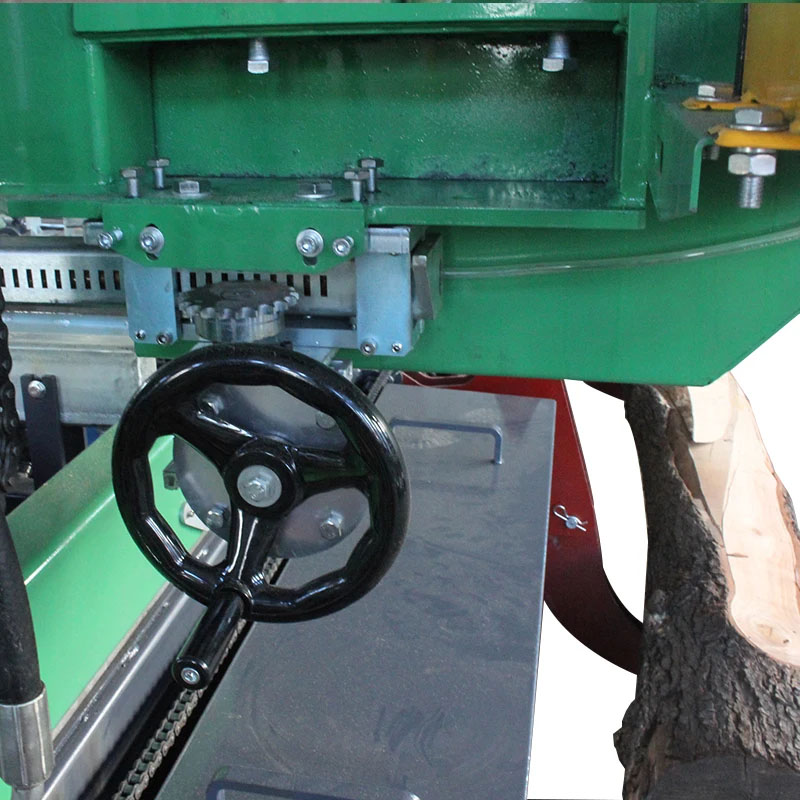

3.Hydraulic Saw Blade Adjustments: The sawmill typically features a hydraulic system that adjusts the saw blade height, ensuring smooth cutting operations and accommodating logs of varying sizes.
Make an inquiry will get the best shipping quotation

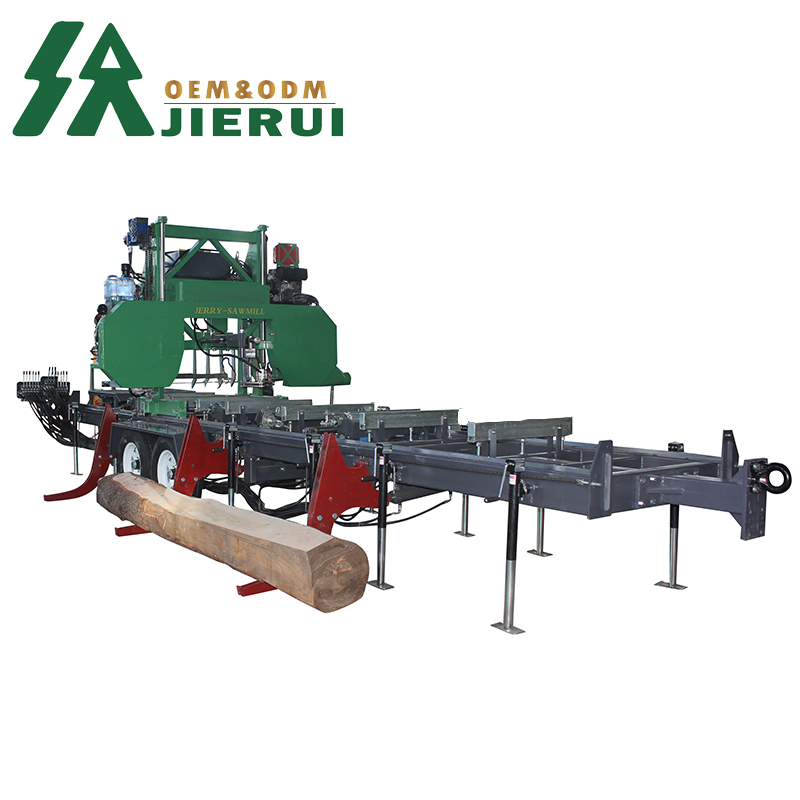

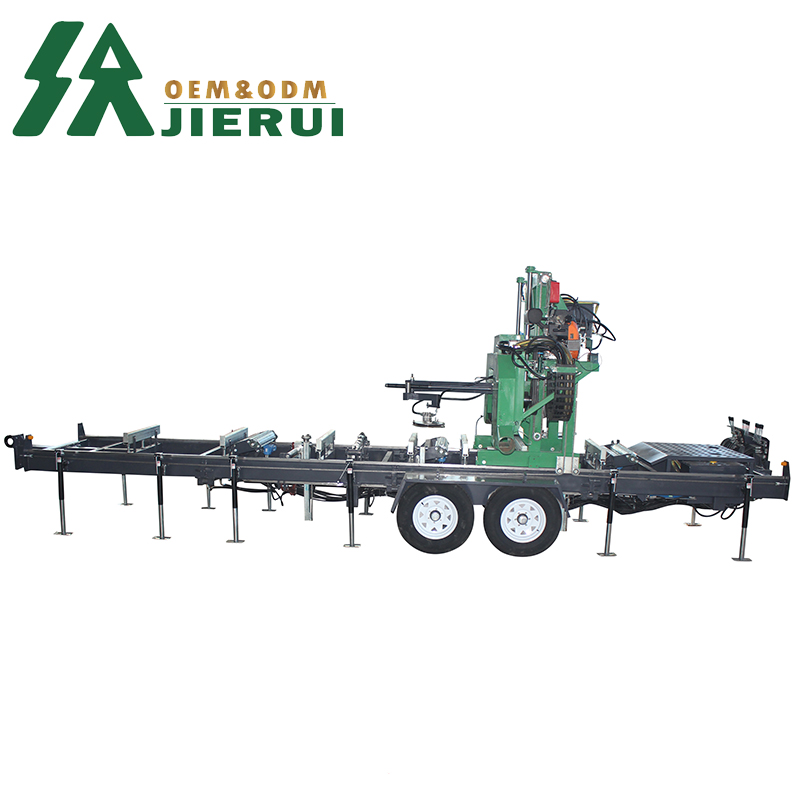

An automatic hydraulic sawmill is a highly efficient and versatile machine designed for large-scale sawmilling operations. It incorporates hydraulic systems to perform essential tasks like log lifting, turning, clamping, and feeding, all of which significantly reduce manual labor and increase productivity. These sawmills are typically used in forestry, lumber mills, and large-scale wood processing environments.
Product Paramenters
| Sawmill parameters | JR1000D | JR1300D | JR1600D | JR2000D |
| Max Log Cutting Dia(cm) | 100 | 130 | 160 | 200 |
| Max Log Cutting Dia(inch) | 39 | 51 | 63 | 79 |
| Max Log Cutting Length | 4.5m | 4.5m | 4.5m | 4.5m |
| Track Length | 6m | 6m | 6m | 6m |
| Gasoline/Diesel engine | 22 HP | 25 HP | 25 /30 HP | 30 HP |
| Engine starting mode | Electric starting | Electric starting | Electric starting | Electric starting |
| Packing Size | 3.5*2.2*2m | 20 'container | 20 'container | 40 'container |
Saw Wheel Diameter Saw Wheel Diameter | 770mm | 770mm | 900mm | 1100mm |
| Saw blade width | 85mm | 85mm | 85mm | 1100mm |
| Lifting | Auto | Auto | Auto | Auto |
| Walking | Auto | Auto | Auto | Auto |
| Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
| Weight | 3000kg | 3800kg | 4500kg | 6000kg |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Color customization | Supported | Supported | Supported | Supported |
| Logo customization | Supported | Supported | Supported | Supported |
Why Choose Us?

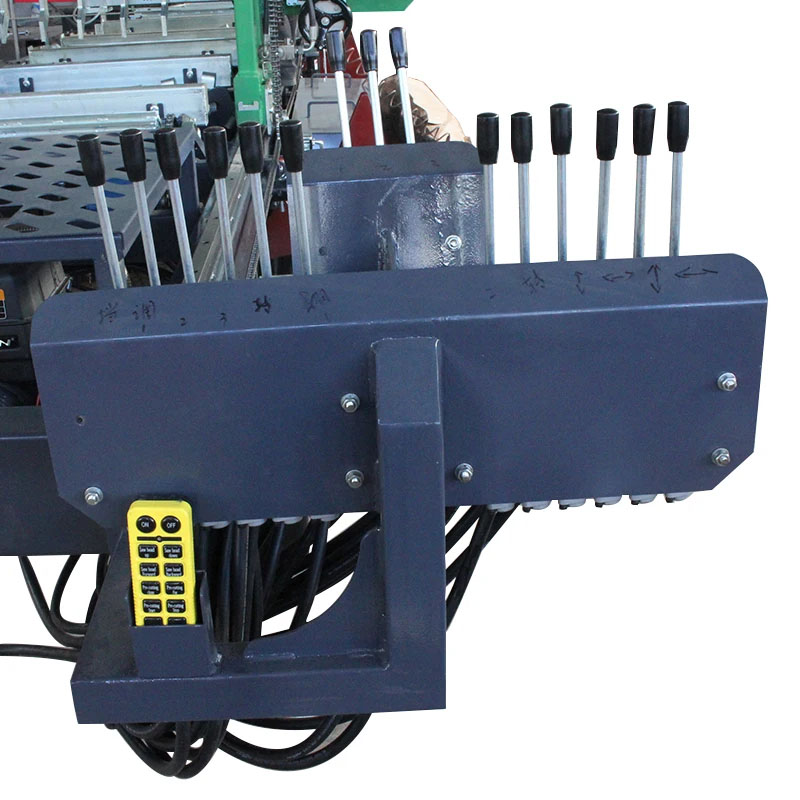

Wireless Control System
No need to move around the sawmill — simply sit in the operator’s chair and control all functions with the touch of a button. The wireless remote system allows you to start, stop, lift, feed, and adjust the sawmill effortlessly, improving safety, comfort, and productivity.

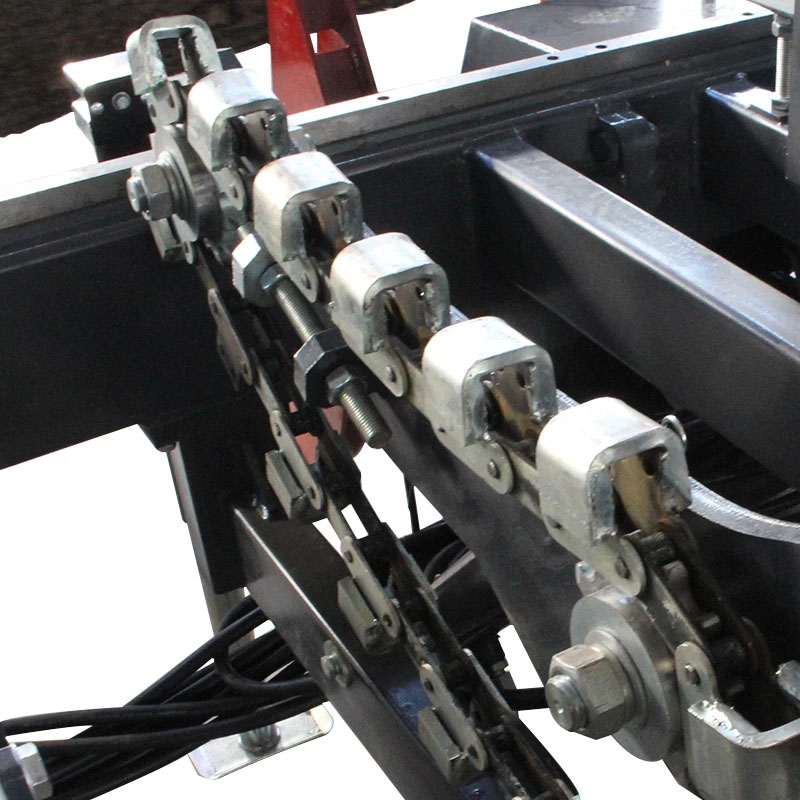

Rail Sawdust Removal System
A specialized sawdust removal mechanism keeps the track clean during operation, ensuring smoother log movement, improved sawing accuracy, and extended rail lifespan through effective debris protection.
High Precision Track
The track is precision-machined and heat-treated for exceptional hardness and durability. It can operate smoothly through millions of cycles without deformation, ensuring long-term stability and cutting accuracy.
Saw Blade Tensioning System
Equipped with an exclusive patented hydraulic tensioning device that maintains constant pressure without release. It provides high strength and stability, ensuring optimal blade performance and extended service life.

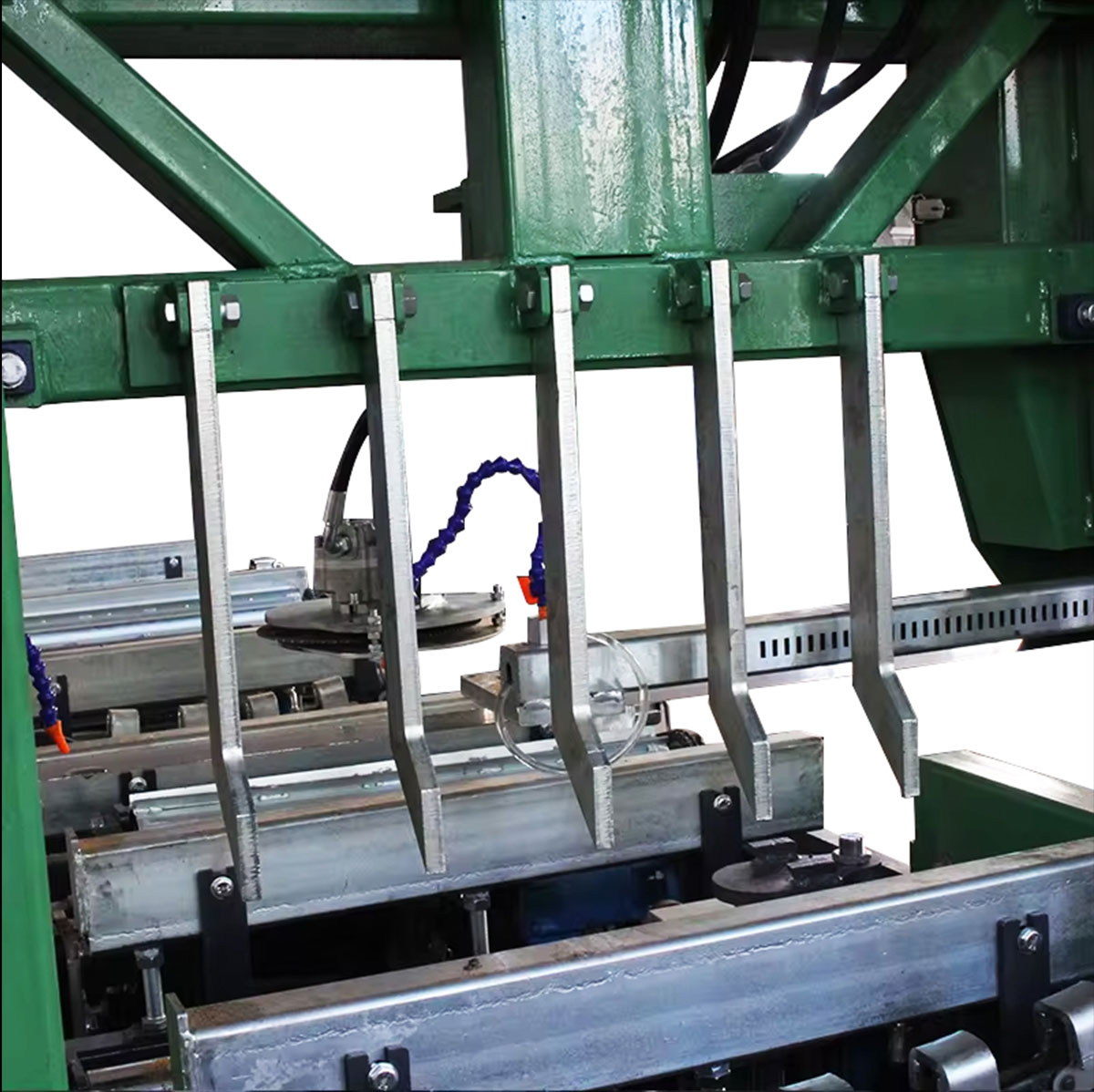

Pre-Cutting System
An adjustable hydraulic pre-cutting mechanism protects the main saw blade by removing bark and impurities before sawing, enhancing cutting precision and extending blade life.

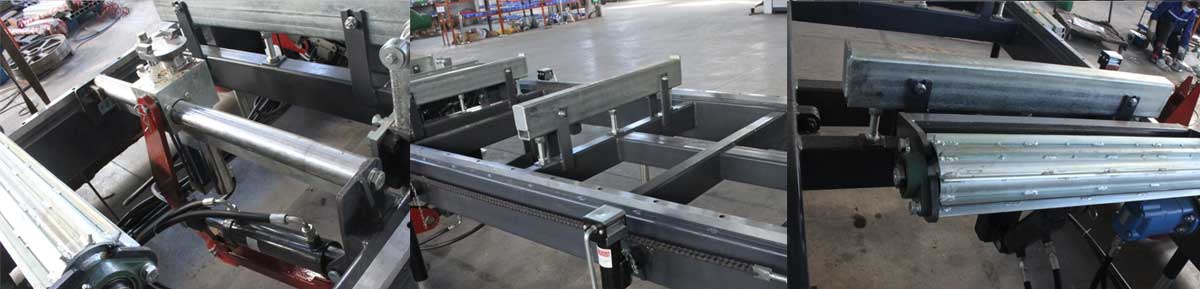

Wooden Board Return System
After cutting, sawn boards are automatically returned to the starting position, eliminating the need to manually move them and improving efficiency and workflow.

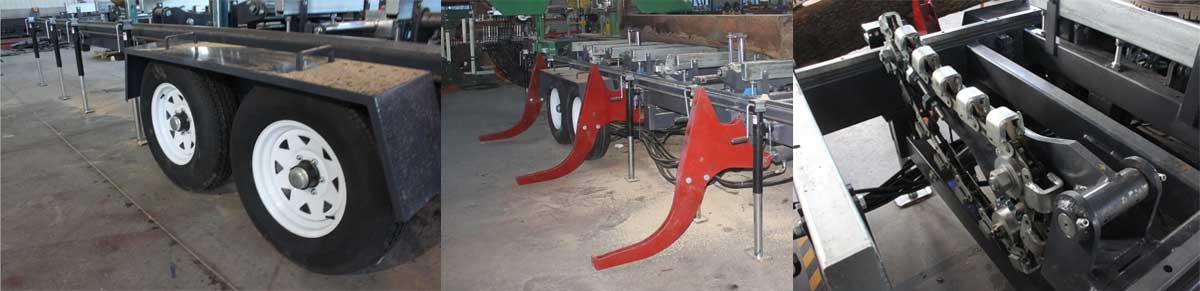

Function

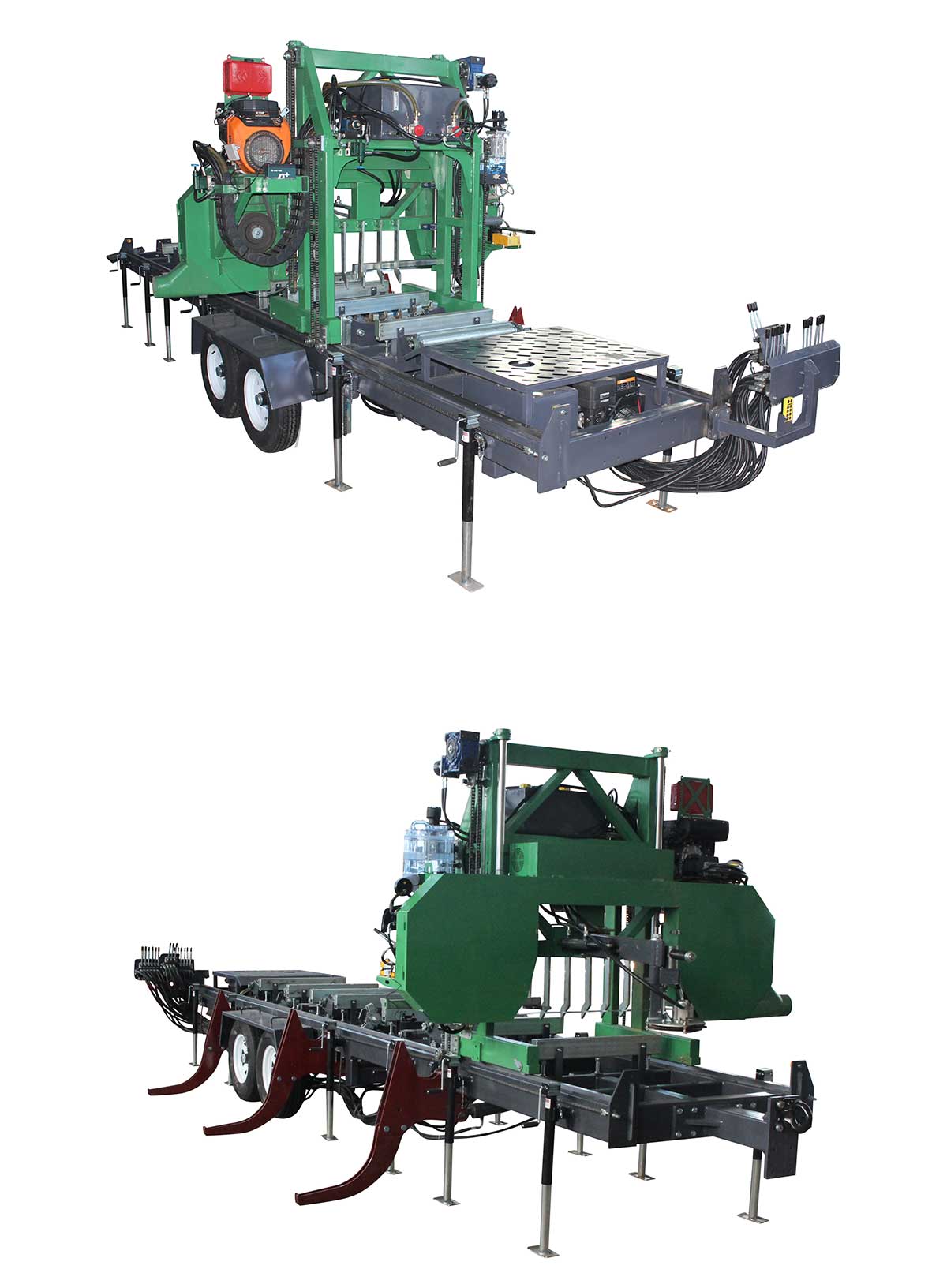

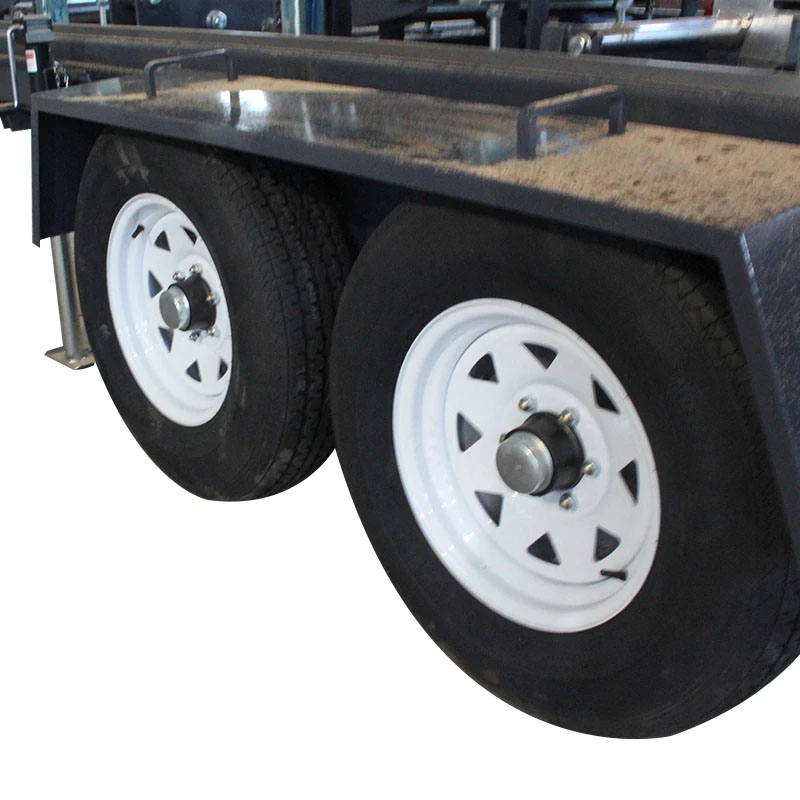

1. Four-Tire Trailer - Supports a maximum load of 6 tons for stable transport.
2. Log Lifting -Hydraulic system lifts logs up to 5 tons with ease.
3. Log Turnover -High-strength, fast-action mechanism for efficient log positioning.
4. Fully Automatic Log Clamping - Secures logs firmly without manual effort.
5. Adjustable Log Support-Accommodates different log sizes for stable cutting.
6. Automatic Log Movement - Moves logs smoothly through the sawmill for continuous processing.
