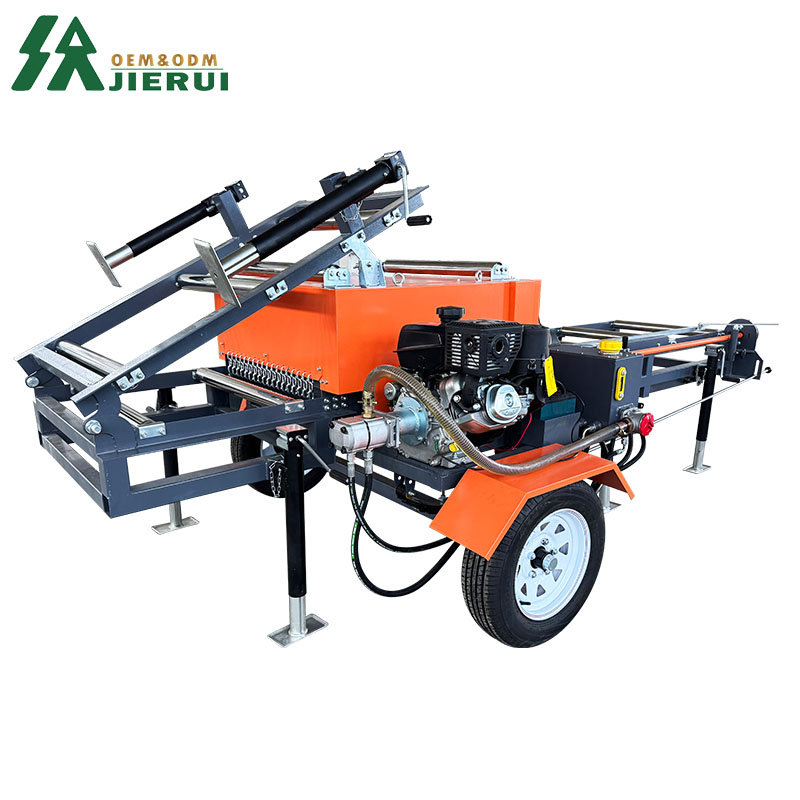

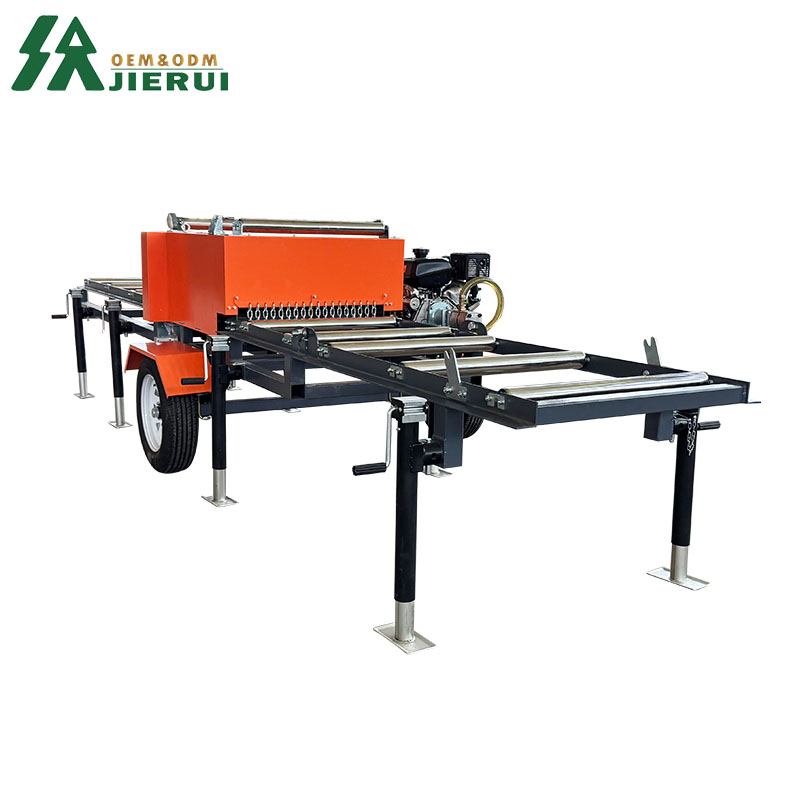

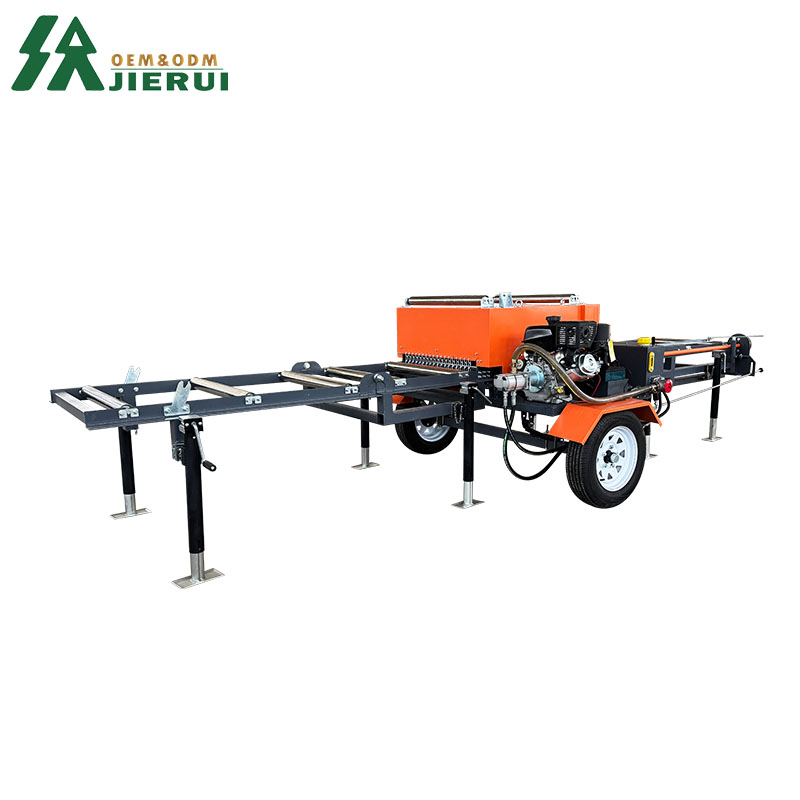

Portable Board Edger Efficient Tools For Woodworking
1.Adjustable Cutting Width
Easily set precise board dimensions to meet different production needs.
2.Laser-Guided Cutting Path
High-visibility laser ensures accurate alignment and minimizes cutting errors.
3.Heavy-Duty Wear-Resistant Tyres
Provides stability and smooth mobility for both factory and field use.
Make an inquiry will get the best shipping quotation
A Board Edger Machine is designed to transform rough lumber into clean, uniform boards by trimming away irregular edges. Essential in modern sawmills, it maximizes wood utilization and ensures precision, making it highly suitable for producing lumber used in furniture, flooring, and construction.

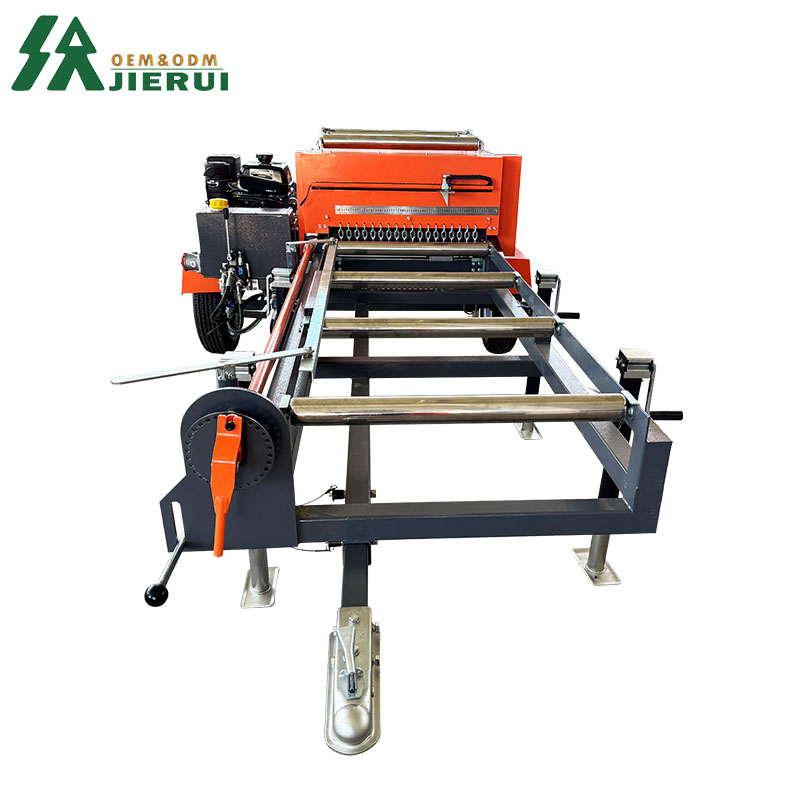

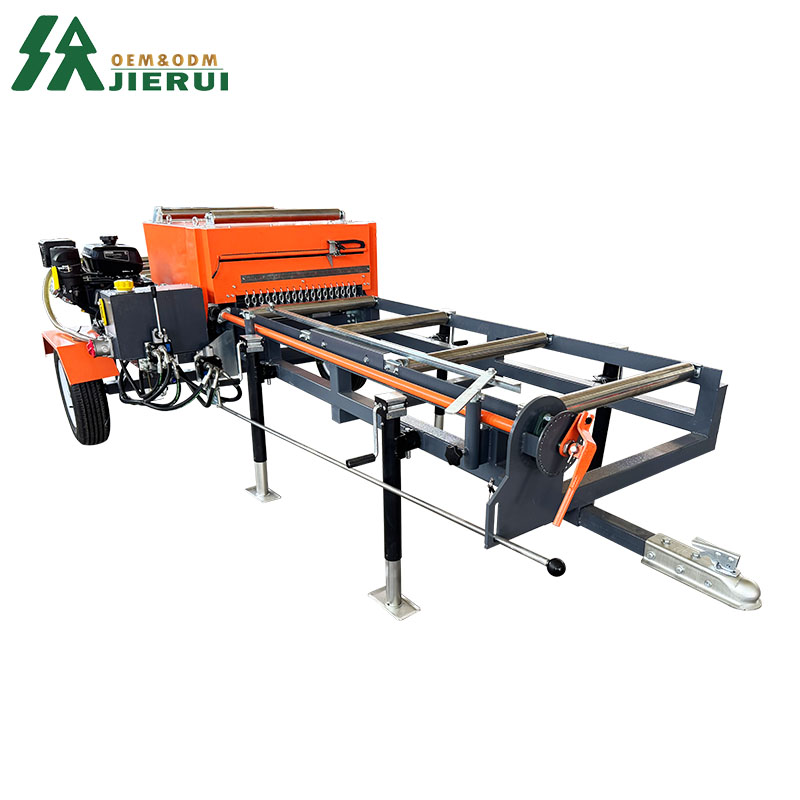

The Wood Board Edger Machine is a high-efficiency solution designed to trim rough-cut lumber into precise, uniform boards. Built for modern sawmills and woodworking operations, it enhances lumber yield, improves product quality, and ensures smooth, consistent cuts. Ideal for furniture manufacturing, flooring production, and construction lumber processing, this machine combines precision, safety, and durability.
Key Features
1.Adjustable Cutting Width
Simple manual dial allows precise control over board size to match production requirements.
2.Laser Cutting Path Display
Integrated laser system clearly marks the cutting line for enhanced accuracy and reduced waste.
3.Automatic Feeding System
Hydraulic feeding rollers ensure steady, consistent movement of boards for smooth edging.
4.Ultra-Long Safety Hand Valve Control
Keeps operators at a safe distance while providing easy control of saw wheel rotation.
5.Foldable Track for Portability
Space-saving design makes it easy to transport and set up between job sites.
6.Heavy-Duty Wear-Resistant Tyres
Ensure stability, smooth movement, and long-lasting durability in various working environments

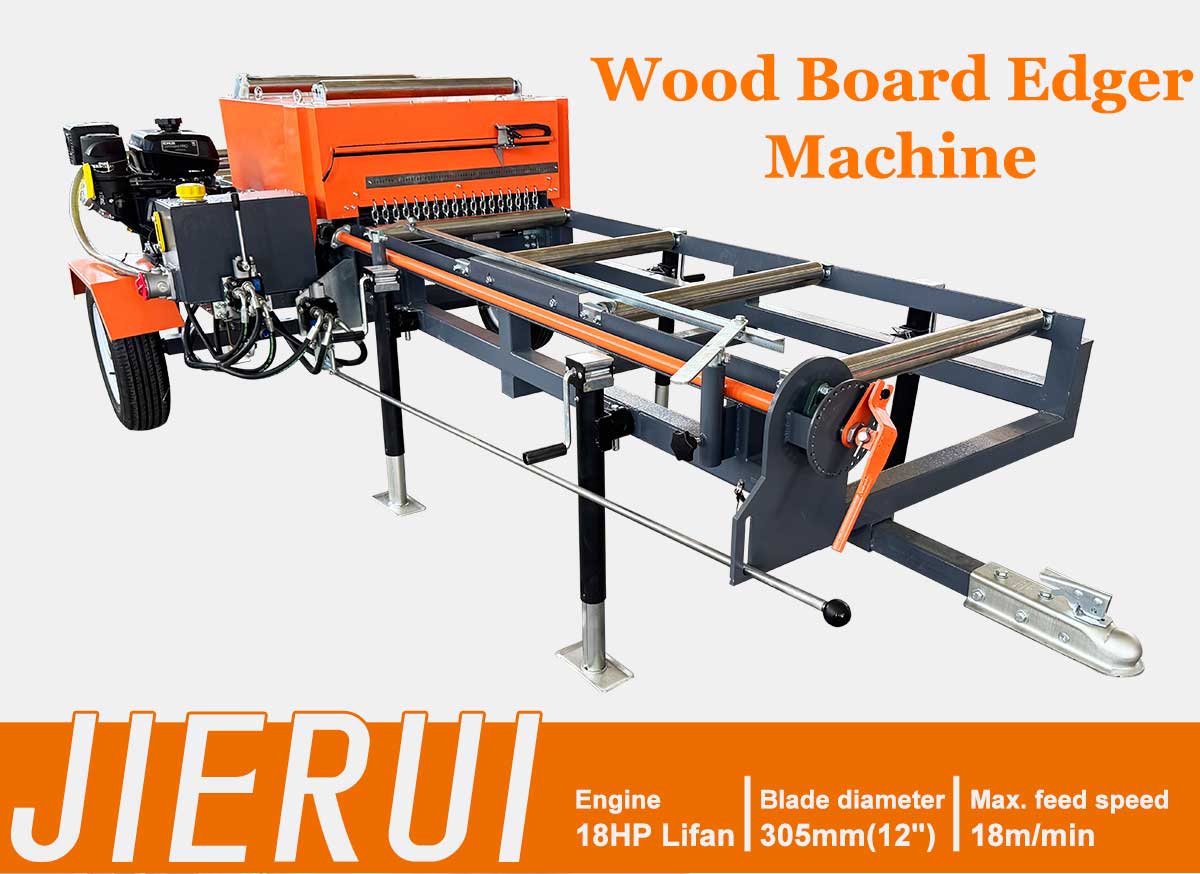

| Wood Board Edger Machine | |
| Engine | 18HP Lifan gas |
| Max cutting width | 635mm(25") |
| Min.cutting width | 76mm(3") |
| Max. wood thickness | 50mm(2") |
| Blade diameter | 305mm(12") |
| Max. feed speed | 18m/min |
| Working pressure | 11Mpa |
| Infeed table length | 2000mm |
| Outfeed table length | 2000mm(Fold) |
| packing size | 1465*1150*810mm=1.36CBM 425/465 KG 2050*900*545mm=1CBM 251/291 KG |
Product details

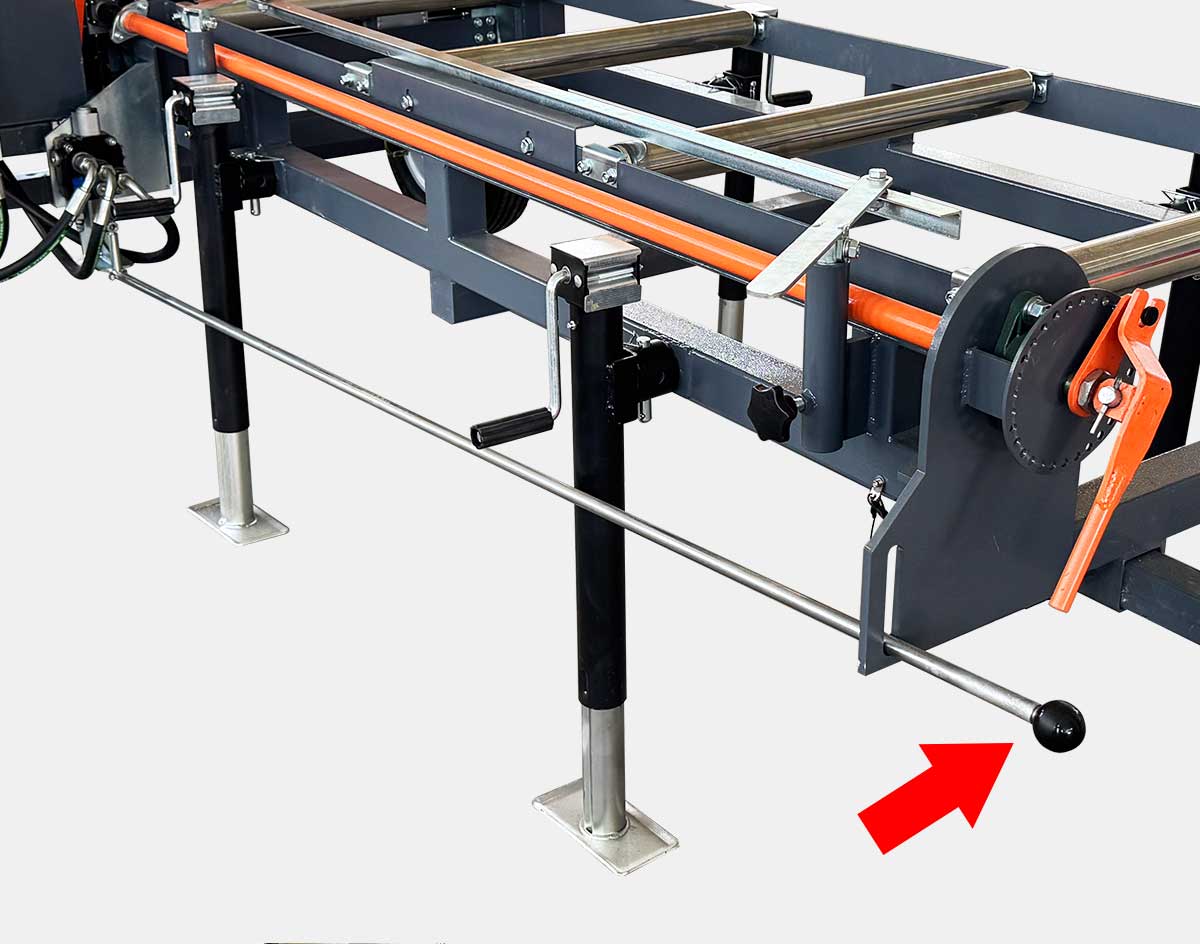

1.Ultra-Long Safety Hand Valve
Equipped with an ultra-long safety hand valve, the machine allows operators to control the saw wheel rotation from a safe distance. This design not only ensures precise operation but also significantly enhances operator safety by keeping hands and body parts away from the cutting area.

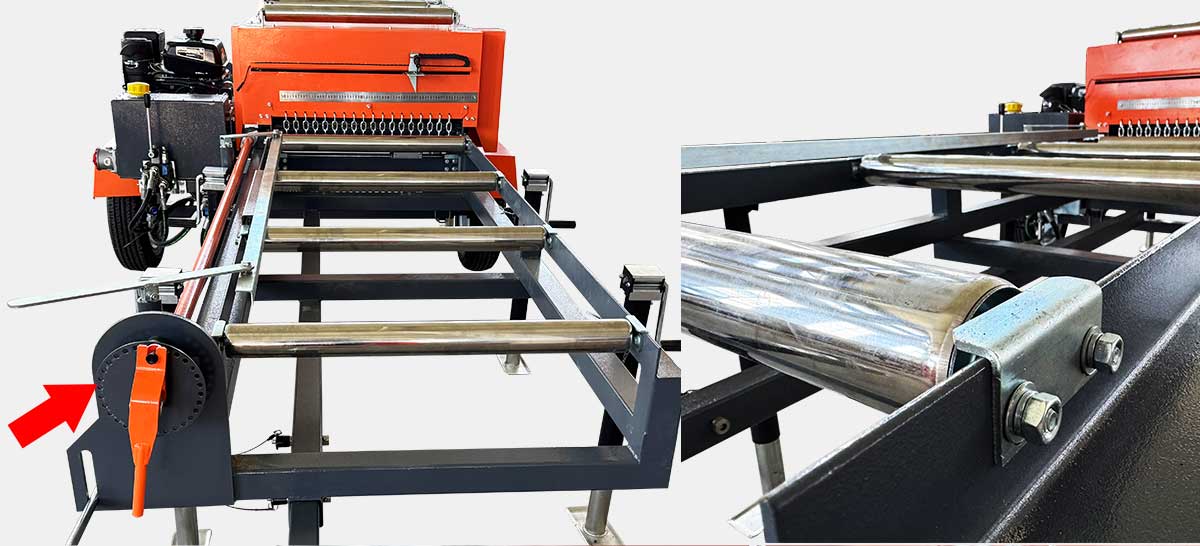

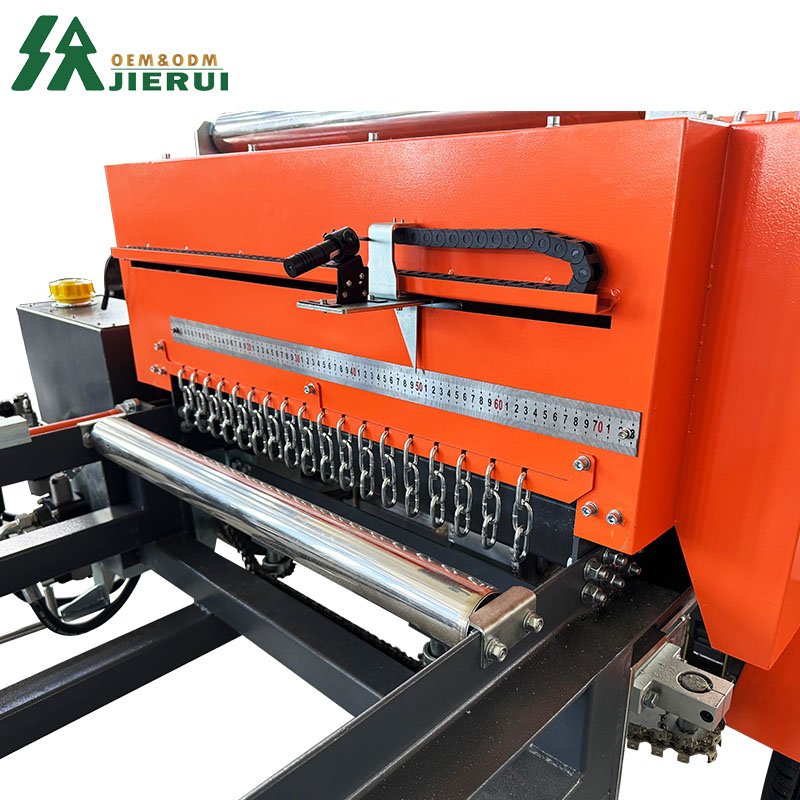

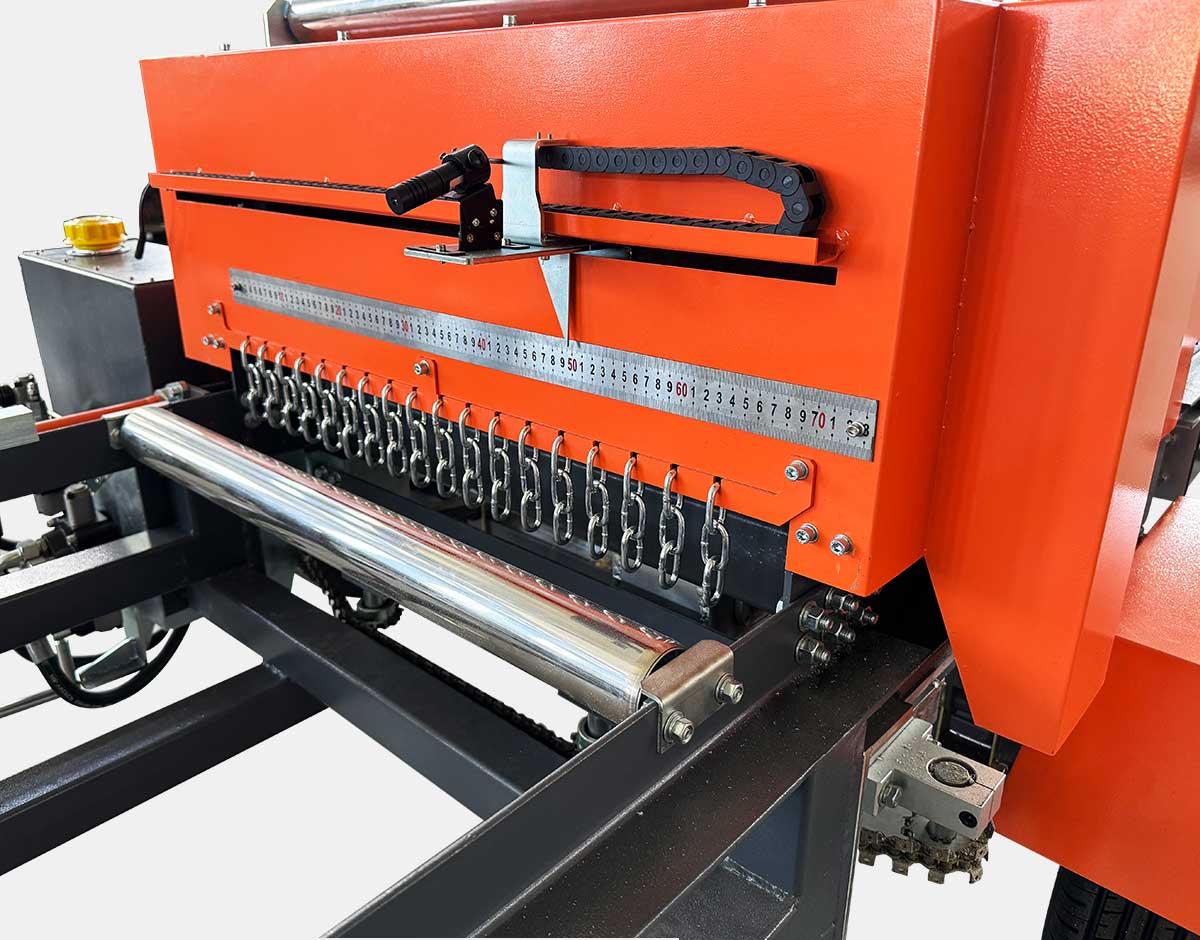

2.Precise Manual Dial Adjustment
A simple, user-friendly manual dial allows you to accurately set the desired board width, ensuring consistent edging results and maximizing lumber utilization.

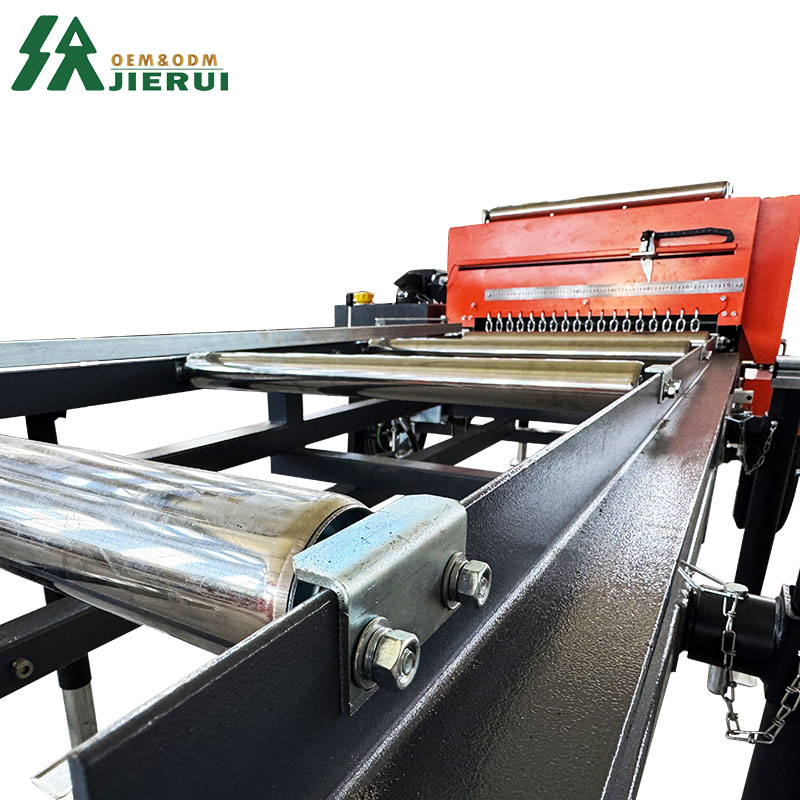

3.Automatic Hydraulic Feeding System
Equipped with hydraulic feeding rollers, the system ensures a steady and consistent feeding speed, delivering smooth and accurate edging with minimal operator effort.
4.Laser Cutting Path Display
A built-in laser guide clearly displays the cutting path, allowing operators to align boards with precision. This feature minimizes errors, reduces waste, and ensures every cut is straight and accurate.

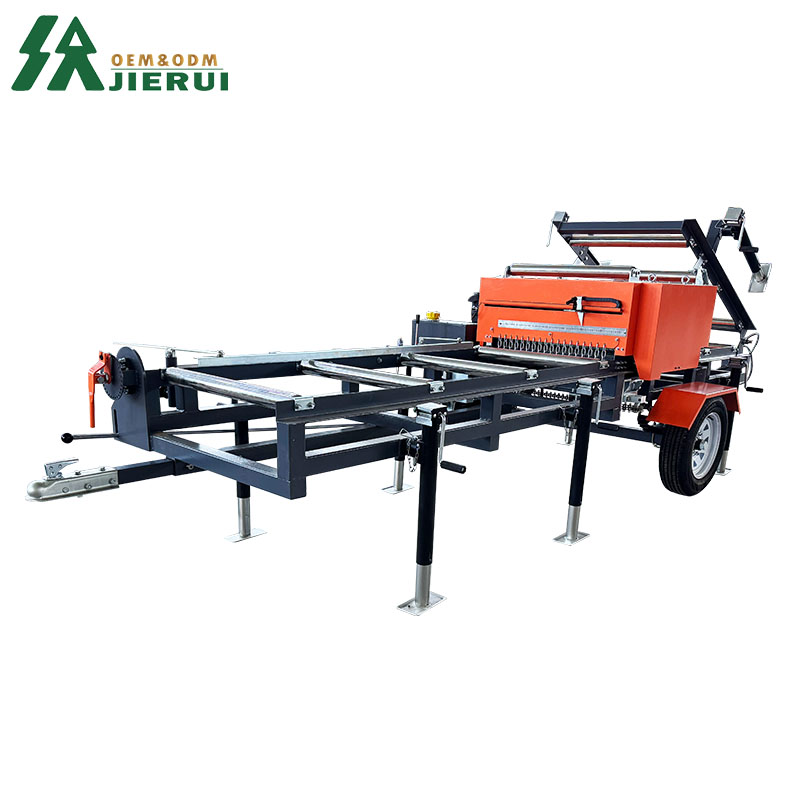

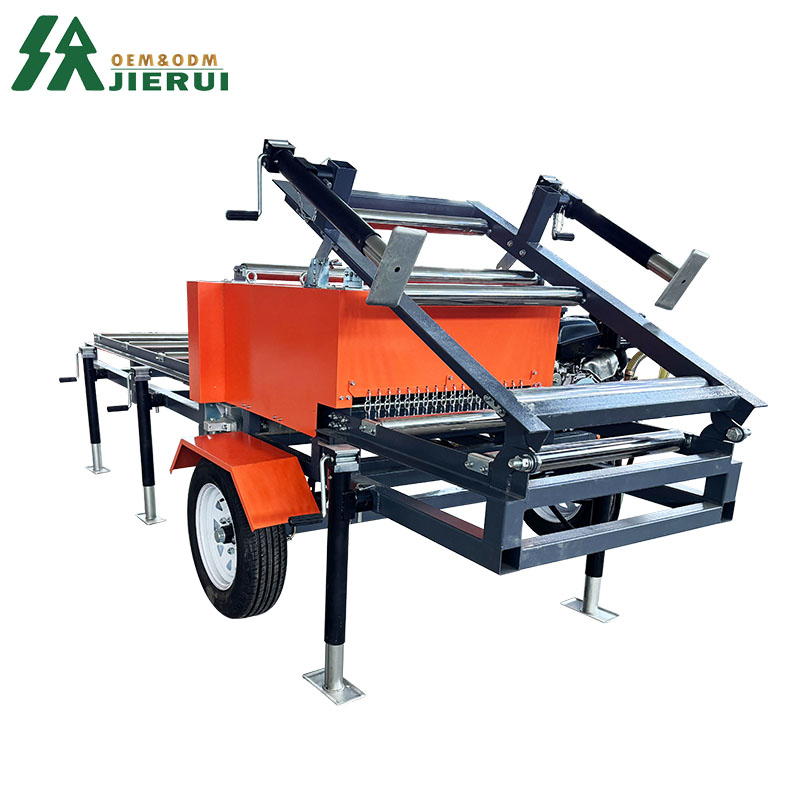

5.Foldable Track for Easy Transport
The foldable track design saves valuable space and allows for quick setup and convenient transportation between job sites, making the machine highly versatile for both fixed and mobile operations.

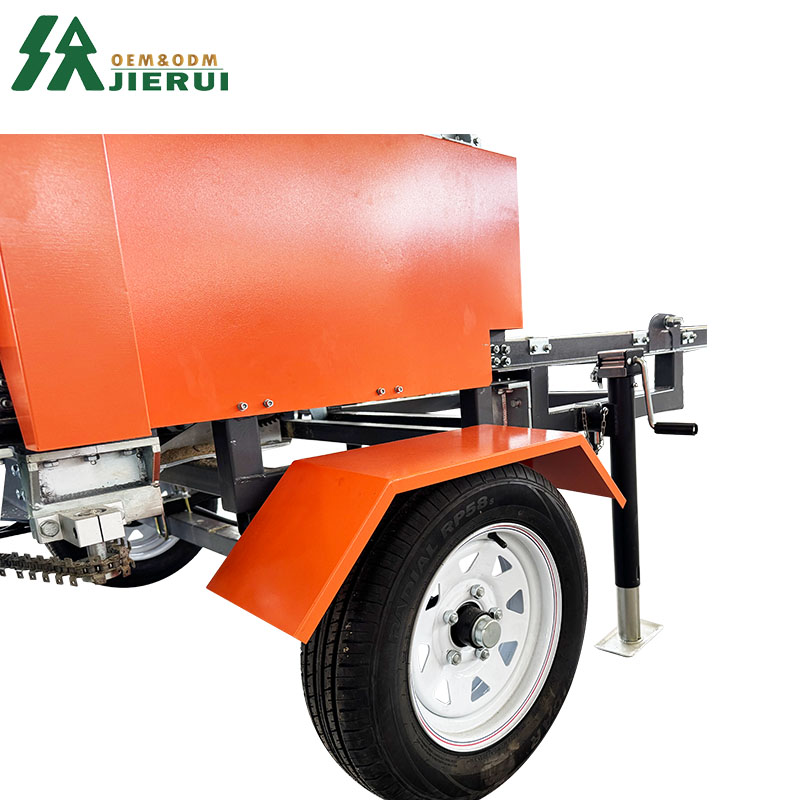

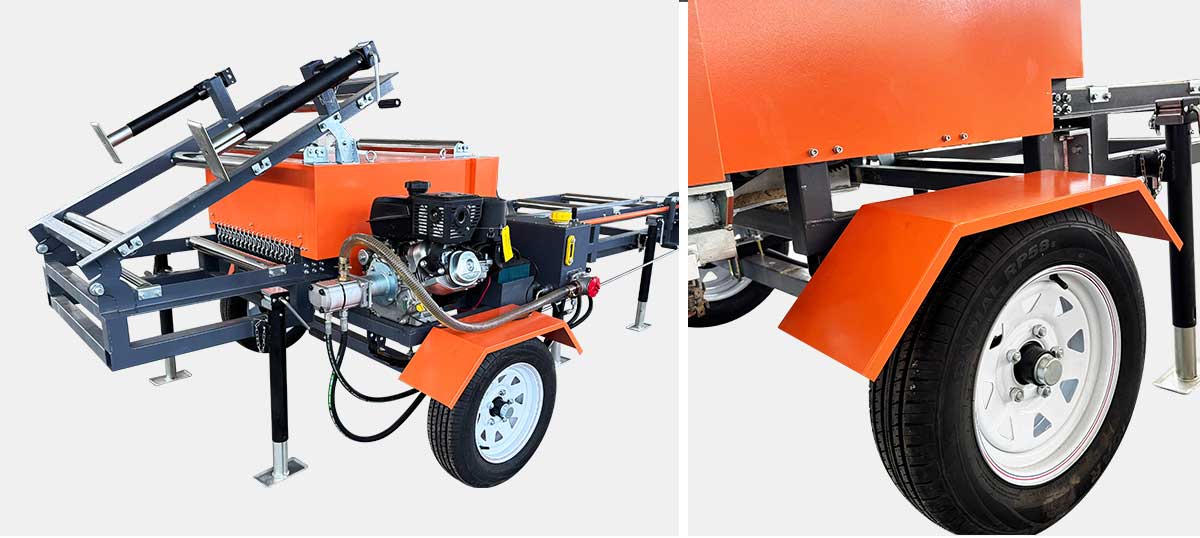

6.Heavy-Duty Wear-Resistant Tyres
Fitted with durable, wear-resistant tyres, the machine moves smoothly and reliably, ensuring stability and long-lasting performance in demanding work environments.

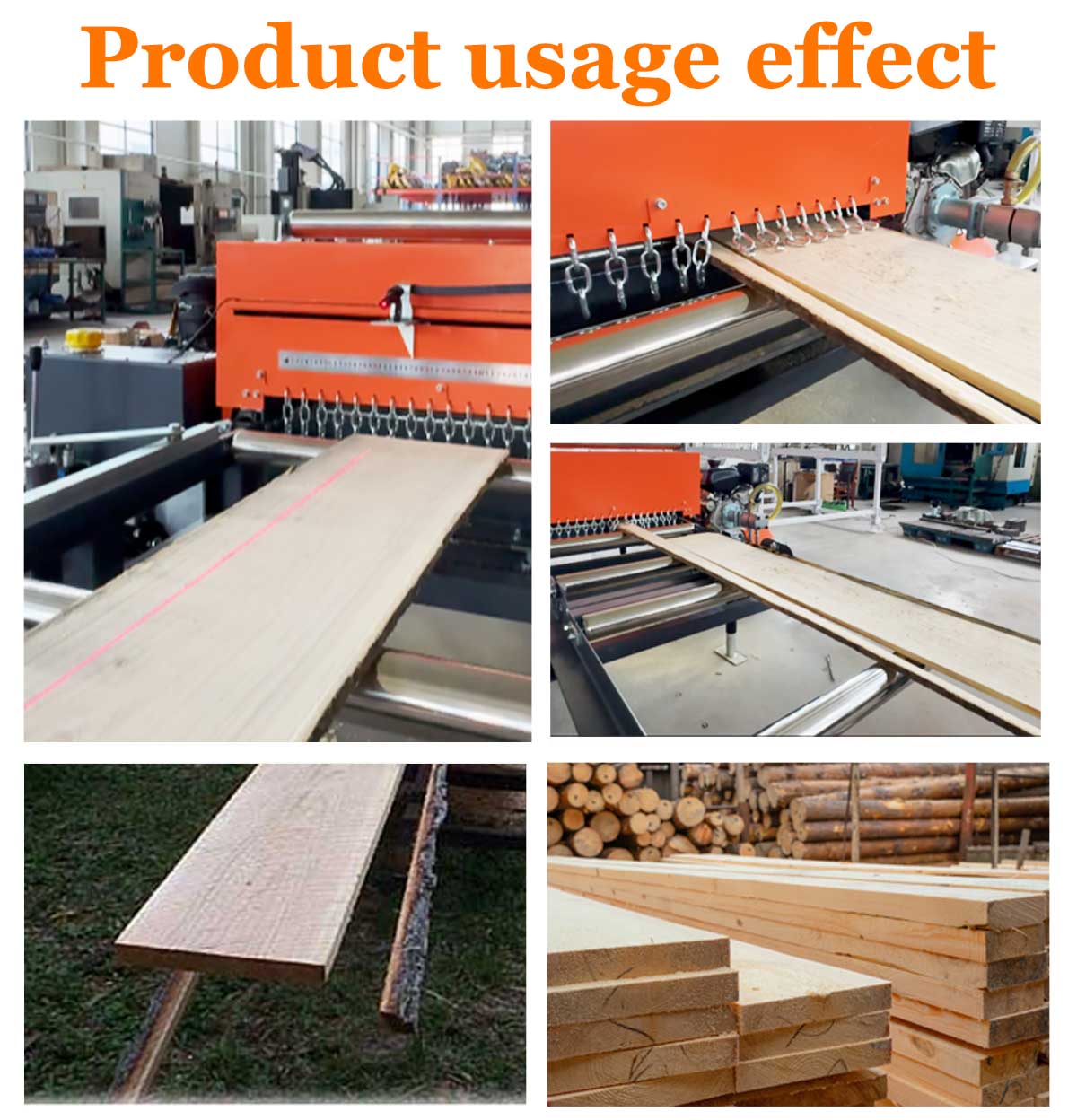

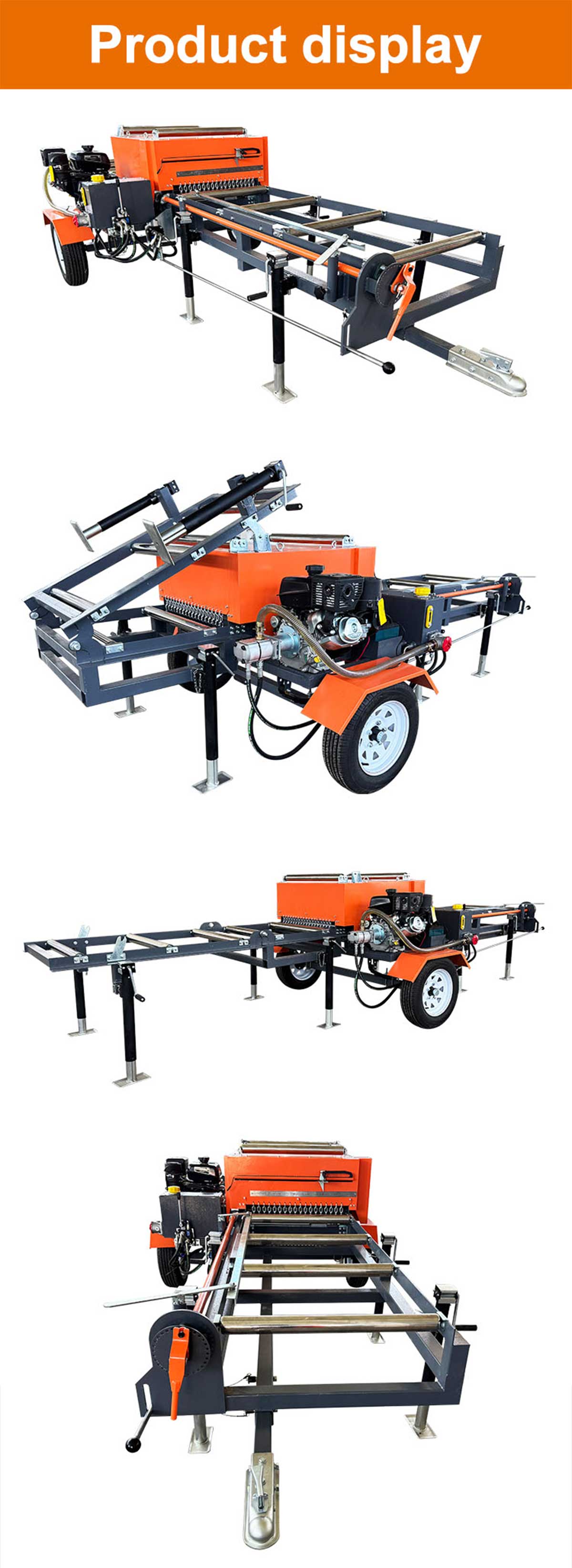

Product display
Company Profile
Shandong Jerry Machinery Equipment Co.,Ltd. is one of the world's leading manufacturers of high-quality sawmills.The company has been committed to the production and research and development of sawmills and wholeheartedly serves 12,000 enterprises.Our products have been exported to 61 countries around the world.
If you would like to know more information or have any questions, please feel free to contact us at any time. Contact us and you will receive a free brochure!
