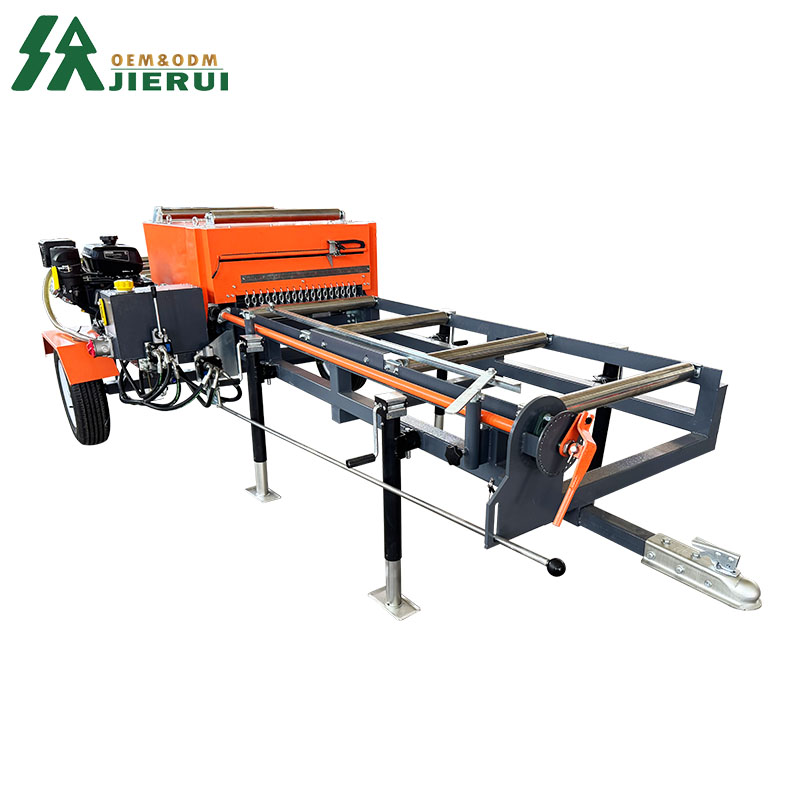

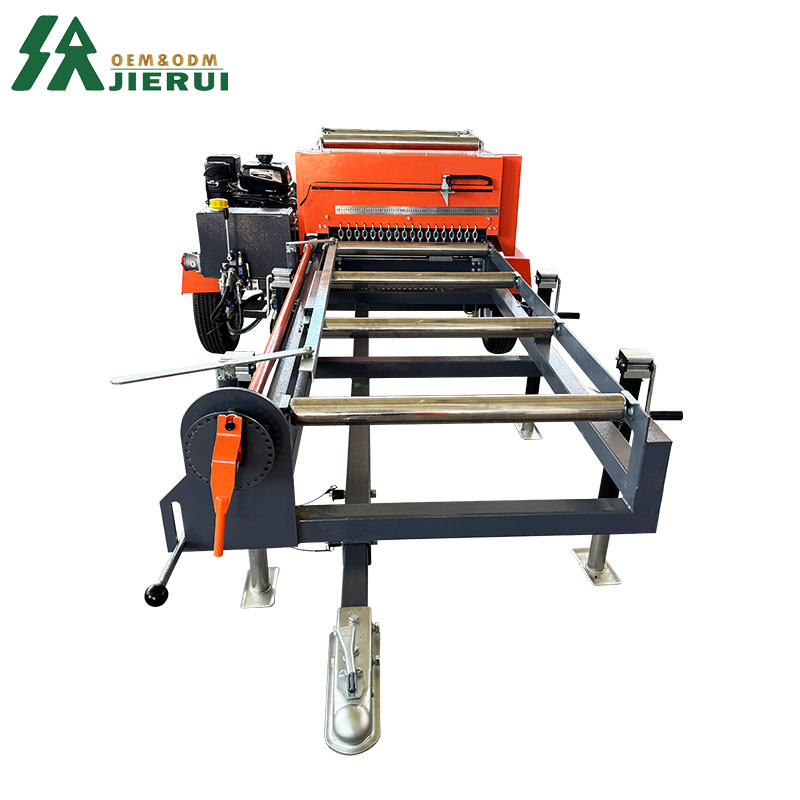

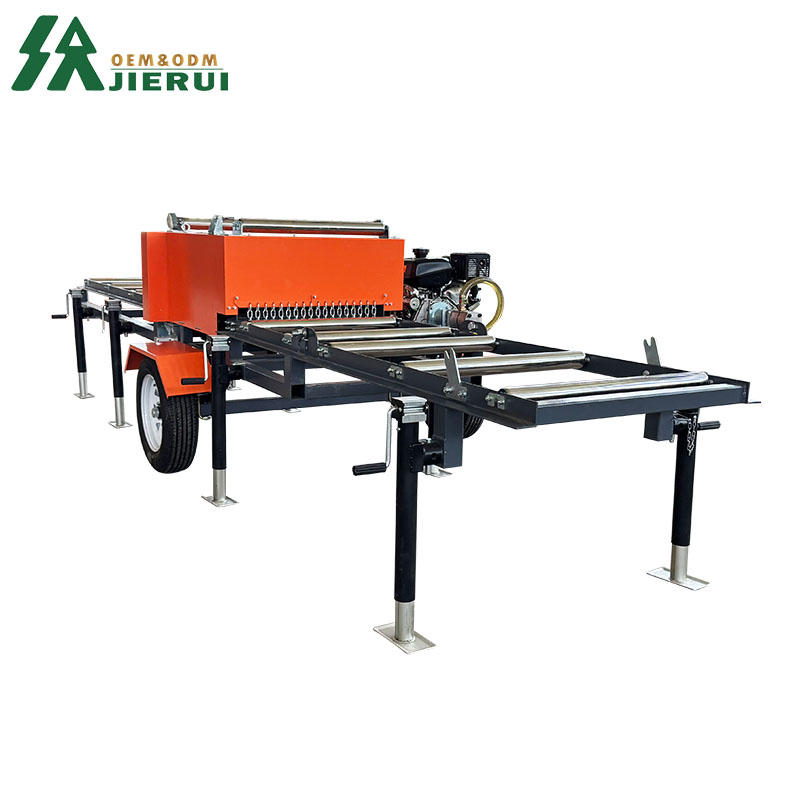

Hydraulic Lumber Edger With Petrol Diesel Engine
1. Adjustable Cutting Width
A simple manual dial allows precise adjustment to match your desired board dimensions.
Enables fast transitions between different product sizes.
2. Automatic Feeding System
Hydraulic feeding rollers ensure stable, consistent, and smooth feed rate.
Improves work efficiency while reducing manual labor.
3. Laser Cutting Path Display
Built-in laser guide shows the exact cutting line for high precision and easy alignment.
Minimizes cutting errors and improves material utilization.
Make an inquiry will get the best shipping quotation

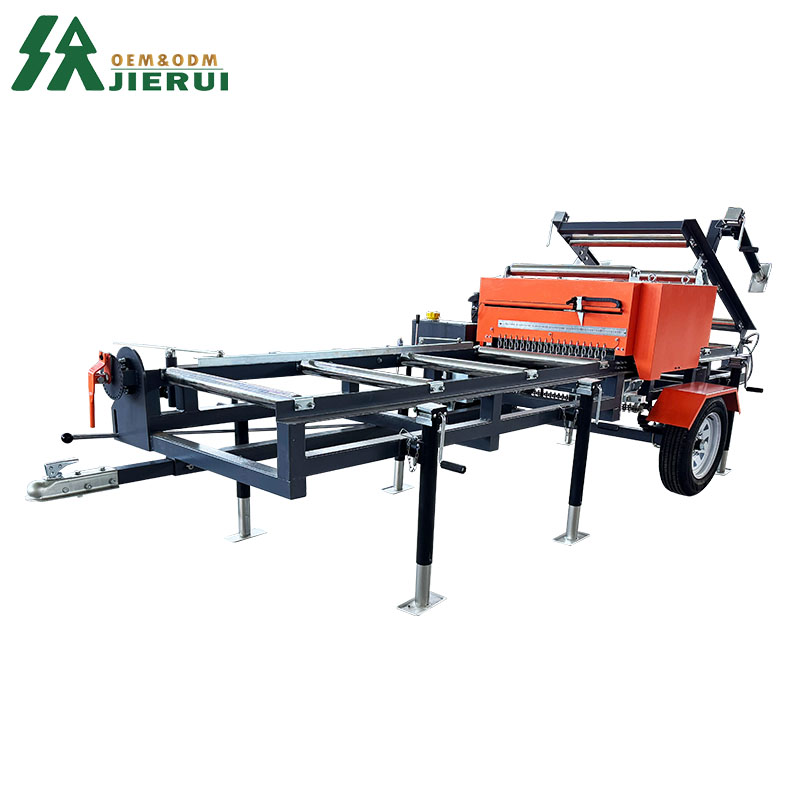

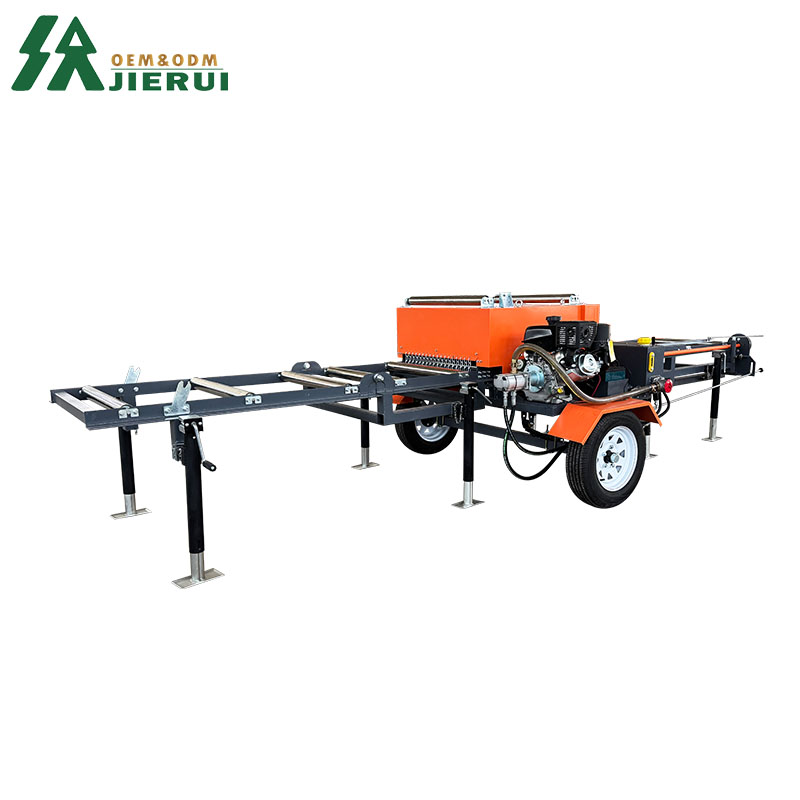

Hydraulic Lumber Edger is essential equipment in modern sawmills. It is designed to trim rough-cut boards and lumber into straight, uniform widths by removing irregular or wane edges. This process improves wood yield, enhances product quality, and ensures consistency for further processing in furniture, flooring, or construction applications.
The Wood Board Edger Machine is designed to trim rough-cut lumber into clean, uniform boards by removing uneven or wane edges. It is an essential tool in sawmills and wood processing facilities that require high precision, efficiency, and maximum wood yield.
Key Features
1.Adjustable Cutting Width
Quickly set your desired board size using a simple manual dial for precision edging.
2.Automatic Hydraulic Feeding System
Hydraulic rollers deliver consistent feeding speed and stable performance, reducing manual
workload.
3.Laser Cutting Guide
A high-visibility laser displays the cutting path, ensuring accurate and efficient trimming.
4.Foldable Track Design
Saves space and makes transportation between sites easy and convenient.
5.Heavy-Duty Wear-Resistant Tyres
Built for smooth movement and long-term durability, even in rough outdoor environments.

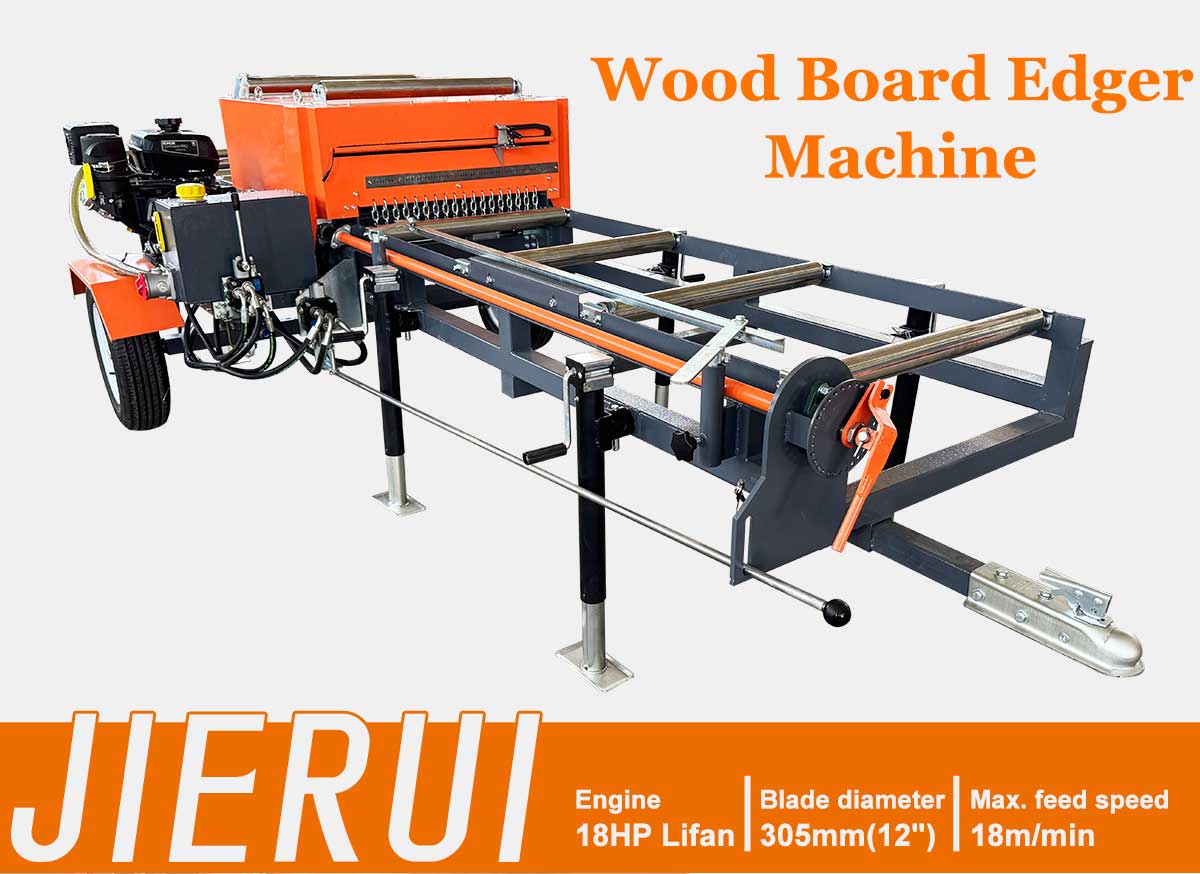

| Wood Board Edger Machine | |
| Engine | 18HP Lifan gas |
| Max cutting width | 635mm(25") |
| Min.cutting width | 76mm(3") |
| Max. wood thickness | 50mm(2") |
| Blade diameter | 305mm(12") |
| Max. feed speed | 18m/min |
| Working pressure | 11Mpa |
| Infeed table length | 2000mm |
| Outfeed table length | 2000mm(Fold) |
| packing size | 1465*1150*810mm=1.36CBM 425/465 KG 2050*900*545mm=1CBM 251/291 KG |
Product details

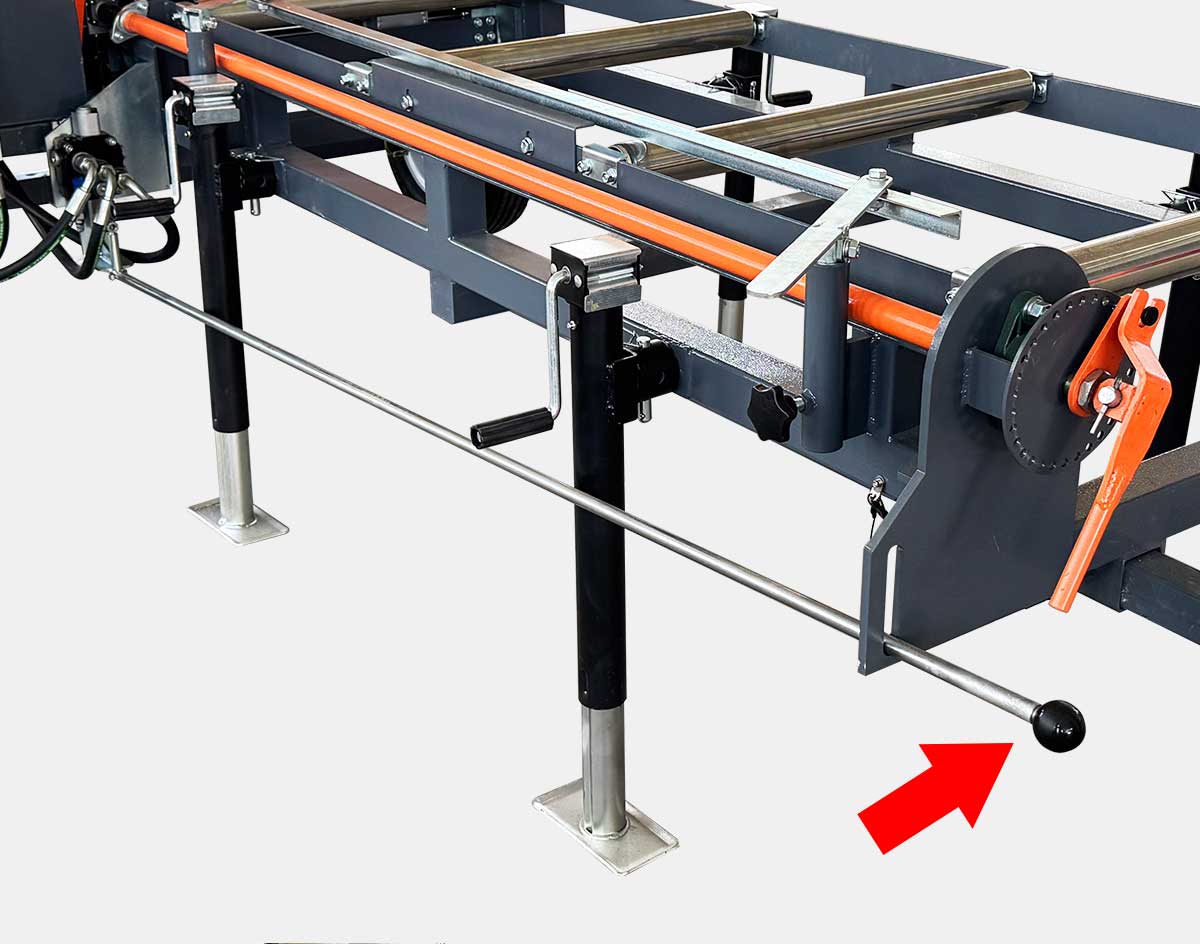

1.Ultra-Long Safety Hand Valve
The ultra-long safety hand valve allows the operator to safely and precisely control the saw wheel rotation from a secure distance. This extended reach not only improves operator safety but also offers better control during operation.

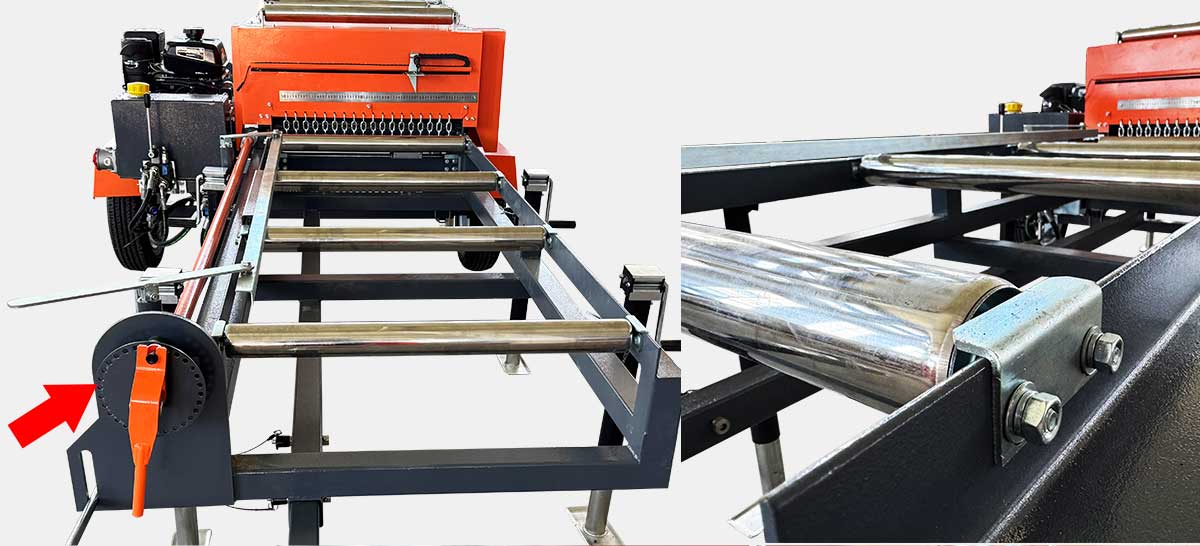

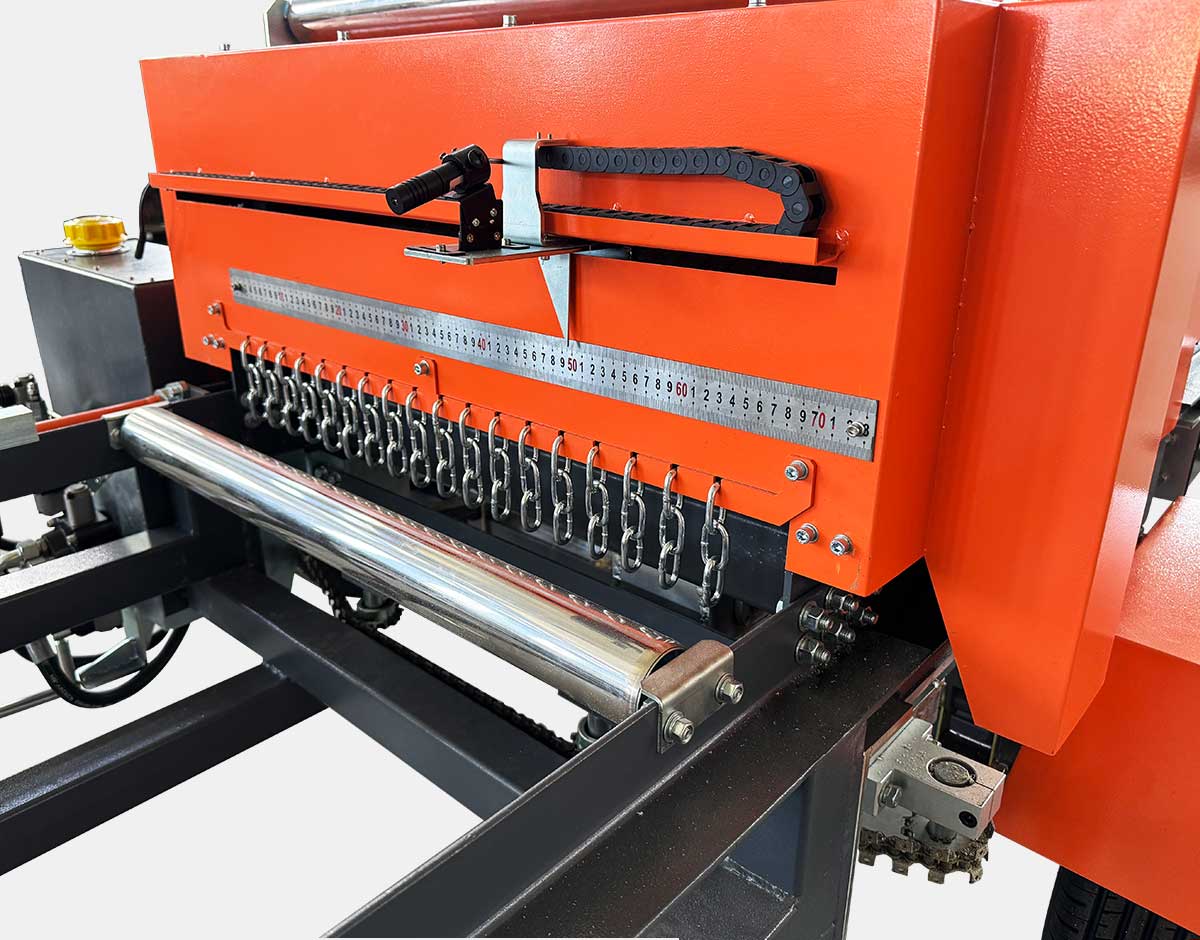

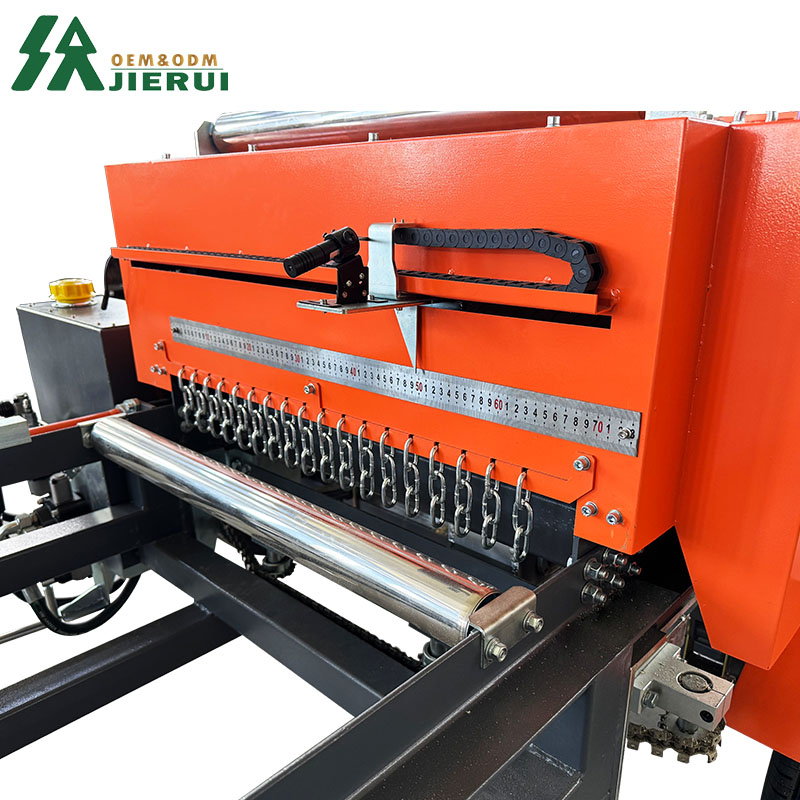

2.Precision Manual Dial
A simple manual dial allows you to accurately set the desired edging width, ensuring each board is trimmed to the exact dimensions required. This user-friendly feature enables quick adjustments, improving efficiency and precision during operation.

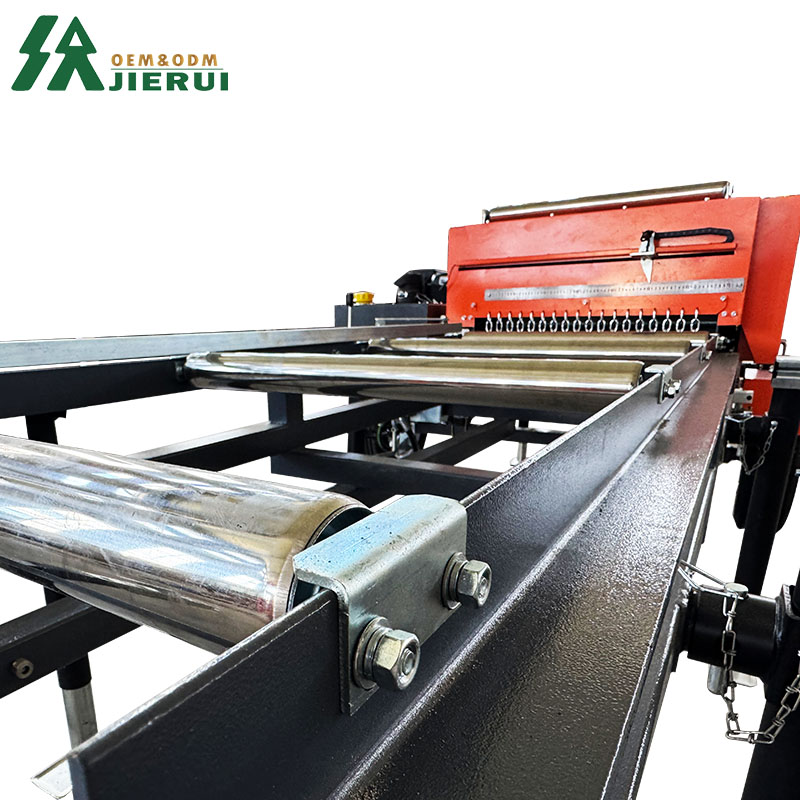

3.Automatic Feeding System - Hydraulic Rollers for Consistent Performance
The Automatic Feeding System uses hydraulic feeding rollers to ensure a steady, uniform feed rate throughout the edging process. This system guarantees consistent speed and cutting accuracy, significantly boosting productivity while reducing manual effort.
4.Laser Guide- Cutting Path Display
A high-precision laser projects the cutting path directly onto the board, allowing operators to align the wood quickly and accurately before edging. This feature enhances both cutting accuracy and material utilization.

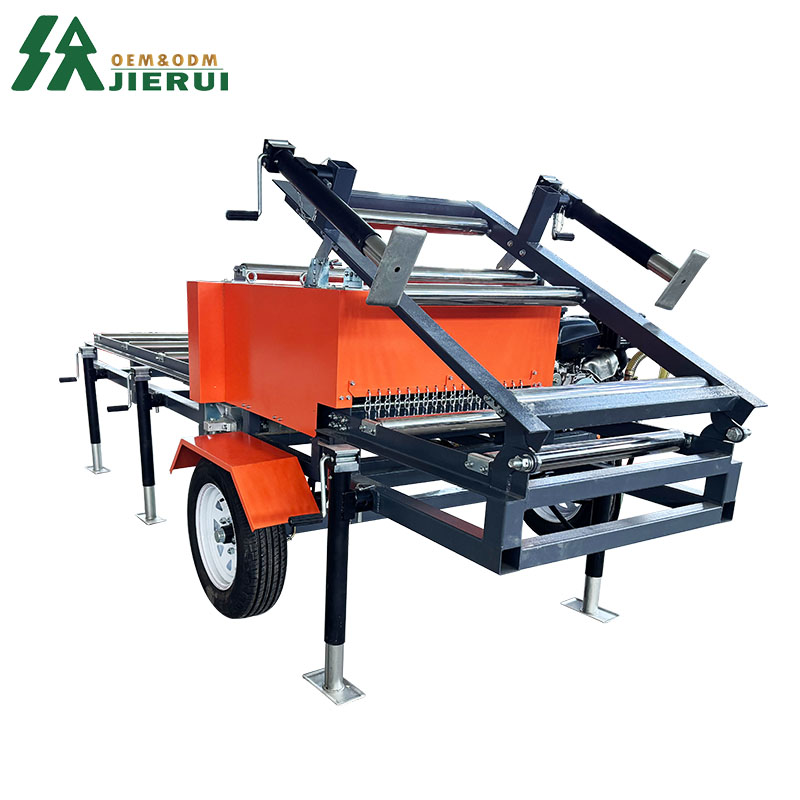

5.Foldable Track-Space-Saving & Portable Design
The foldable track design allows the machine to be easily compacted for storage or transport, making it ideal for sawmills that operate across multiple job sites. This feature enhances both mobility and worksite flexibility.

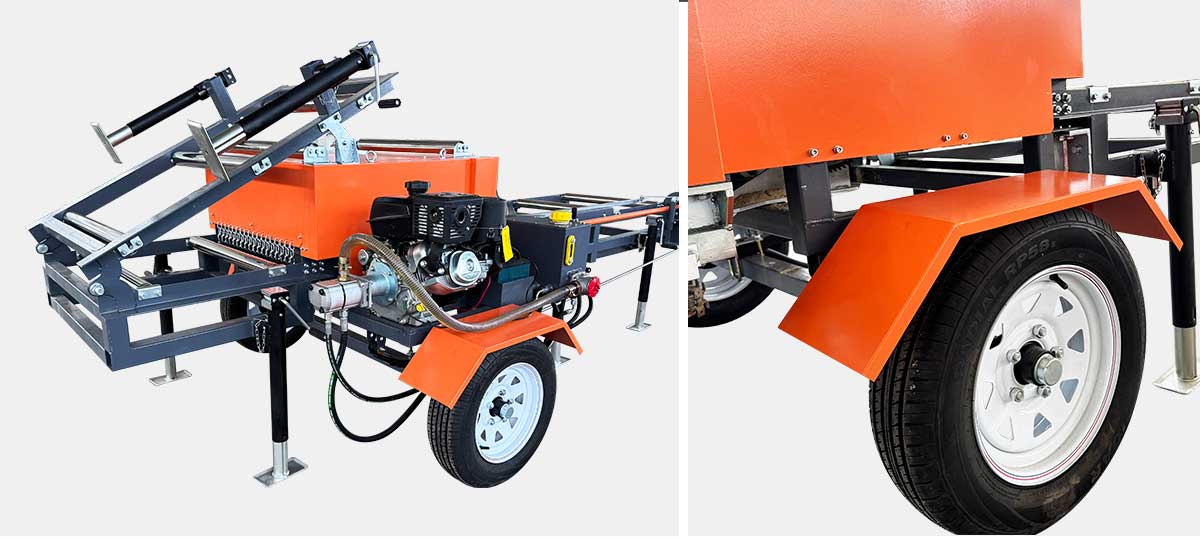

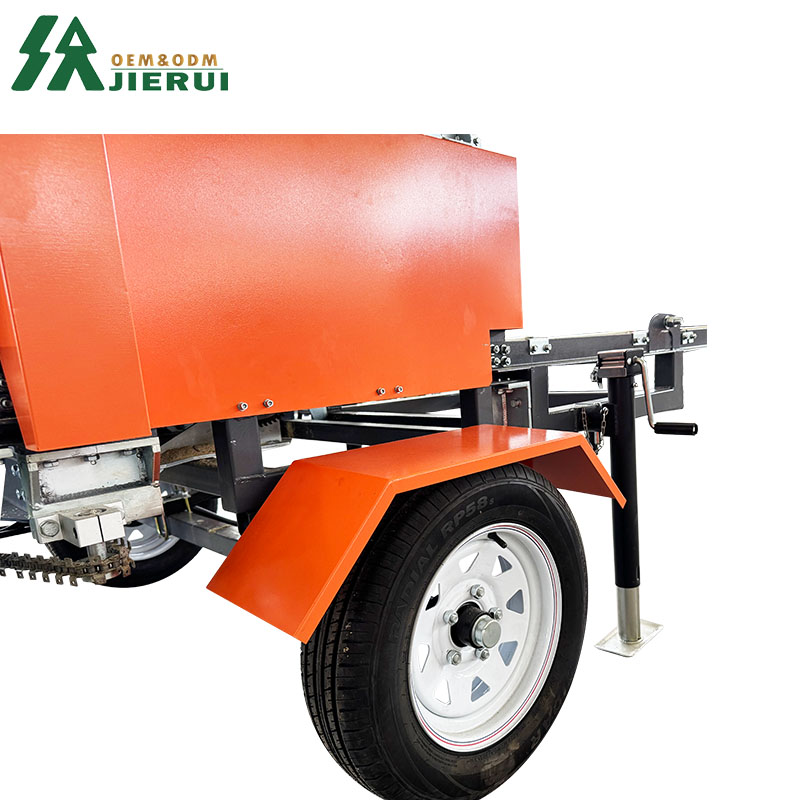

6.Heavy-Duty Wear-Resistant Tyres- Built for Smooth Mobility
Equipped with heavy-duty, wear-resistant tyres, the machine can be moved easily and reliably, even across rough or uneven terrain. These tyres are designed for long-term durability and stable transport.

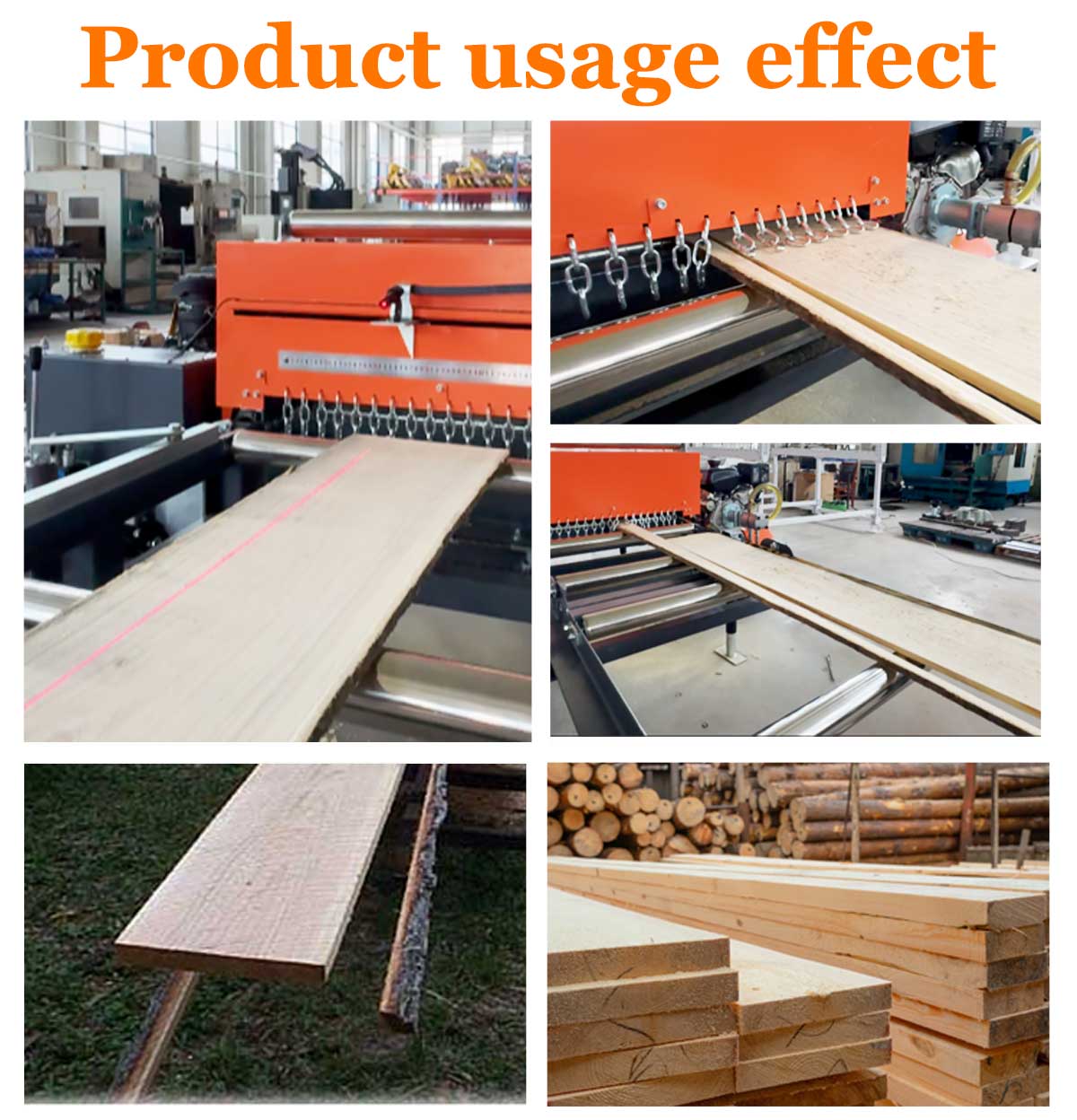

Product display
