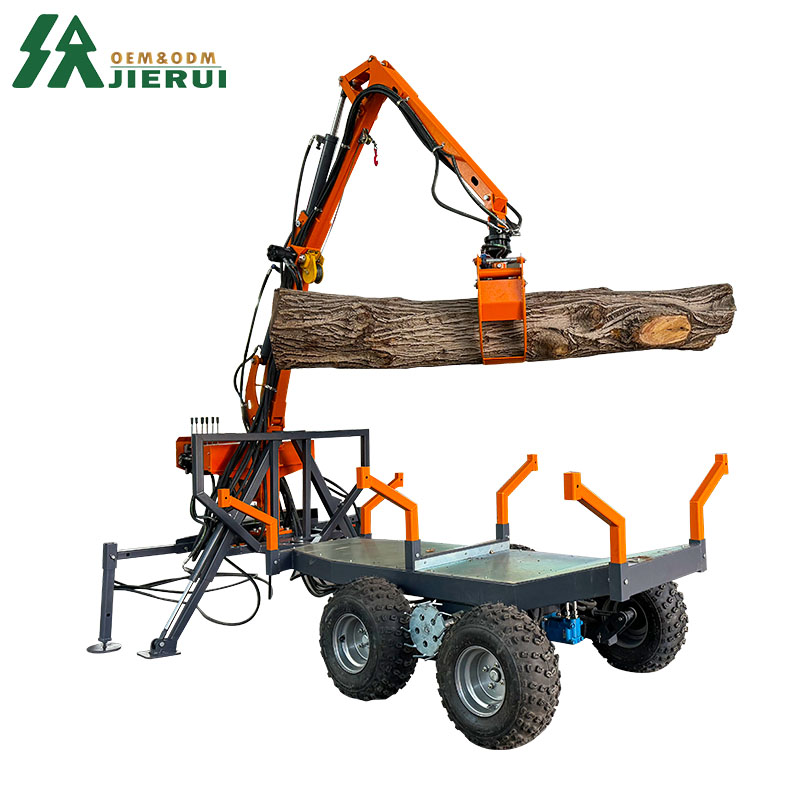

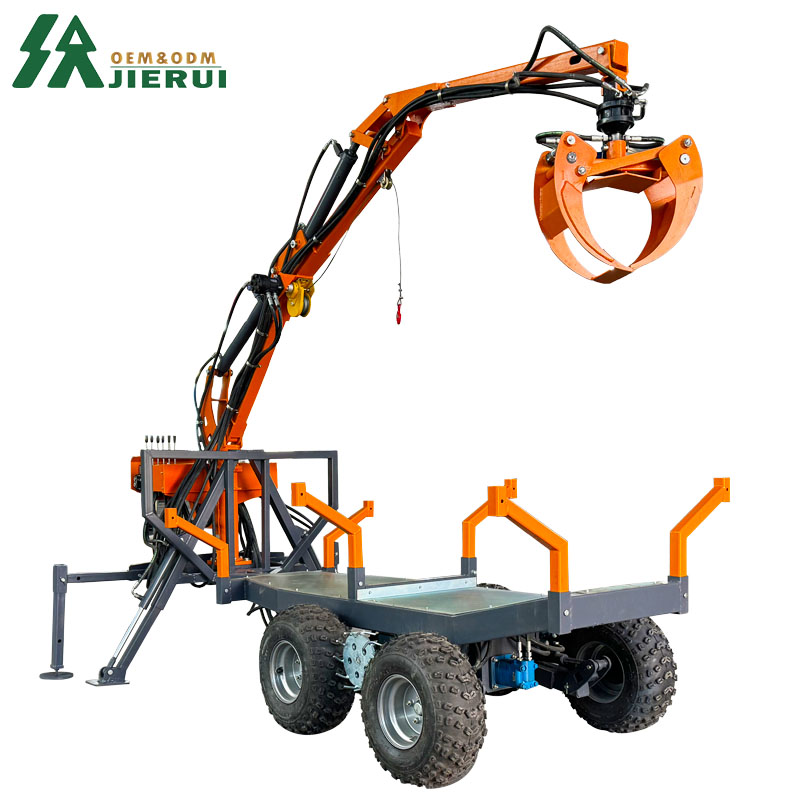

Log Trailer Grapple Timber Crane For Sale
1.Heavy-Duty Trailer Frame: Built to withstand the rigors of forestry work, the trailer is madefrom high-strength steel and features a durable, corrosion-resistant finish.
2.Integrated Crane: The mounted crane is powered by either hydraulic or electric systems and isdesigned to lift and load logs directly onto the trailer. It typically features a reach of 3-6 meters,allowing operators to handle logs from various positions and angles.
3.Hydraulic Power: The crane and trailer are hydraulically operated, ensuring smooth, powerful,and precise control when loading, unloading, and securing logs.
Make an inquiry will get the best shipping quotation
Log Trailer

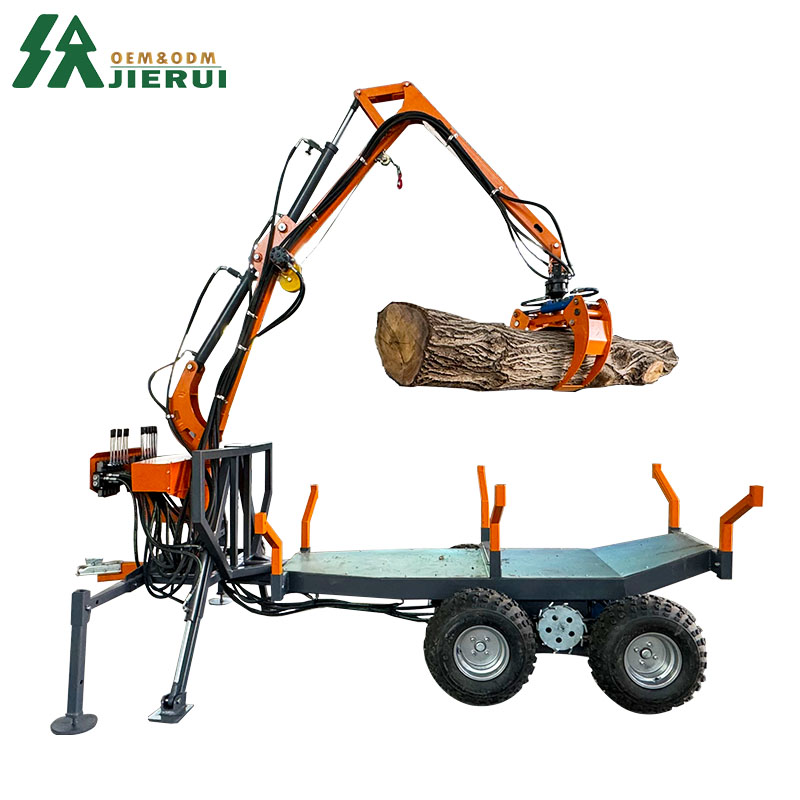

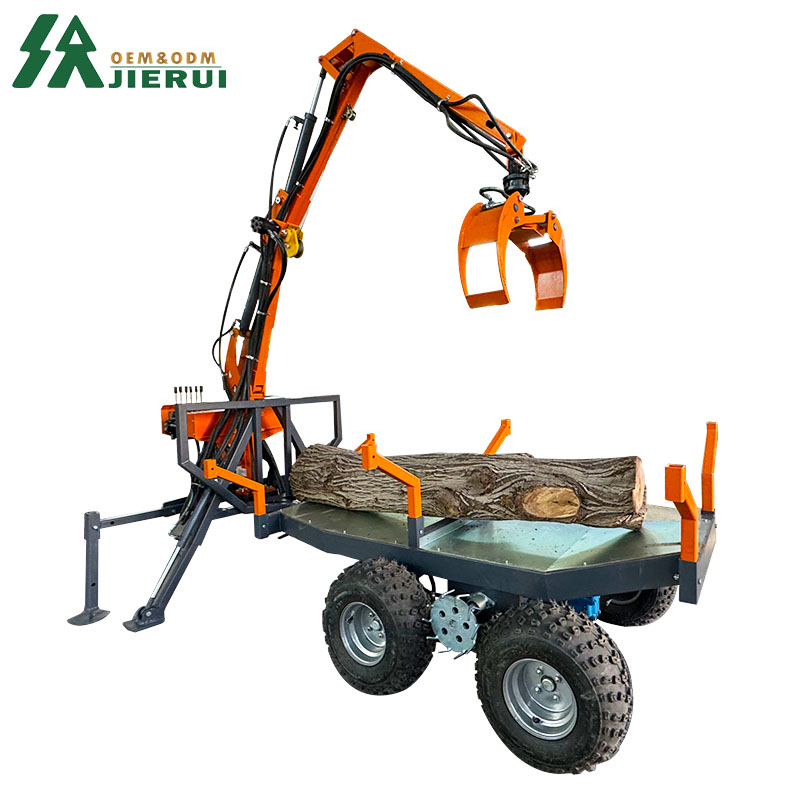

The Log Trailer with Crane is a specialized vehicle designed for transporting and handlingtimber logs in forestry operations. It features a robust trailer chassis equipped with an integratedcrane, which allows operators to load and unload heavy logs without the need for additionalmachinery. This setup enhances efficiency and safety during the handling of large, cumbersome logs.

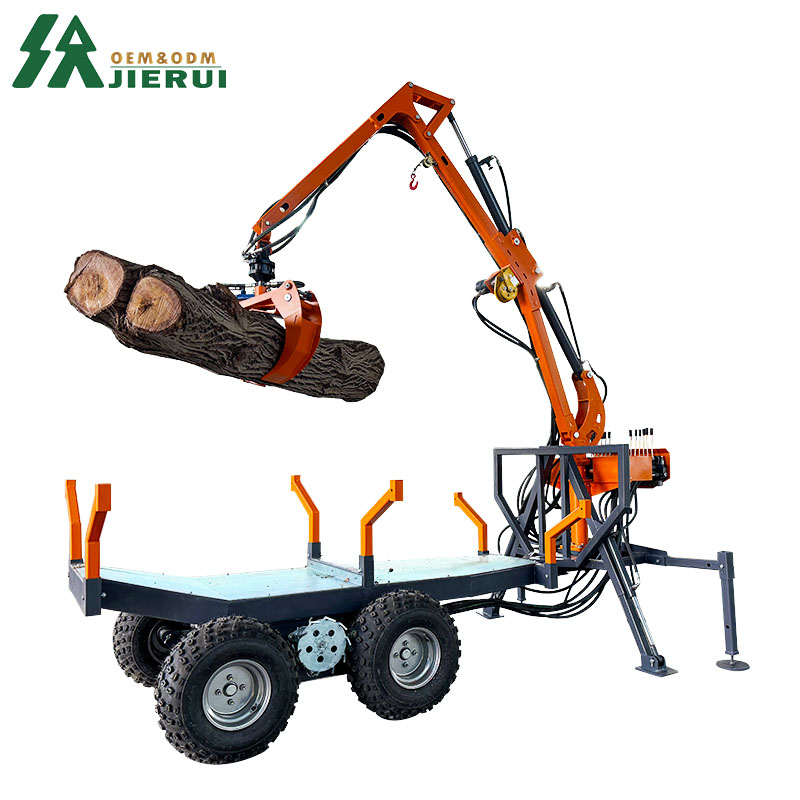

Timber Trailer with Crane
The Timber Trailer with Crane is engineered to provide superior strength and cutting-edgetechnology, making it an ideal solution for timber handling in forestry, logging, and land clearingoperations. Designed to be versatile and highly durable, this crane can be installed on variousvehicles, including trucks, tractors, and flatbed trailers, ensuring maximum flexibility across differentwork environments.
Key Features:
1.Heavy-Duty Crane with Robust Capacity: The crane is designed to deliver exceptional lifting
and loading capacity, optimized for handling large, heavy logs. Its special geometry ensuresgreat strength and efficiency, making it suitable for all timber loading needs.
2.Multi-Lever Valve Block: The crane is equipped with a standard multi-lever valve block,allowing for precise control of the crane’s various functions. This ensures smooth and accuratehandling of timber during loading and unloading.
3.Rotary Cylinder & Tilted Boom: Featuring a simple rotary cylinder and a tilted boom design,this crane achieves maximum strength while maintaining optimal maneuverability. The tiltedboom enhances the crane's reach and stability, enabling it to handle logs in difficult and hard-to-reach areas.
4.Advanced Hinge Design: The crane incorporates a comfortable hinge between the firstsuspension rod and the outer suspension rod. This design provides smooth and efficientmotion, optimizing the crane's performance when lifting and positioning logs.
5.Top-Mounted Cylinders & Hidden Hoses: The crane is equipped with top-mounted cylinders
for the first and outer arms, which reduces the risk of damage from debris or obstacles. Thehidden hoses are protected by a wear-resistant covering, ensuring longer lifespan andminimizing external damage to the hydraulic system.
6.Exposed Hose Wear Protection: Exposed hoses are fitted with wear protection devices, furtherenhancing the crane's durability in tough work conditions. These measures help to preventabrasion and extend the service life of the equipment.
7.Impact Protection for Rotating Rotor: The crane’s fully rotating rotor is equipped withimpact protection, reducing the risk of damage during operation. This ensures smooth, safeoperation, even in challenging environments.
8.Versatile Application: Designed for timber loading and forestry operations, this crane is perfectfor transporting logs on a variety of vehicles. Whether mounted on trucks, tractors, or flatbedtrailers, it delivers superior performance for all timber handling tasks.

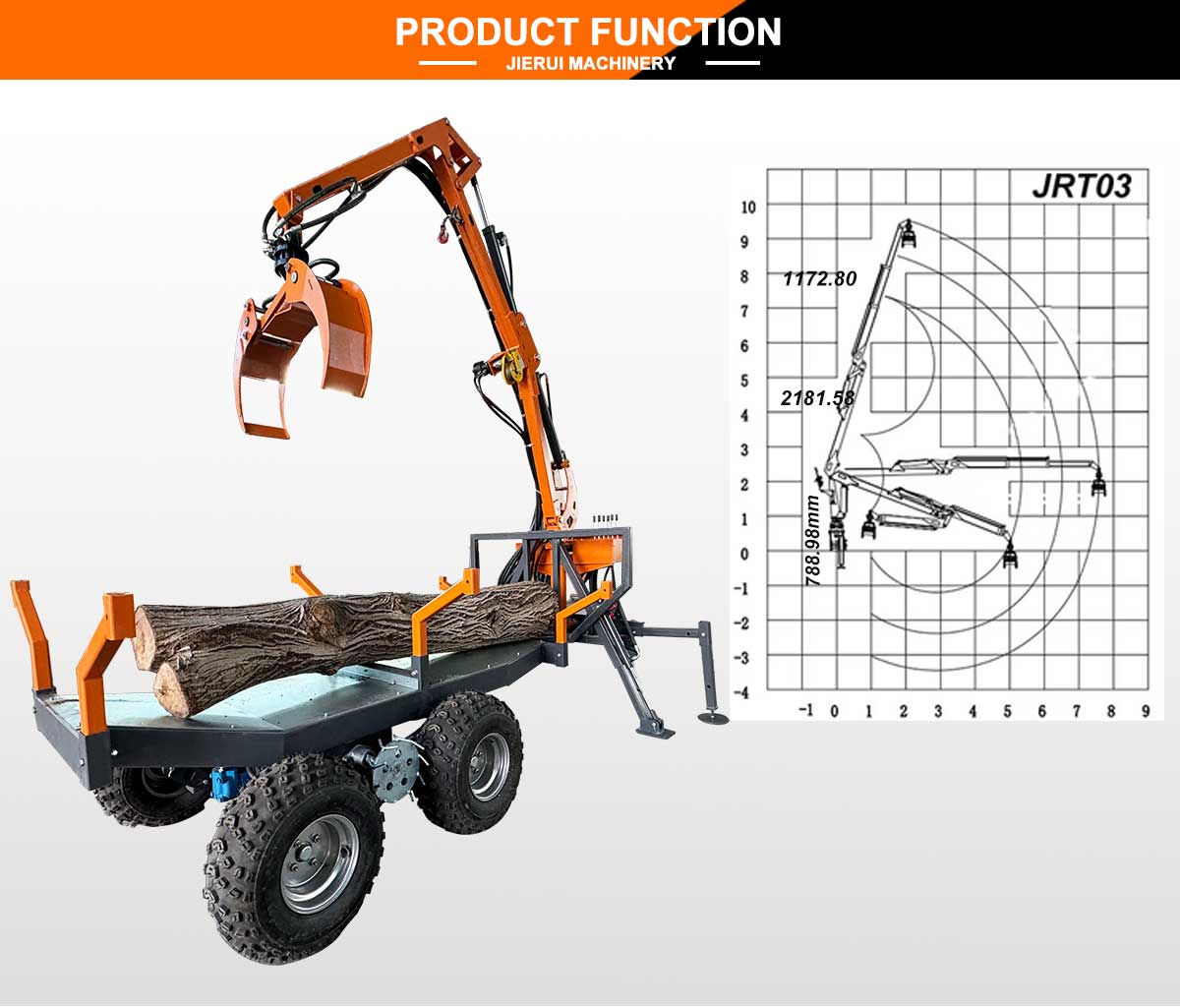

| Model | JRT03 | JRT03A | JRT03B |
| Timber Crane | |||
| Max reach | 3.4m | ||
| Lifting capacity(3.4m) | 200kg | ||
| Turning radius of crane | 360° | ||
| No. of swing cylinder | 2pcs | ||

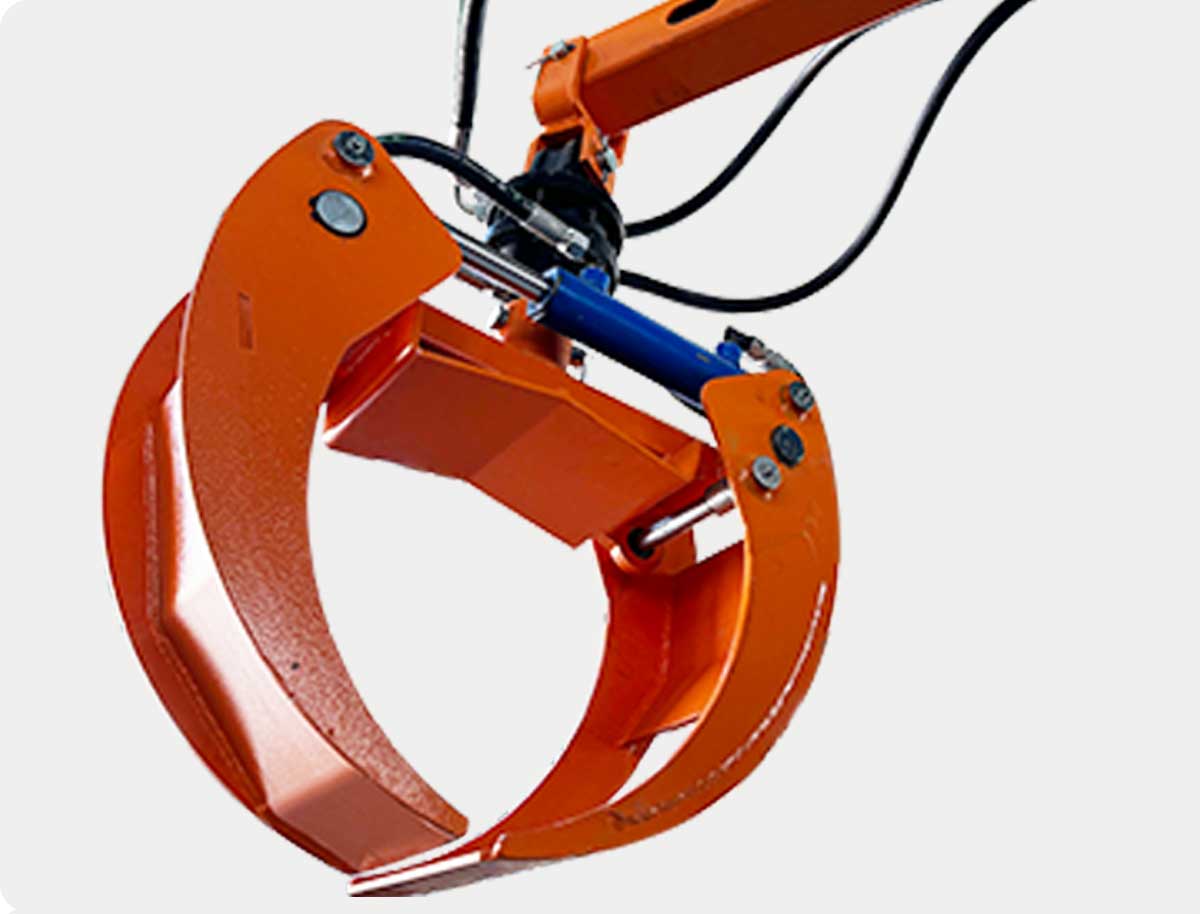

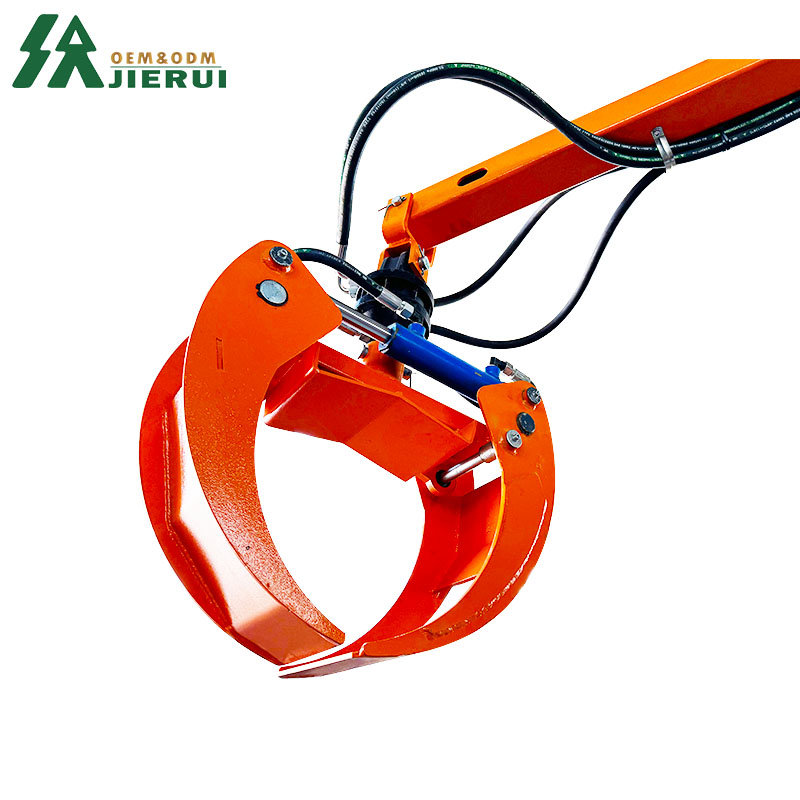

| Max. open & area of wood grapple | 700mm/0.08 m2 (STANDARD) | ||
| Max. load of hydraulic rotator | 1 ton(10KN) | ||
| Hydraulic rotator turning radius | unlimited | ||
| Working pressure | 18-22Mpa | ||
| Control valve | 5/7 sets | 7/9 sets | 5/7 sets & 2/4 sets |
| Power Unit | 6.5HP engine 6L hydraulic tank | 9HP engine 6L hydraulic tank | 9HP engine 6L hydraulic tan |
| Hydraulic flow | 7.5L/min | 14.4L/min | 14.4L/min |
| Weight | 190kg | 190kg | 190kg |
| Timber Trailer | |||
| Max. load | 1500kg | 2000kg | |
| Total length | 3230mm | 3350mm | |
| Width with wheels | 1440mm | 1344mm | |
| Height | 1600mm | 1600mm | |
| Height of front plate | 1100x700mm | 1100x700mm | |
| No. of "S" | 2sets | 3sets | |
| Length of loading area | 2120mm(3520mm) | 2120mm | |
| Loading area volume | 1.6-3m3 | 1.6-3m3 | |
| Min. ground clearance | 200mm | 200mm | |
| Standard wheel | 22x11-10 | 25x10-12 | |
| Remote 4WD drive | — | YES | YES |
| Remote Telescopic trailer | — | — | YES |
| Remote Swing angle | — | — | ±45° |
| Weight | 270kg | 390kg | 565kg |
| 40”HC | 24pcs | 15pcs | |
Details Images

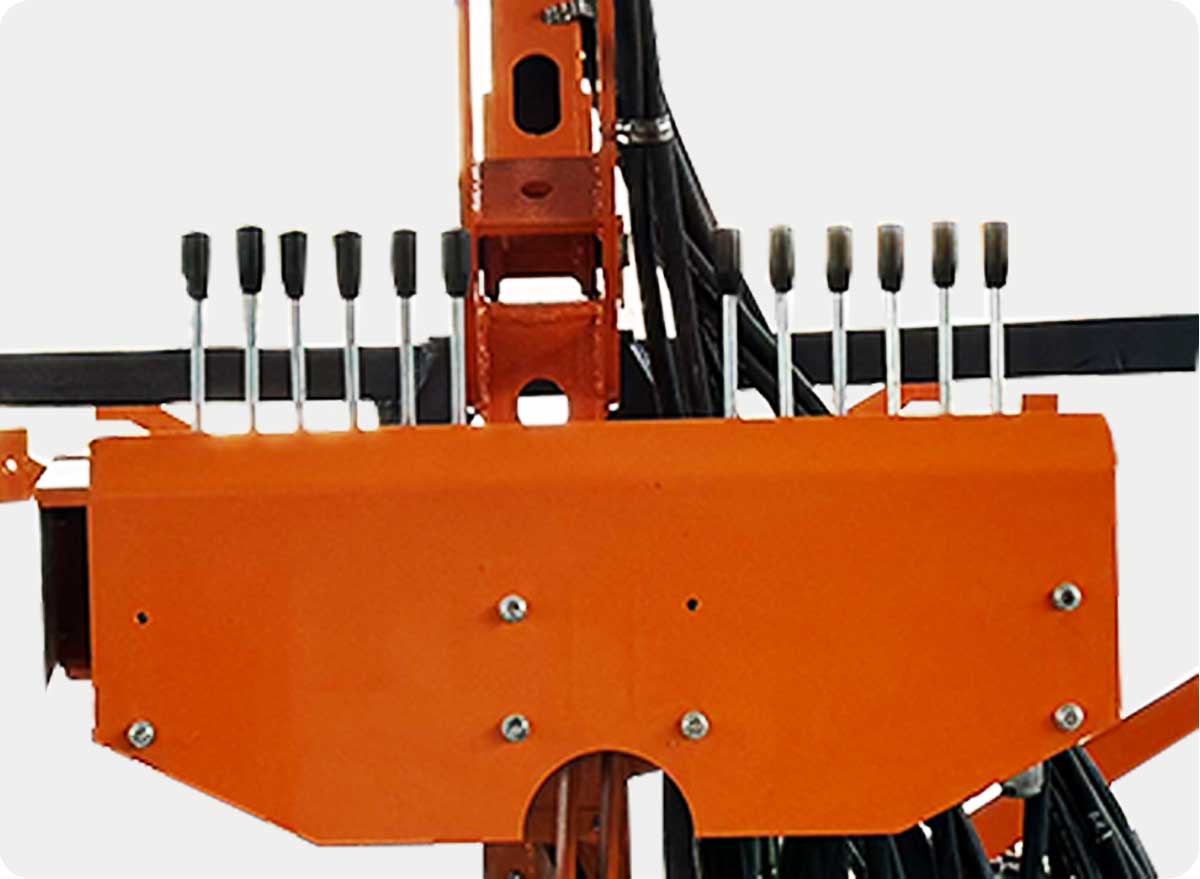

Large buttons and joystick controls for user comfort and efficiency duringlong hours of operation.

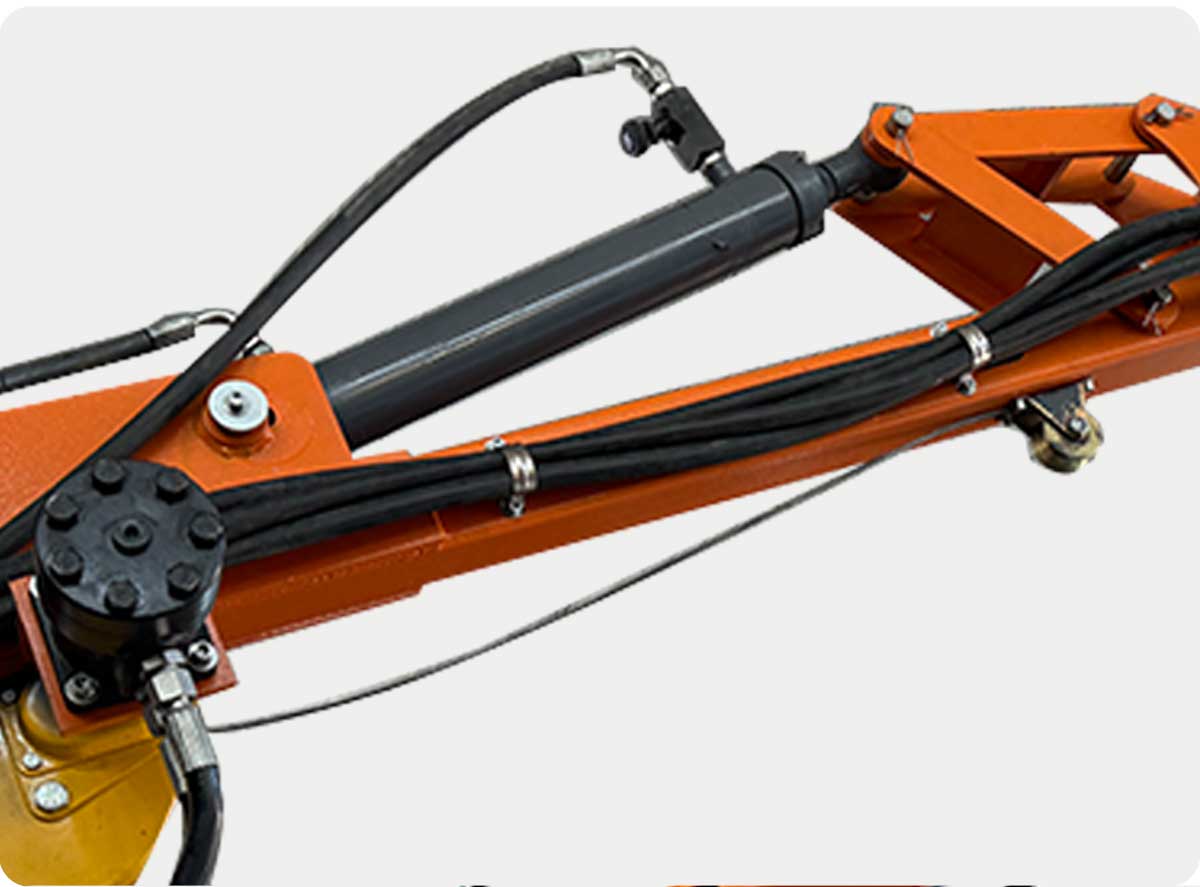

Precision Hydraulic Cylinder
The Precision Hydraulic Cylinder is designed for high-performance applications requiring accurate,reliable force control.
High Strength Crane
The High Strength Crane is built to handle heavy lifting and demanding applications withexceptional durability and reliability.

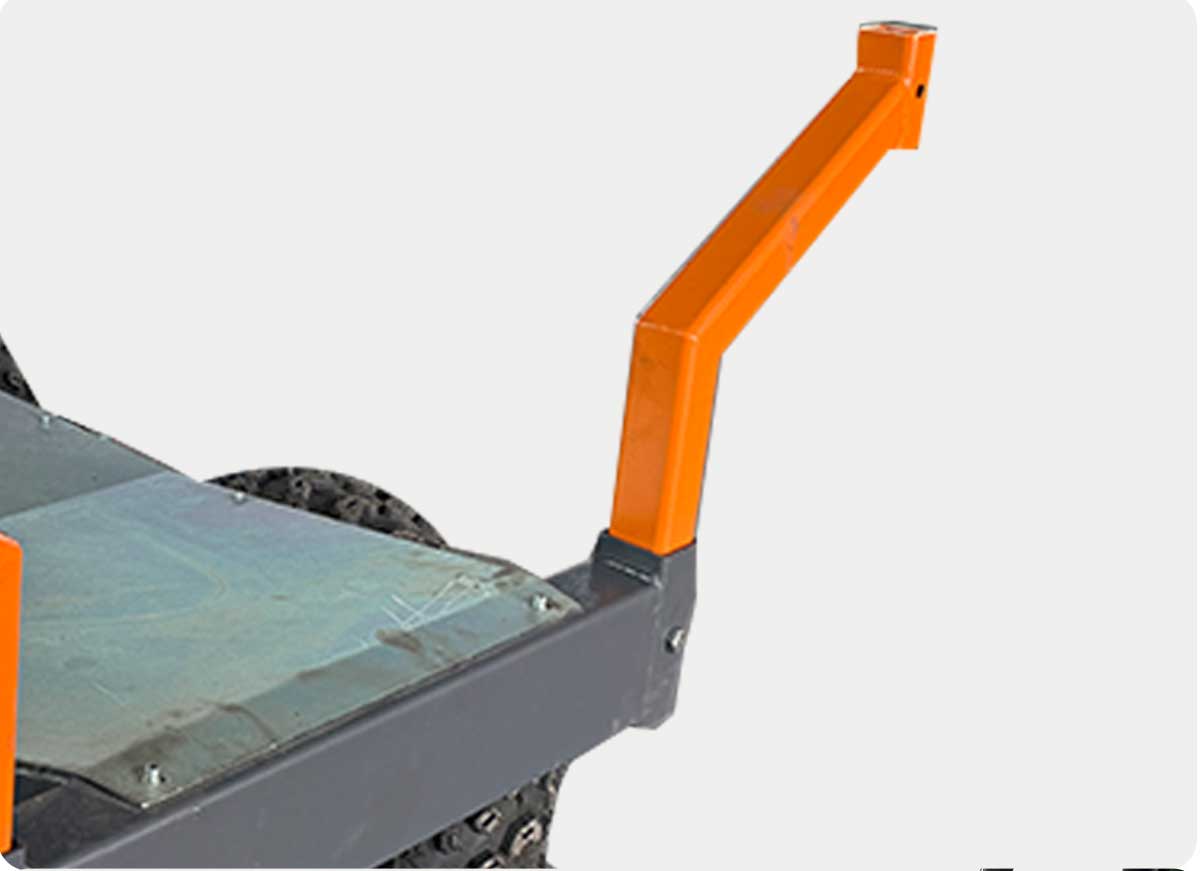

Adjustable Log Support
The Adjustable Log Support provides flexibility and stability when handling logs of varying sizes,ensuring secure positioning during processing.

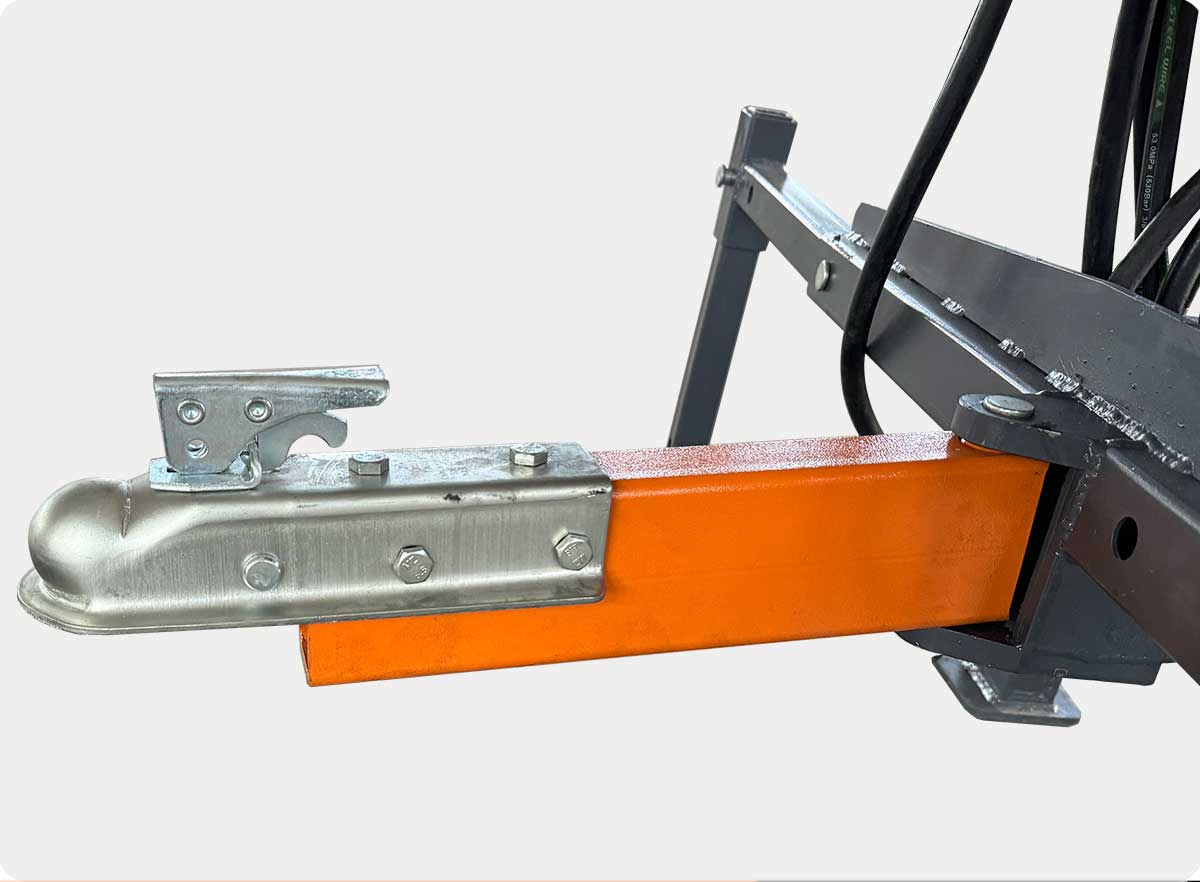

Sturdy Trailer Towing Device
The Sturdy Trailer Towing Device is designed for safe and reliable towing of heavy loads, ensuringoptimal performance in demanding environments.

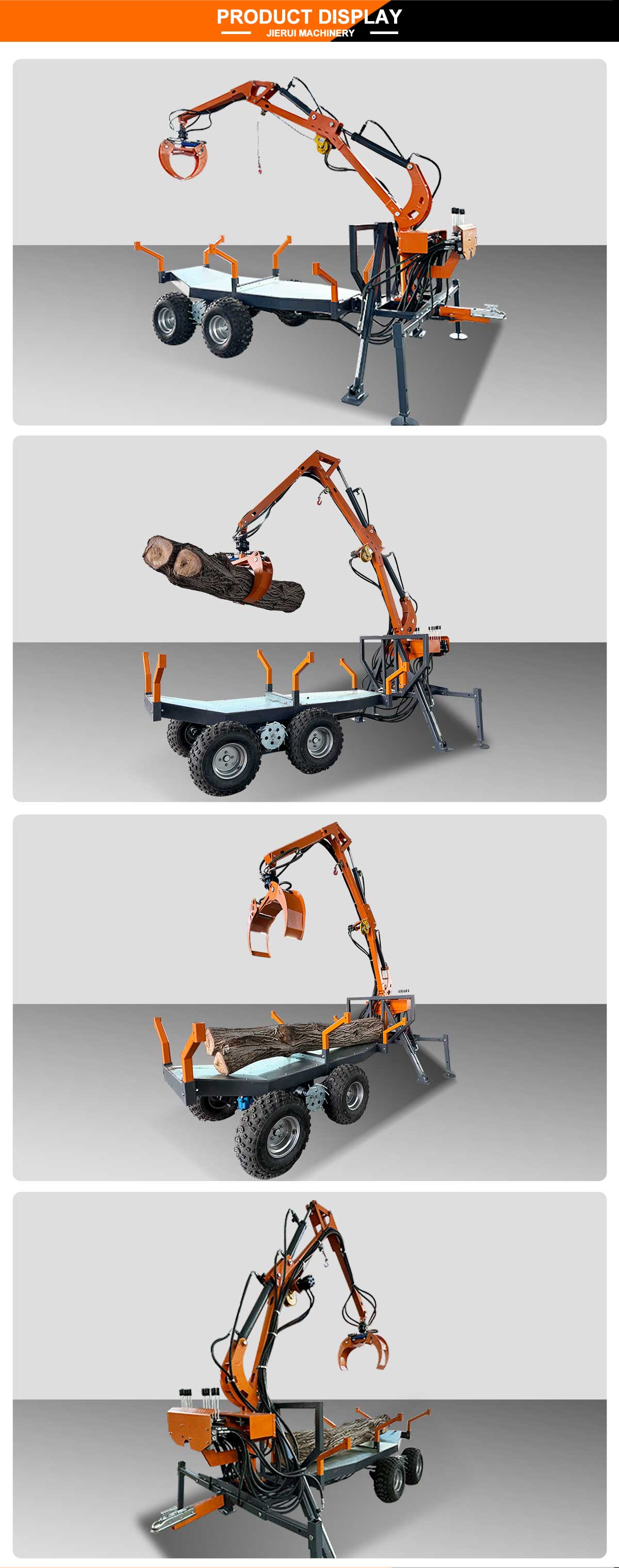

Product display
