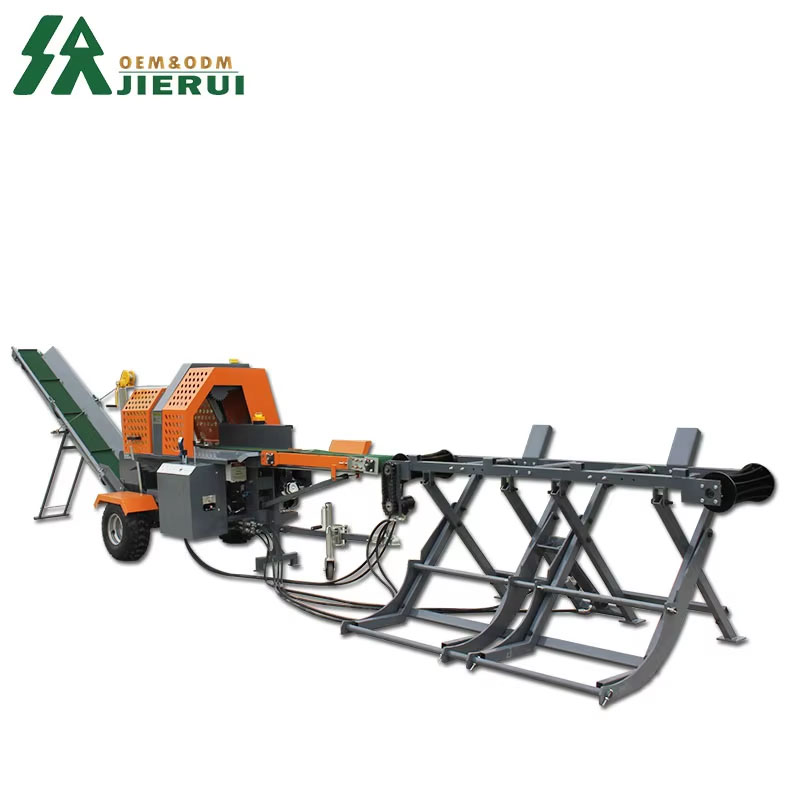

20T Automatic Firewood Processor Holzspalter Automat
1.Automatic Log Feeding: Hydraulic rollers deliver logs smoothly to the cutting area.
2.Efficient Cutting System: Equipped with a reliable chain saw bar for accurate, consistent cuts.
3.Labor reduction: One operator can manage the complete workflow.
4.Durable construction: Heavy-duty steel and reliable hydraulics ensure long service life.
Make an inquiry will get the best shipping quotation

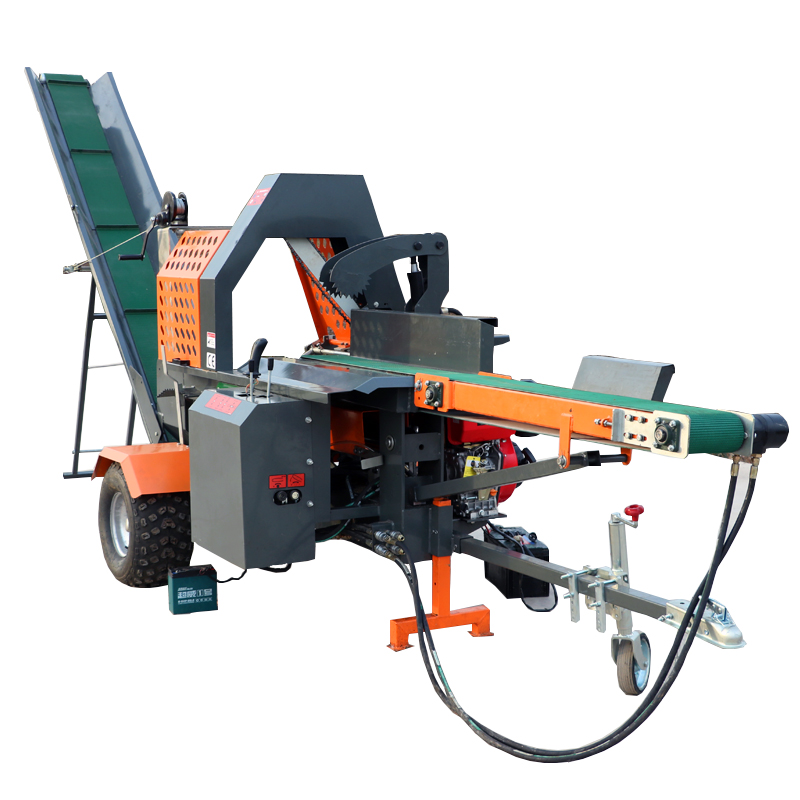

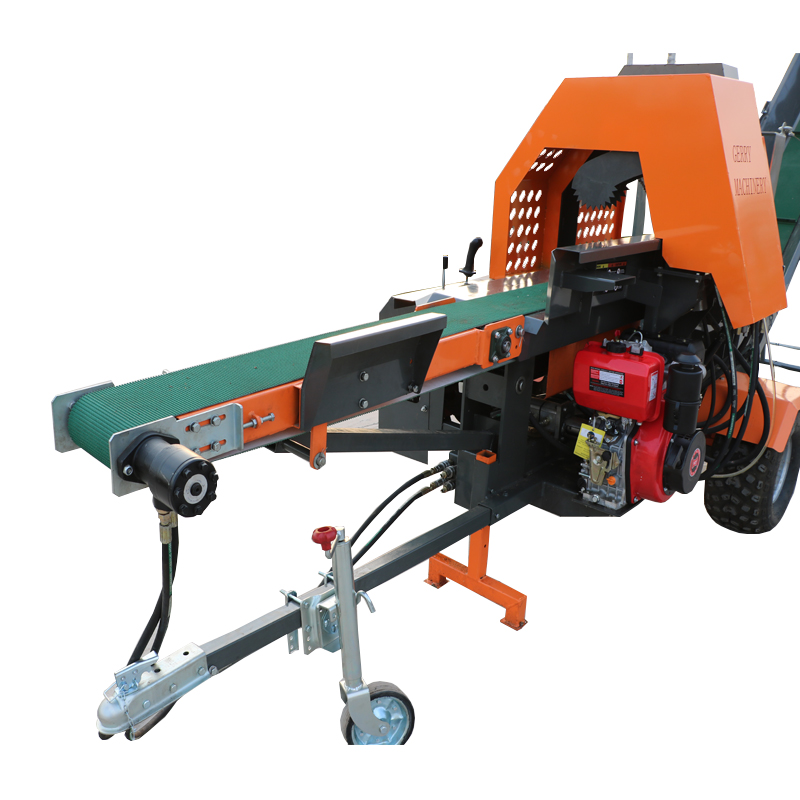

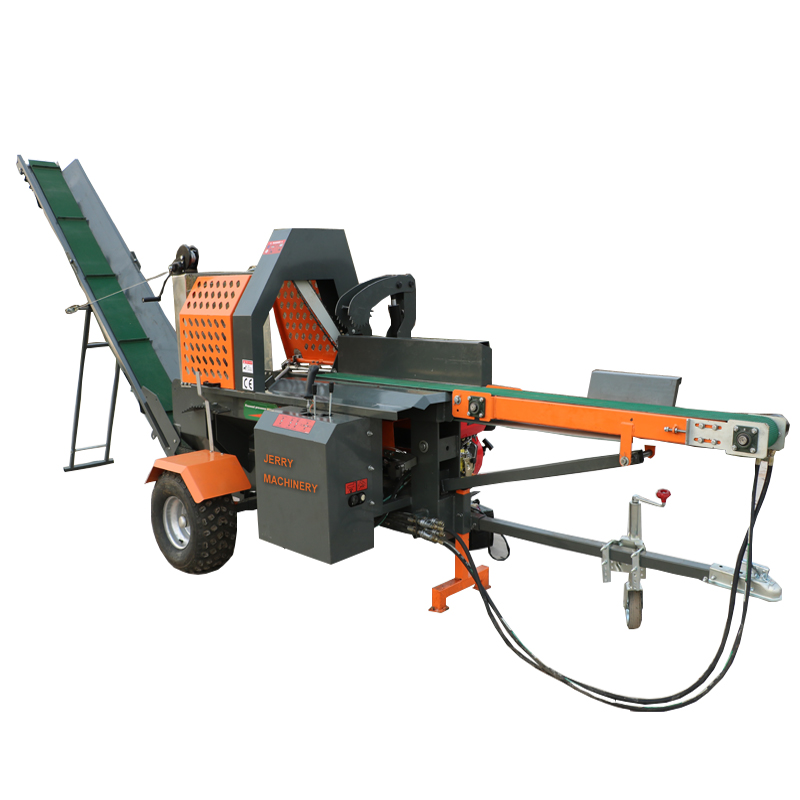

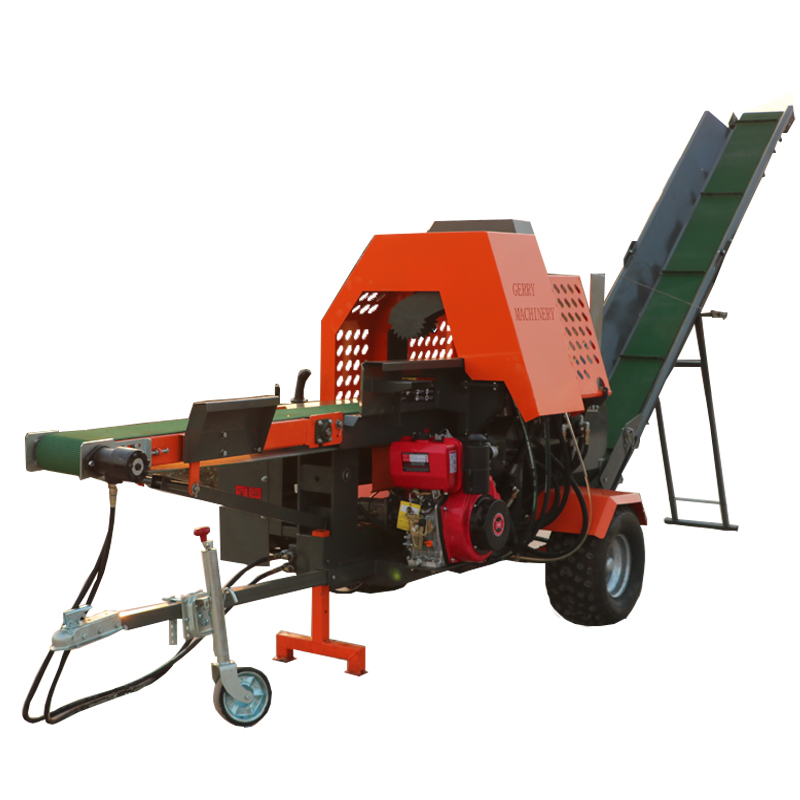

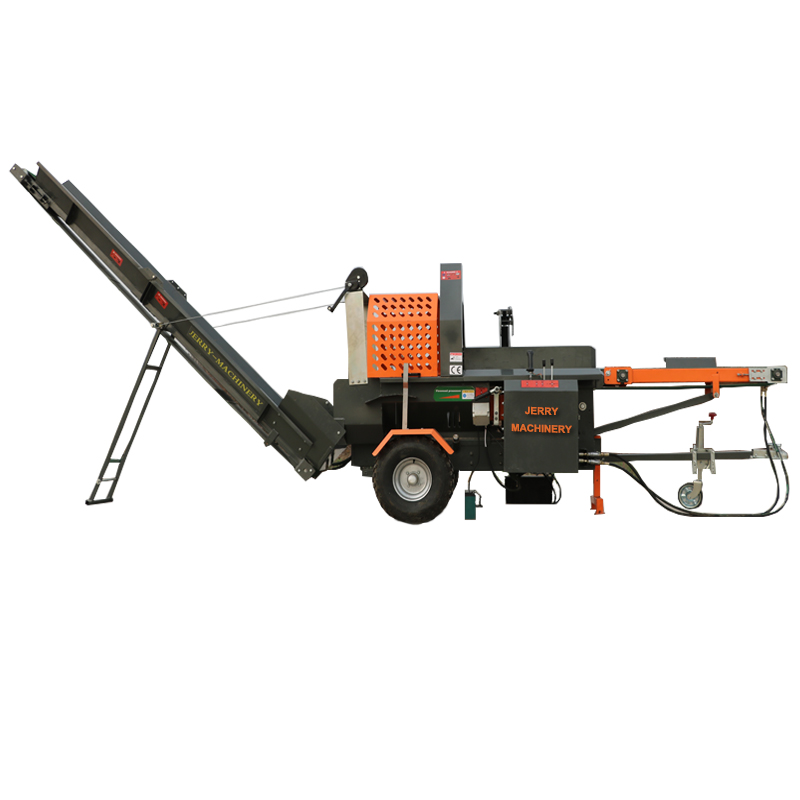

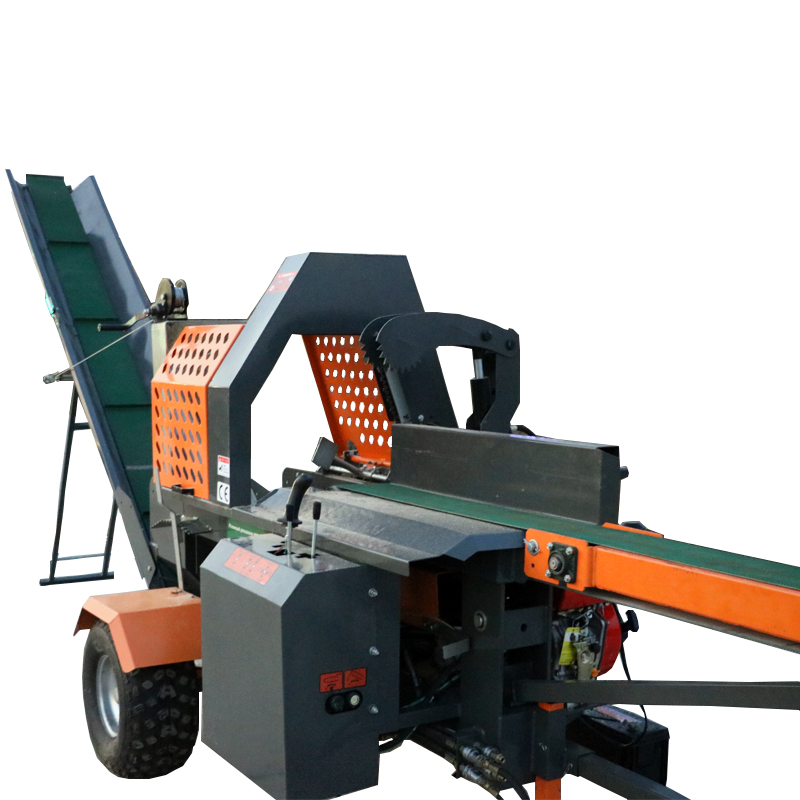

20T Automatic Firewood Processor is a compact, efficient, and highly reliable machinedesigned for small to medium-scale firewood production. Combining automated cutting, logfeeding, and powerful hydraulic splitting, it streamlines the entire workflow and significantlyreduces manual labor.
After many years in the forestry industry, developing a high-performance processor has alwaysbeen part of our long-term vision. The 20T is our 20-ton splitting force model, engineered forreliability, safety, and smooth operation. Built with a modern, efficient hydraulic system, theDominator series delivers powerful performance while remaining easy to control. Every unit fullycomplies with the latest CE safety standards.
The 20T comes equipped with a hydraulic log feeder, a 3-meter conveyor, a 22" STIHL chainsawblade, and a Briggs & Stratton engine with electric start-all included as standard.
Operational simplicity, ease of use, and safety were top priorities during development. The saw willonly engage when the safety handle is activated and all protective guards are securely in place. Ifany guard is lifted, the hydraulic system automatically stops both the saw and the splitter to ensuremaximum operator protection. Once the log is cut and drops into the splitting chamber, the ramautomatically extends, pushing the wood through the fully height-adjustable 4-way splittingwedge.
For mobility, the processor is fitted with a 50mm tow hitch, allowing it to be easily moved aroundthe yard or taken directly to the work site.
| Performance | Max Splitting | 20T |
| Max splitting length | Standard 610mm (24 inch) | |
| Max cutting & splitting diameter | 480mm (19 inch) | |
| Cycle time | 8-12S | |
| Work efficiency | 4-7CBM/H | |
| Wood fixing | Hydraulic | |
| Saw cutting | Joystick with solenoid valve | |
| Saw lubrication | Automatic by hydraulic system | |
| Splitting | Automatic | |
| Splitting wedge | 4 way (height adjustable) | |
| Machine assembly | Engine | 18HP LIFAN gasoline (electric start) |
| Pump | 20GMP (2-stage) | |
| Splitting cylinder | 3.15”x24”x2” | |
| Hydraulic oil tank | 100L | |
| Feeding conveyor | 2400*200mm | |
| Rear loading conveyor | 3200*250mm | |
| Tyre | 22x11-10 | |
| Traction | 50mm ball couple | |
| Packing | Size | 2300x1250x1750mm |
| Weight | 980KG | |
| Loading Q\ty | 7/16 pcs (20GP/40HQ) |
Product Details

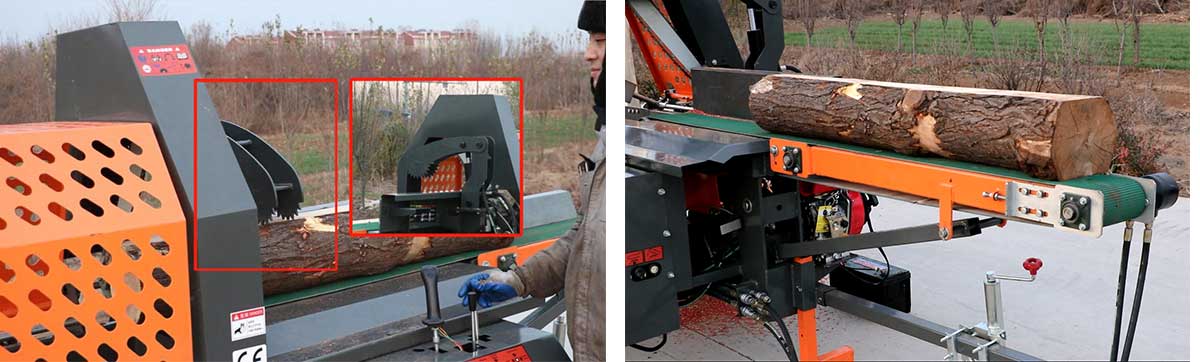

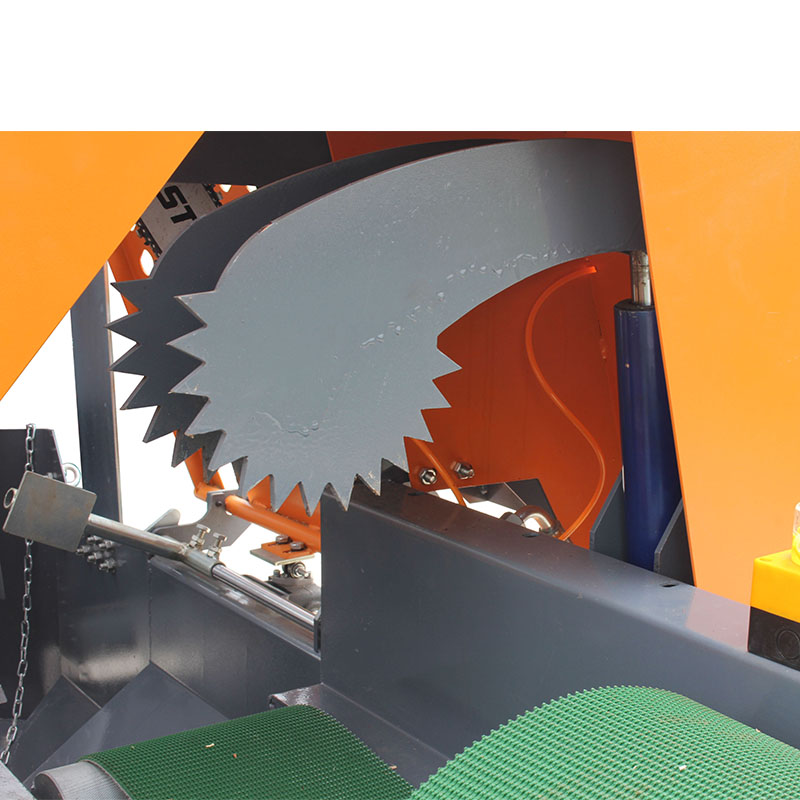

1. Hydraulic Automatic Log Clamping
Provides secure and stable holding of logs during cutting for improved accuracy and safety.
2. Automatic Feed Conveyor System
Ensures smooth, continuous log feeding into the cutting area, reducing manual handling.
3. Adjustable Firewood Length
Allows the operator to easily set the desired firewood length; supports both 4-way and 6-waysplitting wedges.
4. Fully Automatic Control System
Smart control interface manages cutting, feeding, and splitting for efficient one-personoperation.

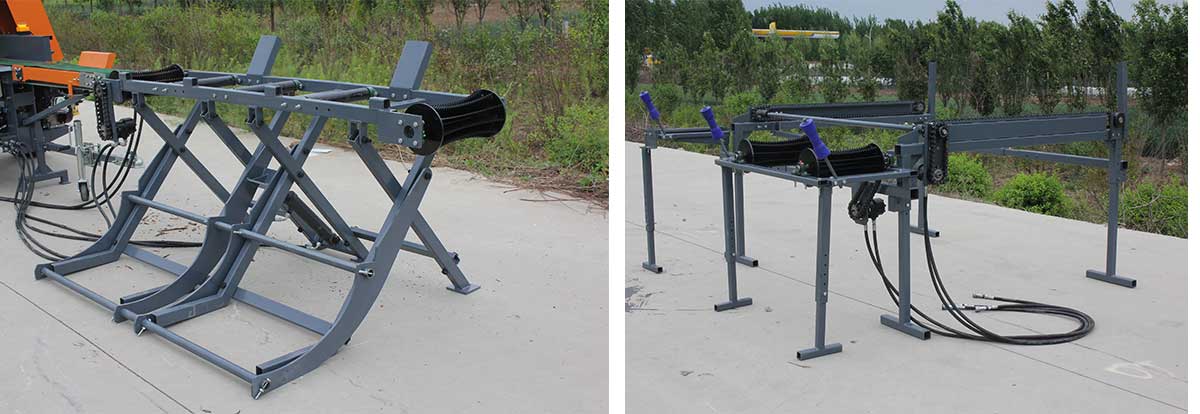

5. Log lifter-JR100 6.Log table-JR200

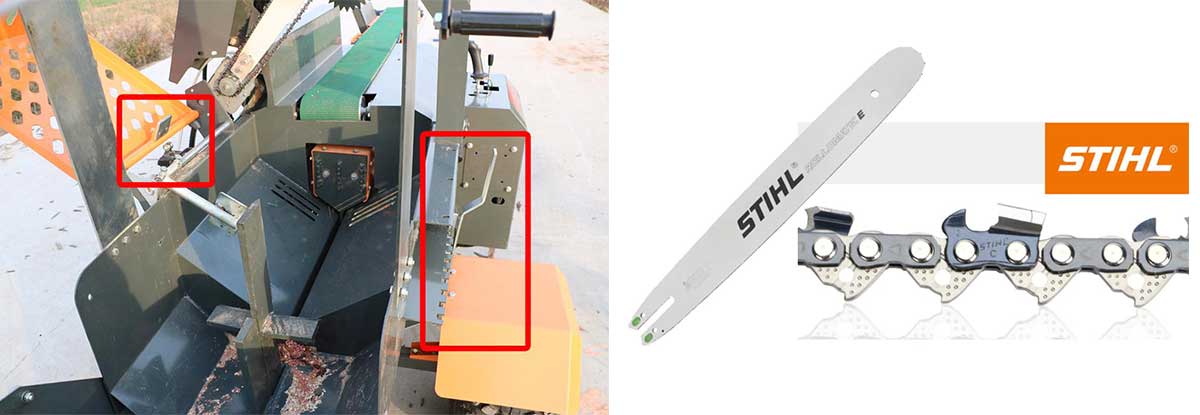

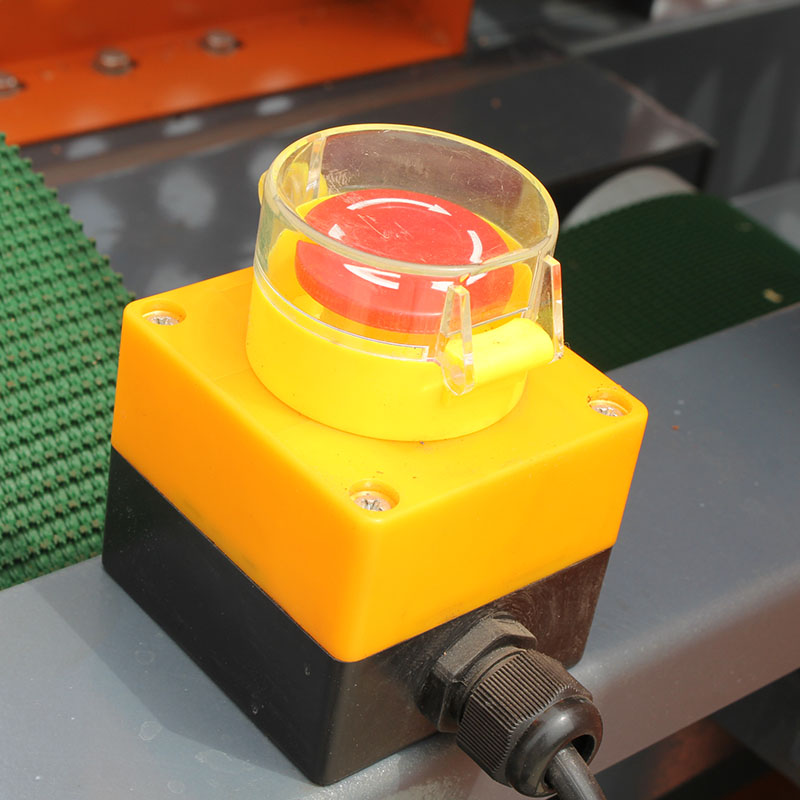

7. Automatic Safety Protection Device
The splitting wedge height can be adjusted up or down, and the system stops automaticallywhen safety guards are lifted.

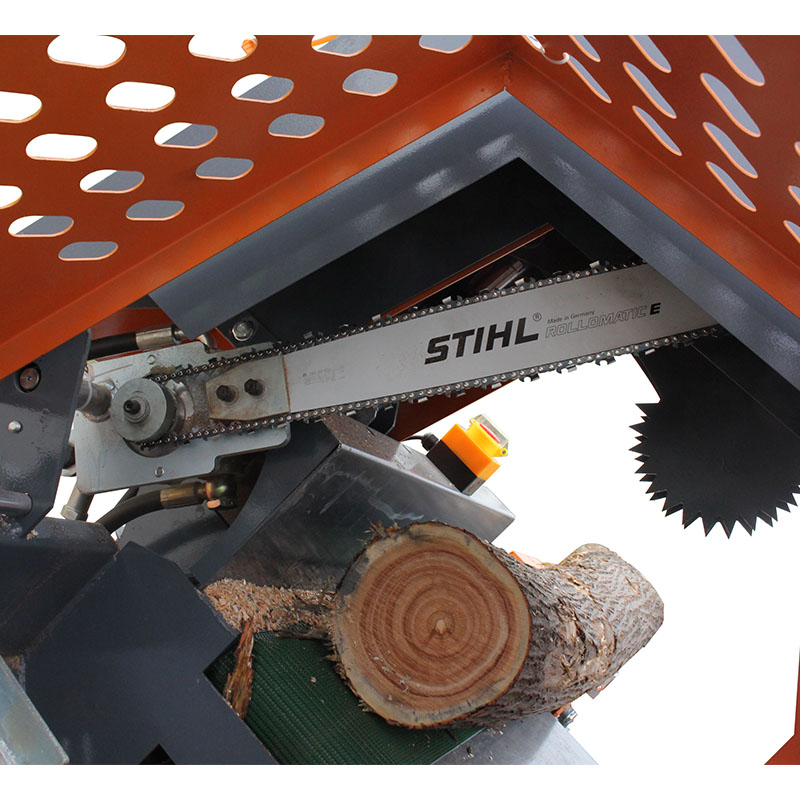

8. STIHL Chain Saw Guide and Chain (Imported from Germany)High-quality cutting components ensure fast, precise, and long-lasting performance.
