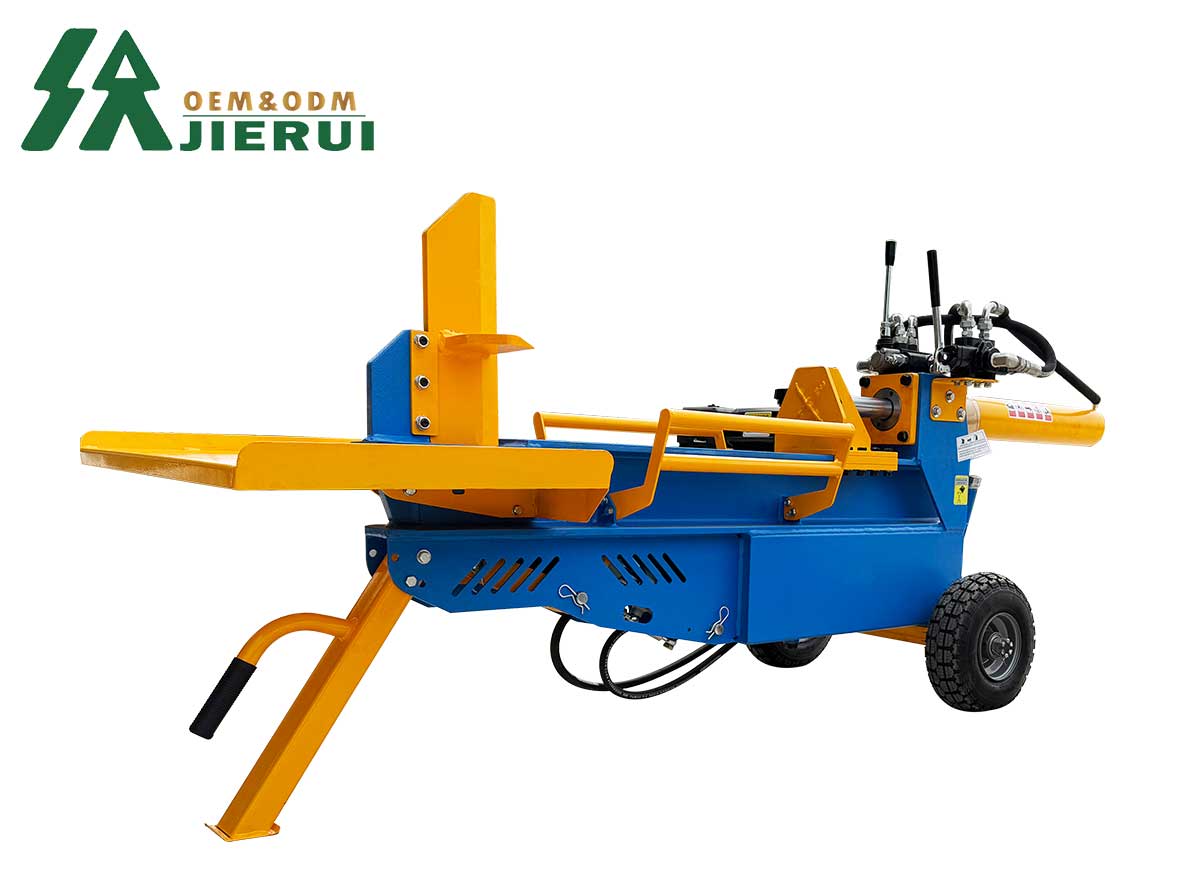

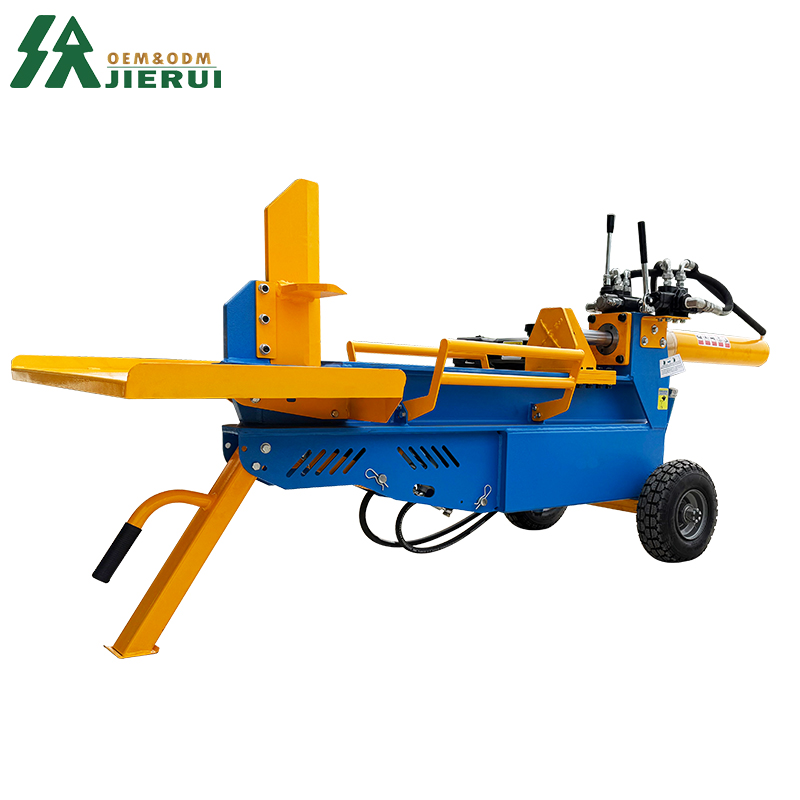

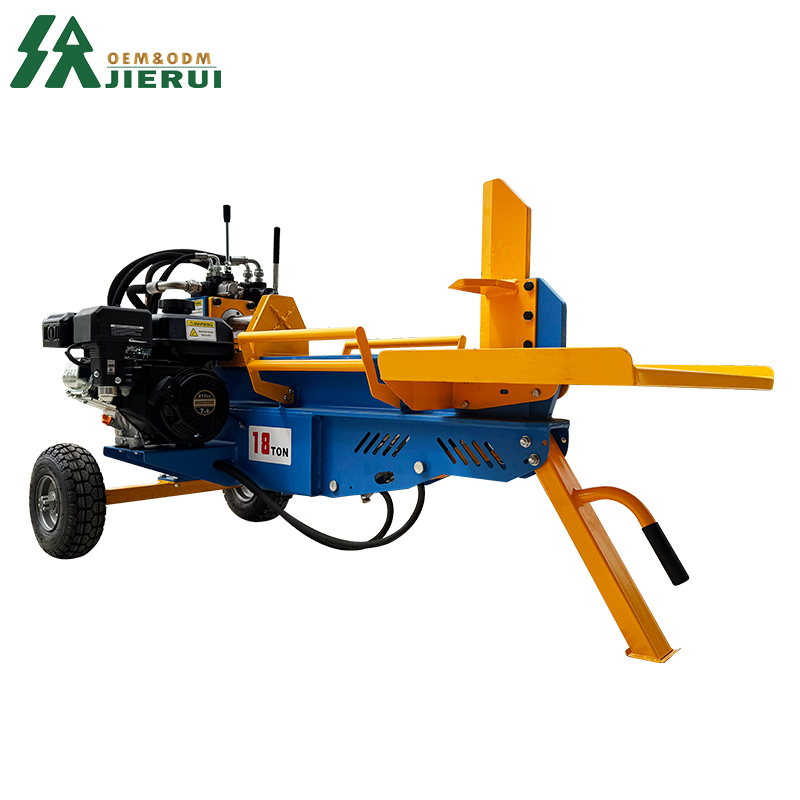

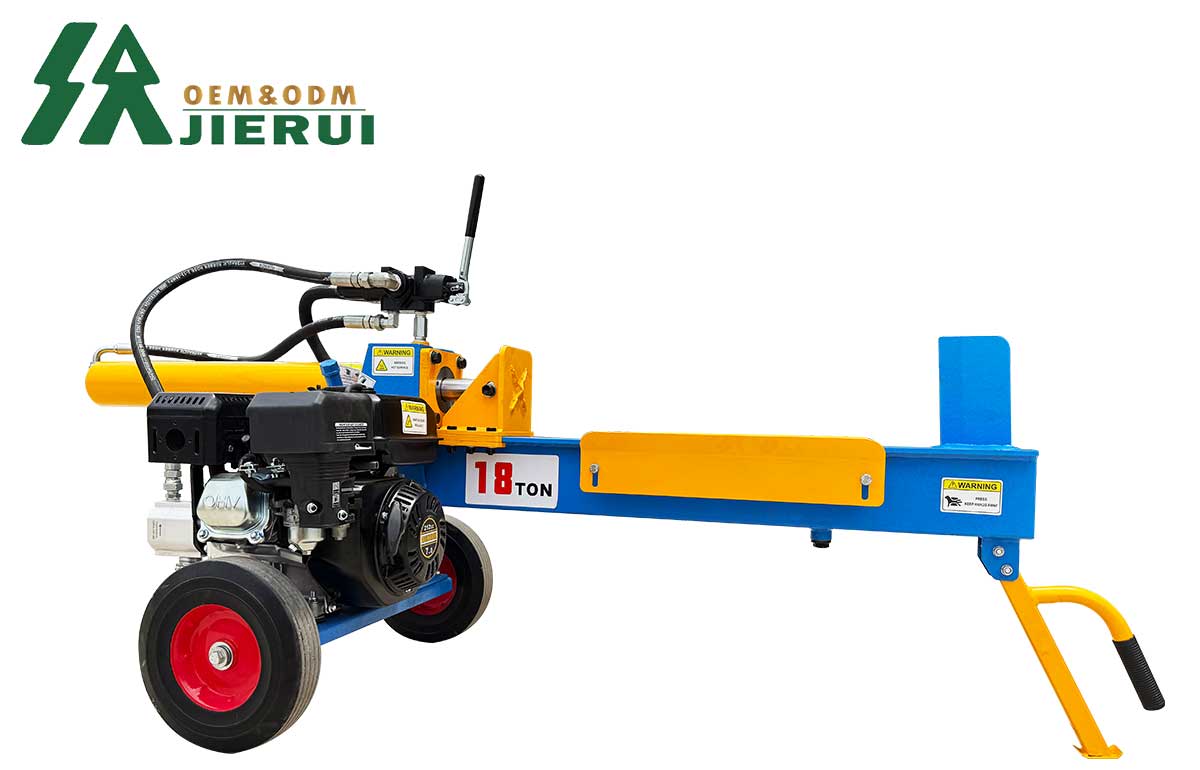

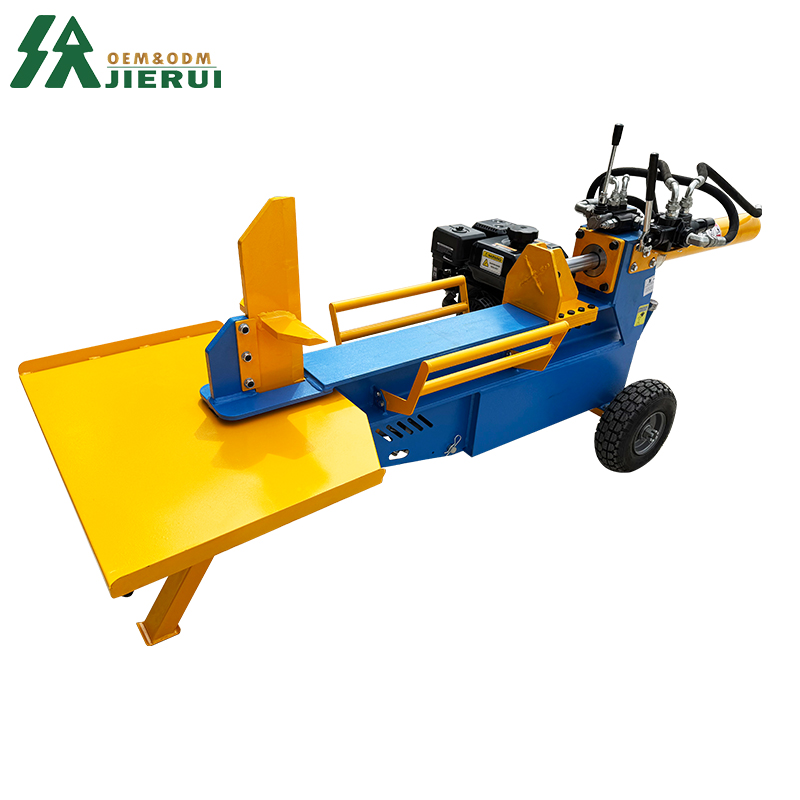

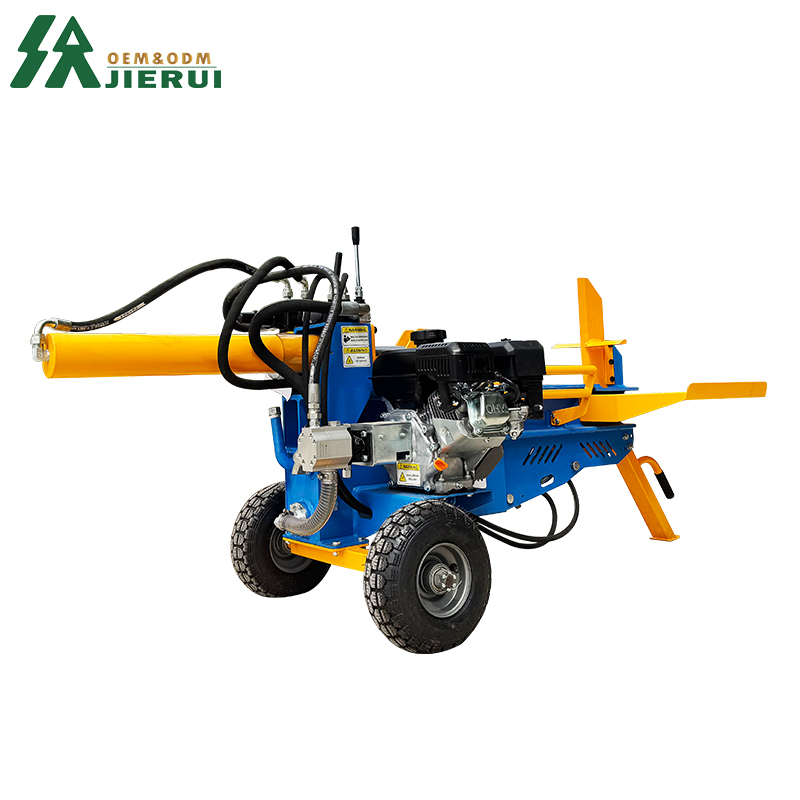

18T Affordable Firewood Splitter With Ce Approved

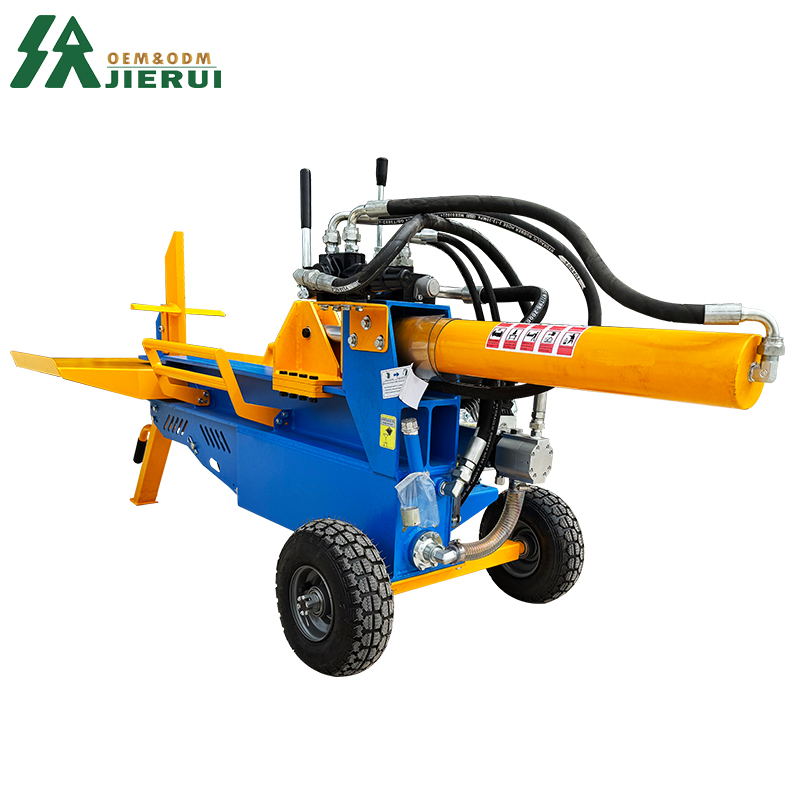

High-Strength Solid Hydraulic Rod – This speaks to the durability and capability of the machine. The hydraulic system is essential for providing the force needed to split tough logs, and the solid rod ensures it can handle significant pressure without bending or breaking.
Make an inquiry will get the best shipping quotation
The 18T wood splitter is capable of splitting harder, denser woods, and the European standard motor should provide reliable performance. High strength solid hydraulic rods will help to work longer under heavy loads.
The 18-ton wood splitter is built for efficiency, durability, and safe operation. Perfect for both home and small-scale commercial use, it combines a high-quality motor with a durable tool head, providing reliable power and long-lasting performance.
Key Features:
1.Durable Tool Head -Reinforced,wear-resistant, and built to last.

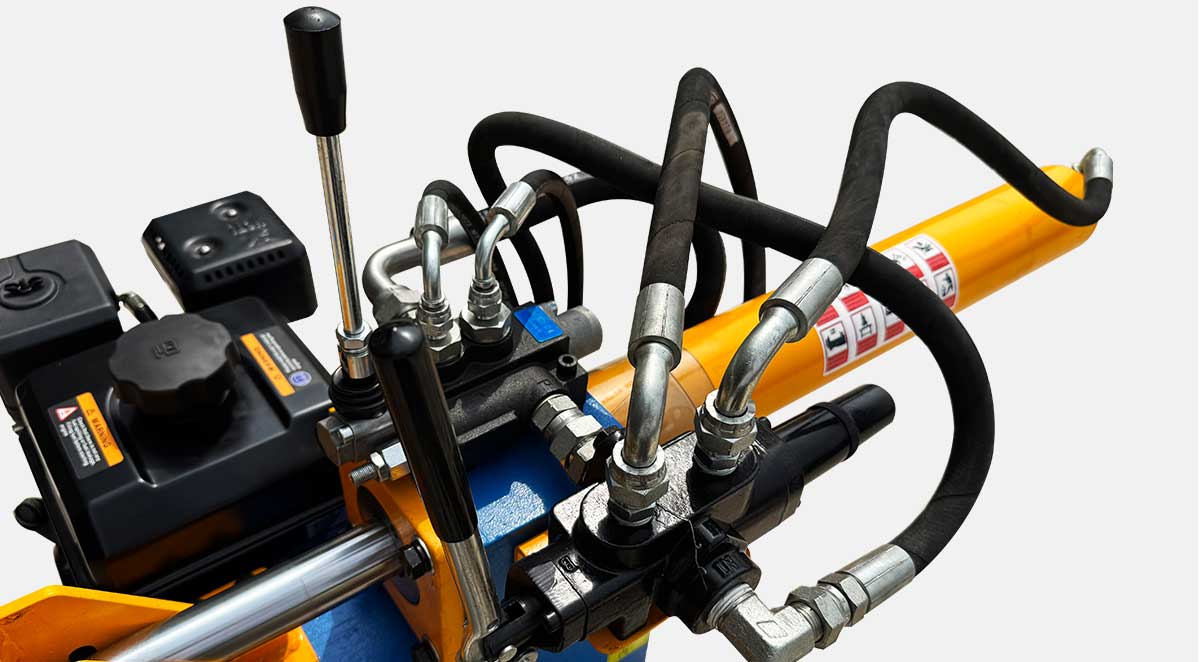

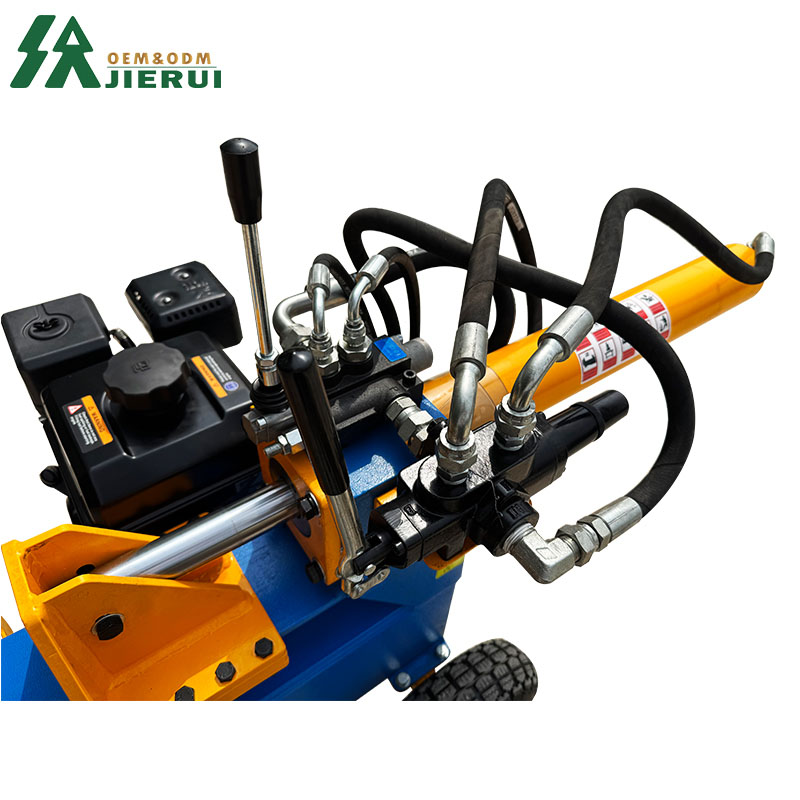

2.Heavy-Duty Hydraulic System- Smooth and consistent splitting performance.
Reinforced Steel Frame - Ensures strength and longevity.
3.Mobility - Equipped with sturdy wheels and a towing handle.
4.Safety Features -Two-hand operation and emergency stop for operator protection.
| 18T-1 | |||
| Parameter type | Parameter | Parameter type | Parameter |
| Production dimension (L/W/H *inch) | 73.6/25.2/32.9 | Min. oil level of hydraulic oil | 1.76GAL |
| Net weight (LBS) | 242.5 | Max. oil level of hydraulic oil | 2.4GAL |
| Packing size (inch) | 49.4/22.8/22.8 | Inner diameter of cylinder (inch) | 3.15 |
| Total weight of packing (LBS) | 286 | Splitting stroke Length (inch) | 26 |
| Horizontal/Vertical | Horizontal | Working pressure | 20MP-32MP can be adjusted |
| Splitting method (optional) | 2 ways/4 ways | Max. tonnage | 13T |
| Cycle | 9S | Customer warranty | 1 year |
| Oil pump model/flow L/min | CBNA-13/1.8D /46.8 | Engine brand | Briggs &Stratton |
| Control valve | 26.4GAL three-position automatic return | Engine type | Air-cool and four-stroke gasoline engine, OHV |
| Max. tonnage | 18T | Engine displacement | 6.5P 208CC |
| Hydraulic oil No. | 46# | Axial direction of engine | Horizontal axis |
| Tires | 3.5-6 | Start engine | Electric/recoil |
| 18T-B | |||
| Parameter type | Parameter | Parameter type | Parameter |
| Production dimension (L/W/H *inch) | 86.6/27.1/35 | Min. oil level of hydraulic oil | 3.7GAL |
| Net weight (KG) | 150 | Max. oil level of hydraulic oil | 5.28GAL |
| Packing size (inch) | 51.5/23/25 | Inner diameter of cylinder (inch) | 3.15 |
| Total weight of packing (KG) | 174 | Splitting stroke Length (inch) | 26.7 |
| Horizontal/Vertical | Horizontal | Wooden bracket | there are |
| Splitting method | Hydraulically 2 ways/4 ways | Working pressure | 20MP-32MP can be adjusted |
| Cycle | 8S | ODM | Acceptable |
| Oil pump model/flow L/min | CBNA-13/1.8D | Customer warranty | 1 year |
| Control valve（1） | 26.4GAL three-position automatic return | Engine brand | RATO |
| Control valve（2） | 10.5GAL three-position automatic return | Engine type | Air-cool and four-stroke gasoline engine, OHV |
| Max. tonnage | 18T | Engine displacement | 7HP 209CC |
| Hydraulic oil No. | 46# | Axial direction of engine | Horizontal axis |
| Tires | 3.50-5 | Start engine | Electric/recoil |
product details

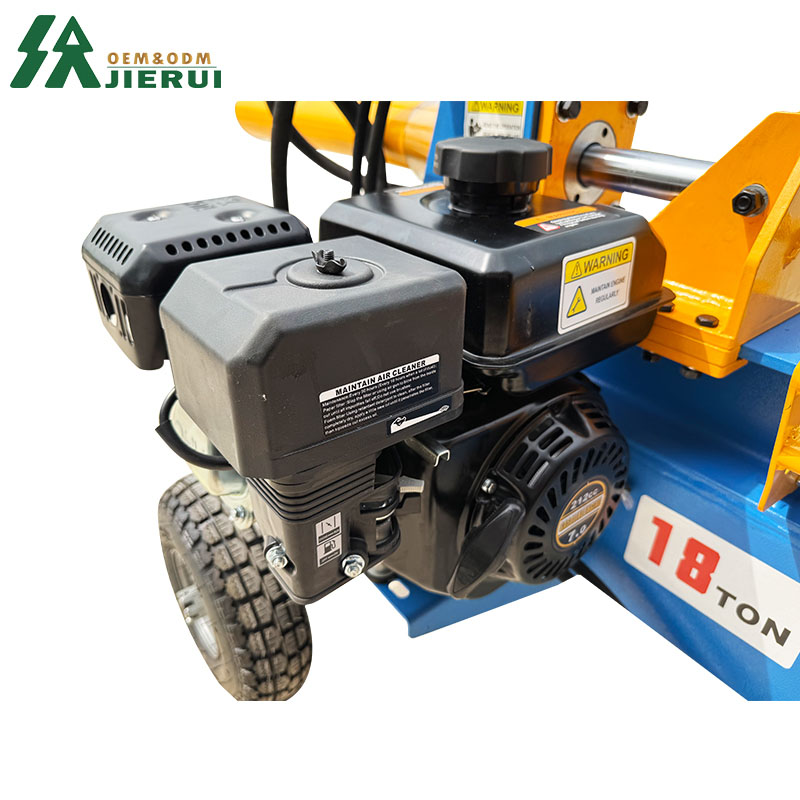

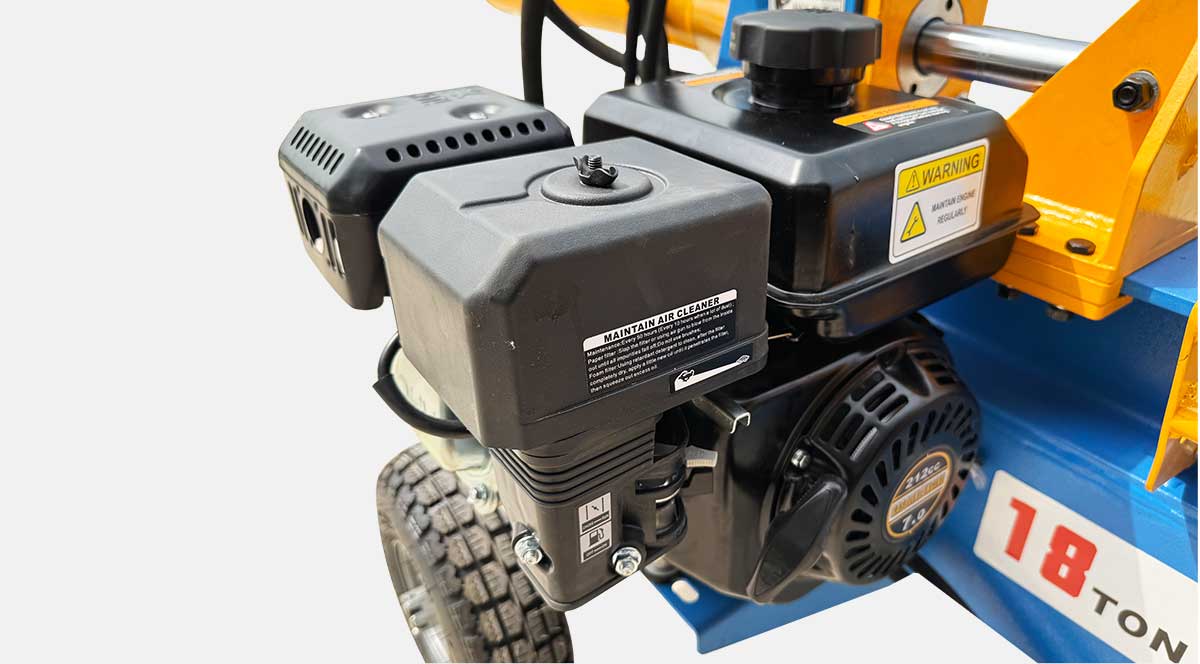

High-Quality Motor - Provides stable, long-lasting power with minimal maintenance.

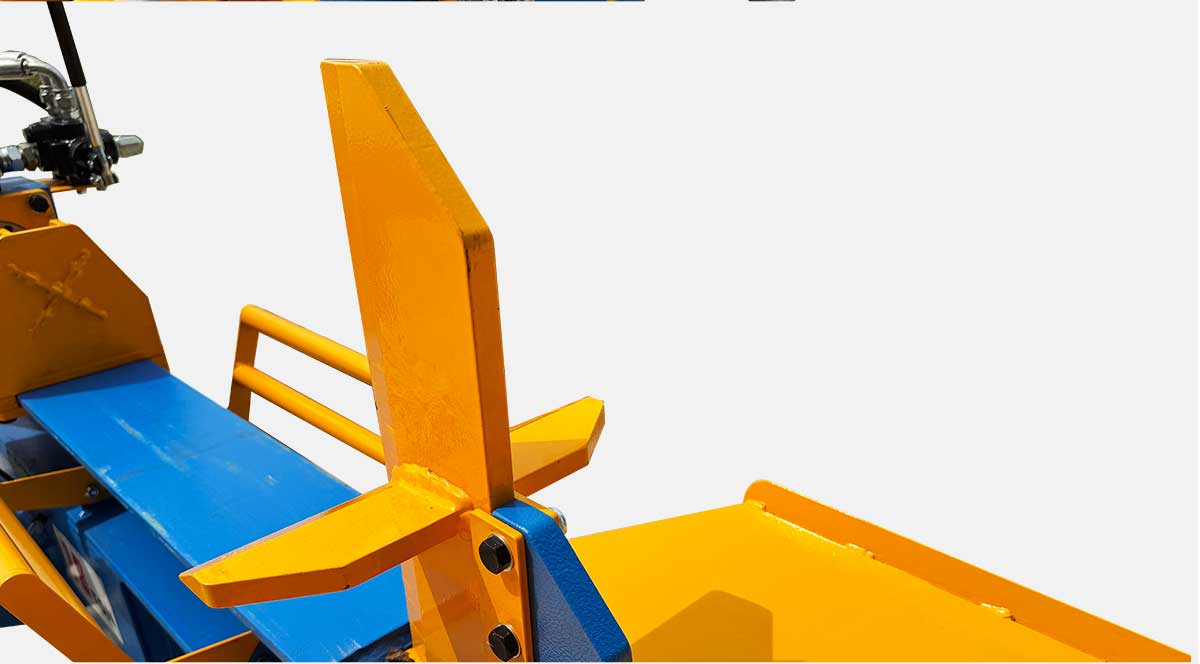

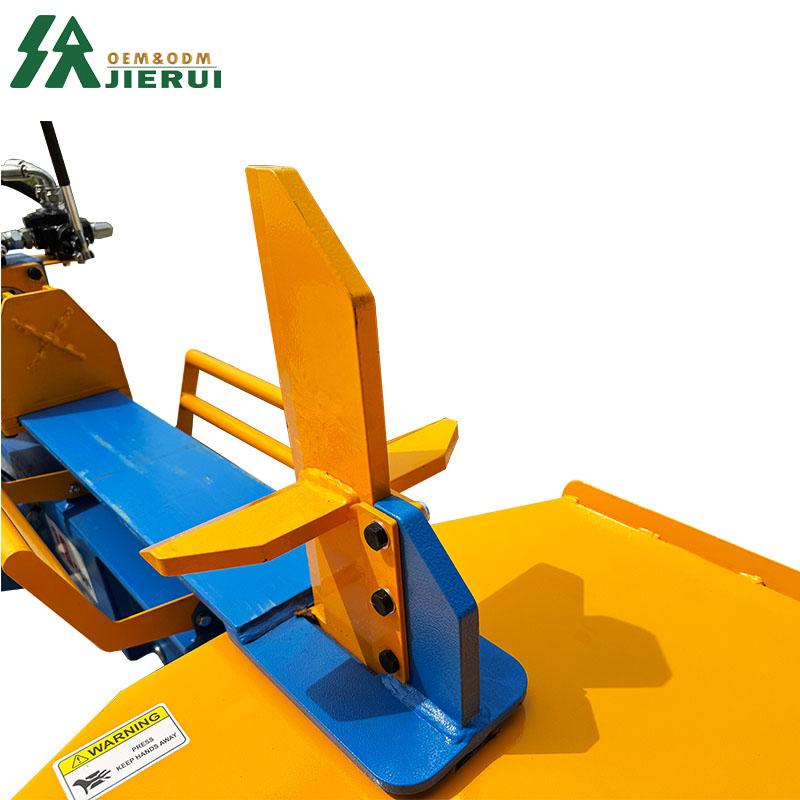

Durable Tool Head - Reinforced, wear-resistant, and built for continuous heavy-duty use.
Hands-With-Safety-Switch Operation- Requires two-hand control for maximum operator safety.

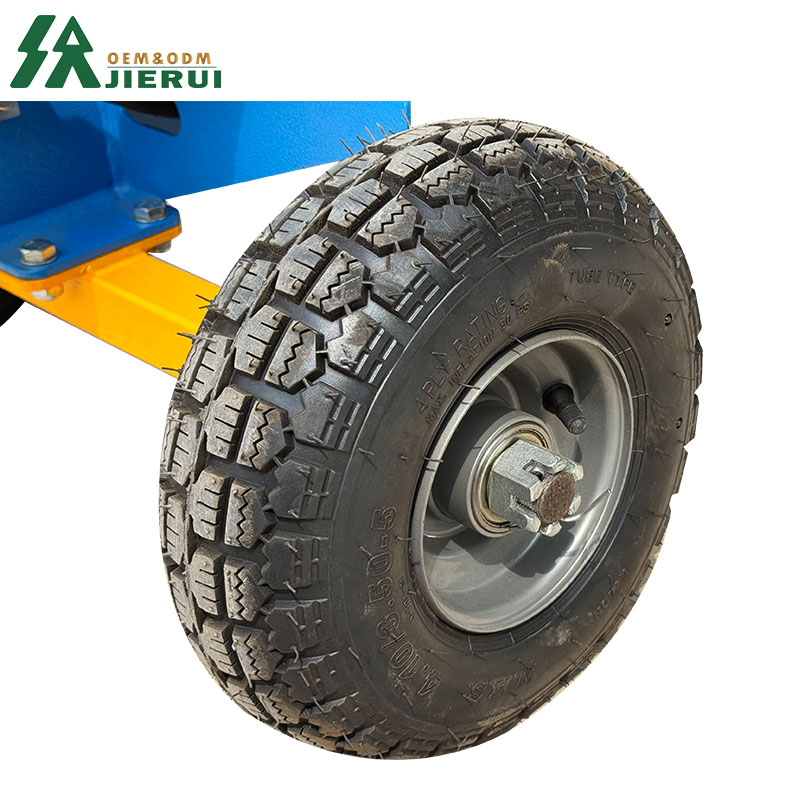

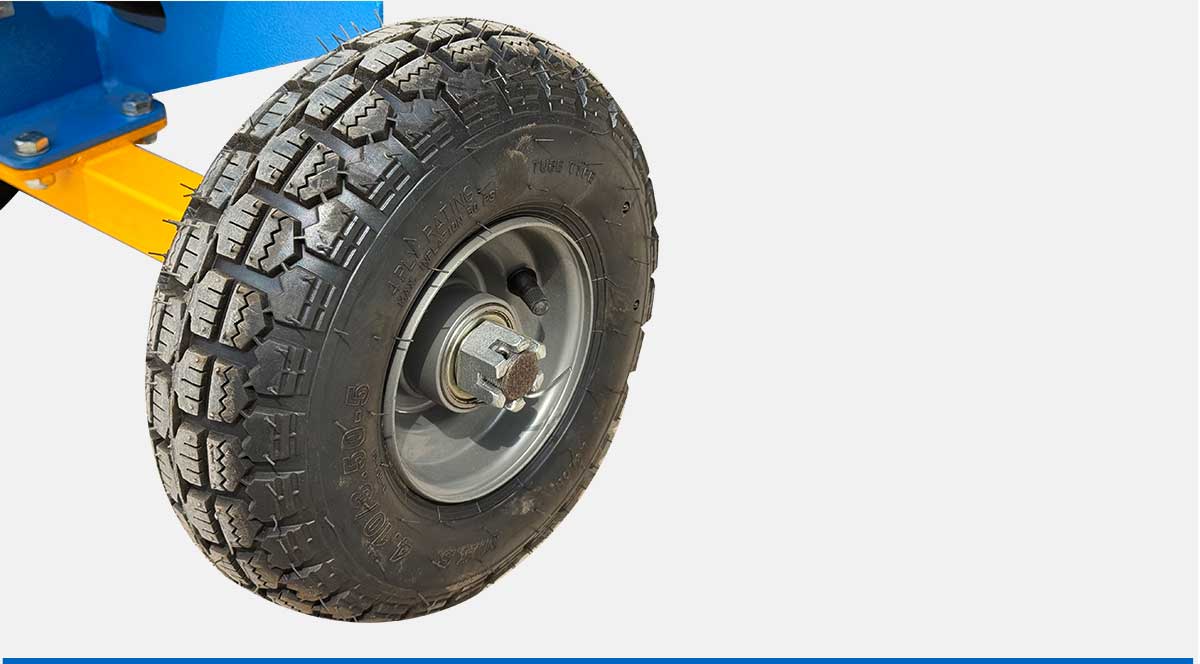

Wear-Resistant Tires - Durable wheels for easy mobility over rough terrain.

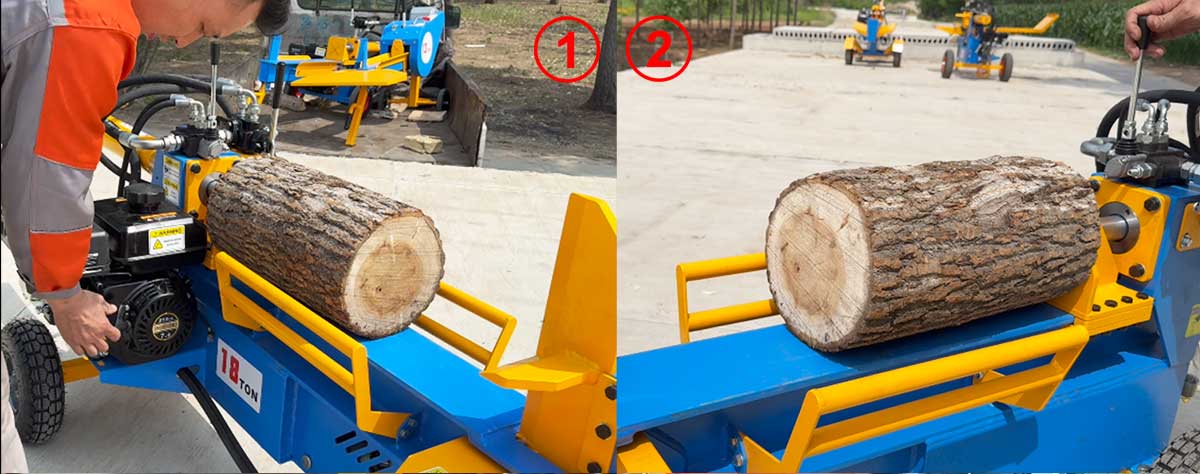

Operation steps

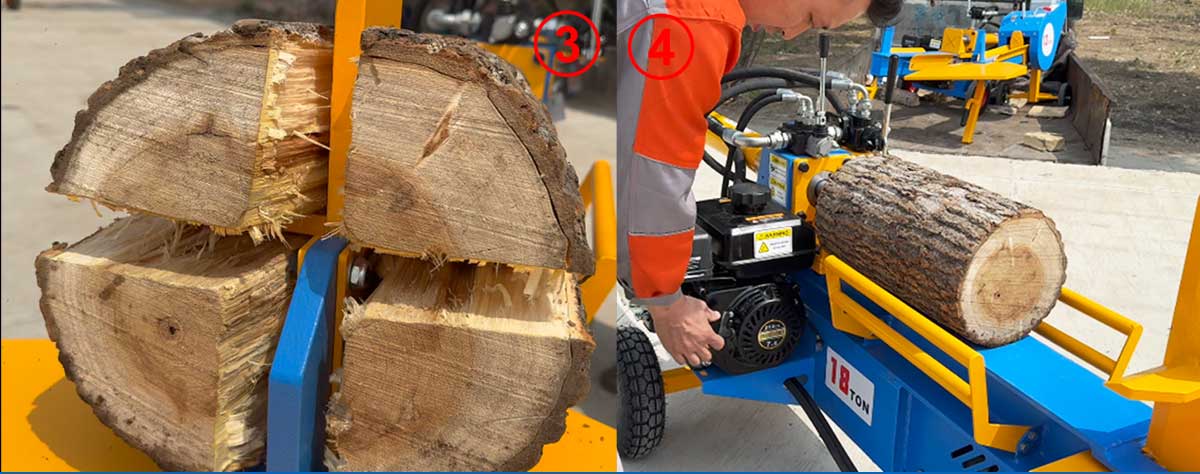

1. Place the Logs - Put the logs that need to be split onto the worktop.
2. Activate the Splitter - Press the control handle; the push plate will begin to move forward.
3. Split the Wood - The log is crushed and split by the push plate. Release the handle to allow it
to return to its starting position.
4. Repeat - Load a new log and repeat the process.
