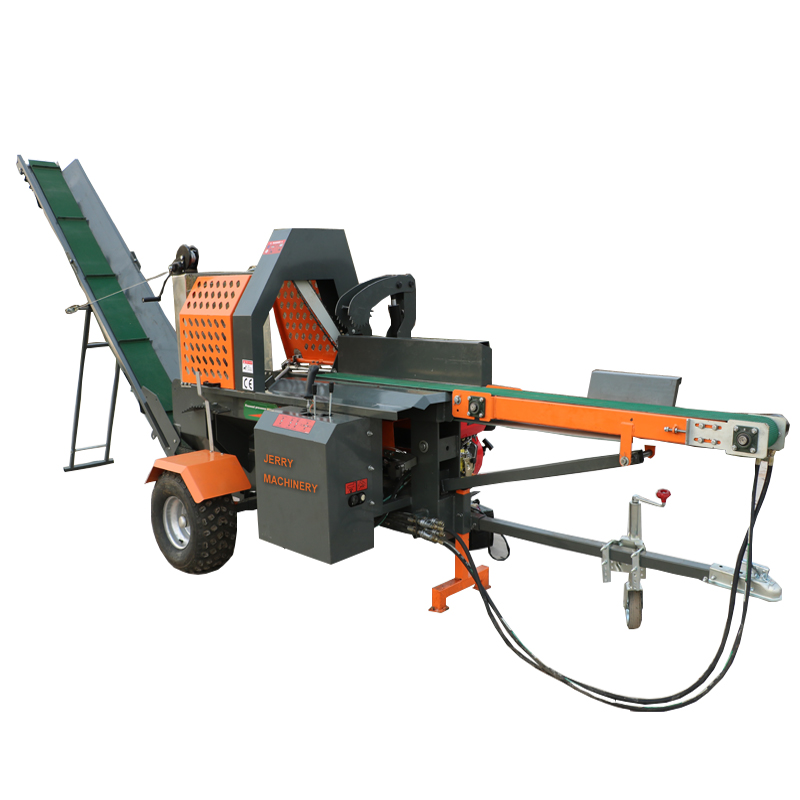

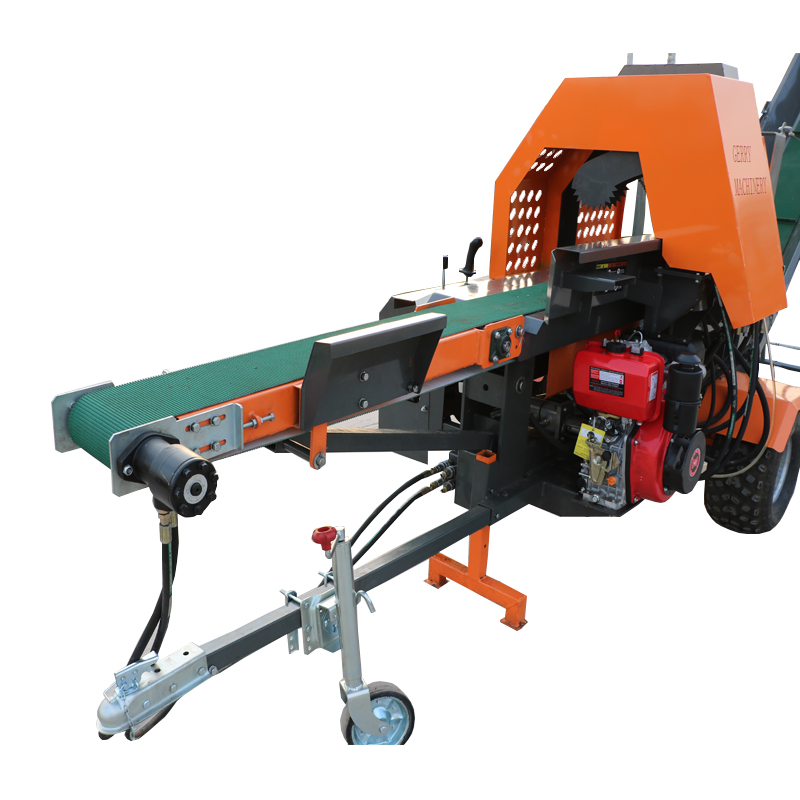

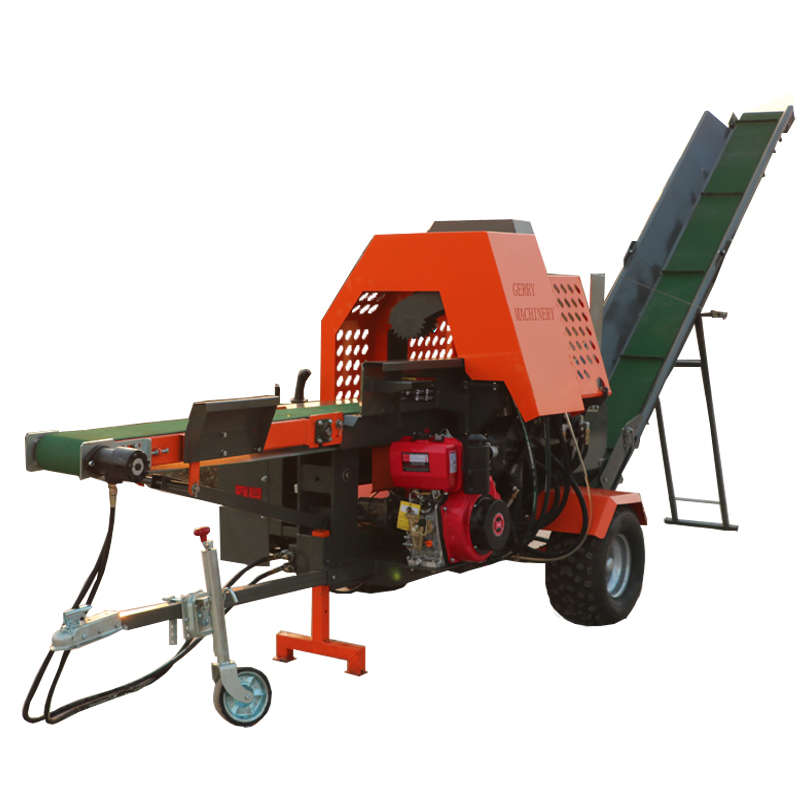

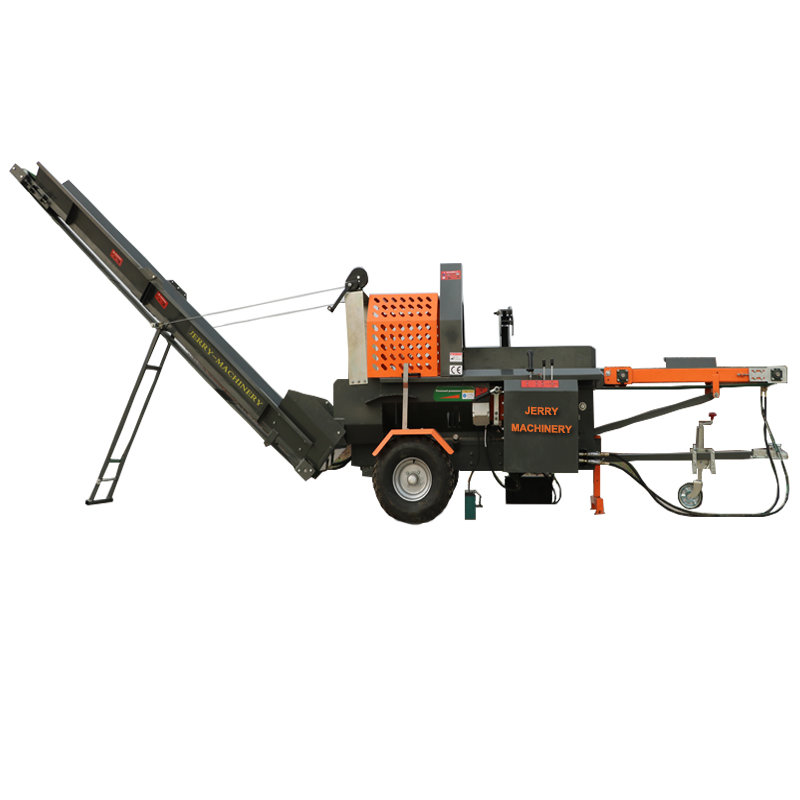

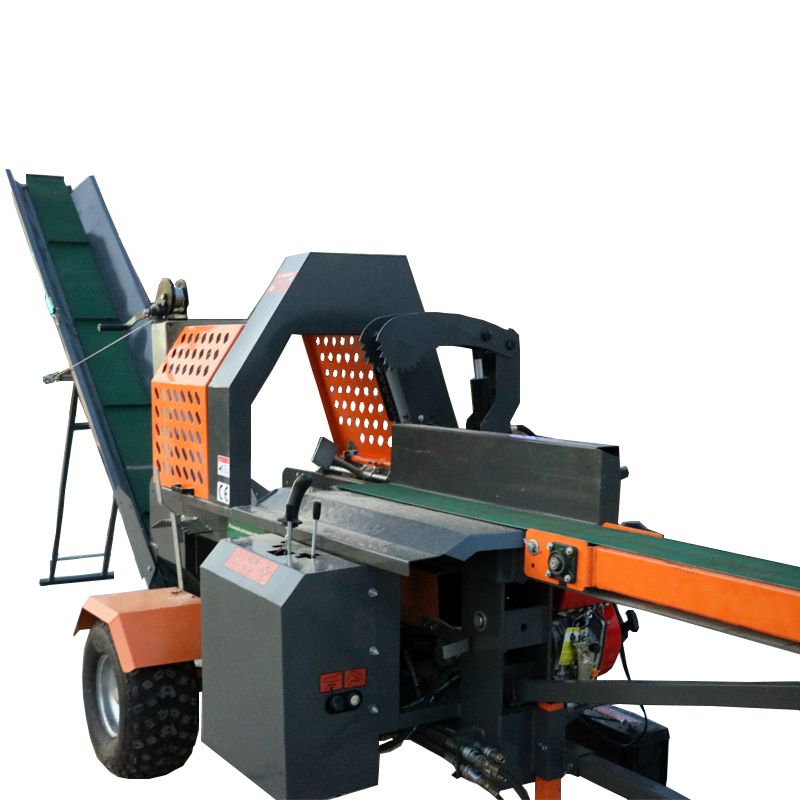

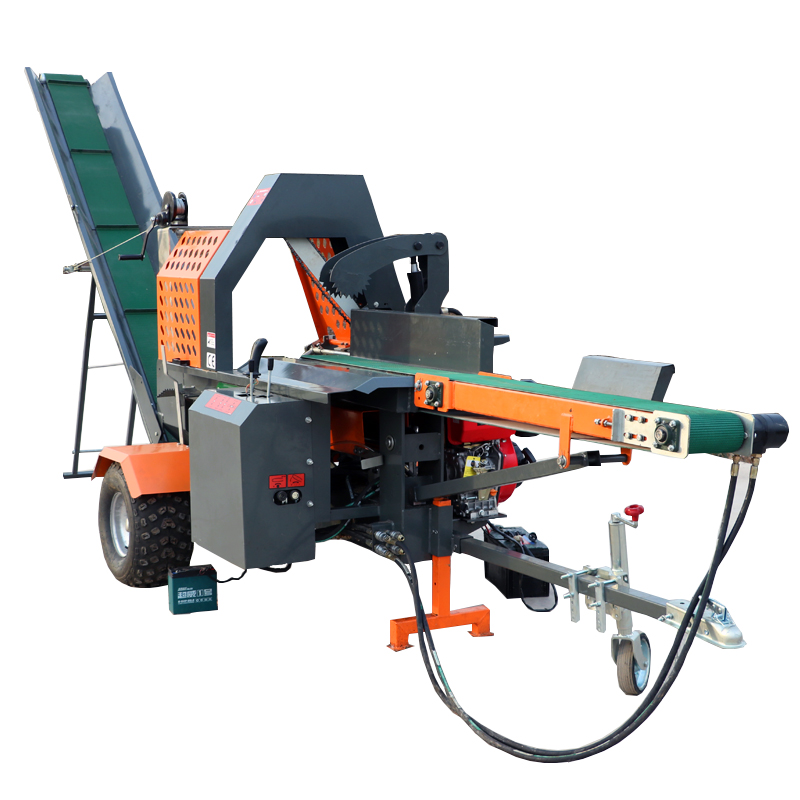

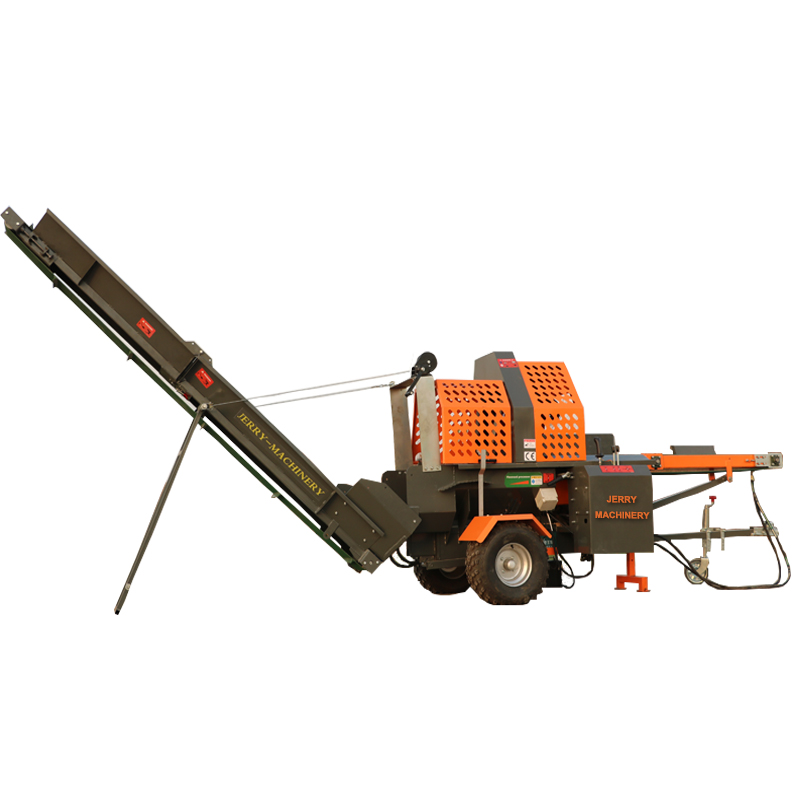

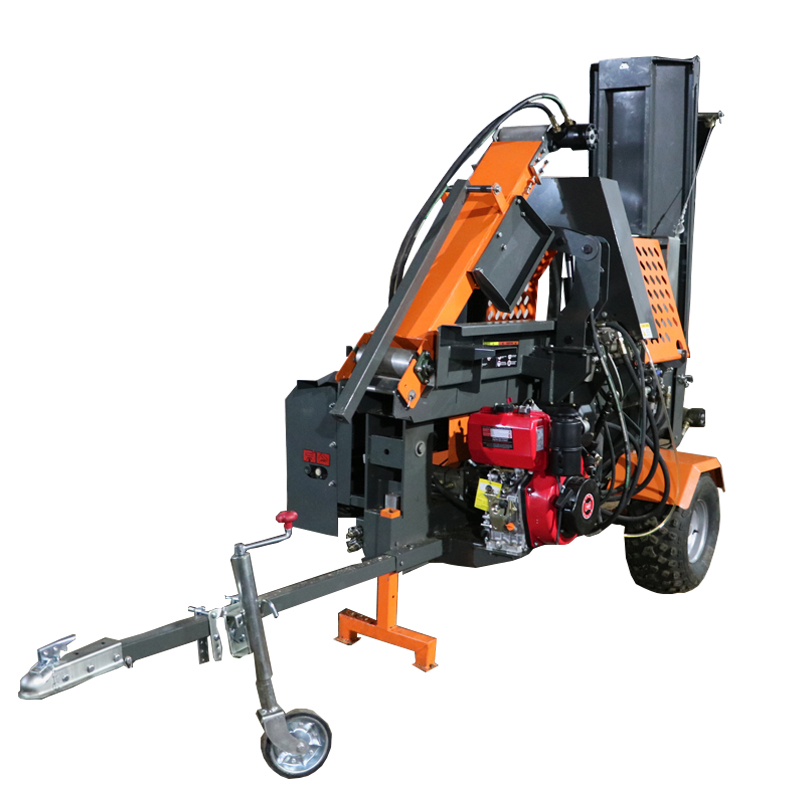

20T Automatic Forestry Fire Wood Processor Machine
Automatic Feed System: The fully automated feed system ensures smooth and consistent log feeding, allowing the operator to focus on monitoring the process while minimizing manual input.
Hydraulic Log Clamping: Equipped with hydraulic log clamping, the processor securely holds logs in place, reducing movement during cutting and splitting for enhanced precision and safety.
Powerful Engine: Powered by a robust engine, the 20T processor can easily handle large logs with a maximum diameter of up to 700mm, enabling it to tackle heavy-duty tasks with ease.
Make an inquiry will get the best shipping quotation
20T Automatic wood Processor is a high-capacity, efficient solution for large-scale firewood production. With advanced automation and durable components, it simplifies and accelerates the wood processing process, offering significant labor savings and increased productivity.
| Performance | Max Splitting | 20T |
| Max splitting length | Standard 610mm (24 inch) | |
| Max cutting & splitting diameter | 480mm (19 inch) | |
| Cycle time | 8-12S | |
| Work efficiency | 4-7CBM/H | |
| Wood fixing | Hydraulic | |
| Saw cutting | Joystick with solenoid valve | |
| Saw lubrication | Automatic by hydraulic system | |
| Splitting | Automatic | |
| Splitting wedge | 4 way (height adjustable) | |
| Machine assembly | Engine | 18HP LIFAN gasoline (electric start) |
| Pump | 20GMP (2-stage) | |
| Splitting cylinder | 3.15”x24”x2” | |
| Hydraulic oil tank | 100L | |
| Feeding conveyor | 2400*200mm | |
| Rear loading conveyor | 3200*250mm | |
| Tyre | 22x11-10 | |
| Traction | 50mm ball couple | |
| Packing | Size | 2300x1250x1750mm |
| Weight | 980KG | |
| Loading Q\ty | 7/16 pcs (20GP/40HQ) |
Product Details

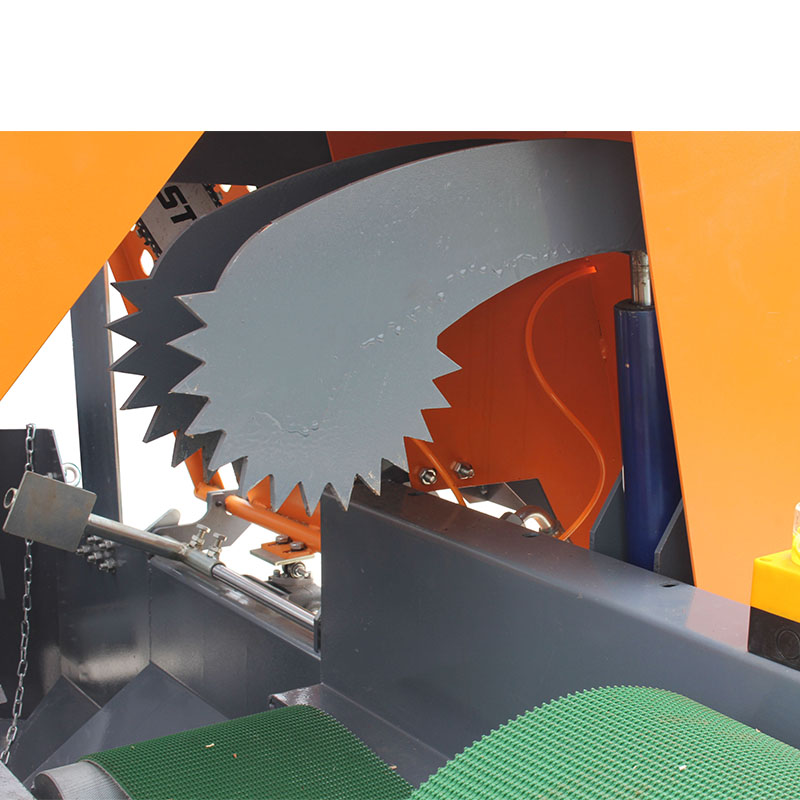

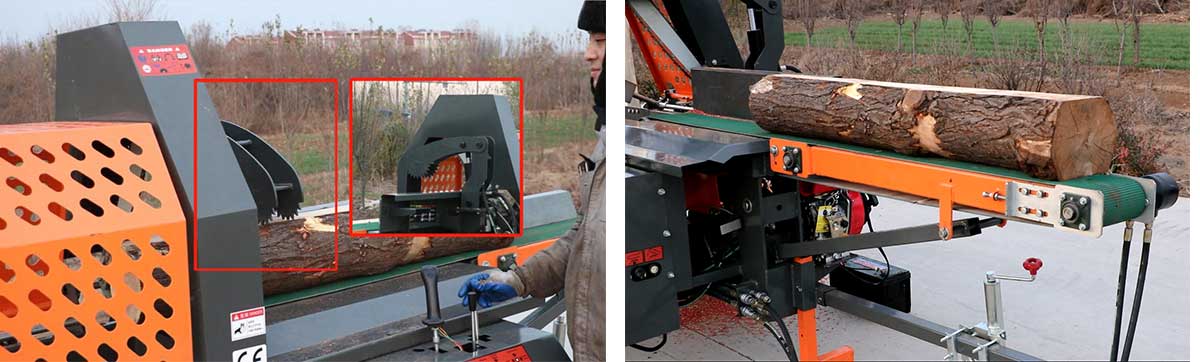

1. Hydraulic Automatic Log Clamping
Automatically secures logs firmly in place, ensuring stable cutting and splitting while improving safety and accuracy.
2. Automatic Feed Conveyor System
Continuously feeds logs into the processing area, reducing manual handling and increasing overall productivity.

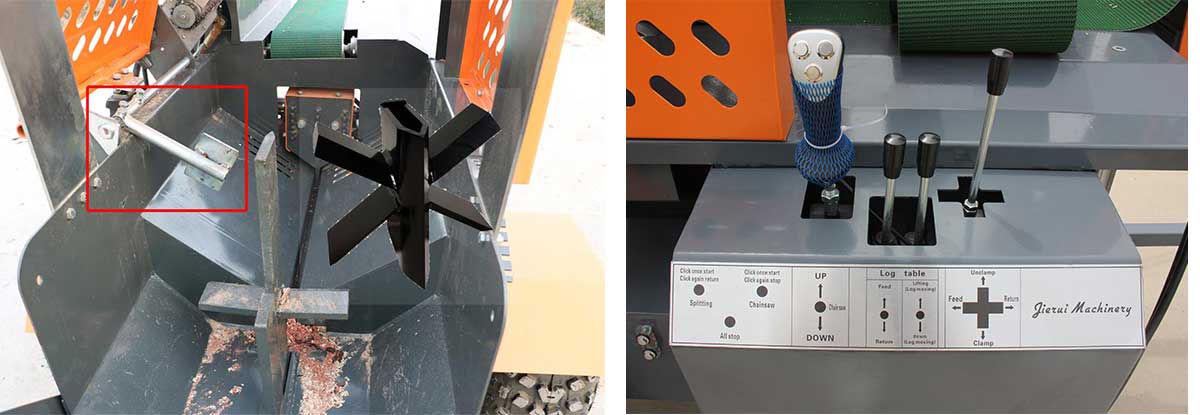

3. Adjustable Firewood Length & Splitting Options
Easily set the firewood length, with support for both 4-way and 6-way splitting to meet different size requirements.
4. Fully Automatic Control System
One-button operation controls cutting, feeding, and splitting, improving efficiency while reducing operator workload.

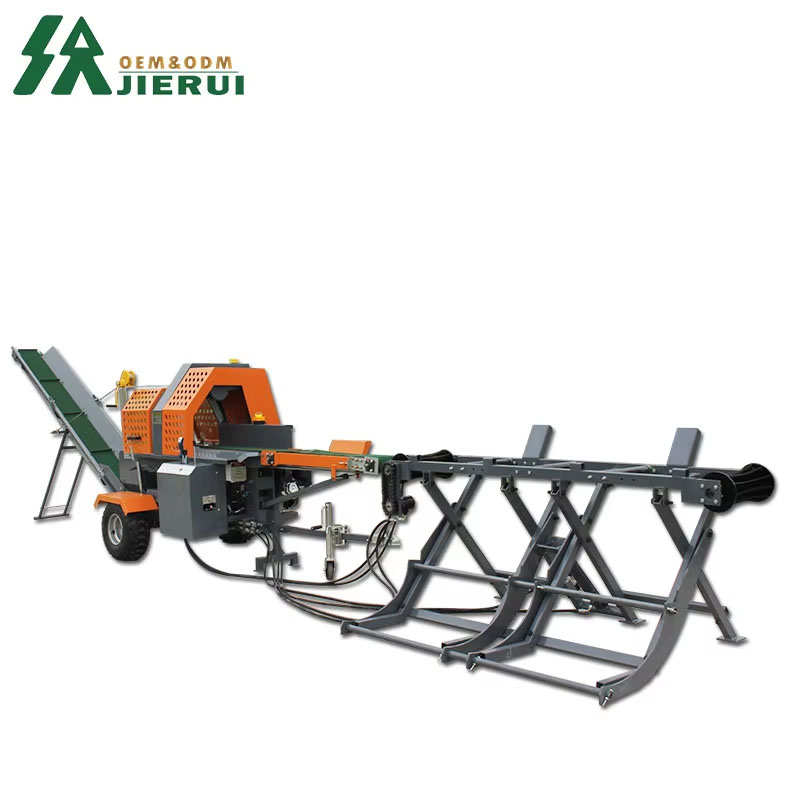

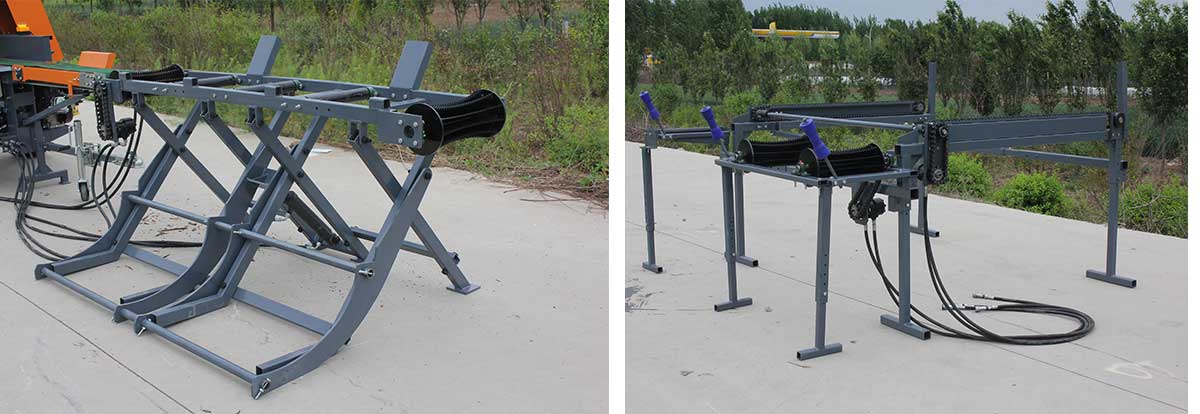

5.Log lifter-JR100 6.Log table-JR200

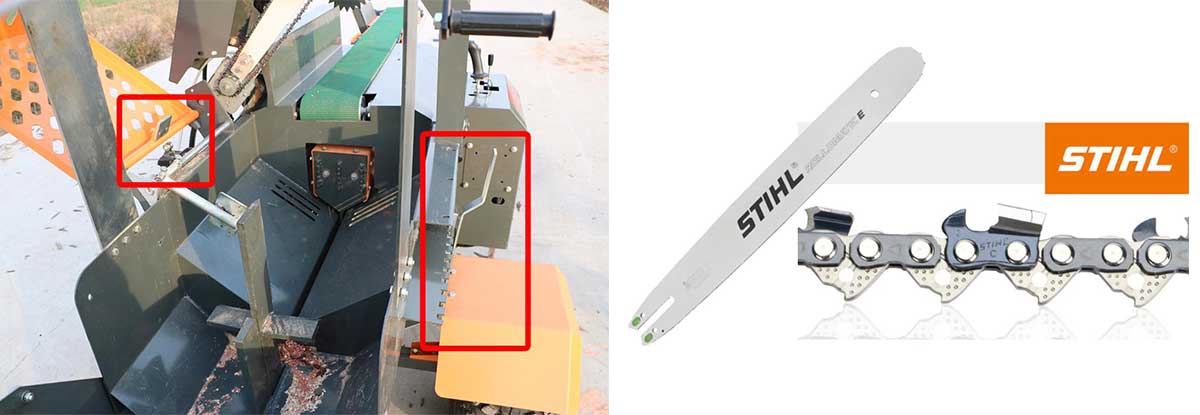

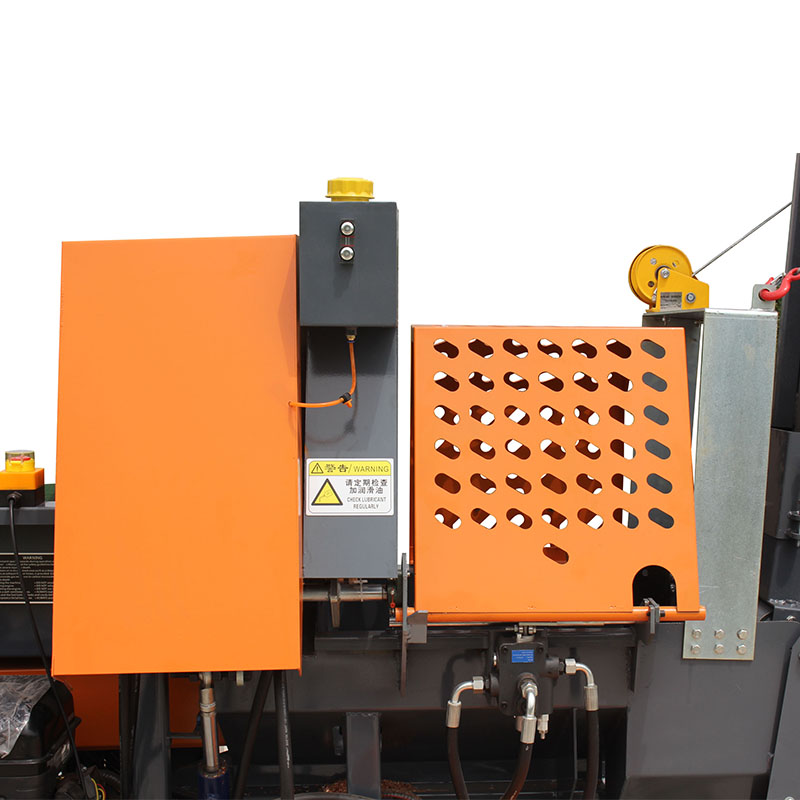

7. Automatic Safety Protection & Adjustable Splitting Wedge
Built-in safety protection ensures secure operation, while the splitting wedge can be adjusted up or down to suit different log sizes.
8. STIHL Chainsaw Guide & Chain (Germany)
Equipped with original STIHL guide bars and chains imported from Germany for reliable cutting, high durability, and long service life.
