Woodworking Machinery Portable Board Edger For Timber Cutting
Reduced Waste: By ensuring precise cutting, board edgers minimize wood wastage, helping manufacturers to optimize raw material use.
Faster Processing: The automation and high-speed nature of board edgers significantly speed up the processing of boards, improving overall productivity.
Customization: Board edgers can be customized to handle different sizes and types of wood, making them versatile in various wood processing operations.
Make an inquiry will get the best shipping quotation

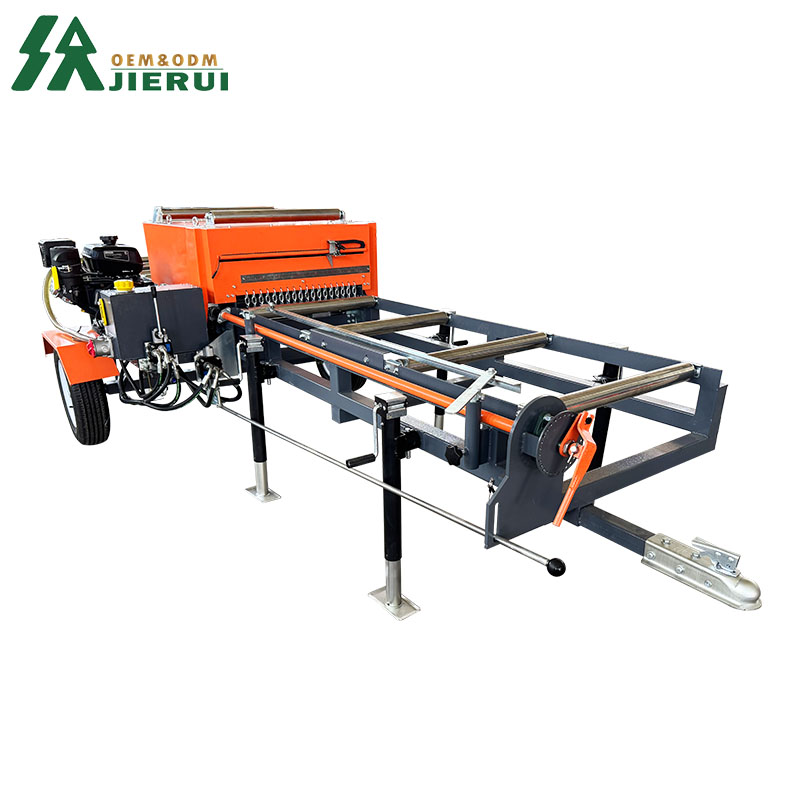

board edger machine is a woodworking tool used to trim and shape the edges of lumber or boards, ensuring they are straight, uniform, and free from defects. This machine is crucial in sawmills and woodworking factories to increase efficiency and precision when processing boards.
The Twin Blade Board Edger is designed to transform rough lumber into precise, uniform boards by efficiently trimming away irregular edges. Essential in modern sawmills, this machine maximizes wood utilization, improves the quality of final products, and is ideal for producing furniture, flooring, and construction lumber.
Key Features:
Adjustable Cutting Width
Easily adapts to a wide range of log and board sizes, providing flexible production capabilities for various applications.High-Precision Circular Saw Blades
Delivers smooth, clean cuts with minimal wood loss, ensuring a high-quality finish on each board.Heavy-Duty Frame
Constructed with a robust steel structure for maximum stability, durability, and long service life, even under heavy use.Automatic Feeding System
Hydraulic feeding rollers ensure consistent speed and accuracy, reducing the need for manual intervention and enhancing production efficiency.Fast & Efficient Operation
Processes multiple boards quickly with consistent results, optimizing production output and minimizing downtime.Customizable Power Options
Available with electric, diesel, or gasoline power sources, allowing for versatile installation options in different production environments.Long-Lasting Blades
Equipped with wear-resistant saw blades that significantly reduce maintenance costs and extend the lifespan of the machine.

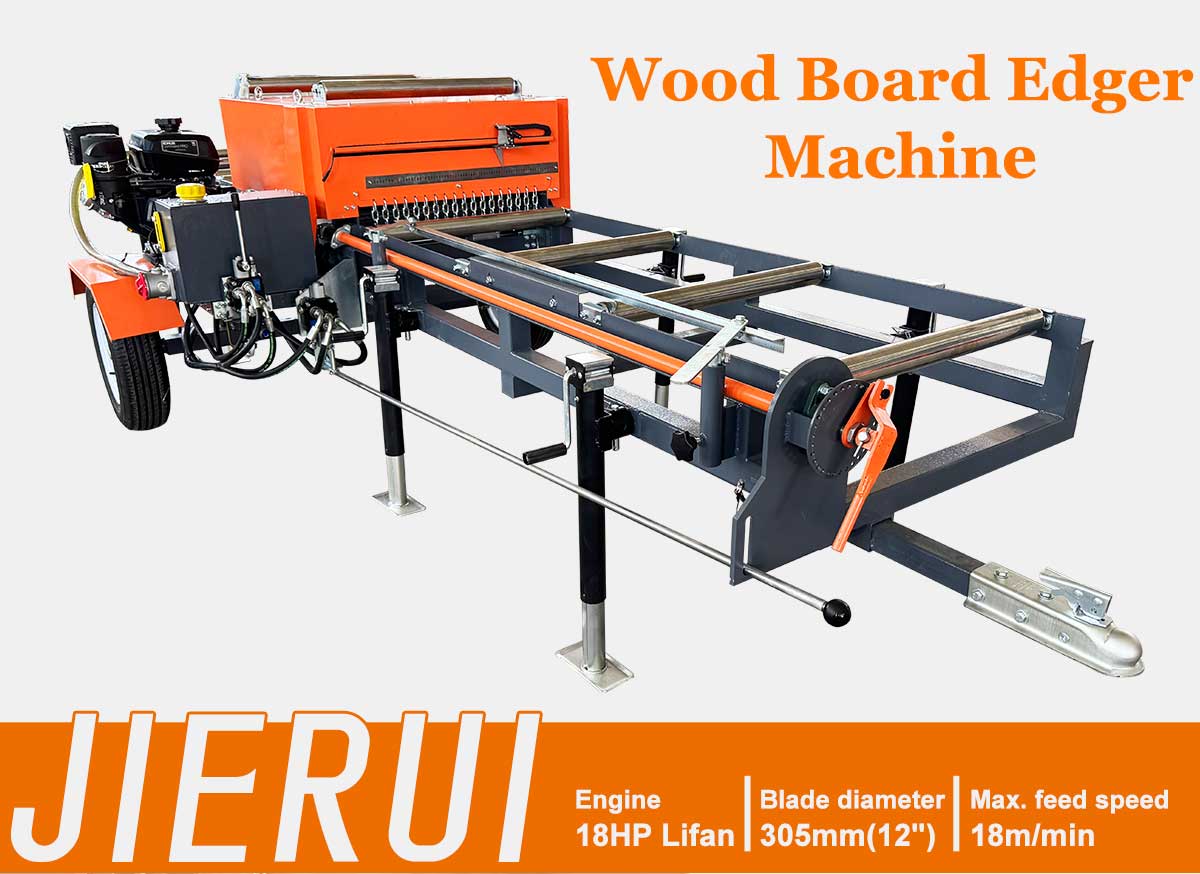

| Wood Board Edger Machine | |
| Engine | 18HP Lifan gas |
| Max cutting width | 635mm(25") |
| Min.cutting width | 76mm(3") |
| Max. wood thickness | 50mm(2") |
| Blade diameter | 305mm(12") |
| Max. feed speed | 18m/min |
| Working pressure | 11Mpa |
| Infeed table length | 2000mm |
| Outfeed table length | 2000mm(Fold) |
| packing size | 1465*1150*810mm=1.36CBM 425/465 KG 2050*900*545mm=1CBM 251/291 KG |
Product details

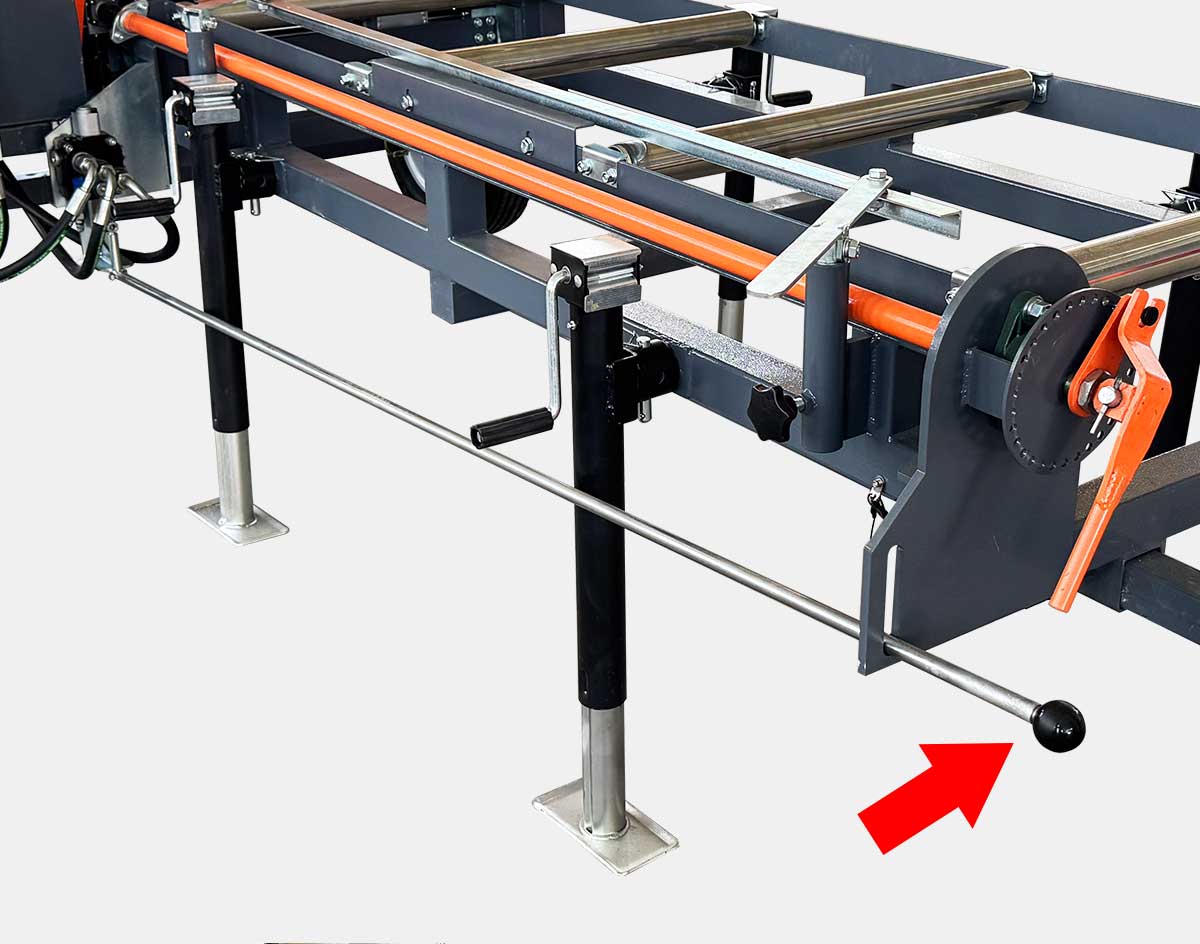

1.Ultra Long Safety Hand Valve is an essential safety feature for machines like sawmills, particularly those with powerful rotating saw blades. It controls the rotation of the saw wheel to ensure that operators can safely manage the cutting process without the risk of injury.

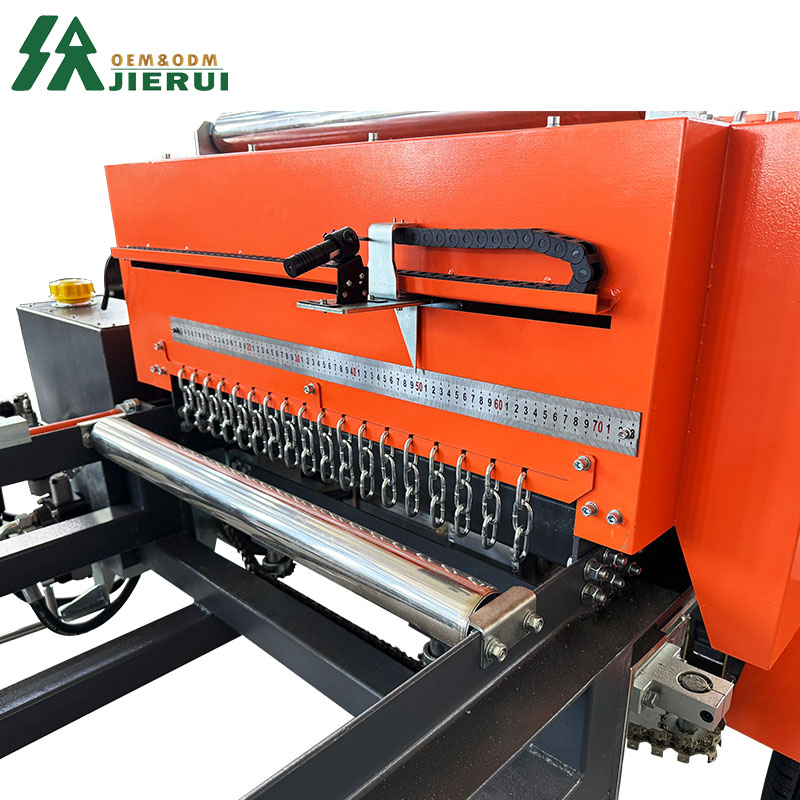

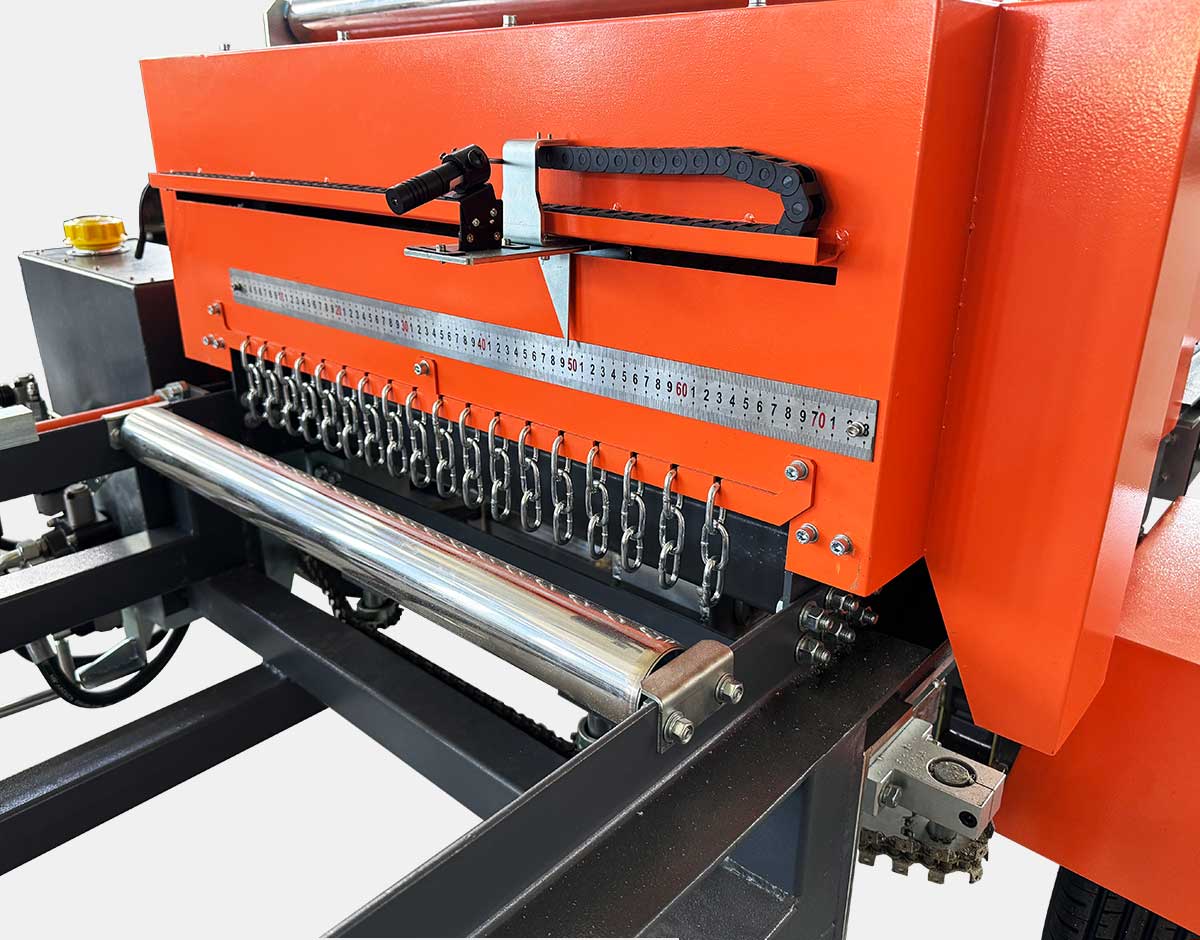

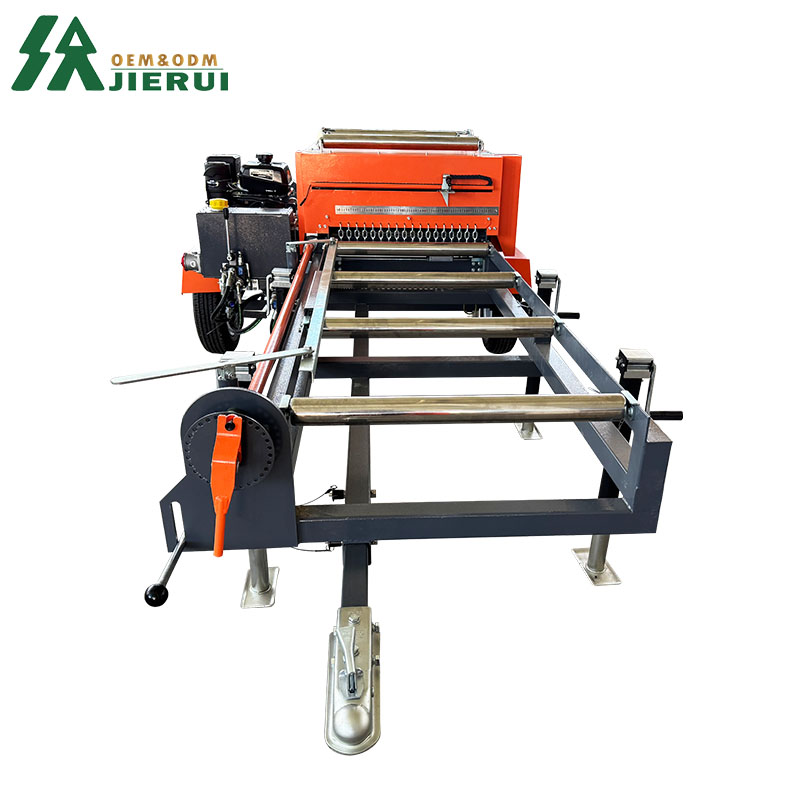

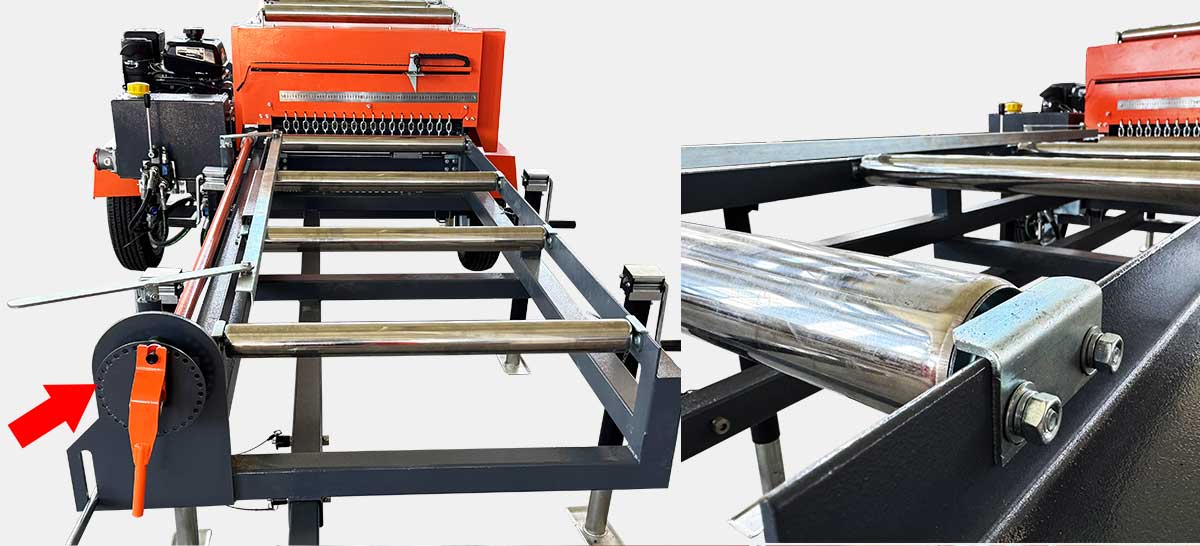

2.Simple Manual Dial for Precise Size Adjustment
A user-friendly manual dial allows you to accurately set the size for edging your lumber. This feature ensures precise control over the width of each board, making it easy to achieve consistent, uniform edges with minimal effort. Ideal for custom jobs, the manual dial enhances both flexibility and precision during the production process.

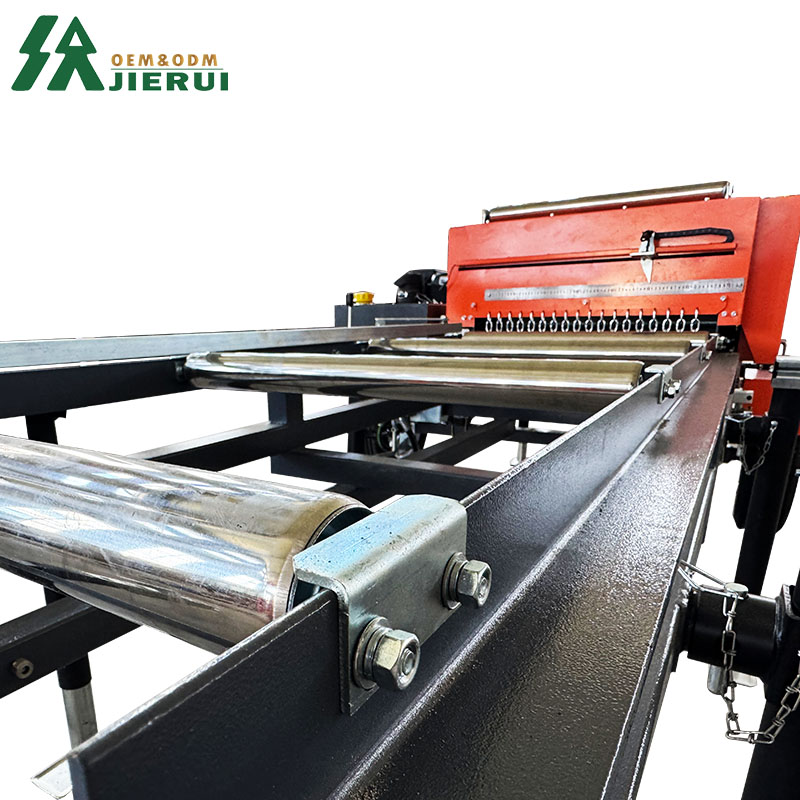

3.Automatic Feeding System
The hydraulic feeding rollers in the Automatic Feeding System ensure smooth, consistent speed and precise accuracy when feeding boards into the machine. This automated system reduces manual effort and minimizes the risk of errors, allowing for faster, more reliable production with uniform results across all boards.

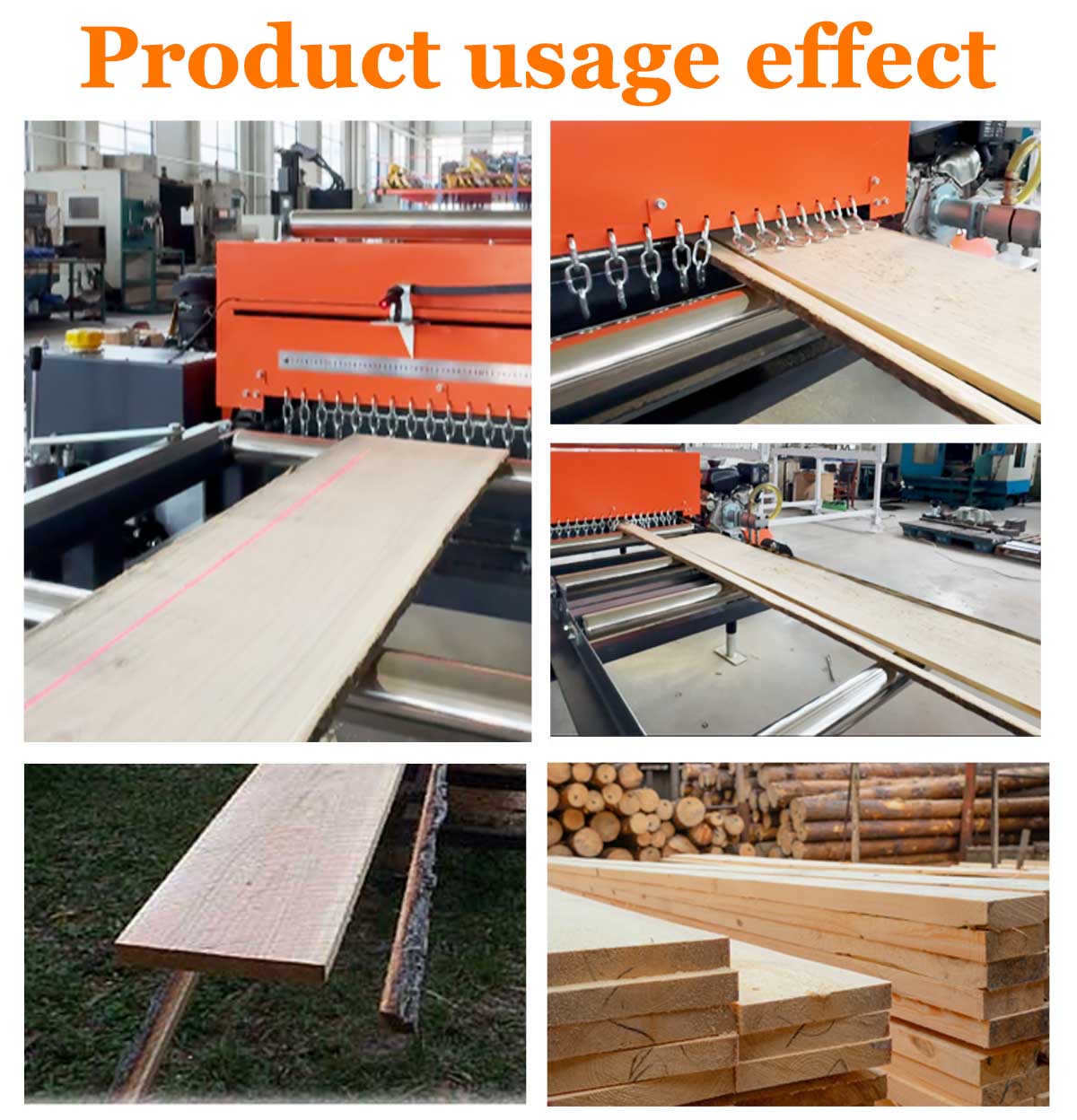

4.Laser Cutting Path Display
The integrated laser system visually projects the cutting path directly onto the board, providing clear, real-time guidance for precise edge alignment. This feature helps operators ensure accurate cuts, enhancing efficiency and reducing material waste by providing a clear reference point for optimal trimming.

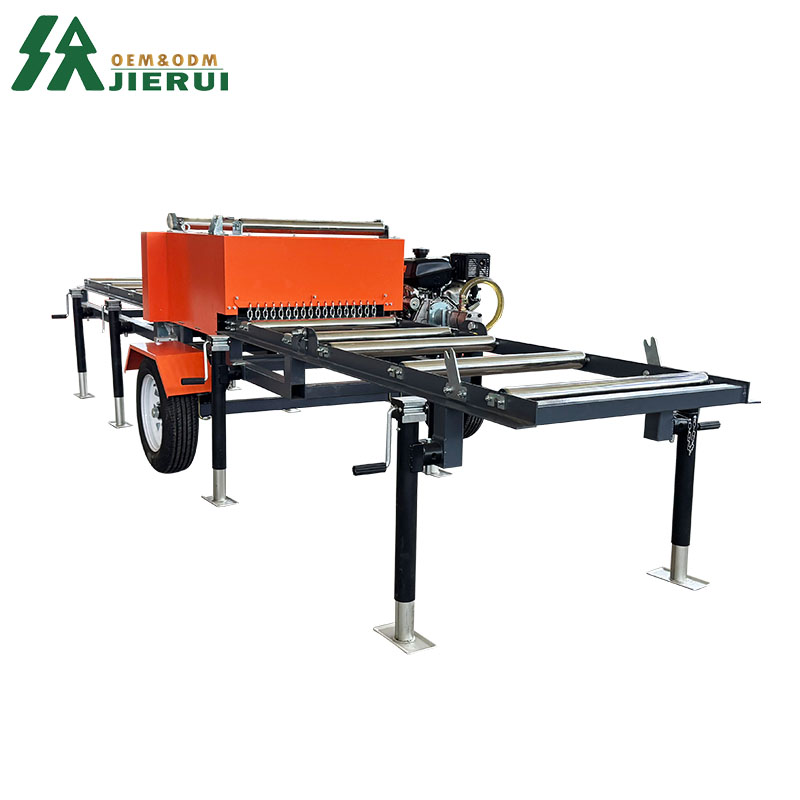

5.Foldable Track
The foldable track design saves valuable space and makes transportation between job sites effortless. When not in use, the track can be compactly folded, reducing storage requirements and simplifying movement to different locations, enhancing both convenience and portability.

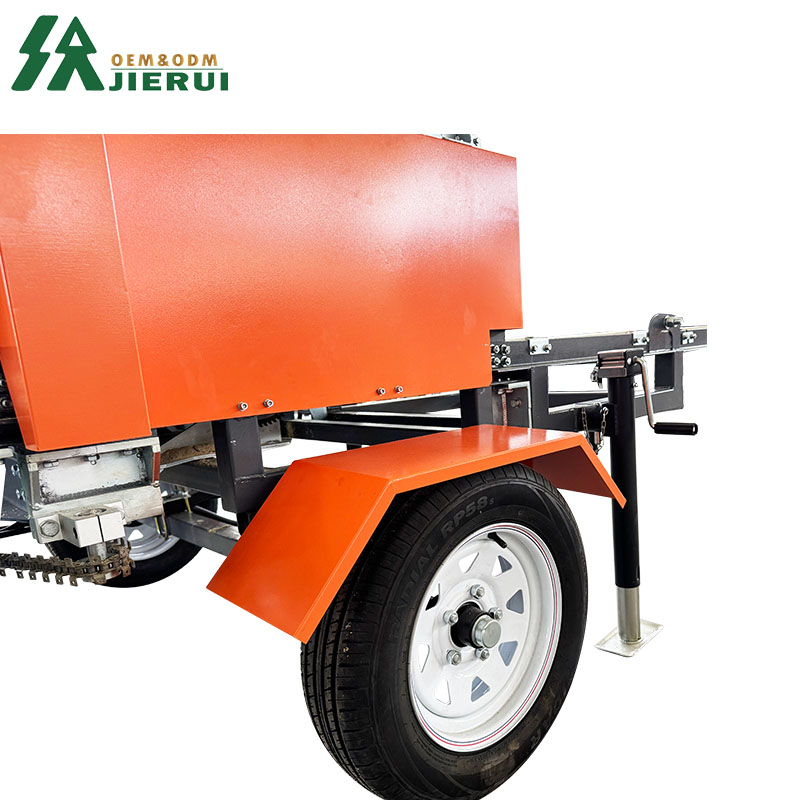

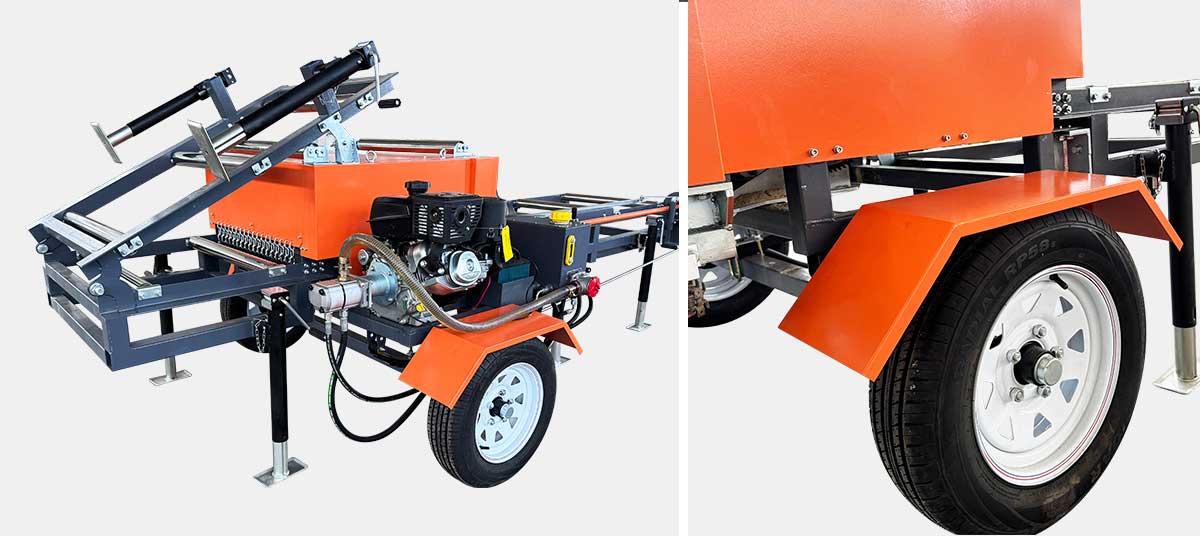

6.Heavy-Duty Wear-Resistant Tires
Equipped with heavy-duty, wear-resistant tires, this machine ensures smooth and stable movement across various terrains. These durable tires are designed to withstand heavy use and provide excellent traction, making it easier to move the equipment between job sites while maintaining consistent performance.

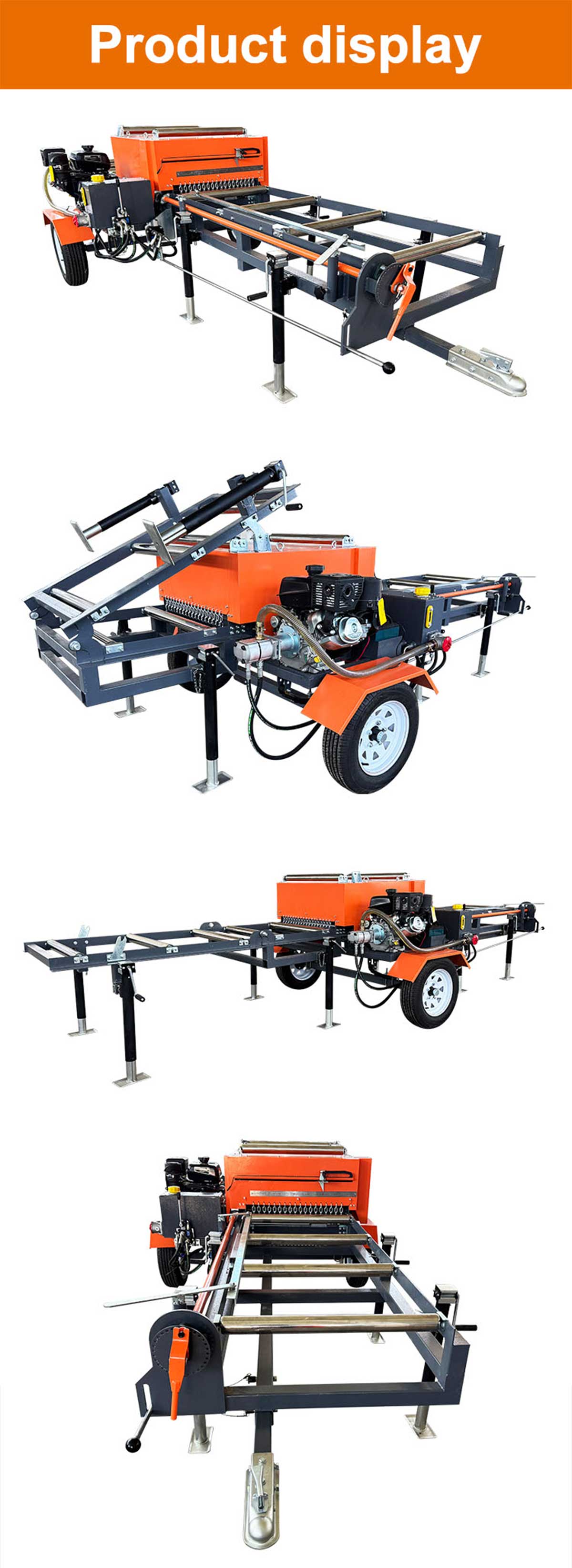

Product display
If you would like to know more information or have any questions, please feel free to contact us at any time. Contact us and you will receive a free brochure!
