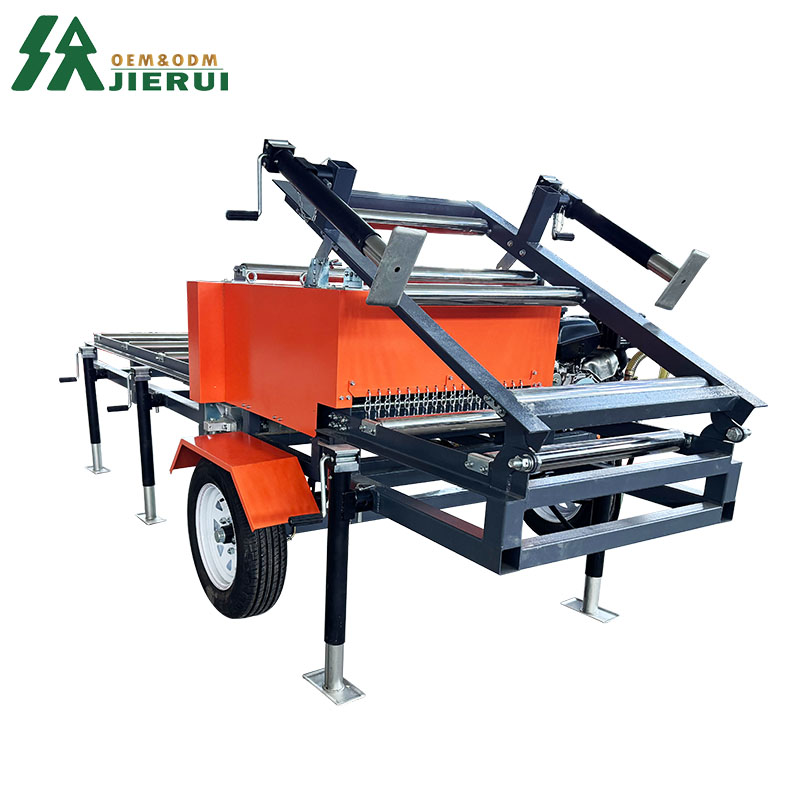

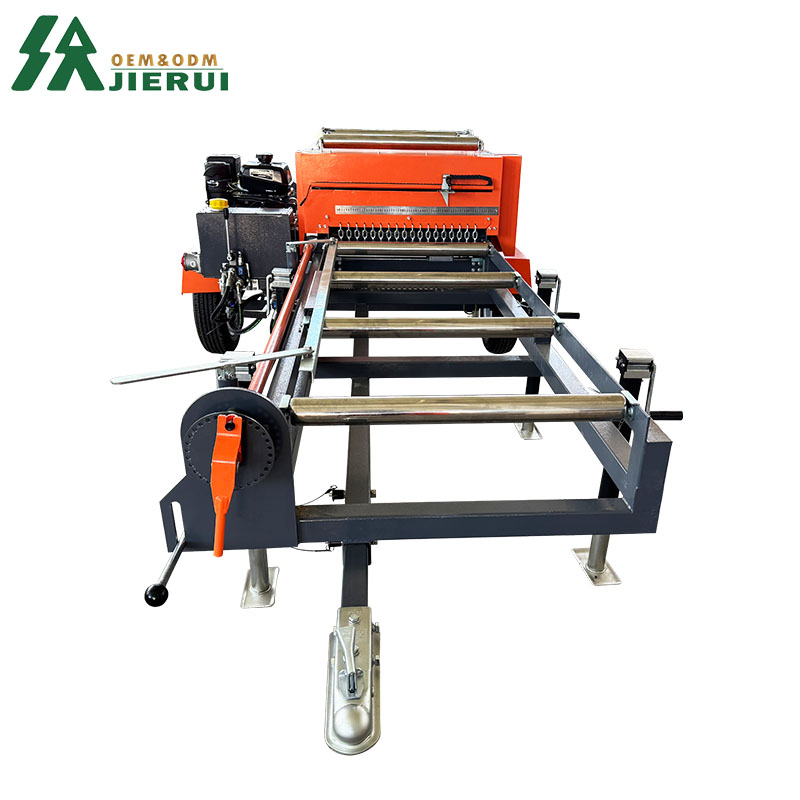

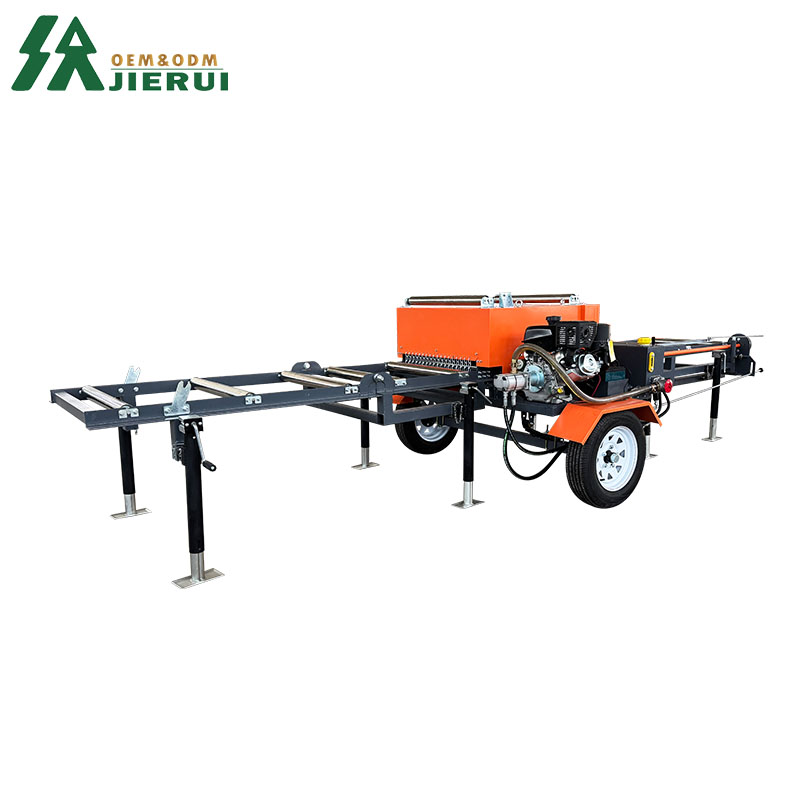

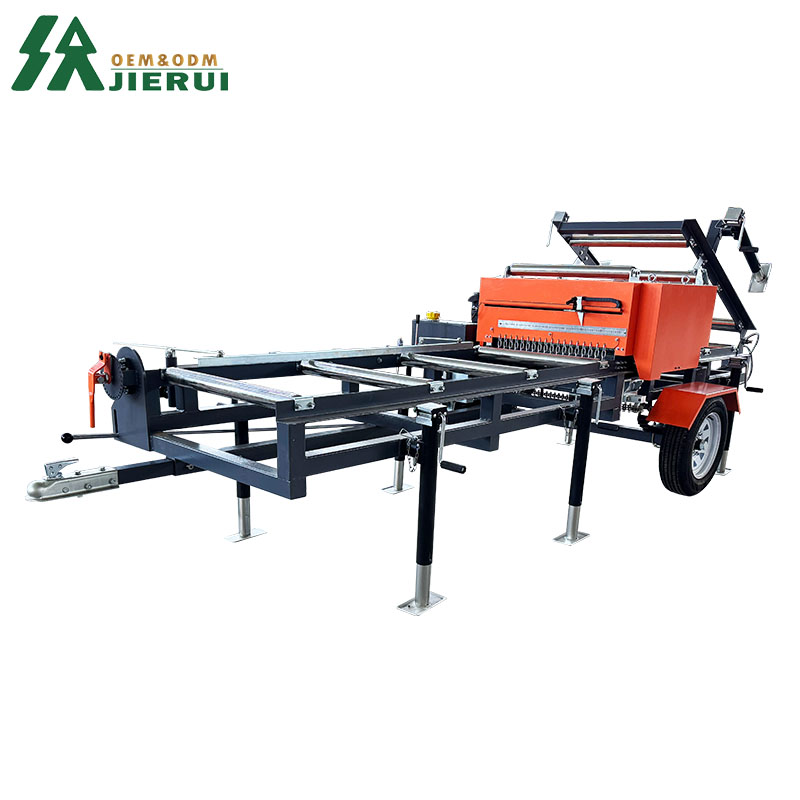

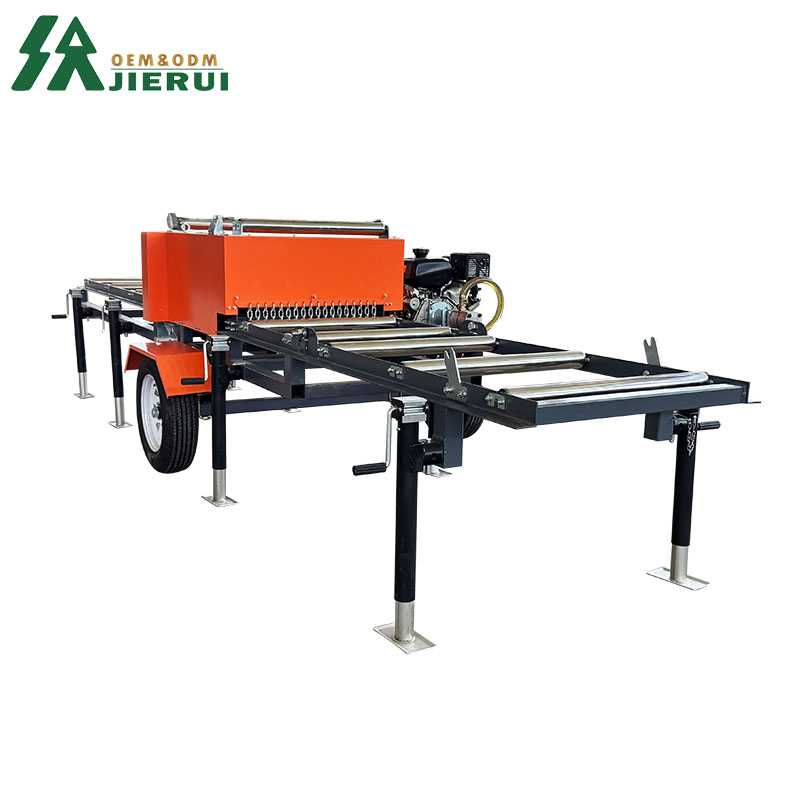

Automatic Twin Circular Blades Wood Board Edgers Machine
Maximized Yield - Converts rough logs into usable lumber with minimal waste.
Increased Productivity- Handles high volumes efficiently, reducing manual work.
Superior Quality- Produces straight, smooth boards ready for downstream processing.
Make an inquiry will get the best shipping quotation

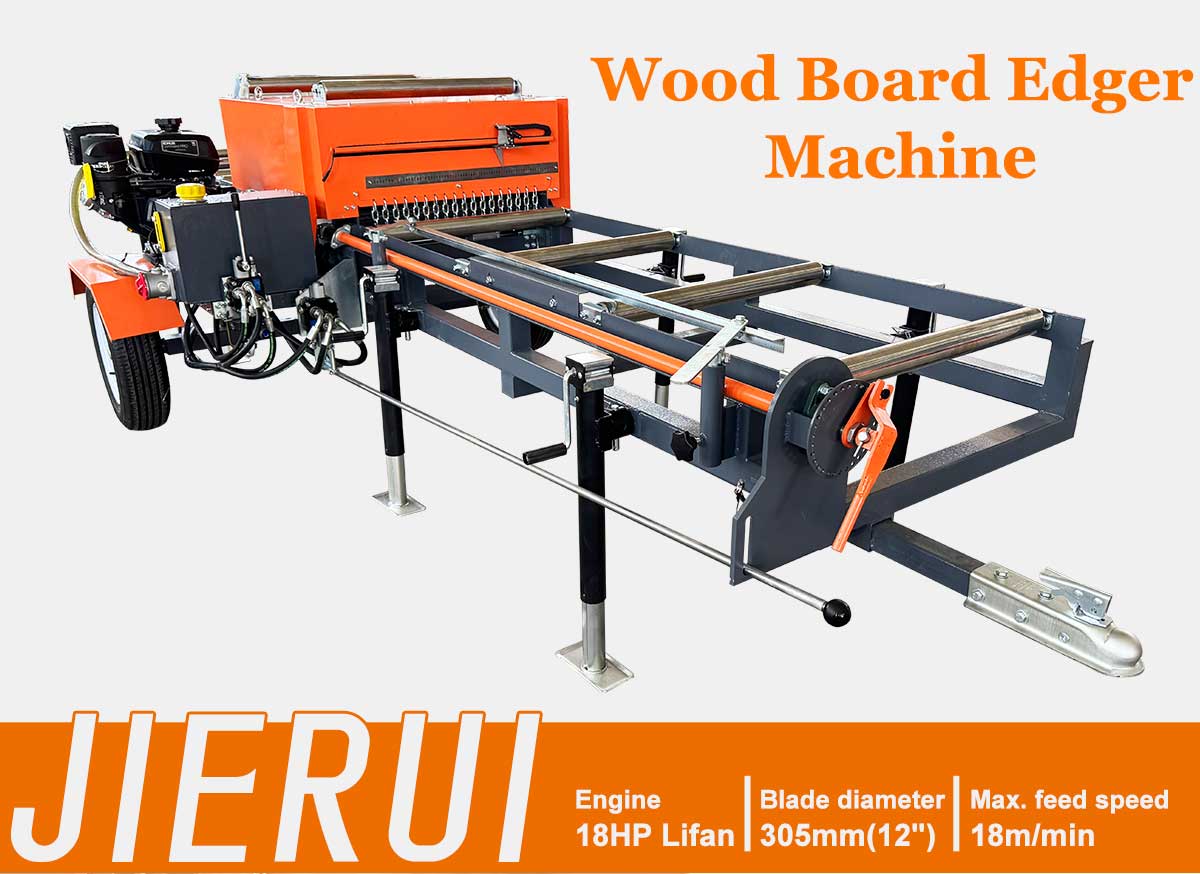

Wood Board Edger Machine
The Wood Board Edger Machine is a specialized piece of sawmill equipment designed to trim rough lumber into precise, straight, and uniform boards by removing irregular or waney edges. It is essential for maximizing wood utilization, reducing waste, and improving the quality of finished products such as furniture, flooring, or construction lumber
Wood Board Edger Machine
The Wood Board Edger Machine is designed to trim rough lumber into precise, uniform boards by removing irregular edges. A vital component in modern sawmills, it maximizes wood utilization, minimizes waste, and enhances the quality of finished products-making it ideal for furniture, flooring, and construction lumber production.
Key Features
1. Adjustable Cutting Width
Adapts easily to different log and board sizes, ensuring flexible production.
2. High-Precision Circular Saw Blades
Delivers smooth, clean cuts with minimal material loss.
3. Heavy-Duty Frame
Constructed from robust steel for enhanced stability and long service life.
4. Automatic Feeding System
Hydraulic feeding rollers provide consistent speed, accuracy, and efficiency.
5. Fast & Efficient Operation
Capable of processing multiple boards quickly with consistent results.
6. Customizable Power Options
Available in electric, diesel, or gasoline versions to suit different working environments.
7. Long-Lasting Blades
Wear-resistant saw blades reduce downtime and maintenance costs.
| Wood Board Edger Machine | |
| Engine | 18HP Lifan gas |
| Max cutting width | 635mm(25") |
| Min.cutting width | 76mm(3") |
| Max. wood thickness | 50mm(2") |
| Blade diameter | 305mm(12") |
| Max. feed speed | 18m/min |
| Working pressure | 11Mpa |
| Infeed table length | 2000mm |
| Outfeed table length | 2000mm(Fold) |
| packing size | 1465*1150*810mm=1.36CBM 425/465 KG 2050*900*545mm=1CBM 251/291 KG |
Product details

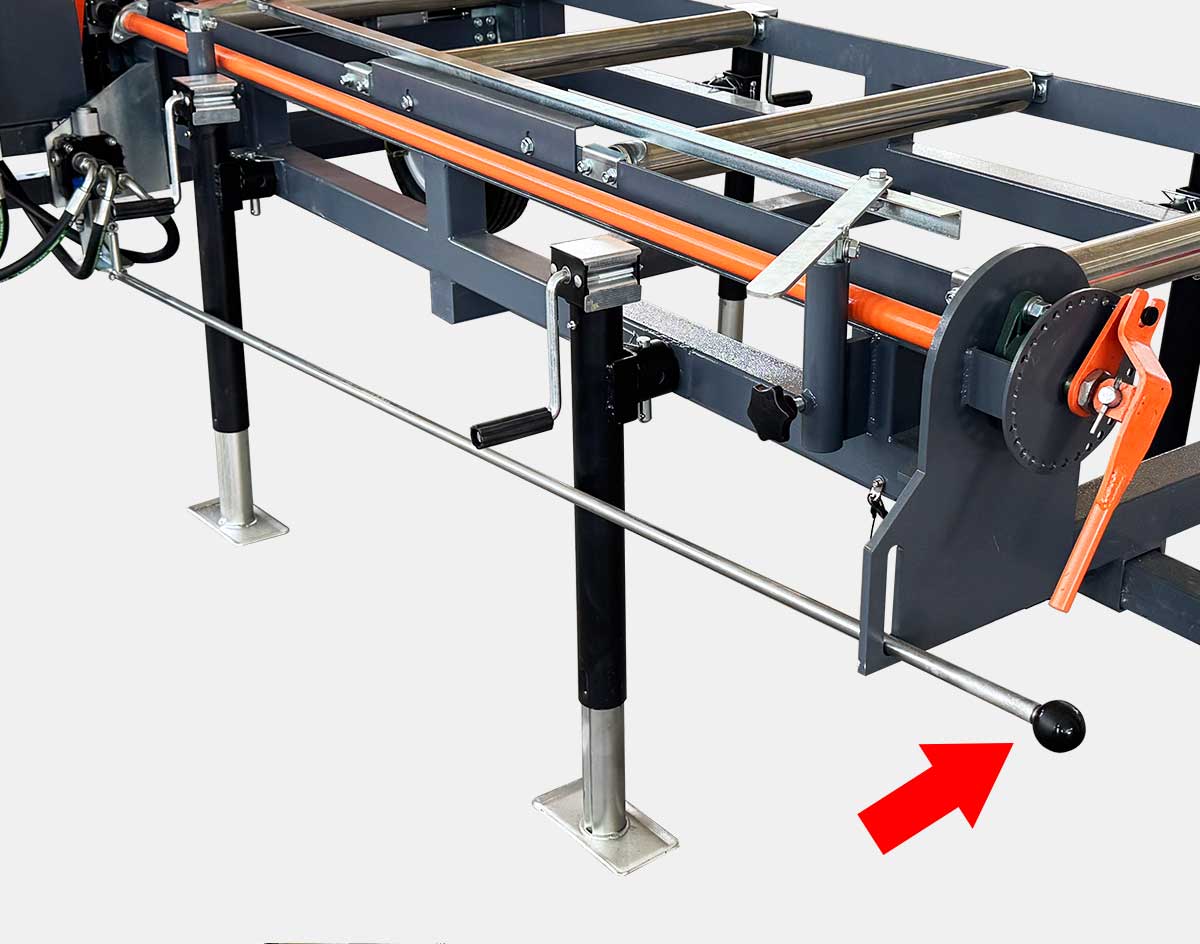

1.Ultra-Long Safety Hand Valve
Equipped with an ultra-long safety hand valve that directly controls saw wheel rotation. This design ensures the operator maintains a safe distance from the cutting area while retaining precise control, greatly enhancing operational safety.

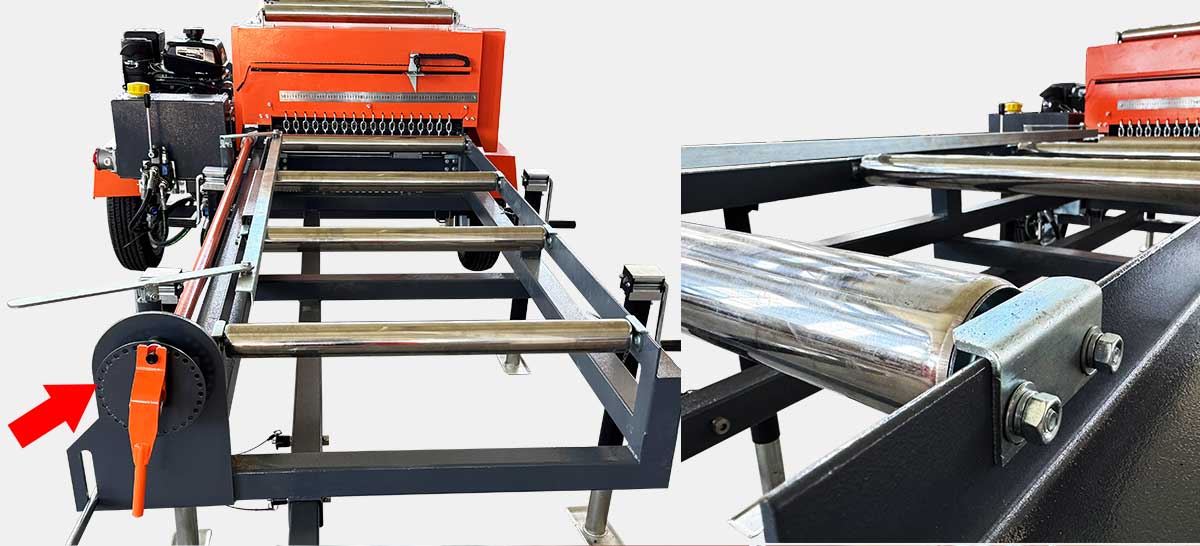

2. A simple manual dial lets you accurately set the size you want to edge your lumber

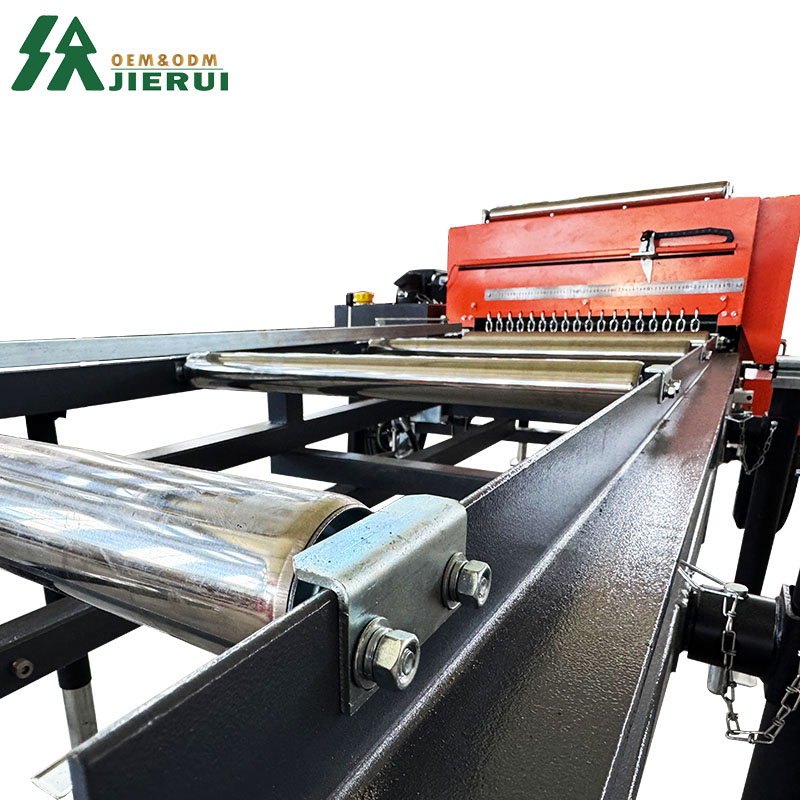

3.Automatic Feeding System hydraulic feeding rollers guarantee consistent speed and accuracy.

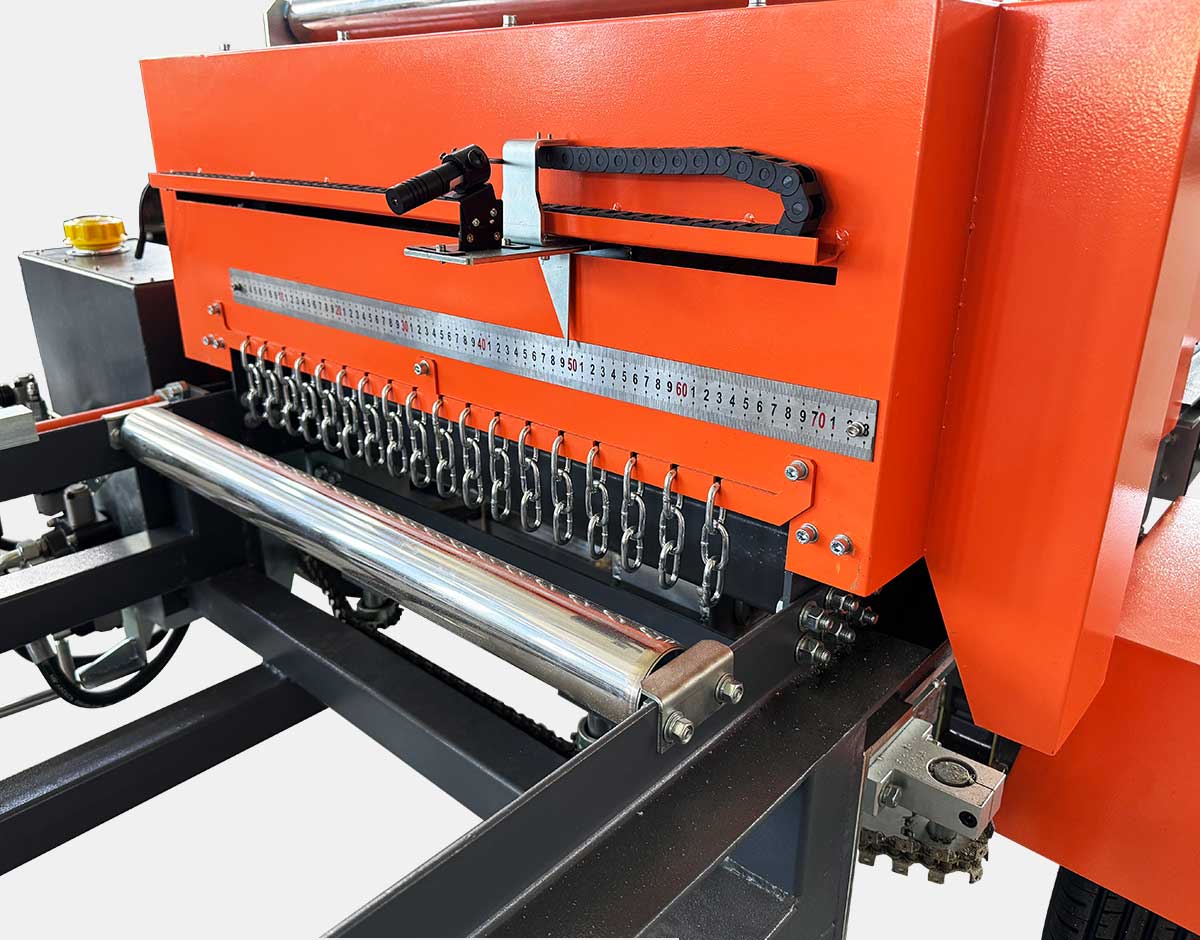

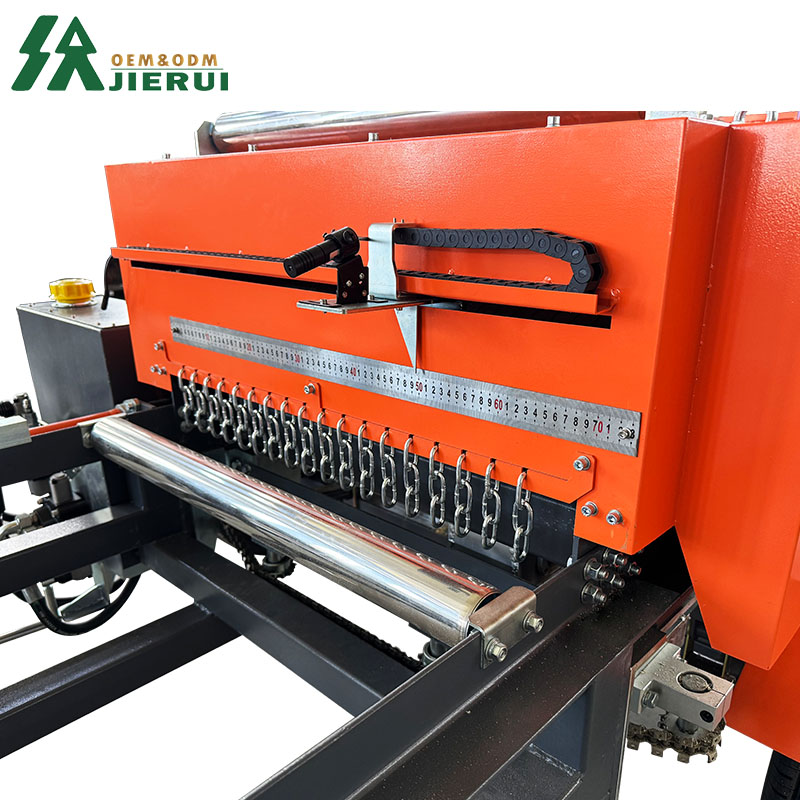

4.Laser Cutting Path Display
A built-in laser guide clearly projects the cutting path onto the board, helping the operator align cuts with precision.This feature improves accuracy, reduces errors, and ensures consistent, high- quality results.

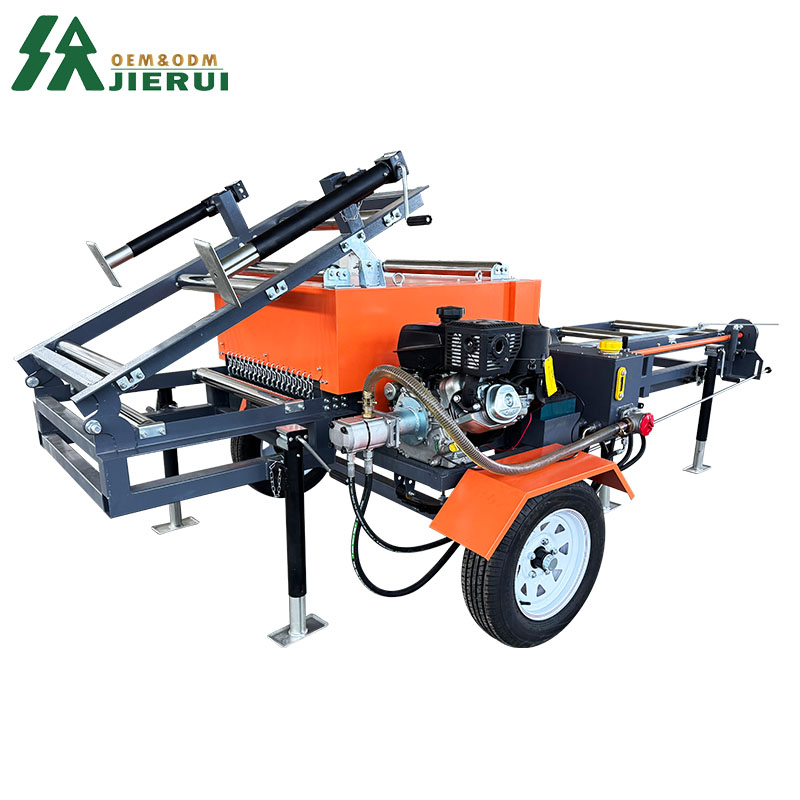

5. Foldable Track
Saves space and makes transportation between job sites easier and more efficient.

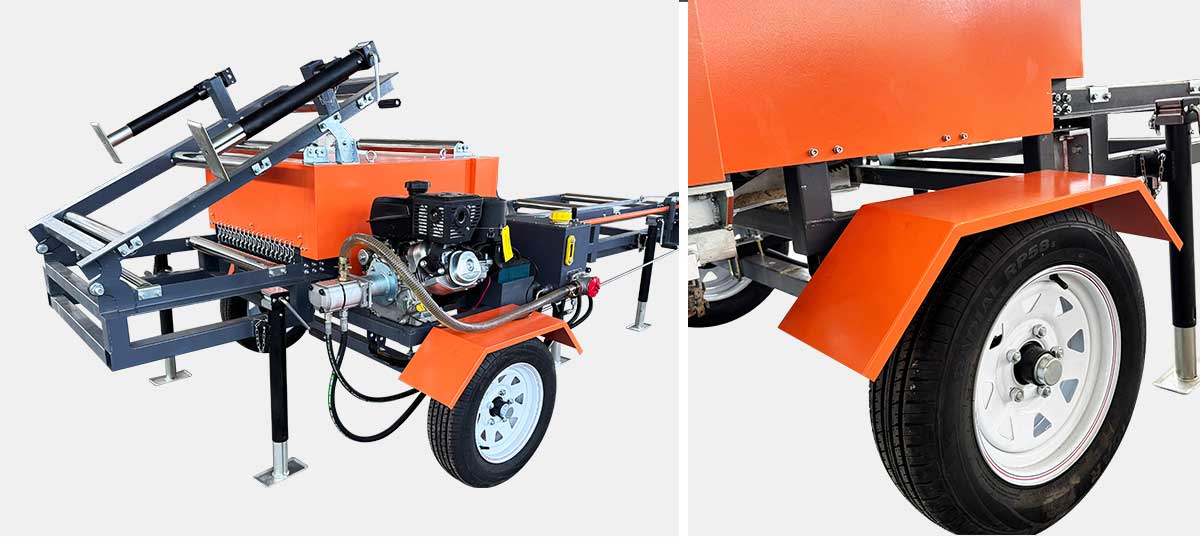

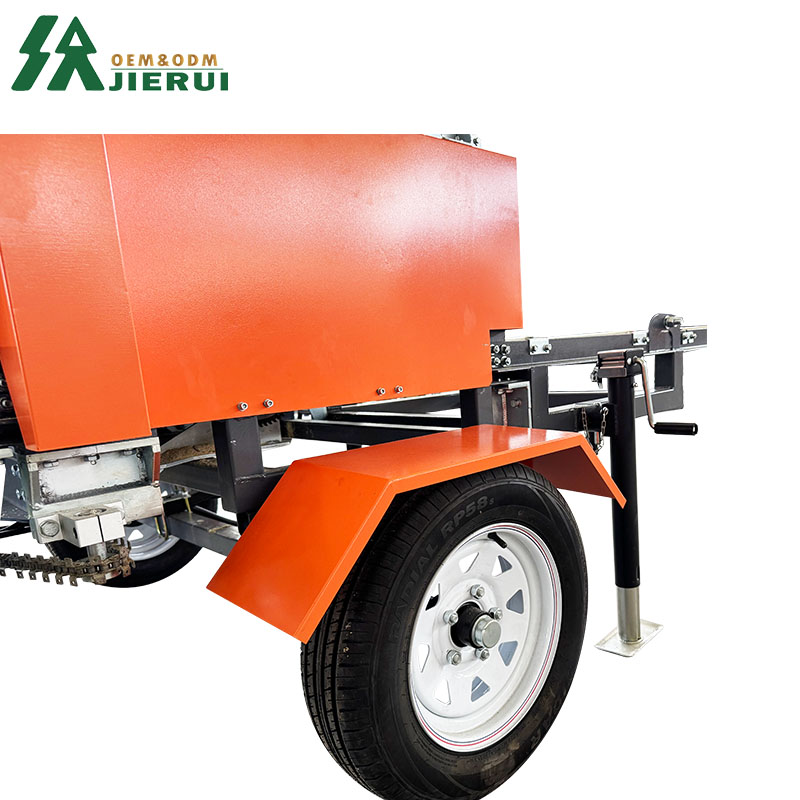

6.Heavy-Duty Wear-Resistant Tyres
Provide smooth, stable movement and long-lasting durability, even on rough terrain.

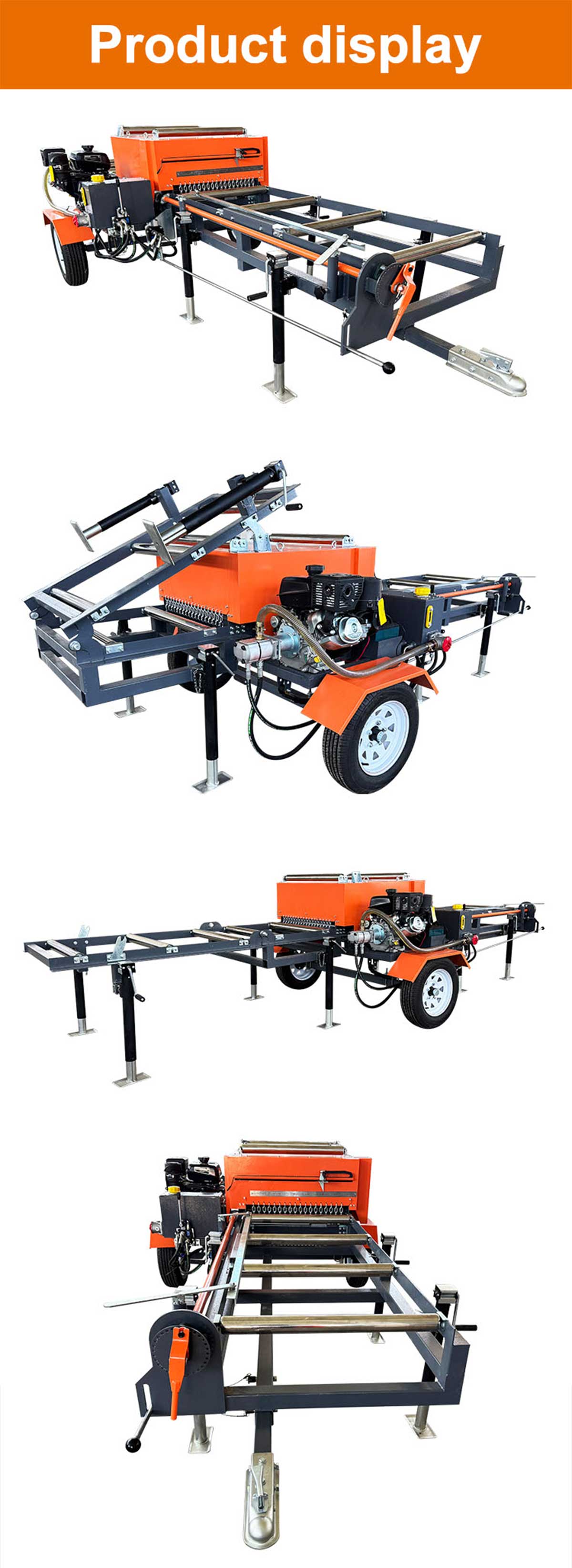

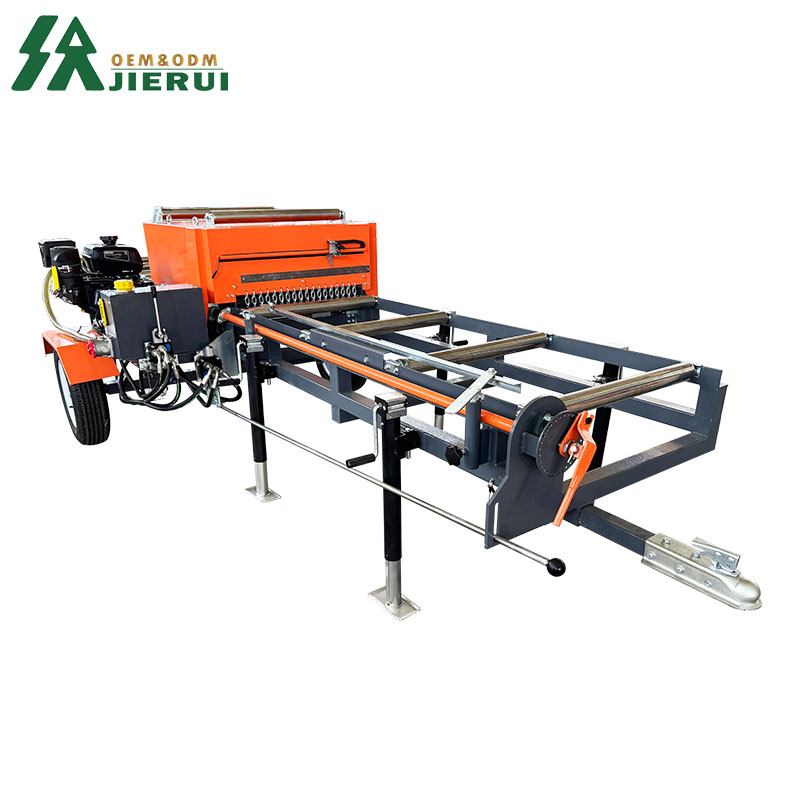

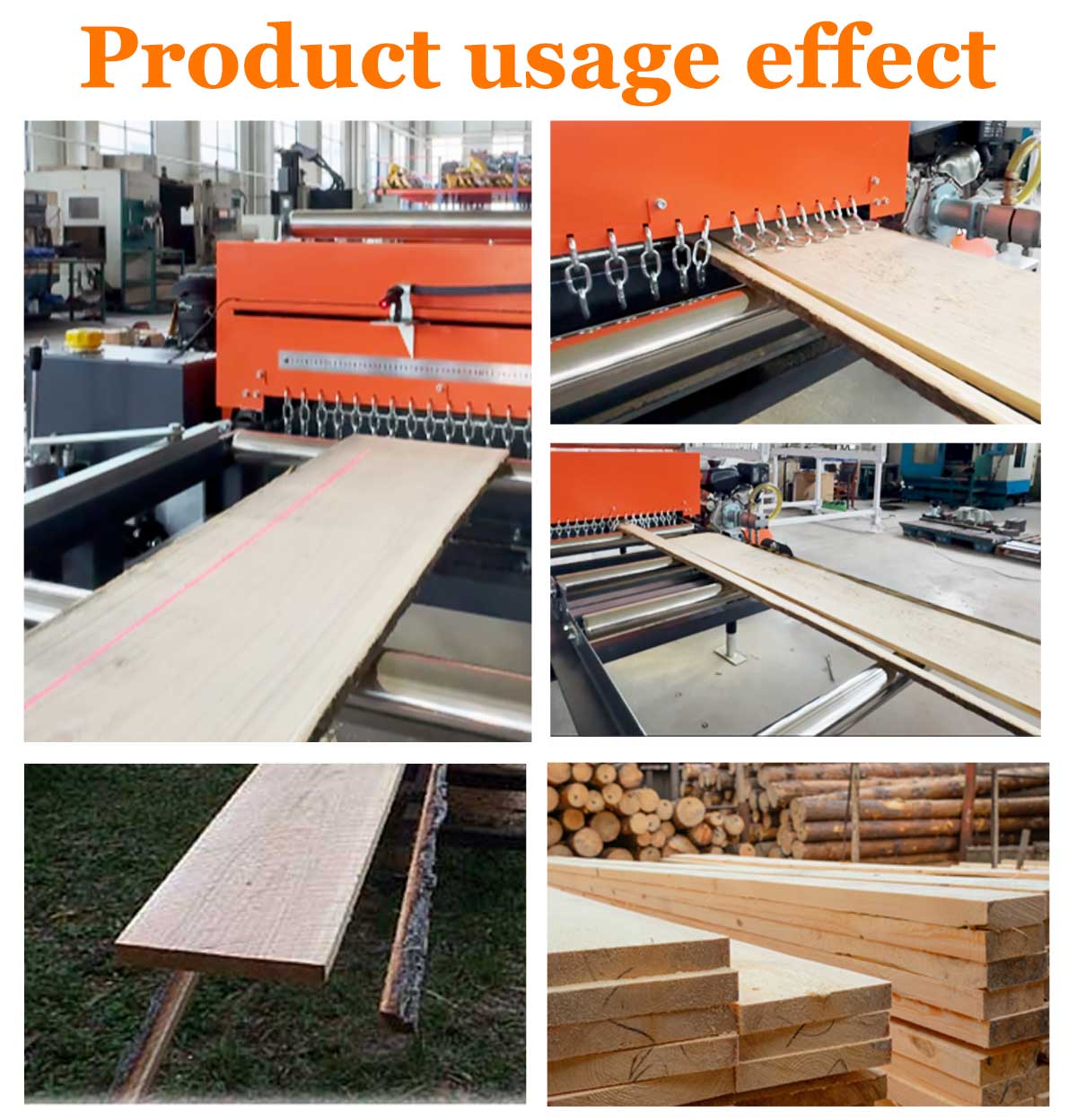

Product display
If you would like to know more information or have any questions, please feel free to contact us at any time. Contact us and you will receive a free brochure!
